Hoshizaki IM-50BAA-LM | Square Cube Icemaker | Air-cooled, 22 lbs c...

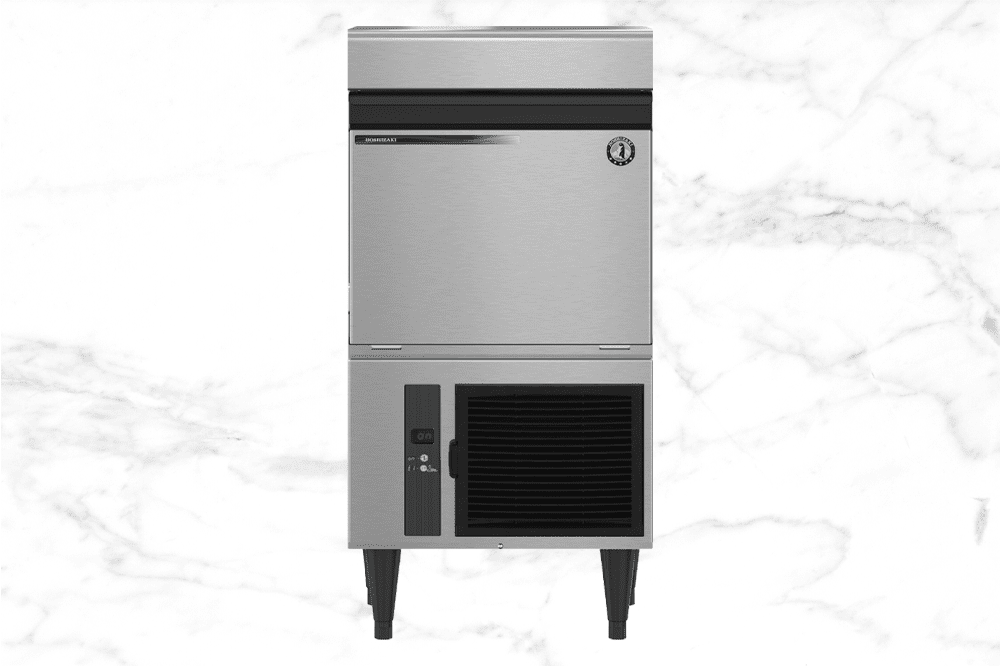

The IM-50BAA-LM by Hoshizaki is a compact, self-contained ice machine designed with large 2" square cube icemaker for small to medium-sized businesses. This versatile unit combines impressive ice production capacity of up to 50 lbs per day with a built-in 22 lb storage bin, making it ideal for bars, cafes, and small restaurants that offer superior chilling ability and an attractive appearance for discerning customers.
Key Specifications:
- Ice Production Capacity: Up to 50 lbs of ice (approximately 172 cubes) production per 24 hours.
- Storage Capacity: Built-in storage bin with 22 lb capacity.

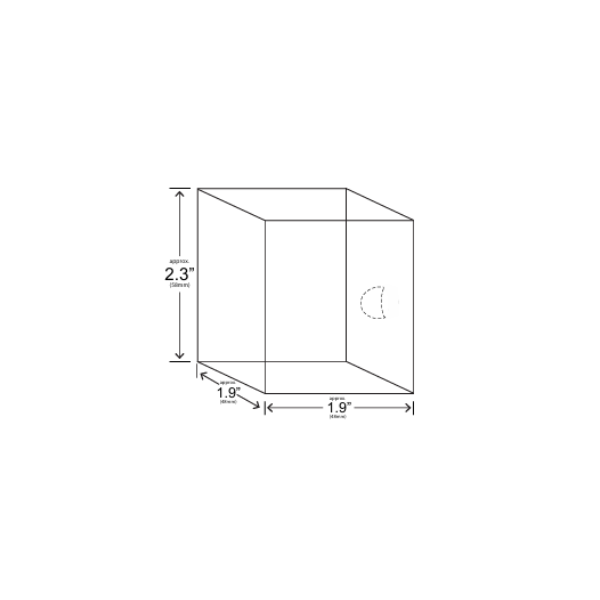

- Cube Size: Clear, solid 1.9" x 1.9" x 2.3" cubes, weighing approximately 4.2 oz each.
- Dimensions: Compact size of 19¾" W x 17¾" D x 39½" H, perfect for under-counter installation.
- Energy Efficiency: Uses 15.7 kWh per 100 lbs of ice production.
Features & Benefits:
- Space-Saving Design: Small footprint allows for easy under-counter placement. This maximizes space utilization in tight environments.
- Superior Ice Quality: Large, clear cubes melt slowly for effective cooling. They enhance customer experience by avoiding quick dilution of drinks.
- Durability: Stainless steel exterior resists wear and tear in commercial settings. It also simplifies cleaning, reducing maintenance costs over time.
- Contamination Protection: Closed water circuit prevents external contamination. This ensures safe and clean ice production consistently.
- Easy Maintenance: Removable air filter supports quick cleaning. Accessible components make servicing straightforward and efficient.
What's Included:
- IM-50BAA-LM Ice Machine unit
- Ice scoop
- 6.5' power cord with NEMA 5-15P plug
- Removable air filter
- Installation and operation manual
- Warranty documentation
FAQ
Q: What are the plumbing requirements for the IM-50BAA-LM?
A: The IM-50BAA-LM requires a minimum 1/2" Nominal ID Copper Water Tubing or equivalent for the water supply line. For drainage, it needs a minimum 3/4" Nominal ID Hard Pipe or equivalent. The unit operates with a water pressure range of 10-113 PSIG and a water temperature range of 45°F to 90°F.
Q: What is the warranty coverage for this ice machine?
A: Hoshizaki provides a 3-year parts and labor warranty on the entire machine. Additionally, there's a 5-year parts warranty on the compressor and air-cooled condenser coil. This warranty is valid in the United States, Canada, Puerto Rico, and U.S. Territories.
Q: Is this ice machine suitable for outdoor installation?
A: No, the IM-50BAA-LM is designed for indoor use only. It operates within an ambient temperature range of 45°F to 100°F, which is typical for indoor environments.
Q: Can filtration be added to the IM-50BAA-LM?
A: Yes. Hoshizaki offers compatible filtration systems including the H9320-51 Single 4HC-H Filter System, the H9655-11 Replacement Cartridge, and the 9795-80 Prefilter System. These options improve water quality and extend the life of the ice machine.
Detailed Features & Benefits
Ice Production and Storage: Produces up to 50 lbs of ice daily with a 22 lb built-in bin. This ensures a steady supply of large, clear cubes that melt slowly and maintain drink quality.
Energy Efficiency: Consumes only 15.7 kWh per 100 lbs of ice, reducing operational costs. The use of R134a refrigerant and HFC-free insulation supports environmental sustainability.
Compact Footprint: Designed for under-counter installation, the IM-50BAA-LM saves space. Its small footprint makes it ideal for bars, cafes, and restaurants with limited room.
Durability and Hygiene: Stainless steel exterior resists corrosion and simplifies cleaning. The closed water circuit ensures contamination protection and consistently safe ice production.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
