Elkay EDFPBM117C | Bi-Level In-Wall SwirlFlo Drinking Fountain | Fi...

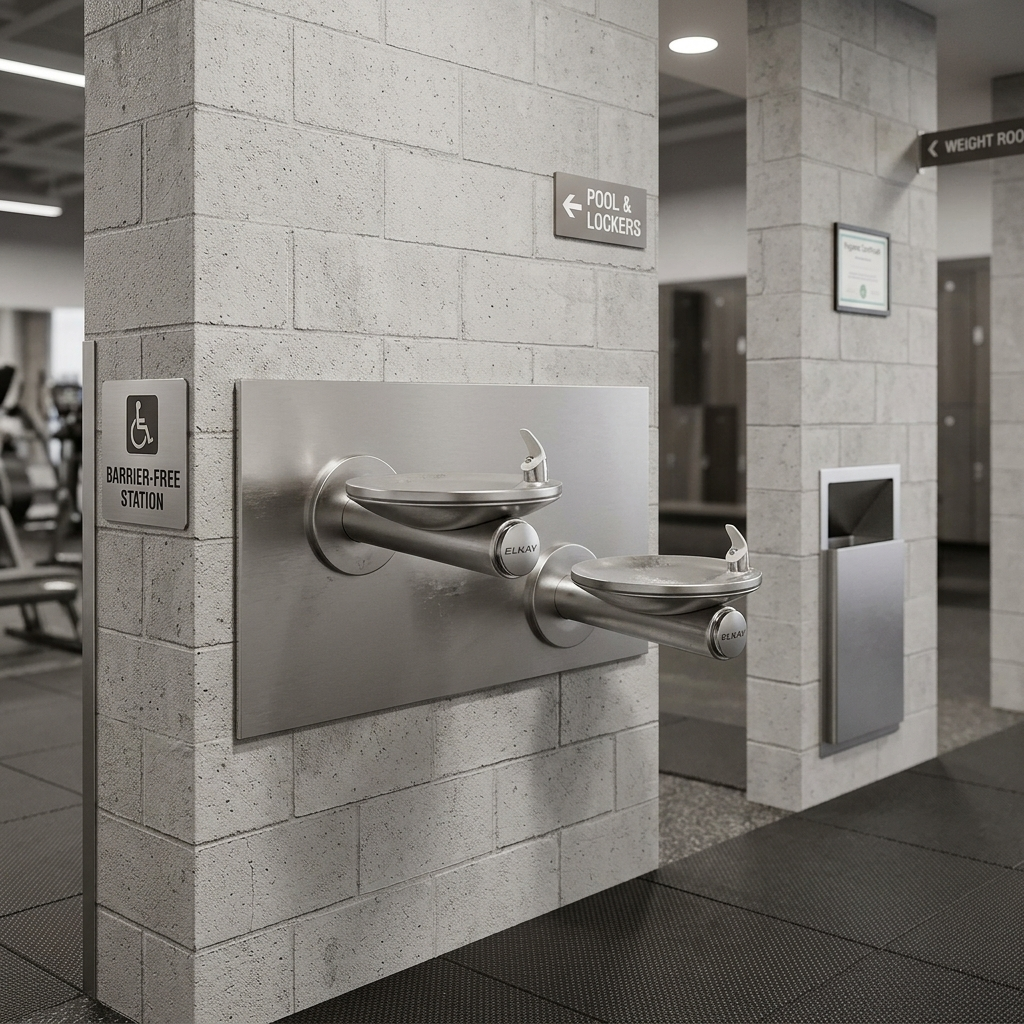

The Elkay EDFPBM117C is a SwirlFlo® bi‑level fountain with in‑wall carrier, non‑filtered and non‑refrigerated. Designed for indoor and outdoor wall‑mount installations, it provides dependable hydration for two stations with Flexi‑Guard® safety bubblers and mechanical front push‑button activation.
Key Specifications:
- Design: SwirlFlo® bi‑level fountain with in‑wall carrier
- Finish: Stainless Steel
- Filtration: Non‑filtered, but can be retrofitted using the EWF172 Watersentry VII Filter Kit
- Refrigeration: Non‑refrigerated; for filtered and refrigerated option choose LRPBM28K
- Stations Served: 2 (bi level drinking fountains)
Features & Benefits:
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards when installed properly
- Durable Construction: Stainless steel finish with in‑wall carrier for long service life
- Reliable Hydration: Mechanical push‑button activation ensures water flow without electricity
- Indoor + Outdoor Use: Suitable for a variety of environments when properly winterized or protected in extreme climates
- Certified Compliance: ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372
What's Included:
- EDFPBM117C Bi‑Level Fountain
- Back plate and surface mounting hardware
- Installation instructions (PDF)
- Warranty documentation
FAQ
Q: What Is the Recommended Supply Line Pressure?
A: The EDFPBM117C is designed to operate on 20–105 PSI supply line pressure. If inlet pressure is above 105 PSI, a pressure regulator must be installed.
Q: How Is the Bubbler Stream Height Adjusted?
A: Stream height is factory set at 35 PSI. If supply pressure varies, remove the push button and adjust the screw on the regulator. Clockwise raises stream height, counterclockwise lowers it. For best adjustment, the stream should hit the basin approximately 6‑1/2" from the bubbler.
Q: Can the EDFPBM117C Be Retrofitted With Filtration?
A: Yes. It can be retrofitted using the EWF172 Watersentry VII Filter Kit for cleaner, better‑tasting water.
Q: What Accessories Are Available?
A: Optional accessories include access panels such as the AP99 and ACCESS12X38-5 stainless steel panel for bi‑level installations.
Q: Is the EDFPBM117C Refrigerated?
A: No. For filtered and refrigerated option, choose the LRPBM28K.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

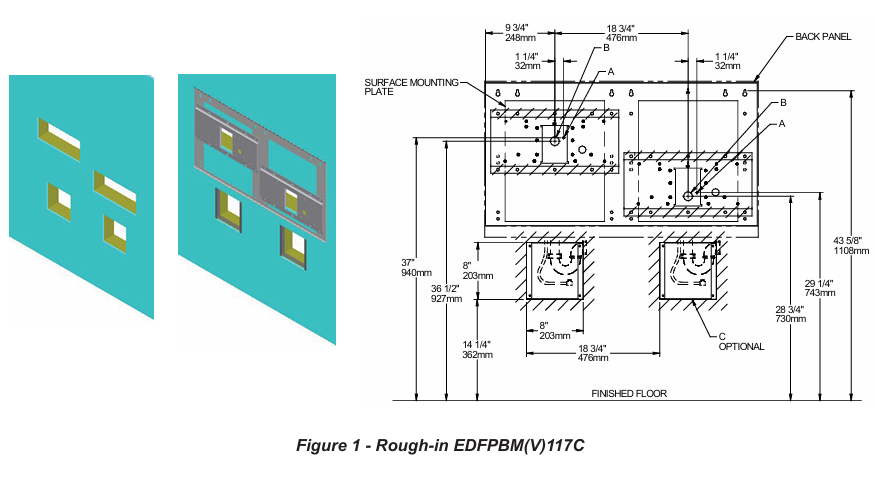

- Prepare wall framing to support unit weight and follow rough‑in dimensions provided in the package manual.
- Install water inlet and drain line per rough‑in guide.
- Mount back panel securely using hanger bracket or wall plate assembly.
- Attach fountain body with supplied hardware and tighten securely.
- Connect water supply line, flush thoroughly, and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice periodically; clean if flow is irregular.
- Adjust stream regulator as needed to maintain proper flow.
- Check quick‑connect fittings for leaks and reseat tubing if necessary.
- Clean basin and exterior surfaces with non‑abrasive cleaner.
- For service or repairs, consult the manual or a licensed plumber.
