Elkay LZ8WSSSMC | EZH2O Surface Mount Bottle Filling Station | Filt...

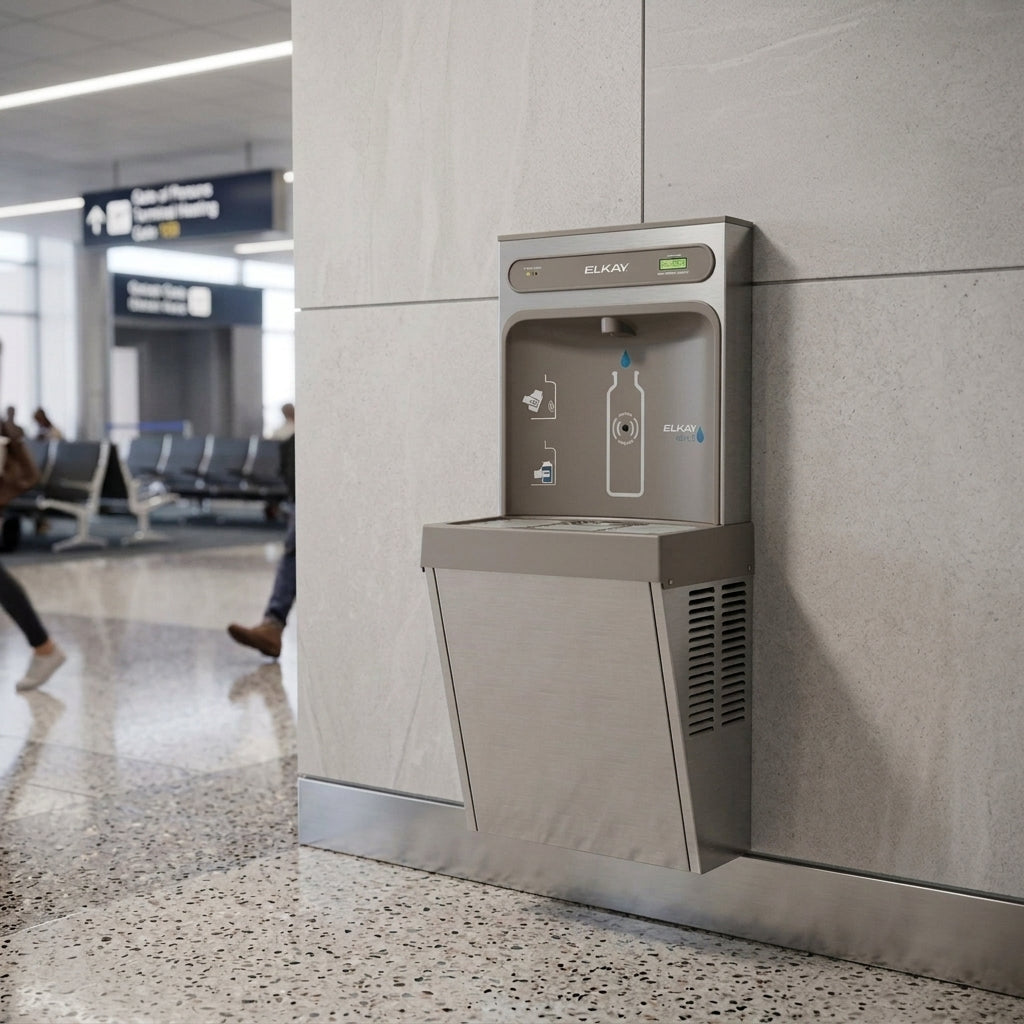

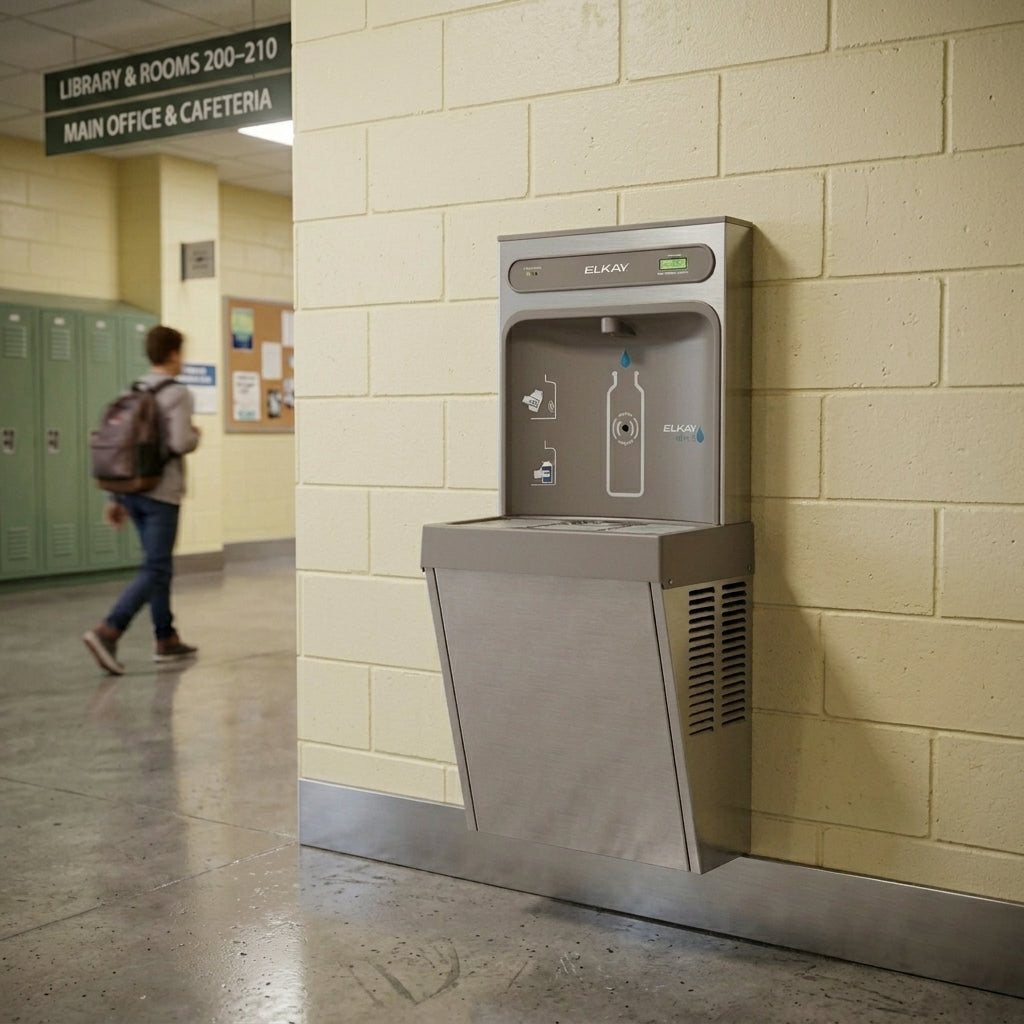

The Elkay LZ8WSSSMC EZH2O® Refrigerated Surface Mount Bottle Filler combines functionality, sustainability, and user-friendly design to provide a superior hydration solution for any indoor environment. Its blend of features promotes both health and environmental consciousness, making it an excellent choice for schools, offices, gyms, and other commercial spaces.
Key Specifications:
- Design: Surface-mounted refrigerated bottle filling station with reduced 12" wall projection
- Finish: Stainless steel construction with removable grate for easy cleaning
- Filtration: Includes 51300C WaterSentry® Plus Filter, NSF 42/53 certified, 3,000-gallon capacity
- Refrigeration: Provides 8.0 GPH of 50°F chilled water, tested to ASHRAE 18 standards
- Stations Served: 1 station (bottle filler only, no fountain)
Features & Benefits:
- Hygiene First: Touchless sensor activation with Real Drain™ system to eliminate standing water
- Sustainability: Green Ticker™ displays bottles saved, reducing single-use plastic waste
- Space-Saving: Slim profile design ideal for shallow walls and tight spaces
- Low Maintenance: Front-access filter replacement with LED visual monitor
- Reliable Cooling: Consistent chilled water output for busy environments
What's Included:
- LZ8WSSSMC Bottle Filling Station
- Wall mounting plate and hardware
- WaterSentry® Plus filter cartridge
FAQ
Q: How Often Should the Filter Be Replaced?
A: The filter should be replaced when the LED indicator turns red, typically after 3,000 gallons or 12 months, whichever comes first.
Q: Is This Unit Suitable for Outdoor Installation?
A: No, the LZ8WSSSMC is designed for indoor use only and should not be installed outdoors or in humid environments.
Q: What Is the Water Flow Rate of This Unit?
A: The fill rate is 1.1 GPM, providing a clean fill with minimal splash.
Q: Does This Unit Require a Dedicated Electrical Circuit?
A: Yes, it is recommended to install the unit on a dedicated 20A circuit for optimal performance.
Q: What Warranty Does the LZ8WSSSMC Include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.
Q: What Filter Does the LZ8WSSSMC Use? Is a Filter Included?
A: The LZ8WSSSMC uses the Elkay 51300C WaterSentry® Plus Filter. One filter cartridge is included with purchase.
Detailed Features & Benefits
Touchless Operation:
Sensor-activated bottle filler for hands-free use
Automatic 20-second shut-off timer for safety and conservation
Filtered Water:
3,000-gallon capacity filter certified to NSF 42 and 53 standards
Reduces lead, chlorine, taste, odor, microplastics, and Class 1 particulates
Visual filter monitor with LED indicator for easy maintenance
Chilling System:
8.0 GPH chilling capacity for consistently cold water
Hermetically sealed refrigeration system for efficient cooling
Green Ticker™:
Displays number of 20 oz. plastic bottles saved from waste
Promotes environmental awareness and sustainability
Design and Construction:
Reduced 12" wall projection for space-efficient installation
Stainless steel construction for durability and easy cleaning
Removable stainless steel grate for convenient basin cleaning
Accessibility:
ADA compliant design for universal access
Wall-mount installation allows for flexible placement
Real Drain System:
Eliminates standing water for improved hygiene
Helps prevent potential bacterial growth
Easy Maintenance:
Front panel filter access for simple filter replacement
Safety and Compliance:
UL 399 and CAN/CSA C22.2 No. 120 certified for electrical safety
NSF 372 (lead-free) and NSF 61 certified for water safety
Meets ADA & ICC A117.1 accessibility standards
Made in USA:
Manufactured in the United States for quality assurance
Supports domestic manufacturing and jobs
Comparison: LZ8WSSSMC vs. LZSTL8WSLK
| Feature | LZ8WSSSMC | LZSTL8WSLK |
|---|---|---|
| Mounting Type | Surface Mount (On Wall) | Wall Mount (On Wall) |
| Stations Served | 1 Station (Bottle Filler Only) | 2 Stations (Bi-Level Cooler + Bottle Filler) |
| Finish | Stainless Steel | Light Gray Granite |
| Filtration | Filtered (3,000 Gal, 51300C Included) | Filtered (3,000 Gal, 51300C Included) |
| Chilling Capacity | 8.0 GPH | 8.0 GPH |
| Activation | Electronic Sensor (Touchless) | Electronic Sensor + Pushbar Bubblers |
| ADA Compliance | Yes | Yes (Bi-Level ADA Design) |
| Dimensions (L × W × H) | 17-7/8" × 11-7/8" × 41-1/4" | 36-3/4" × 19" × 39-1/2" |
| Approx. Shipping Weight | 64 lbs. | 104 lbs. |
| Best Use Case | Compact spaces or shallow walls | High-traffic areas needing dual access |
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Remove the front cover of the Elkay LZ8WSSSMC by loosening the two 5/16" hex screws on the underside of the cooler.
- Detach the hanger bracket and secure it to the wall using five screws in 7/16" diameter mounting holes; add a support carrier if wall strength is insufficient.
- Hang the Elkay LZ8WSSSMC onto the bracket and fasten with two additional mounting screws to secure the frame to the wall.
- Connect the 3/8" O.D. copper water supply line to the shut‑off valve; ensure supply pressure is between 20–105 psi (filtered Elkay LZ8WSSSMC units require minimum 40 psi).
- Install the waste outlet using 1‑1/4" drain pipe extending 2" from the wall; connect to a P‑trap provided by installer.
- Maintain at least 6" clearance from cabinet louvers to wall for ventilation; install on a grounded 115V, 60Hz, 20A GFCI‑protected circuit.
- Mount the bottle filler: remove the top cover, secure the wall plate above the basin with six 7/16" screws, then set the filler onto the basin and attach to angled tabs on the plate.
- Feed the power cord and 3/8" water line through the basin and cooler, then connect internally to the Elkay LZ8WSSSMC cooler fittings.
- Install the filter cartridge (filtered Elkay LZ8WSSSMC units only): remove protective cap, mark installation date, and insert firmly into the filter head with label facing outward.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Inspect all drain and water connections on the Elkay LZ8WSSSMC regularly for leaks; tighten or reseal as needed.
- Replace the filter annually or when the LED indicator shows red; reset the filter monitor after replacement.
- Flush at least two gallons of water after filter changes to purge air and carbon particles.
- Clean exterior panels of the Elkay LZ8WSSSMC with mild soap and water; avoid harsh chemicals or abrasives that may damage the finish.
- Check the sensor operation and bottle counter display; reset bottle count if required through the programming menu.
- Verify water pressure remains within the recommended range for consistent performance.
- Disconnect power before servicing internal components of the Elkay LZ8WSSSMC to avoid electrical hazards.
- For service or repairs, consult the manual or a certified service representative.
