Elkay LZWS-LRPBM28K | In-wall Bottle Filling Station & SwirlFlo...

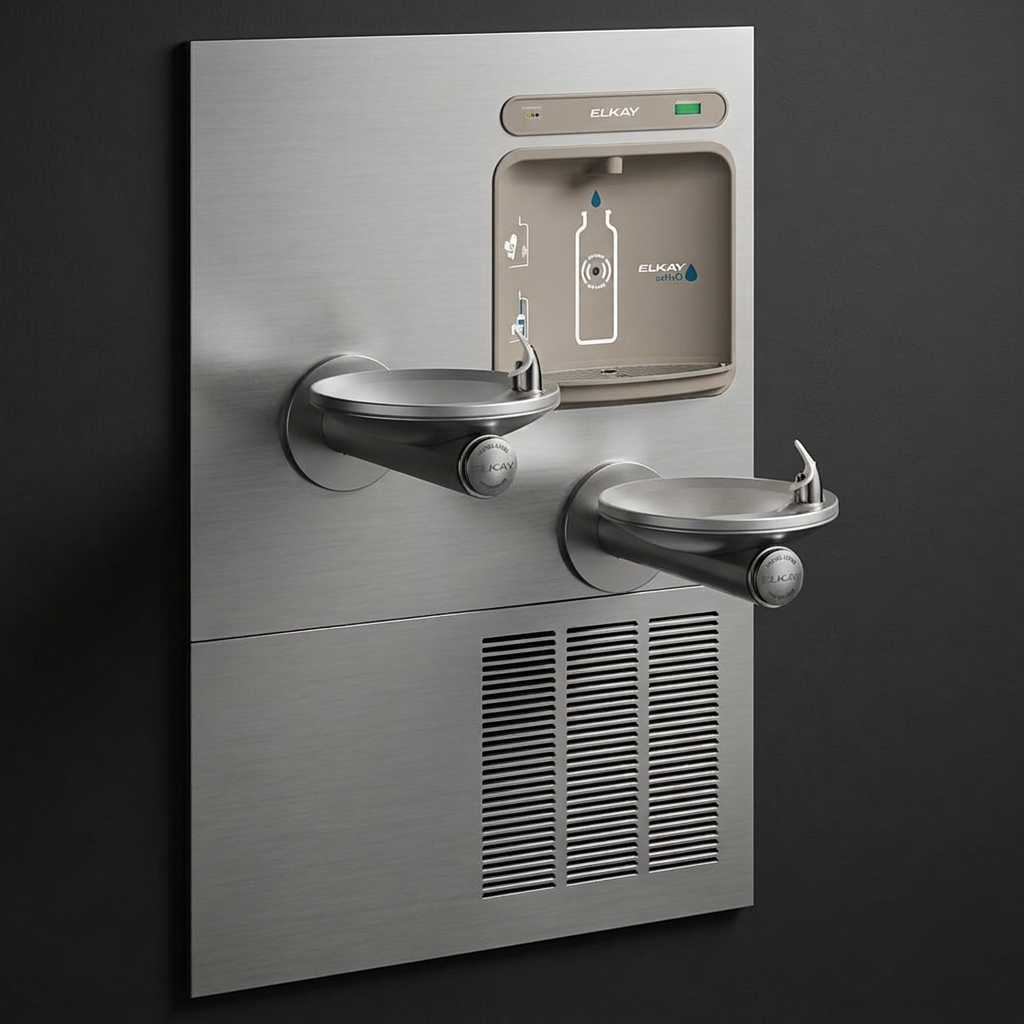

The Elkay LZWS-LRPBM28K ezH2O® Bottle Filling Station with Bi-Level SwirlFlo® Fountain delivers filtered, refrigerated hydration in a durable stainless steel design. Combining a touchless sensor-activated bottle filler with mechanical push-button bubblers, this in-wall unit is ideal for high-traffic indoor environments seeking ADA-compliant, sustainable hydration solutions.
Key Specifications:
| Design | In-wall bi-level fountain with integral bottle filler, electronic sensor activation, and mechanical bubbler push buttons |
| Finish | Stainless steel |
| Filtration | Includes 51300C WaterSentry® Plus Filter, NSF 42/53 certified, 3,000-gallon capacity |
| Refrigeration | 8.0 GPH chilled water capacity, tested to ASHRAE 18 standards |
| Stations Served | 2 stations (dual-level fountains + bottle filler) |
Features & Benefits:
- Touchless Hygiene: Sensor-activated bottle filler reduces cross-contamination
- Green Ticker™: Displays the number of plastic bottles saved from waste
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Antimicrobial Protection: Key plastic components feature silver ion agents to resist mold and odors
- Real Drain System: Eliminates standing water for improved hygiene and reduced maintenance
What's Included:
- Fountain with Integral Bottle Filling Station (LRPBD28WSC)
- Mounting Frame (MFWS210)
- Remote Chiller (ECH8)
- 51300C WaterSentry® Plus Filter
- Installation hardware and guide
Comparison of Elkay Bottle Filling Stations:
| Feature | LZWS-LRPBM28K (This Model) | LZ8WSSSMC | LZSTL8WSLK |
|---|---|---|---|
| Design | In-wall bi-level fountain with bottle filler | Surface-mount bottle filler only | Wall-mount bi-level cooler with bottle filler |
| Finish | Stainless steel | Stainless steel | Light Gray Granite |
| Stations Served | 2 (dual-level fountains + bottle filler) | 1 (bottle filler only) | 2 (two fountains + bottle filler) |
| Best For | Indoor facilities needing ADA-compliant dual-level hydration | Compact installations needing a surface-mount bottle filler | Schools and offices needing bi-level fountains with bottle filling |
How to Maintain Elkay LZWS-LRPBM28K:
- Clean exterior panels regularly with mild soap and water; avoid abrasive or petroleum-based cleaners.
- Inspect and sanitize the bottle filler nozzle and bubbler heads to maintain hygiene in high-traffic areas.
- Check the Green Ticker™ and LED filter monitor; replace the 51300C WaterSentry® Plus Filter when capacity is reached or indicator alerts.
- Vacuum or wipe down ventilation louvers and condenser area to ensure proper airflow for refrigeration.
- Test sensor activation and push-button bubblers periodically to confirm consistent water flow and ADA compliance.
FAQ
Q: How Often Should The Filter Be Replaced On Elkay LZWS-LRPBM28K?
A: The 51300C WaterSentry® Plus Filter has a 3,000-gallon capacity. The LED monitor alerts when replacement is required.
Q: Is Elkay LZWS-LRPBM28K ADA Compliant?
A: Yes. It meets ADA & ICC A117.1 standards when installed according to guidelines.
Q: Can Elkay LZWS-LRPBM28K Be Installed Outdoors?
A: No. This model is designed for indoor applications only.
Q: What Warranty Is Provided For Elkay LZWS-LRPBM28K?
A: Elkay offers a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: What Accessories Are Available For Elkay LZWS-LRPBM28K?
A: Optional accessories include the LKAPR1 Cane Apron and the ACCESS12X38-5 Access Panel.
Q: How Do I Reset The Filter Monitor On Elkay LZWS-LRPBM28K?
A: Depress the program button for 2 seconds until “RST FLTR” appears, then press again to reset. The green LED will illuminate when reset is complete.
Q: What Makes Elkay LZWS-LRPBM28K Unique?
A: It combines a dual-level SwirlFlo® fountain with a touchless bottle filler, offering filtered, refrigerated hydration in one ADA-compliant unit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LZWS‑LRPBM28K is a bi‑level drinking fountain and bottle filling station combination. This filtered unit delivers chilled, cleaner water with dual ADA‑compliant access points and hands‑free sensor activation, making it ideal for schools, offices, and public facilities.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both fountain basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier securely to support dual fountain and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount fountain and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both fountains and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZWS‑LRPBM28K Spec Sheet and the Installation Manual.
