Elkay LZ8WSSSMC | EZH2O Surface Mount Bottle Filling Station | Filt...
In-Stock. Order before 3pm EST for same day shipping.

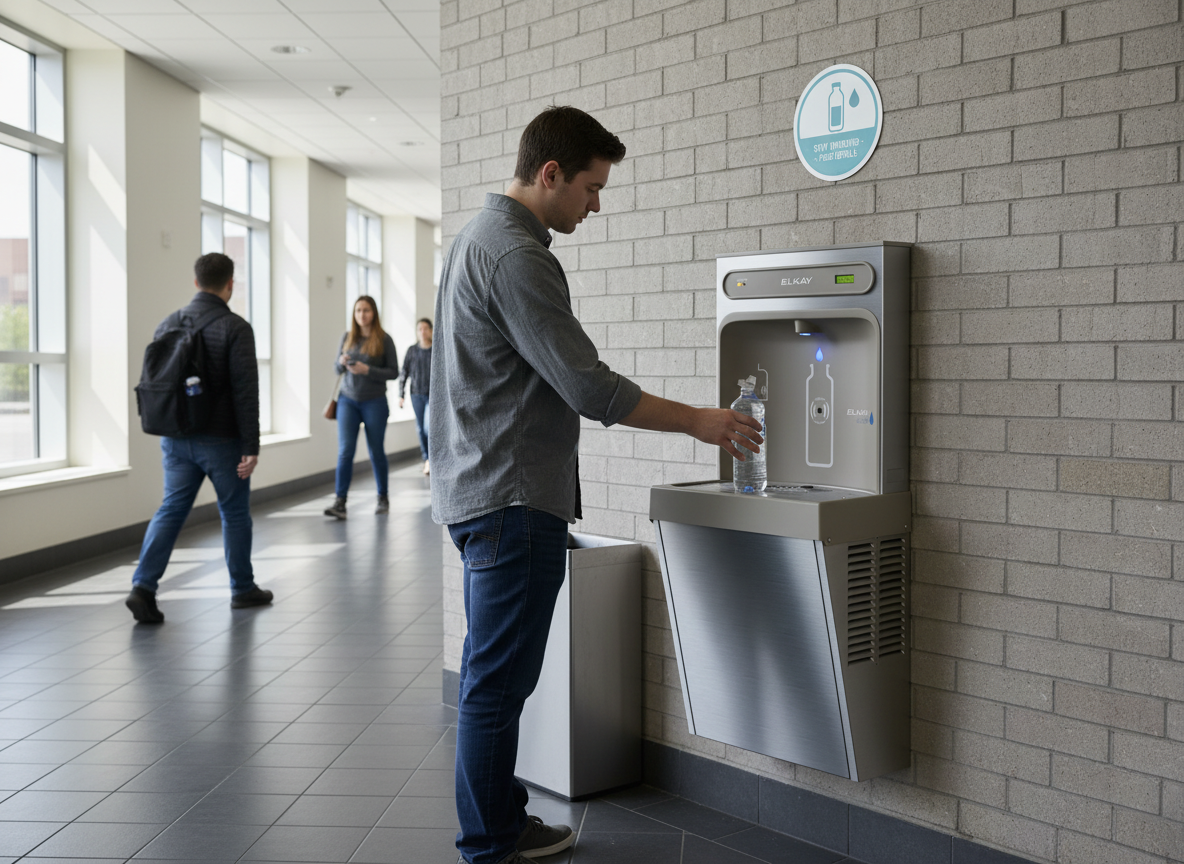

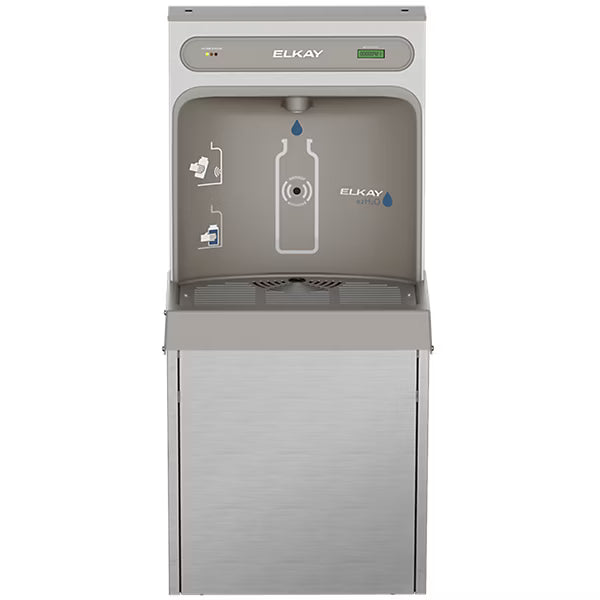

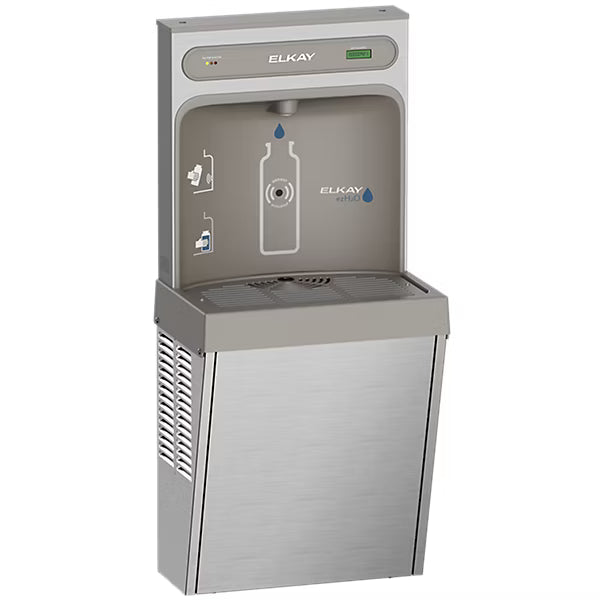

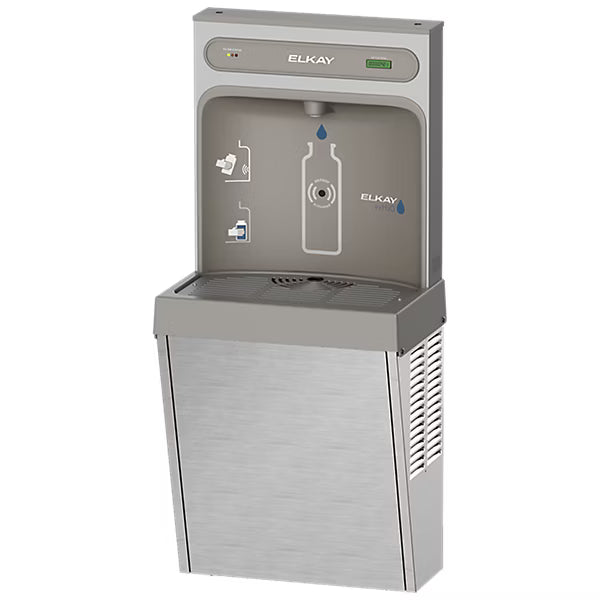

The Elkay LZ8WSSSMC is a high-performance, easy-to-install surface mount bottle filling station ideal for spaces with limited wall depth. This innovative unit promotes hydration and sustainability in your commercial or institutional setting.
Key Specifications
- Activation: Sensor-activated Bottle Filler. No fountain.
- Filter Capacity: 3,000 Gallons
- Filter Specs: Reduces lead, chlorine, taste, odor, and microplastics
- Refrigeration: 8.0 Gallons Per Hour capacity (GPH)
- Dimensions: 17-7/8" L × 11-7/8" W × 41-1/4" H
Key Features & Benefits
- Touchless, sensor-activated bottle filler for hygienic operation
- Green Ticker™ displays number of 20 oz. plastic bottles saved from waste
- Refrigerated unit provides chilled water for refreshing drinks
- ADA compliant design ensures accessibility for all users
- 3,000-gallon filter certified to NSF 42 and 53 for contaminant reduction
What's Included
- LZ8WSSSMC Bottle Filling Station and Cooler unit
- Wall mounting plate and hardware
- Filter cartridge
FAQ
Q: How often should the filter be replaced?
A: The filter should be replaced when the LED indicator turns red, typically after 3,000 gallons or 12 months, whichever comes first.
Q: Is this unit suitable for outdoor installation?
A: No, the LZ8WSSSMC is designed for indoor use only and should not be installed outdoors or in humid environments.
Q: What is the water flow rate of this unit?
A: The fill rate is 1.1 Gallons Per Minute (GPM), providing a clean fill with minimal splash.
Q: Does this unit require a dedicated electrical circuit?
A: Yes, it's recommended to install the unit on a dedicated 20A circuit for optimal performance.
Q: What warranty does the LZ8WSSSMC include?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system. Warranty applies to drinking water applications only.

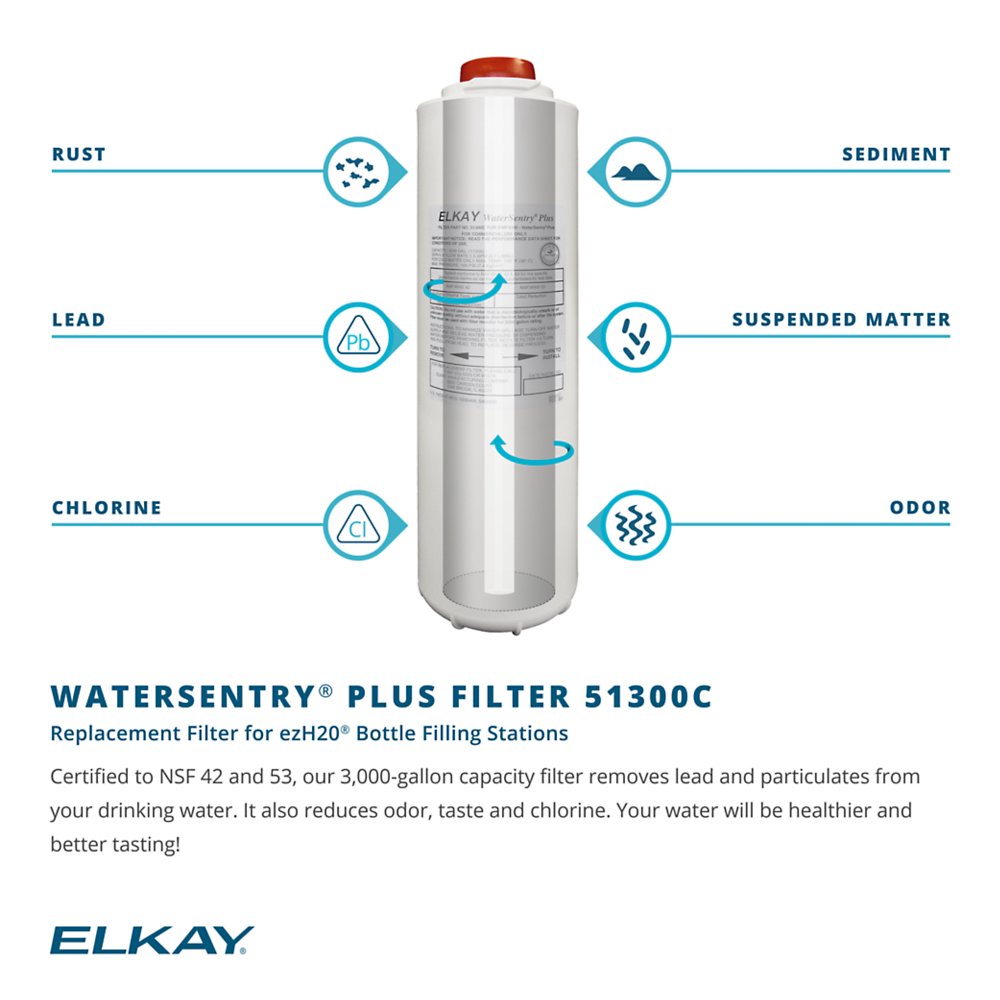

Q: What filter does the LZ8WSSSMC use? Is a filter included?
A: The LZ8WSSSMC uses the Elkay 51300C Filter and comes. One (1) filter is included with your purchase of the LZ8WSSSMC.

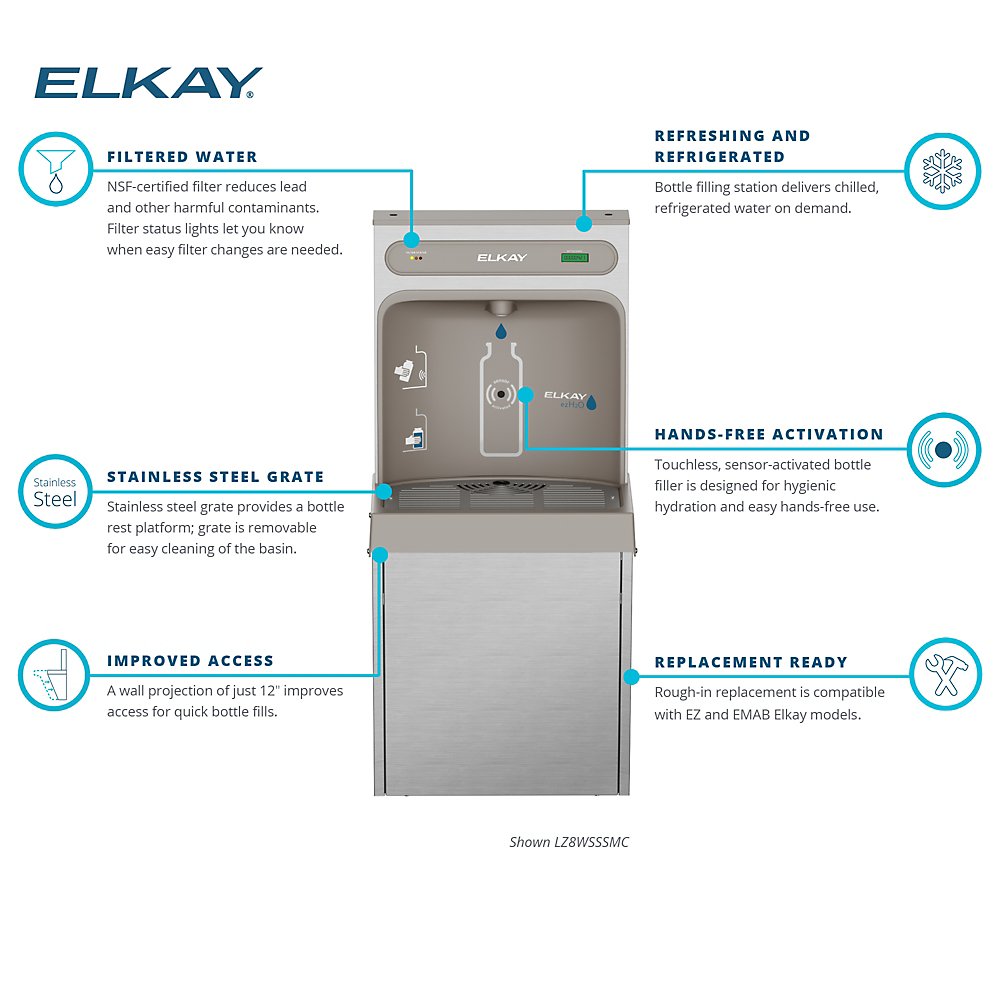

Detailed Features & Benefits
Touchless Operation:
Sensor-activated bottle filler for hands-free use
Automatic 20-second shut-off timer for safety and conservation
Filtered Water:
3,000-gallon capacity filter certified to NSF 42 and 53 standards
Reduces lead, chlorine, taste, odor, microplastics, and Class 1 particulates
Visual filter monitor with LED indicator for easy maintenance
Chilling System:
8.0 GPH chilling capacity for consistently cold water
Hermetically sealed refrigeration system for efficient cooling
Green Ticker™:
Displays number of 20 oz. plastic bottles saved from waste
Promotes environmental awareness and sustainability
Design and Construction:
Reduced 12" wall projection for space-efficient installation
Stainless steel construction for durability and easy cleaning
Removable stainless steel grate for convenient basin cleaning
Accessibility:
ADA compliant design for universal access
Wall-mount installation allows for flexible placement
Real Drain System:
Eliminates standing water for improved hygiene
Helps prevent potential bacterial growth
Easy Maintenance:
Front panel filter access for simple filter replacement
Safety and Compliance:
UL 399 and CAN/CSA C22.2 No. 120 certified for electrical safety
NSF 372 (lead-free) and NSF 61 certified for water safety
Meets ADA & ICC A117.1 accessibility standards
Made in USA:
Manufactured in the United States for quality assurance
Supports domestic manufacturing and jobs
The Elkay LZ8WSSSMC EZH2O Refrigerated Surface Mount Bottle Filling Station combines functionality, sustainability, and user-friendly design to provide a superior hydration solution for any indoor environment. Its blend of features promotes both health and environmental consciousness, making it an excellent choice for schools, offices, gyms, and other commercial spaces.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
*ASSEMBLED IN THE UNITED STATES.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
