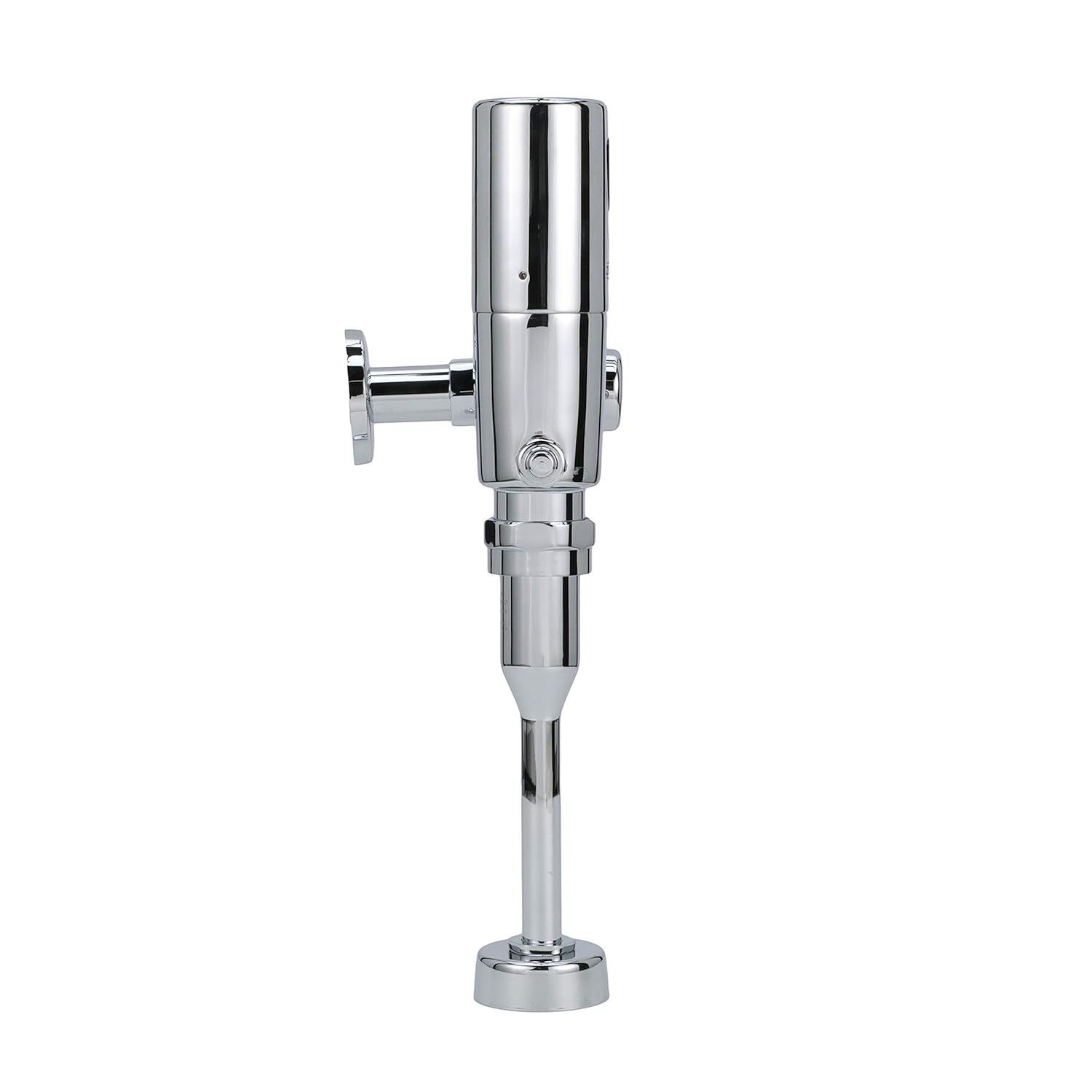

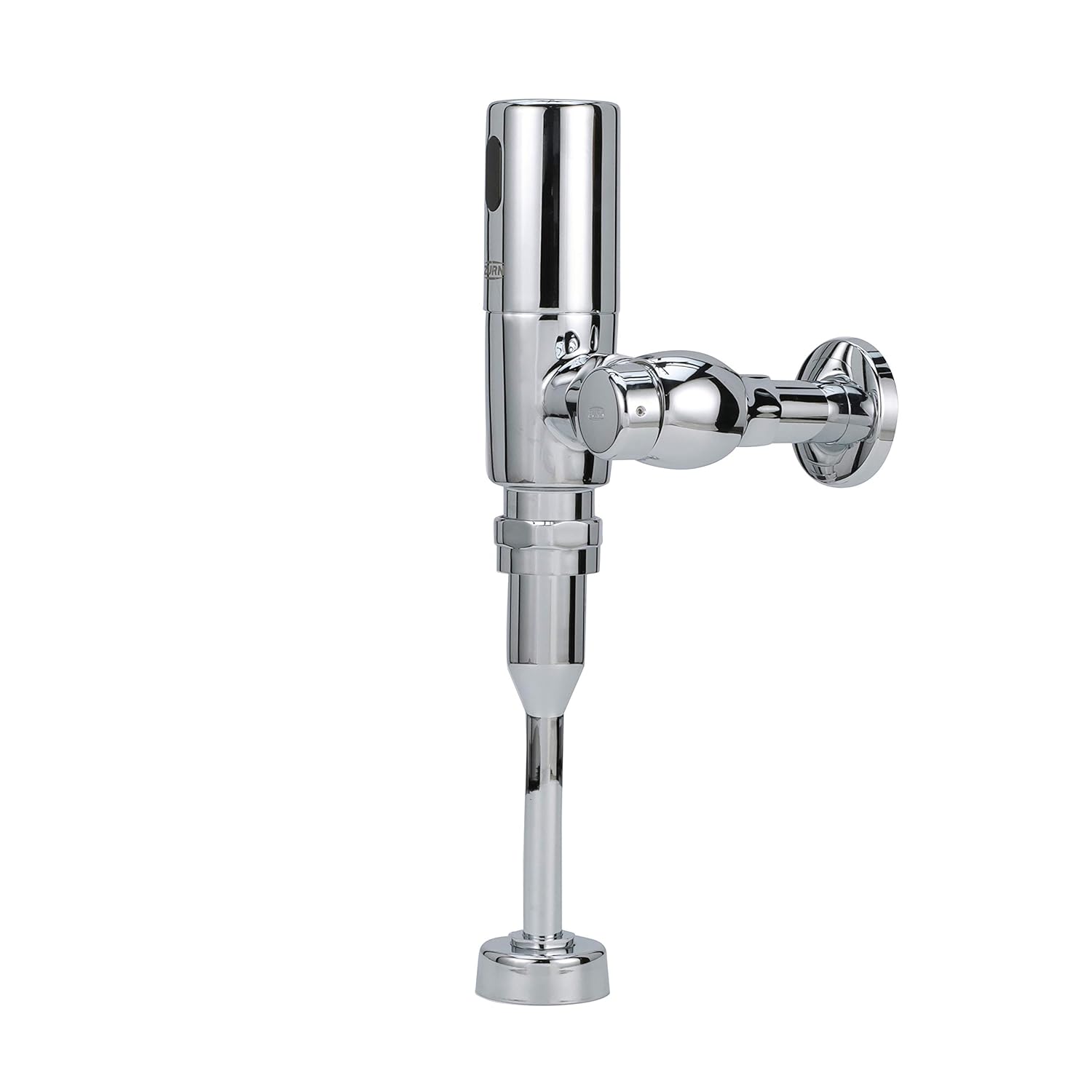

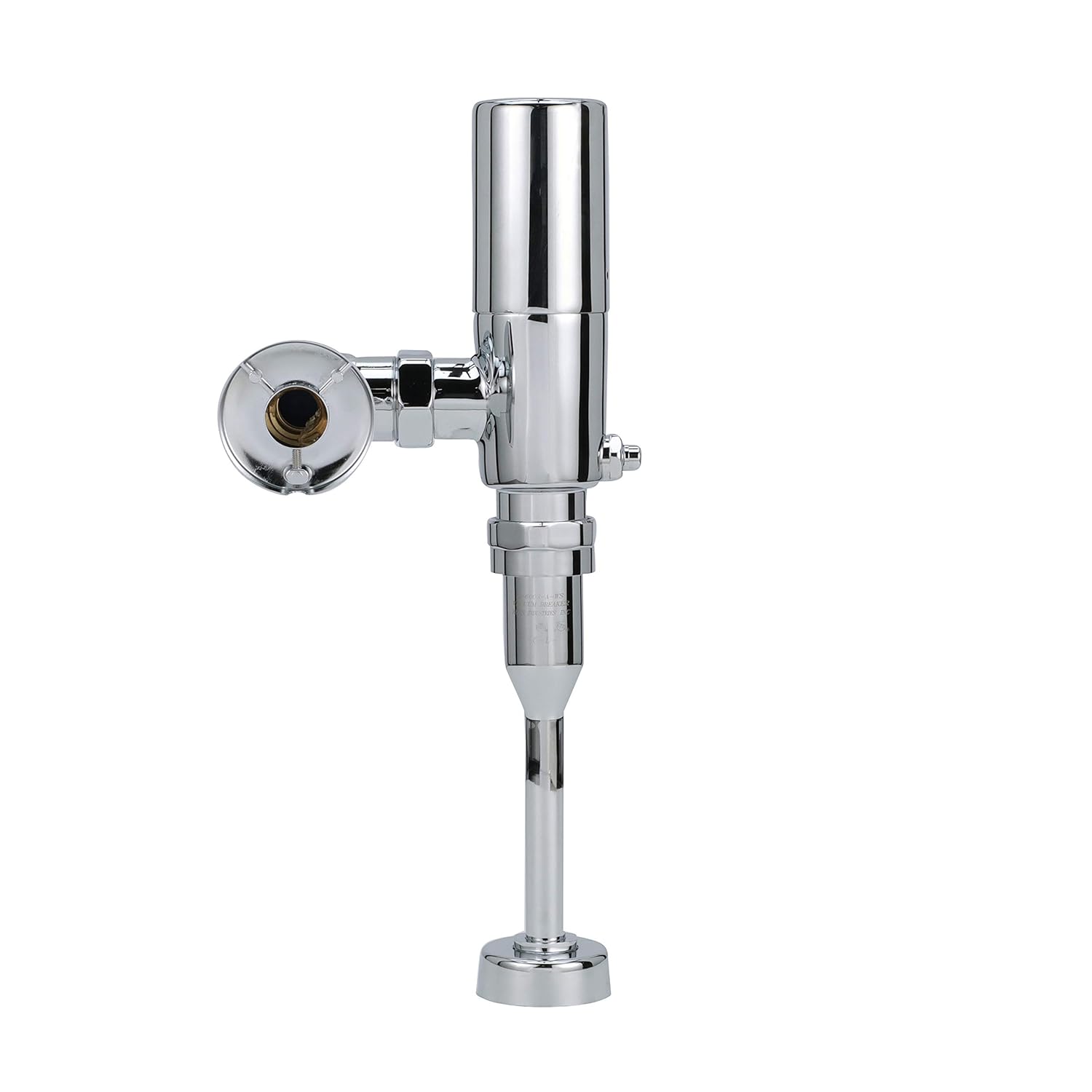

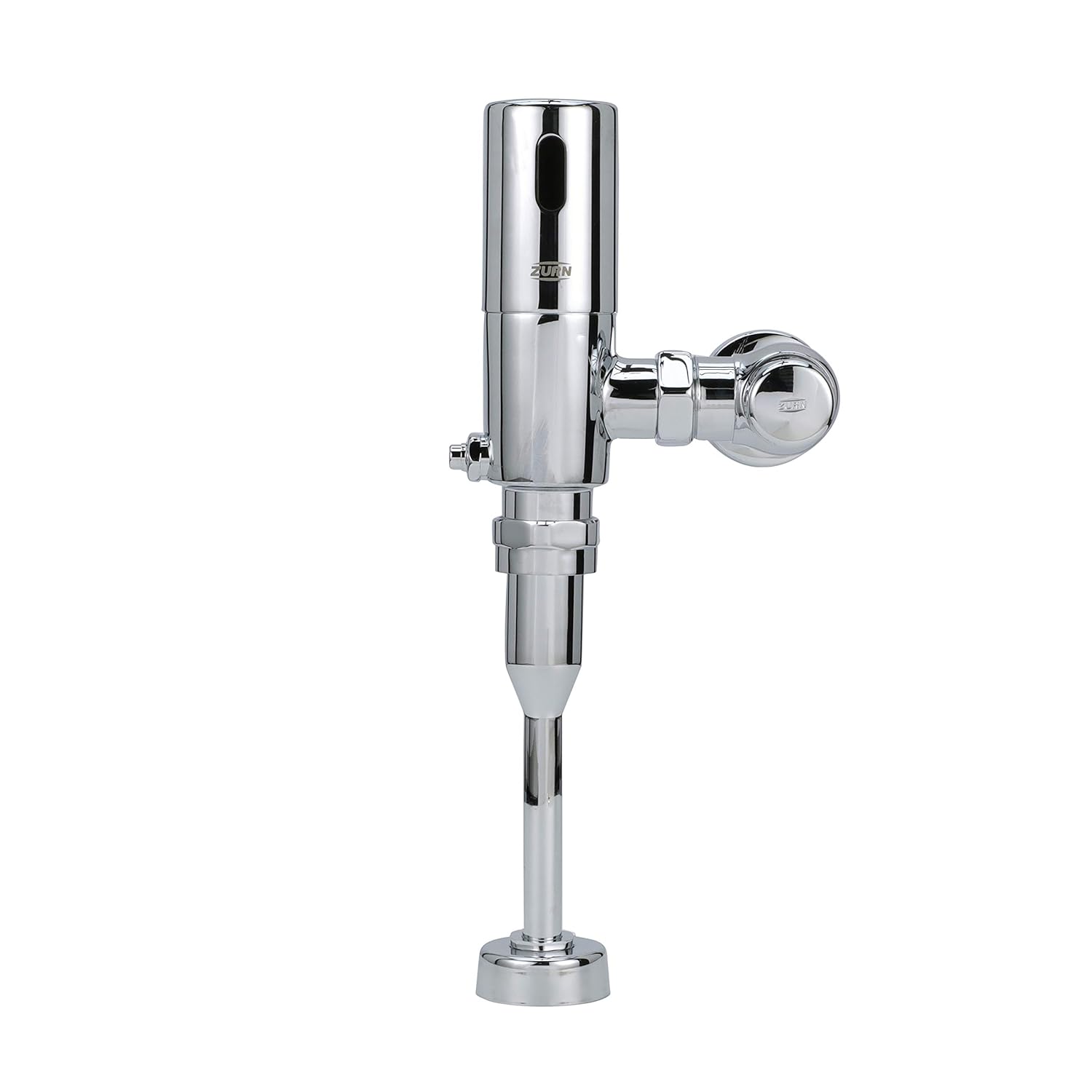

Zurn ZTR6203-EWS-LL | EcoVantage ZTR Exposed Sensor Piston Flush Va...
The ZTR6203-EWS-LL is a long-life, battery-powered sensor flush valve for urinals rated at 0.5 gallons per flush. Designed for high-traffic commercial restrooms, it features Zurn’s AquaSense® piston technology and a vandal-resistant metal sensor cap. The LL variant includes a 10-year lithium battery for reduced maintenance cycles and long-term reliability.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (Extra Water Saver).
- Operation: Sensor-activated flush with mechanical override button (MOB).
- Battery Type: 10-year lithium cell (included).
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Extended Battery Life: The LL model includes a factory-installed lithium battery rated for up to 10 years, minimizing service interruptions and battery replacements.
- Touchless Hygiene: Infrared sensor enables hands-free operation. Manual override button allows flushing during maintenance or sensor recalibration.
- Commercial Durability: Vandal-resistant metal sensor cap, filtered piston kit, and dezincification-resistant brass body ensure long-term performance in public environments.
What's Included:
- 1 x ZTR6203-EWS-LL Exposed Urinal Flush Valve
- 1 x Sensor Cap Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Installation Hardware
- 1 x 10-Year Lithium Battery (Pre-installed)
Options Available:
- ZTR6203-EWS: Same flush volume (0.5 gpf) with standard alkaline battery pack
FAQ
Q: How long does the lithium battery last?
A: The LL model includes a 10-year lithium battery designed for extended service intervals in high-use environments.
Q: Is this valve compatible with all urinals?
A: The ZTR6203-EWS-LL is designed for 3/4" top spud urinals rated for 0.5 gpf. Always confirm fixture compatibility before installation.
Detailed Features & Benefits
Sensor Accuracy: Factory-calibrated infrared sensor with courtesy flush and LED indicators. DIP switch settings allow customization for specific restroom layouts.
Water Efficiency: The EWS designation supports WaterSense compliance and LEED credits when paired with compatible urinals.
Maintenance Reduction: The LL variant eliminates frequent battery changes, ideal for facilities with limited access or high usage.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
