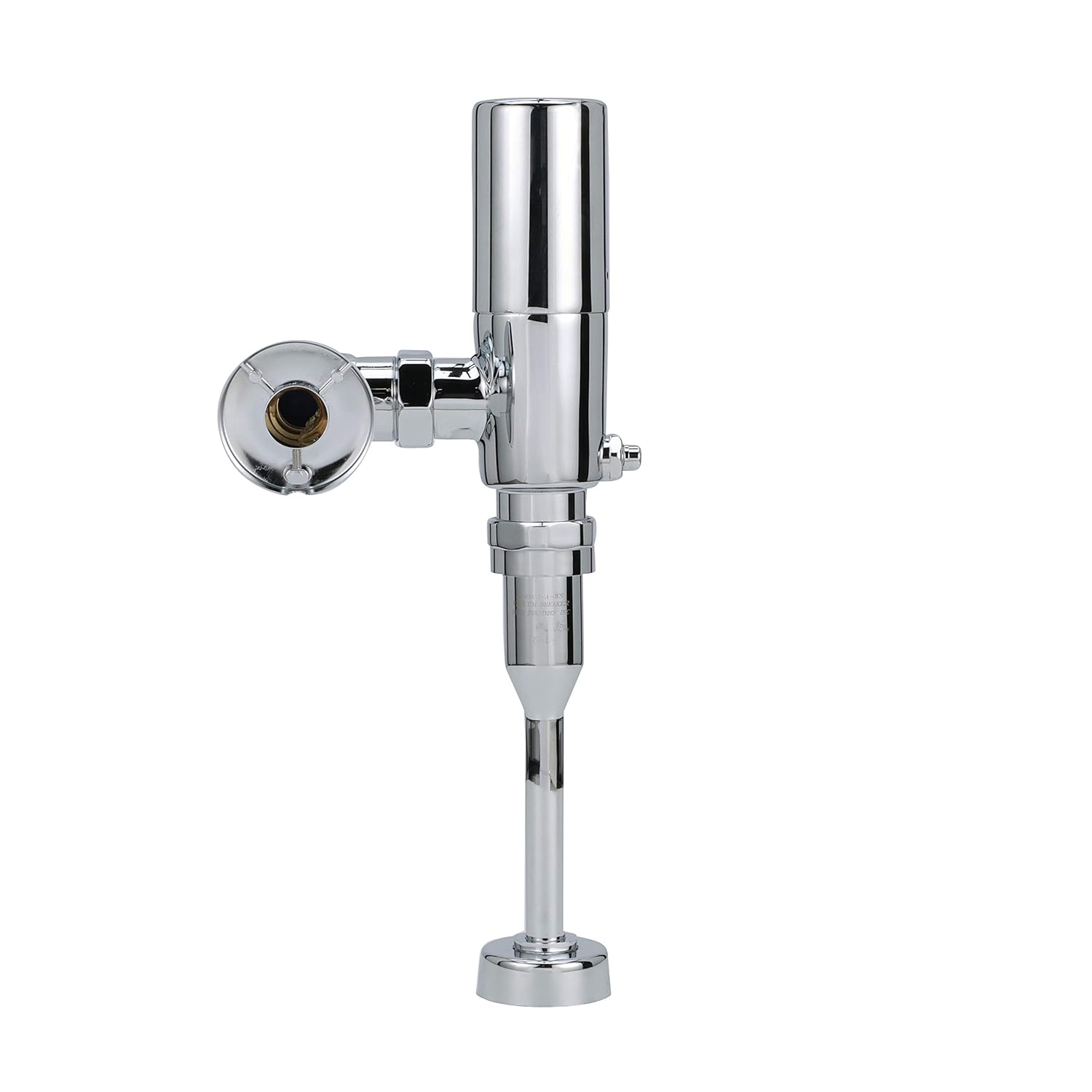

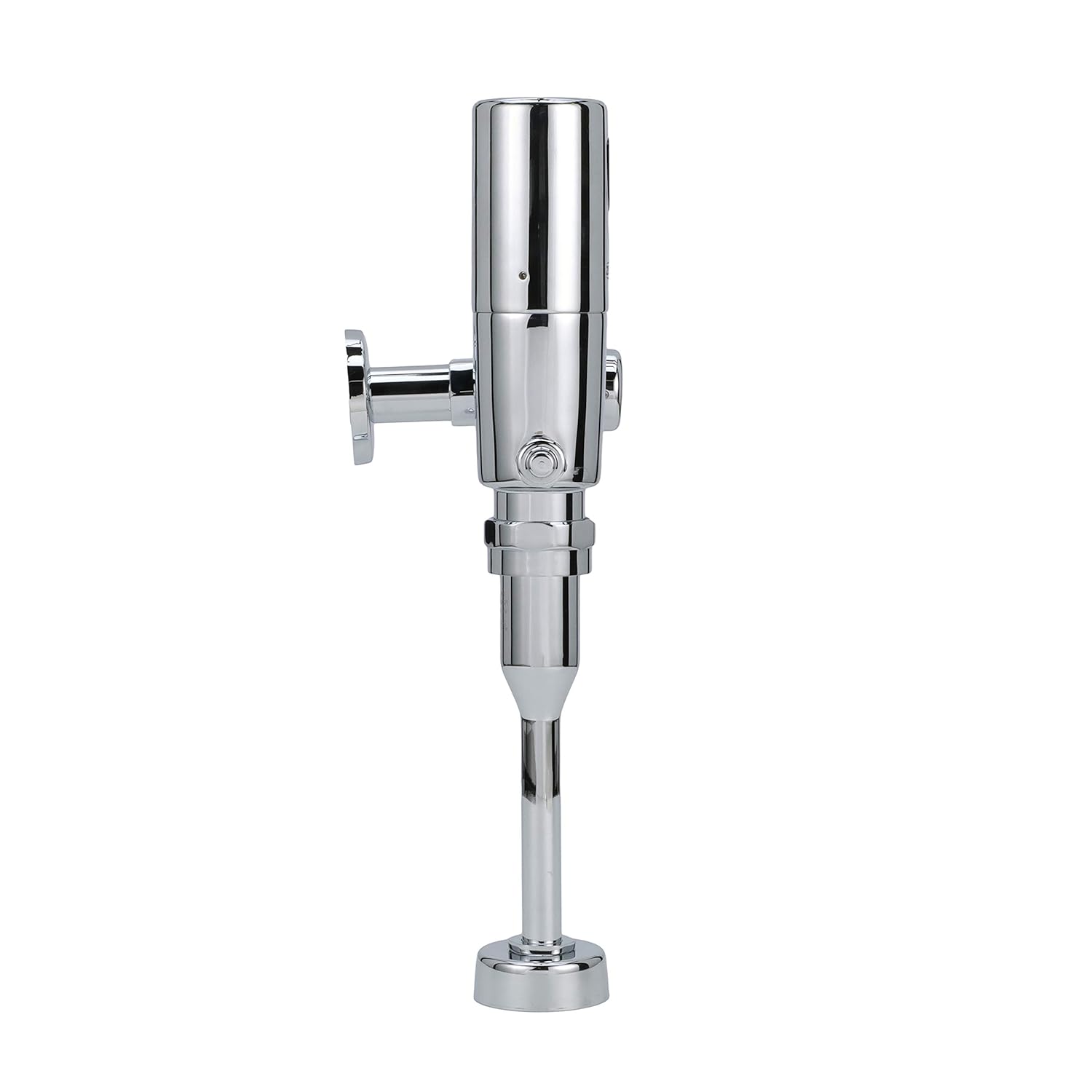

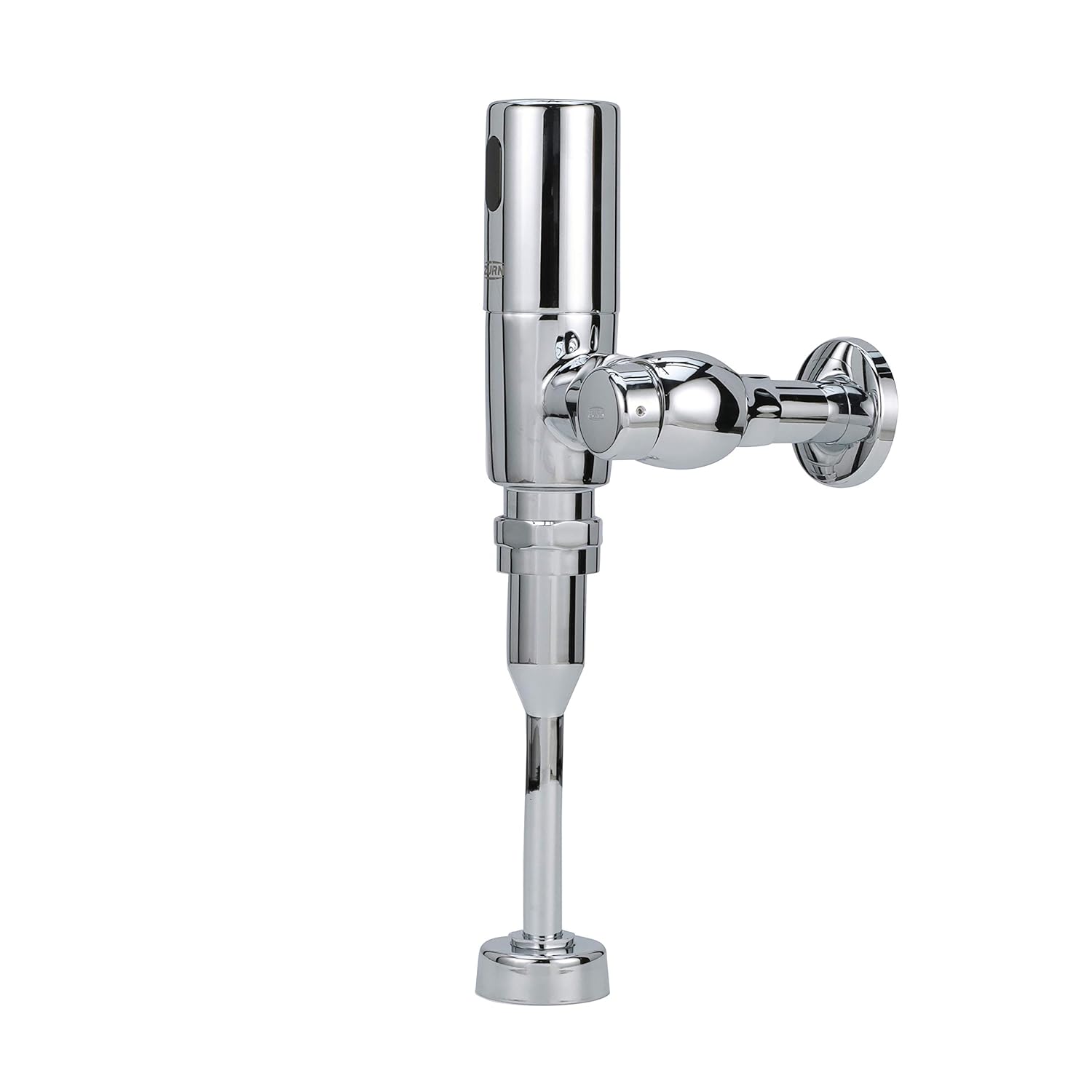

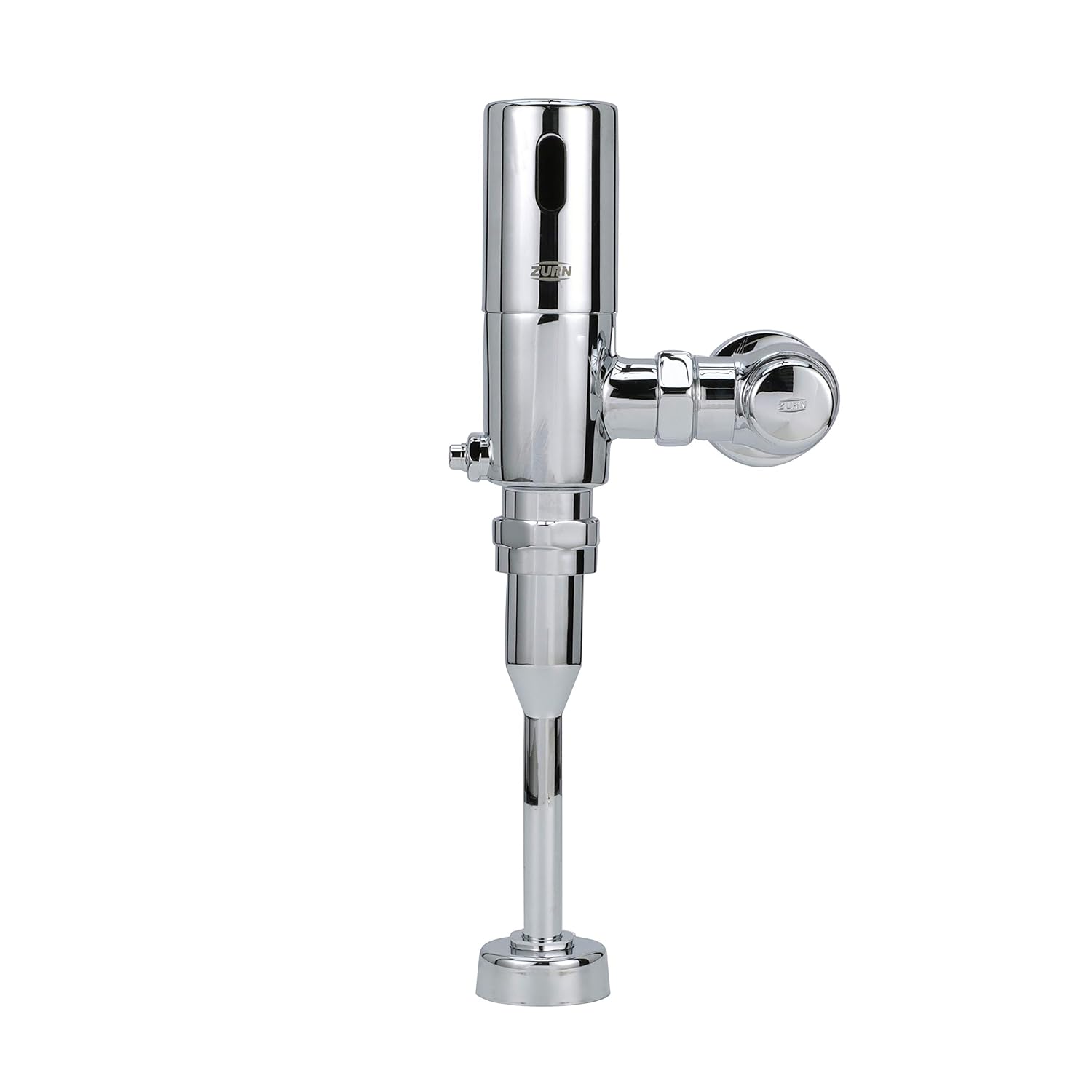

Zurn ZTR6203-EWS | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.5 GPF, Chrome
Zurn ZTR6203-EWS | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.5 GPF, Chrome - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6203-EWS | EcoVantage ZTR Exposed Sensor Piston Flush Valve...
The ZTR6203-EWS is a battery-powered, sensor-operated flush valve designed for urinals with a 0.5 gallon per flush rating. Built with Zurn’s AquaSense® piston technology and a vandal-resistant metal sensor cap, it delivers reliable, touchless performance in commercial restrooms while supporting WaterSense compliance and ADA accessibility.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (EWS designation).
- Operation: Sensor-activated flush with mechanical override button (MOB).
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Water-Saving Performance: The 0.5 gpf flush volume meets EPA WaterSense criteria when paired with compatible urinals. It’s ideal for facilities upgrading from standard 1.0 gpf systems.
- Touchless Hygiene: The integrated sensor provides hands-free operation, reducing contact points in high-traffic restrooms. Manual override button allows flushing during maintenance or sensor recalibration.
- Durable Design: Vandal-resistant metal sensor cap, filtered piston kit, and dezincification-resistant brass body ensure long-term reliability in public environments.
What's Included:
- 1 x ZTR6203-EWS Exposed Urinal Flush Valve
- 1 x Sensor Cap Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Installation Hardware
- 4 x AA Batteries (Standard Alkaline)
Options Available:
- ZTR6203-EWS-LL: Long Life battery version with 10-year lithium cell for reduced maintenance
FAQ
Q: Is this valve compatible with all urinals?
A: The ZTR6203-EWS is designed for 3/4" top spud urinals rated for 0.5 gpf. Always confirm fixture compatibility before installation.
Q: What type of batteries does this valve use?
A: This model includes four AA alkaline batteries. For extended battery life, consider the ZTR6203-EWS-LL variant with a 10-year lithium cell.
Detailed Features & Benefits
Sensor Accuracy: The infrared sensor is factory-calibrated for standard urinal installations and can be adjusted for custom environments. Courtesy flush and LED indicators are configurable via internal DIP switches.
Commercial Durability: Engineered for high-use environments, the valve includes a vandal-resistant metal cover, filtered piston kit, and chloramine-resistant seals for long-term reliability.
Water Efficiency: The EWS model supports LEED credits and WaterSense compliance, offering a balance between conservation and performance in public restrooms.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
