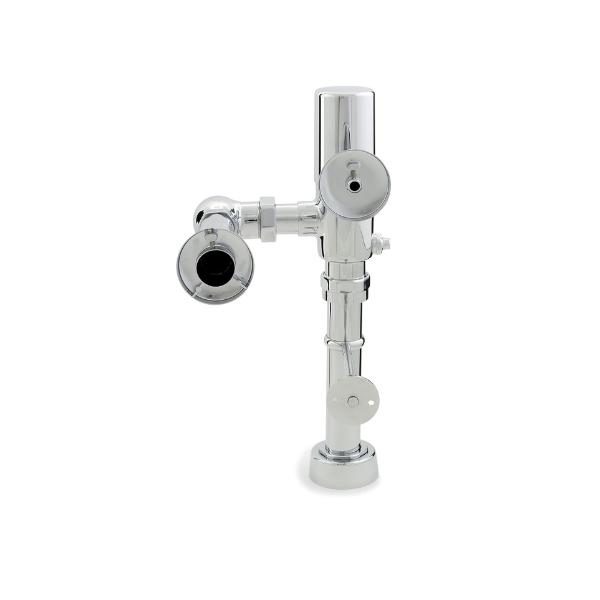

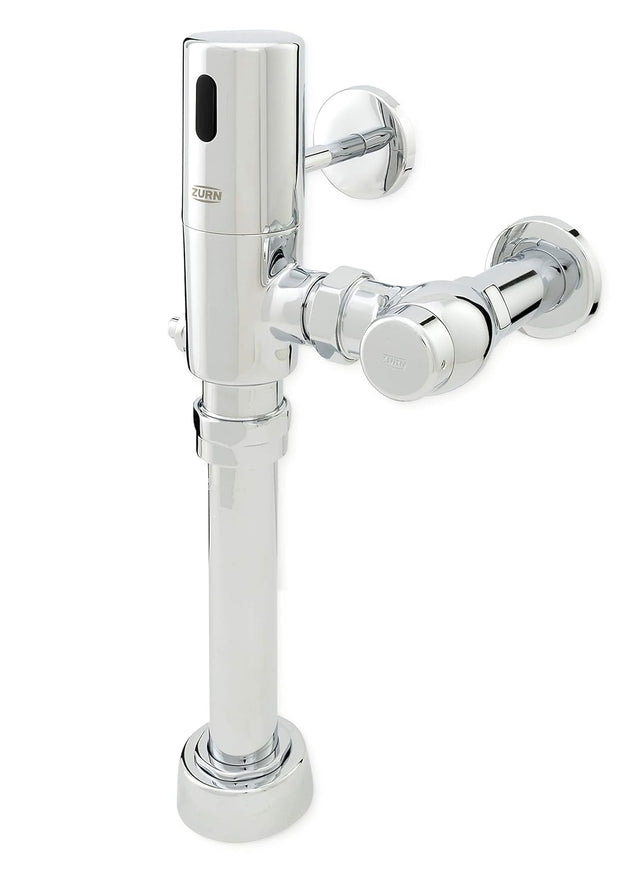

Zurn ZTR6200-WS1-HW | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.6 GPF, Hardwired, Chrome

The Zurn ZTR6200-WS1-HW Sensor Operated Water Closet Flush Valve delivers reliable hands-free operation with continuous power for demanding commercial environments. Its standard 1.6 gpf design combines advanced sensor technology with hardwired power supply, making it an ideal solution for high-traffic facilities requiring uninterrupted operation without battery maintenance.

Key Specifications:

• Flow Rate: 1.6 gallons per flush standard.
• Power Supply: Hardwired 7.6 VDC power converter for continuous operation.
• Construction: Chrome-plated brass with proprietary DR resistant low lead brass alloy.
• Activation: Infrared sensor with mechanical manual override button.
• Backflow Prevention: High back pressure vacuum breaker with one-piece hex coupling nut.

Features & Benefits:

• Continuous Power: The hardwired design eliminates battery replacement for reliable, uninterrupted operation in high-traffic environments.
• Touchless Operation: The advanced sensor technology eliminates cross-contamination in public restrooms.
• Reliable Performance: The 1.6 gpf flow rate provides consistent flushing power for a wide range of commercial applications.
• Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability.
• Filtered Piston Technology: The filtered piston kit with chloramine-resistant components prevents clogging and extends service life.

Options Available:

• ZTR6200-WS1: Standard model powered by 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year).
• ZTR6200-WS1-LL: Long-life battery version with up to 10 years of battery life, ideal for locations where power access is limited but extended service life is desired.

What's Included:

• 1 x ZTR6200-WS1-HW Sensor Flush Valve
• 1 x Filtered Piston Kit
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange for Top Spud Connection
• 1 x Sweat Solder Kit with Cast Wall Flange
• 1 x Vandal Resistant Stop Cap
• 1 x 10' Power Supply Cable
• 1 x Wire Supply Tube and Wall Escutcheon
• 1 x Installation Hardware

FAQ

Q: What are the advantages of a hardwired flush valve for commercial applications?

A: The ZTR6200-WS1-HW's hardwired power supply offers significant advantages for high-traffic facilities. By eliminating battery replacements entirely, it reduces ongoing maintenance costs and ensures continuous, uninterrupted operation even in the busiest environments. This translates to improved reliability, fewer service calls, and consistent performance without the periodic downtime associated with battery replacement. The hardwired system is particularly valuable in locations where constant operation is critical, such as airports, stadiums, or shopping centers.

Q: What makes this flush valve ideal for commercial applications?

A: The ZTR6200-WS1-HW combines reliable performance with touchless operation that improves hygiene and user experience in commercial restrooms. The standard 1.6 gpf flow rate provides consistent flushing power that works with a wide range of commercial fixtures. Its durable construction and vandal-resistant design make it well-suited for high-traffic environments, while the filtered piston technology ensures reliable operation with minimal maintenance.

Detailed Features & Benefits

Advanced Sensor Technology: The ZTR6200-WS1-HW utilizes sophisticated infrared sensor technology that provides reliable detection for hands-free operation. The sensor range is factory set for optimal performance but can be field-adjusted to accommodate different fixture types and installation environments. A convenient mechanical override button ensures operation even during power outages or in case of sensor malfunction.

Hardwired Power System: The ZTR6200-WS1-HW connects to Zurn's 7.6VDC power converter (P6000-HW6), which can power up to 8 flush valves simultaneously. For larger installations, optional power junction boxes are available to efficiently distribute power to multiple units. The included 10' power supply cable can be extended with optional extension cables for greater installation flexibility. This continuous power supply completely eliminates battery replacement, making it ideal for high-traffic facilities.

Durable Piston Technology: The filtered piston design offers superior performance compared to traditional diaphragm valves in challenging water conditions. The chloramine-resistant components prevent premature deterioration, while the filtered bypass protects against debris that can cause malfunction. This design significantly reduces maintenance requirements and extends the service life of the valve.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
