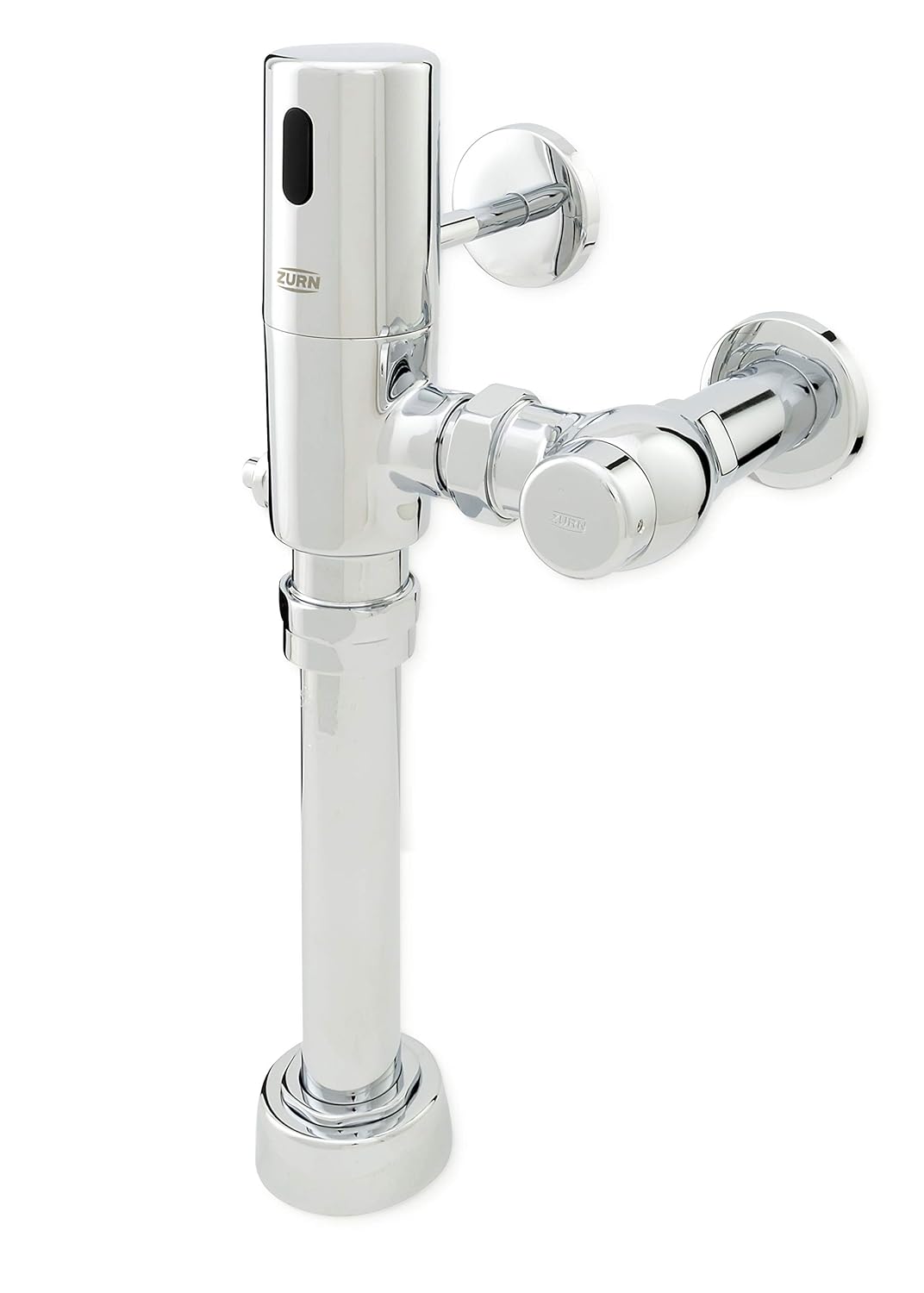

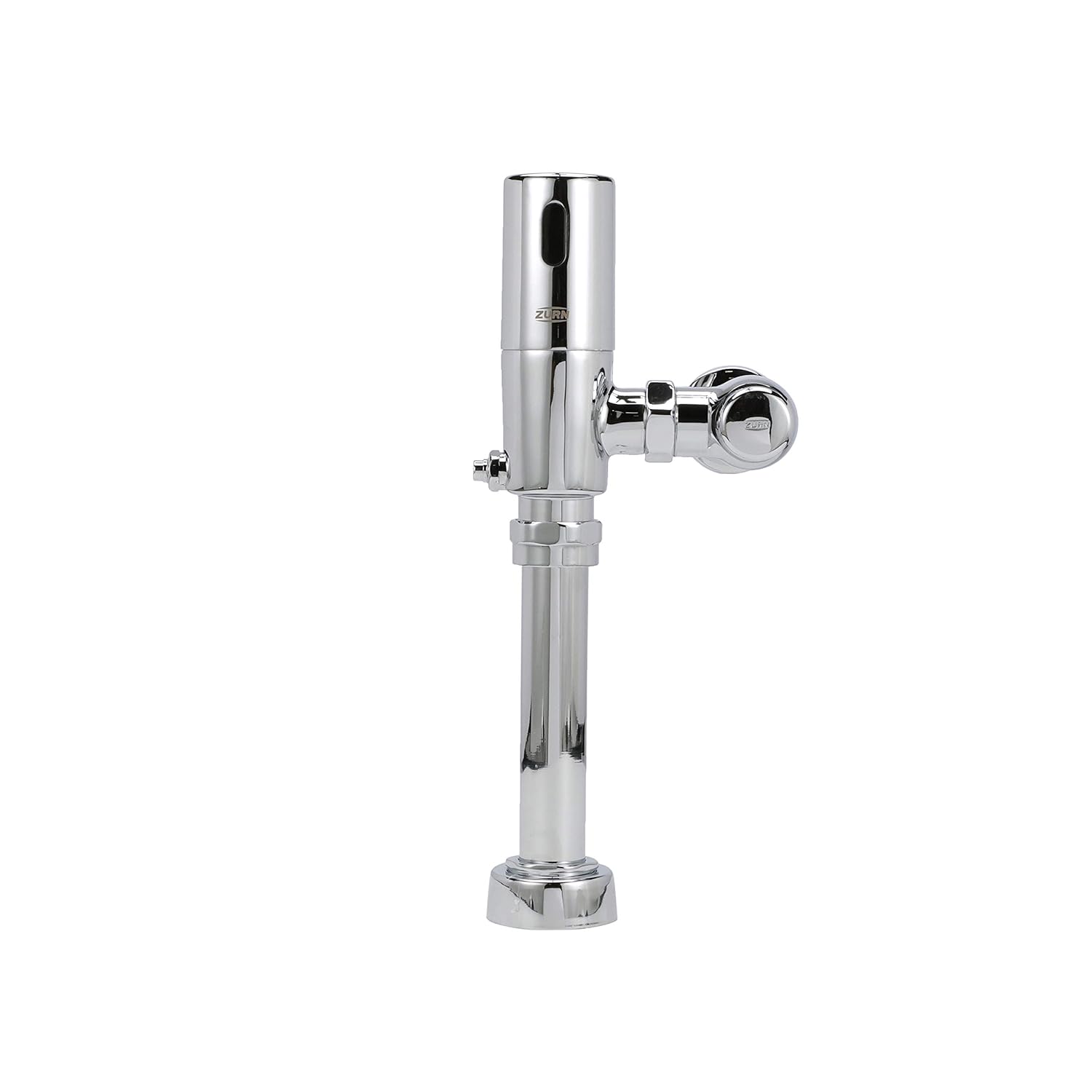

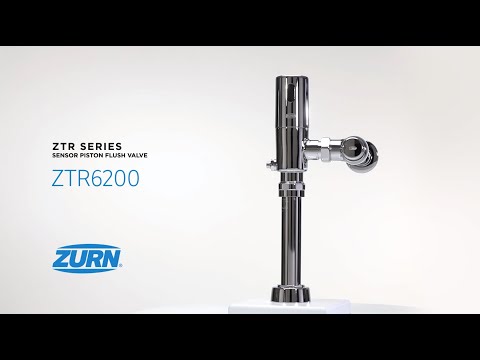

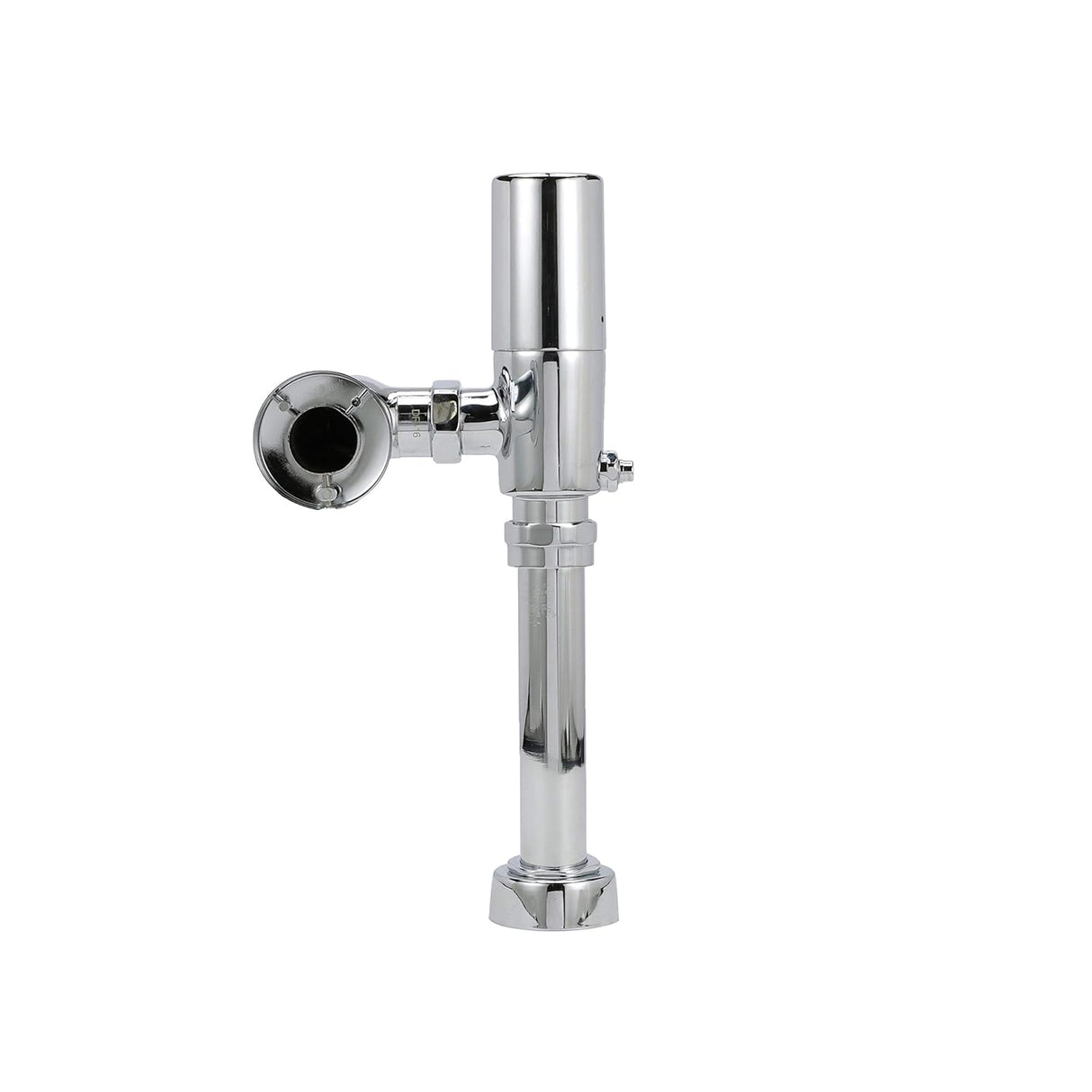

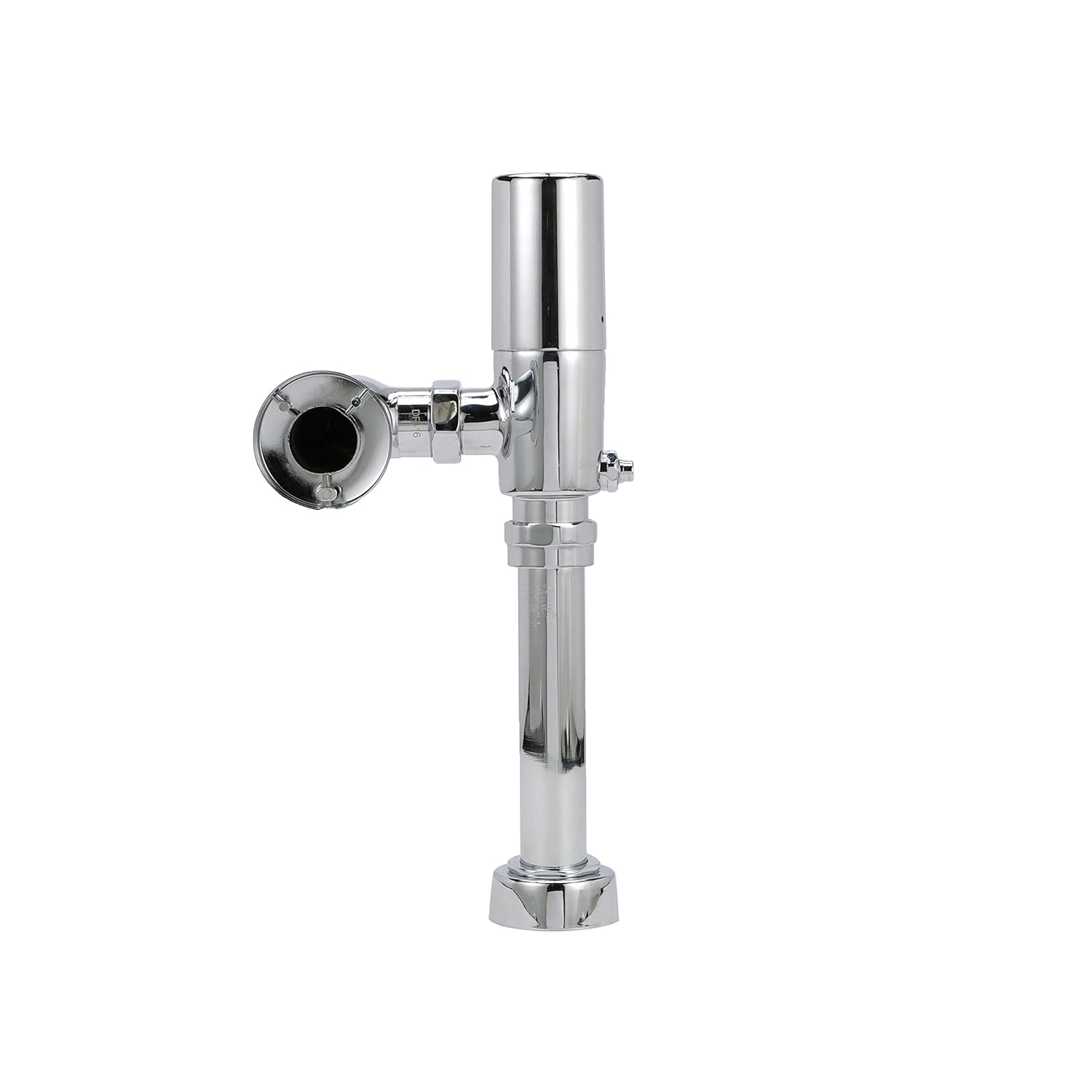

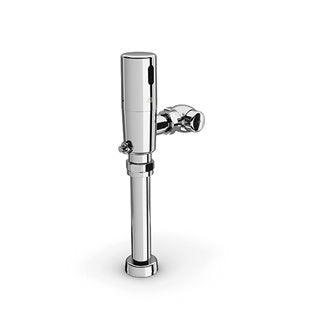

Zurn ZTR6200-WS1 | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.6 GPF, Chrome
Zurn ZTR6200-WS1 | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.6 GPF, Chrome - Standard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6200-WS1 | EcoVantage ZTR Exposed Sensor Piston Water Close...
The Zurn ZTR6200-WS1 Sensor Operated Water Closet Flush Valve delivers reliable hands-free operation with proven performance for commercial restrooms. Its standard 1.6 gpf design combines advanced sensor technology with durable construction, making it an ideal solution for commercial facilities seeking dependable operation and reduced maintenance.
Key Specifications:
- Flow Rate: 1.6 gallons per flush standard.
- Power Supply: Battery-powered with 4 "AA" batteries (standard).
- Construction: Chrome-plated brass with proprietary DR resistant low lead brass alloy.
- Activation: Infrared sensor with mechanical manual override button.
- Backflow Prevention: High back pressure vacuum breaker with one-piece hex coupling nut.
Features & Benefits:
- Touchless Operation: The advanced sensor technology eliminates cross-contamination in public restrooms.
- Reliable Performance: The 1.6 gpf flow rate provides consistent flushing power for a wide range of commercial applications.
- Durable Construction: The chrome-plated brass body with proprietary dezincification-resistant low lead brass alloy ensures long-term reliability.
- Filtered Piston Technology: The filtered piston kit with chloramine-resistant components prevents clogging and extends service life.
- Vandal-Resistant Design: Robust metal cap design and vandal-resistant components withstand high-traffic public environments.
Options Available:

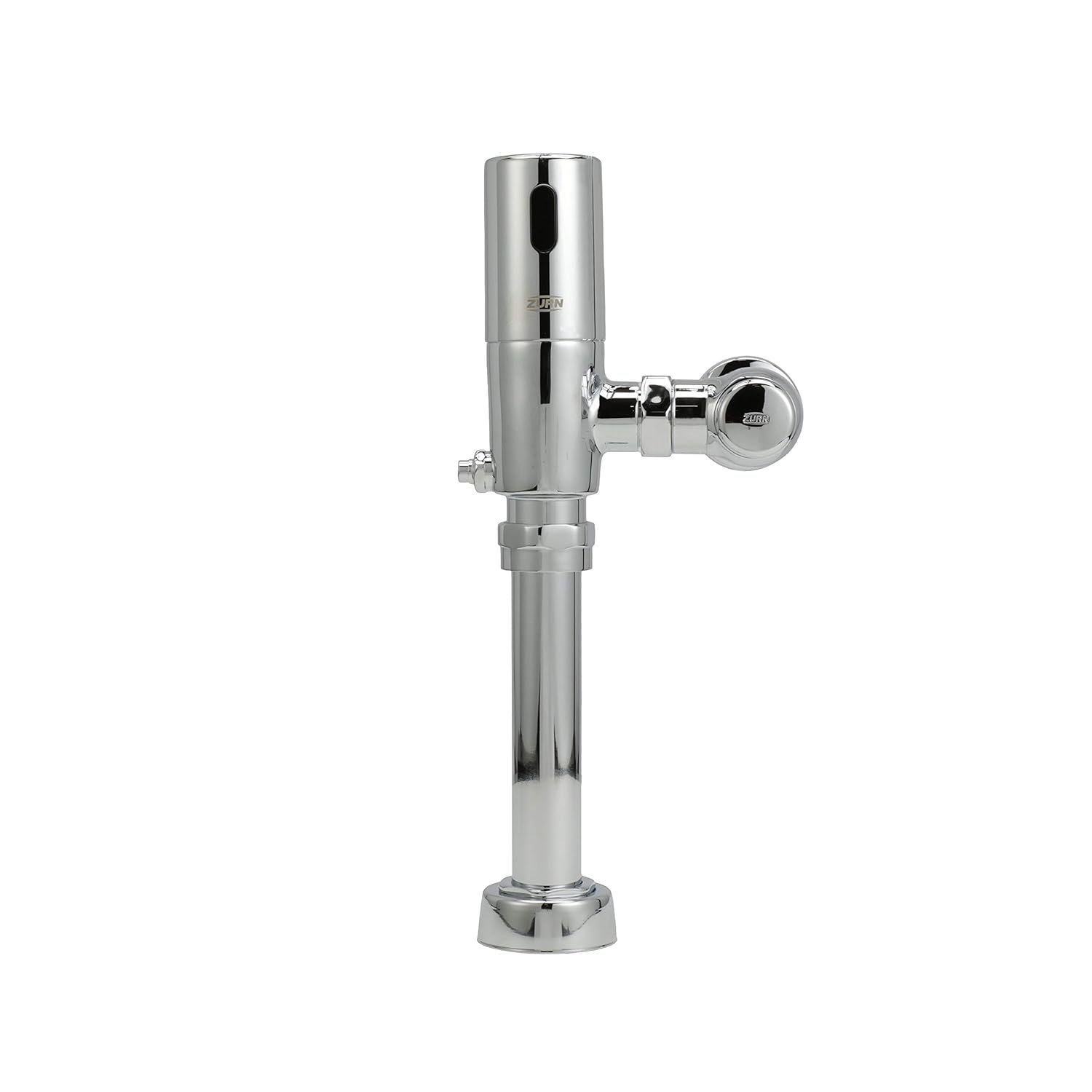

- ZTR6200-WS1-LL: Long-life battery option featuring specialized lithium batteries that provide up to 10 years of battery life for reduced maintenance requirements.
- ZTR6200-WS1-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement in high-traffic facilities.
What's Included:
- 1 x ZTR6200-WS1 Sensor Flush Valve
- 1 x Filtered Piston Kit
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 4 x "AA" Batteries
- 1 x Installation Hardware
FAQ
Q: What makes this flush valve ideal for commercial applications?
A: The ZTR6200-WS1 combines reliable performance with touchless operation that improves hygiene and user experience in commercial restrooms. The standard 1.6 gpf flow rate provides consistent flushing power that works with a wide range of commercial fixtures. Its durable construction and vandal-resistant design make it well-suited for high-traffic environments, while the filtered piston technology ensures reliable operation with minimal maintenance. The optional dual flush configuration (-DF suffix) further enhances water conservation by providing both full and reduced flush options.
Q: What are the benefits of the different power options available?
A: The standard ZTR6200-WS1 operates on 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year). For reduced maintenance, the ZTR6200-WS1-LL features specialized lithium batteries providing up to 10 years of service, ideal for locations where frequent battery replacement is problematic. For highest traffic applications, the ZTR6200-WS1-HW hardwired version connects to a 7.6 VDC power supply, eliminating battery replacement entirely and supporting up to 8 flush valves with a single power converter.
Detailed Features & Benefits
Advanced Sensor Technology: The ZTR6200-WS1 utilizes sophisticated infrared sensor technology that provides reliable detection for hands-free operation. The sensor range is factory set for optimal performance but can be field-adjusted to accommodate different fixture types and installation environments. A convenient mechanical override button ensures operation even during power outages or in case of sensor malfunction.
Durable Piston Technology: The filtered piston design offers superior performance compared to traditional diaphragm valves in challenging water conditions. The chloramine-resistant components prevent premature deterioration, while the filtered bypass protects against debris that can cause malfunction. This design significantly reduces maintenance requirements and extends the service life of the valve.
ADA Compliant Installation: The ZTR6200-WS1 is designed for ADA compliant installations in standard and handicap stalls. Alternative installation options are available for applications where grab bars must be present over the valve, ensuring that the flushometer works seamlessly in any commercial restroom configuration while maintaining compliance with accessibility requirements.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
