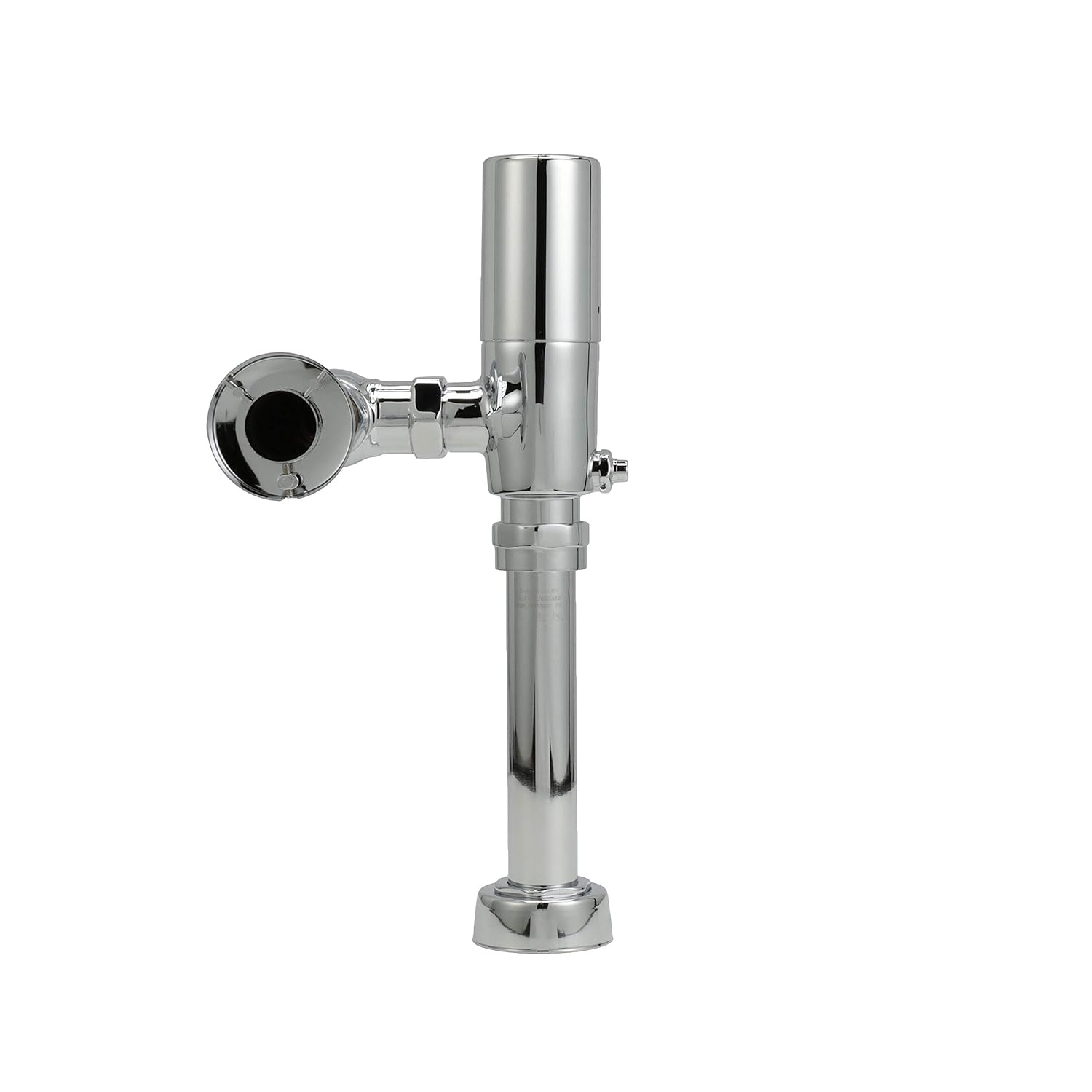

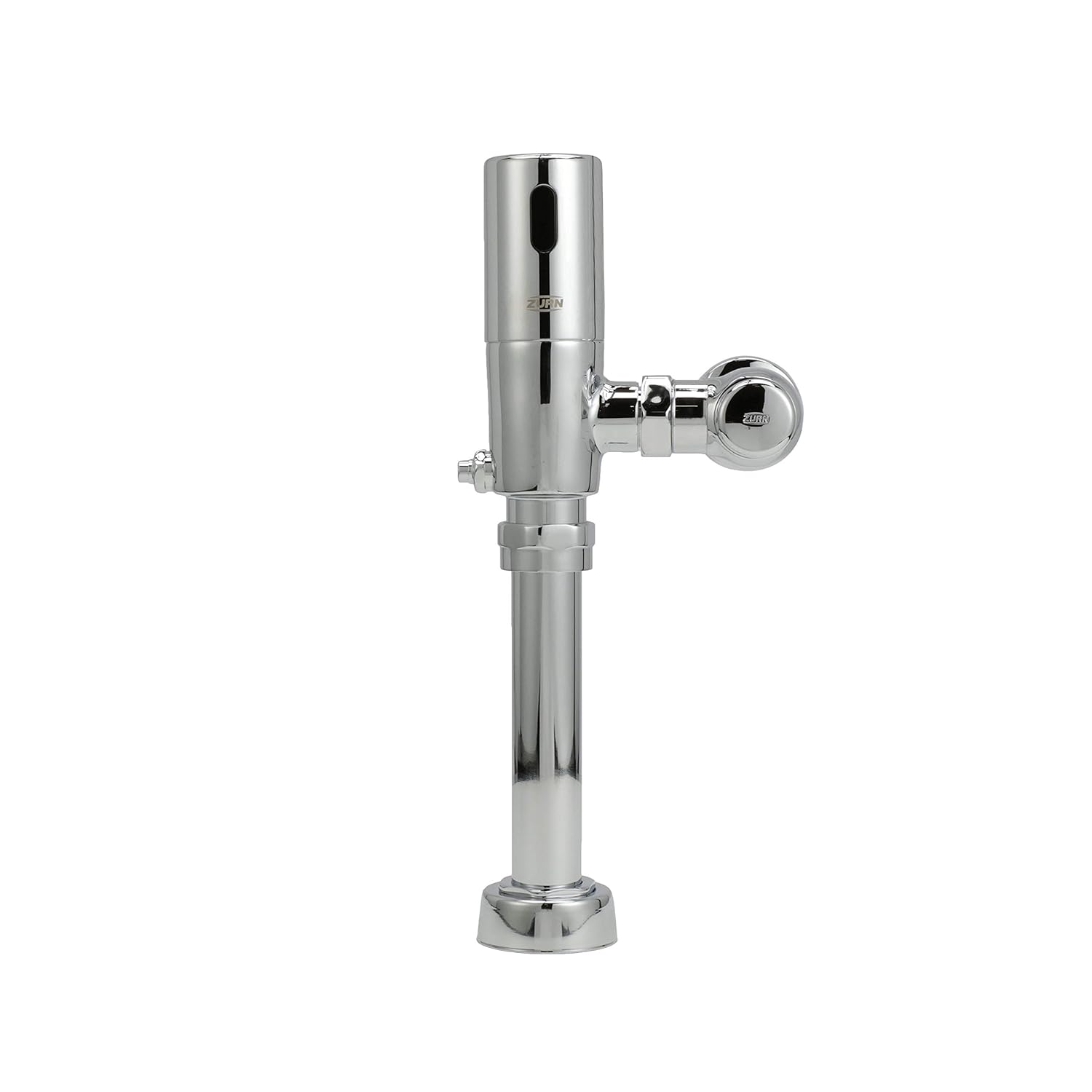

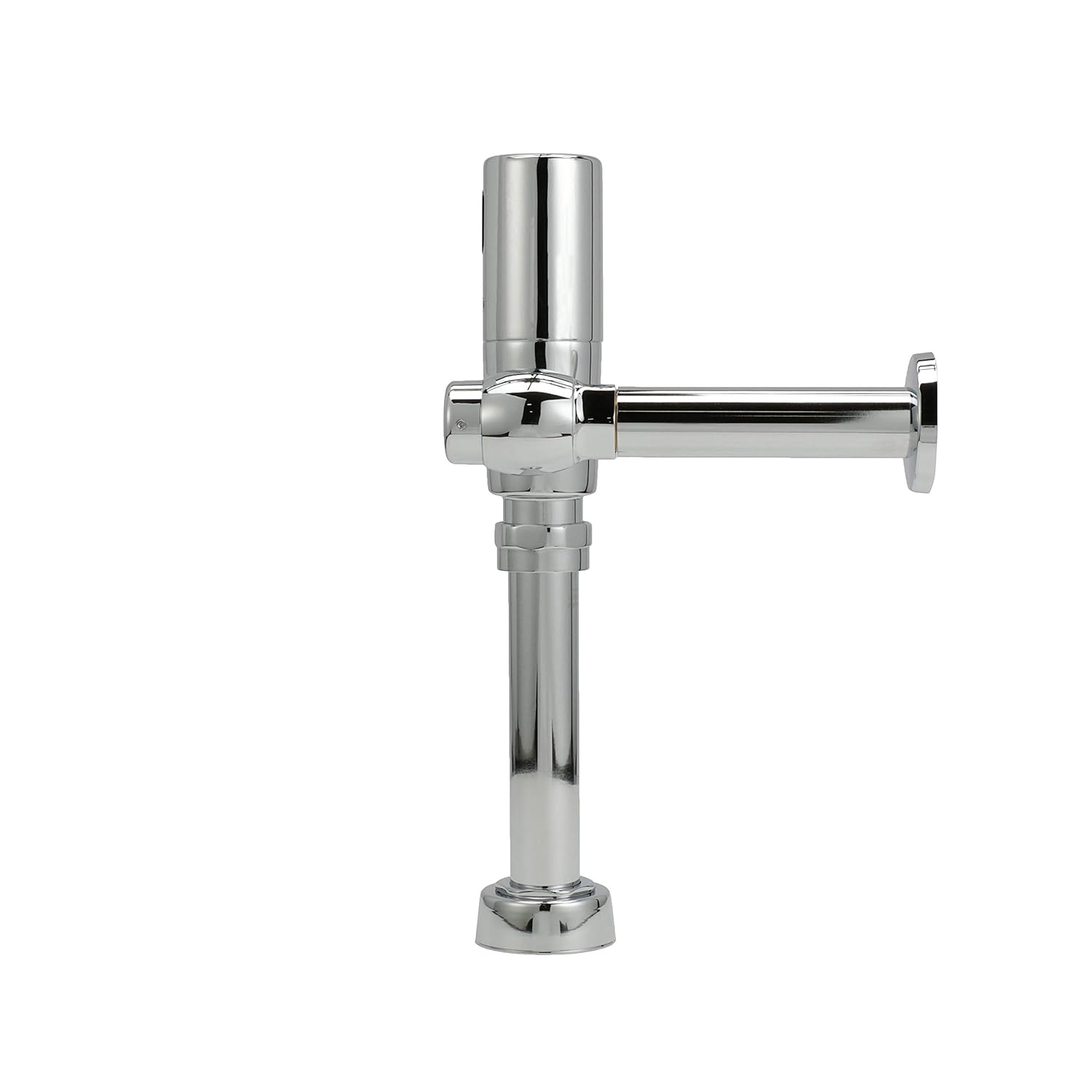

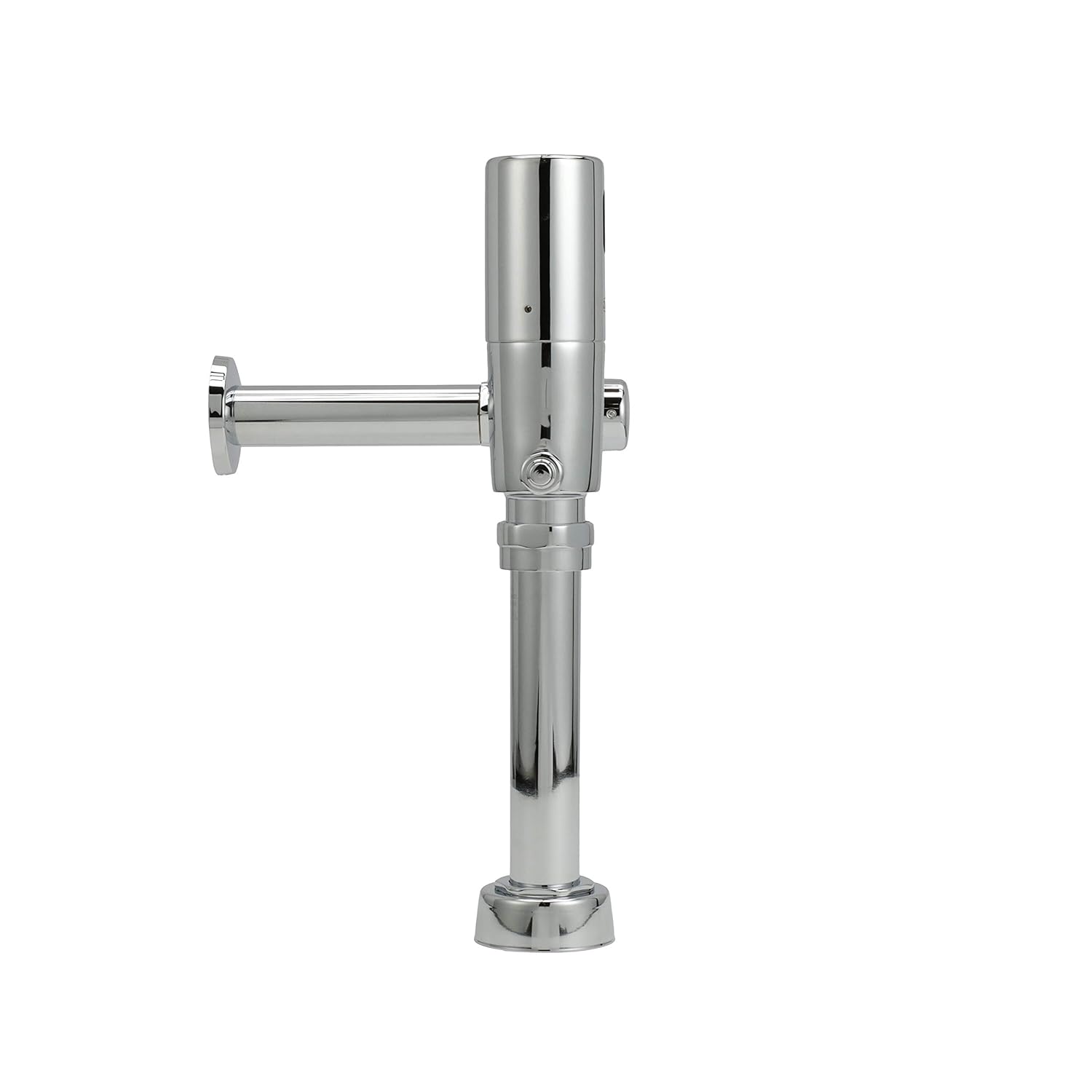

Zurn ZTR6200-ONE-HW | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.1 GPF, Hardwired, Chrome
Zurn ZTR6200-ONE-HW | EcoVantage ZTR Exposed Sensor Piston Water Closet Flush Valve, 1.1 GPF, Hardwired, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6200-ONE-HW | EcoVantage ZTR Exposed Sensor Piston Water Cl...
The ZTR6200-ONE-HW is a hardwired, sensor-operated flush valve for water closets rated at 1.1 gallons per flush. Designed for facilities seeking uninterrupted power and reduced battery maintenance, it features Zurn’s AquaSense® piston technology, vandal-resistant metal sensor housing, and a 7.6 VDC solenoid actuator. Ideal for high-traffic restrooms with centralized power infrastructure.
Key Specifications:
- Flow Rate: 1.1 gallons per flush (ONE designation).
- Operation: Sensor-activated flush with mechanical override button (MOB).
- Power Input: 7.6 VDC hardwired via HW6 converter (sold separately).
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Continuous Power: Eliminates battery replacements with direct hardwired power. Supports up to 8 valves per HW6 converter.
- Touchless Hygiene: Infrared sensor enables hands-free operation. Manual override button allows flushing during maintenance or sensor recalibration.
- Durable Design: Vandal-resistant metal sensor cap, filtered piston kit, and dezincification-resistant brass body ensure long-term reliability in public environments.
What's Included:
- 1 x ZTR6200-ONE-HW Exposed Closet Flush Valve
- 1 x Sensor Cap Assembly with Manual Override
- 1 x 10' Power Supply Cable
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Installation Hardware
Options Available:
- ZTR6200-ONE: Standard battery version with 4 AA alkaline batteries (included)
- ZTR6200-ONE-LL: Long Life battery version with sealed lithium pack rated for up to 10 years
FAQ
Q: What power supply is required for hardwired installation?
A: The ZTR6200-ONE-HW connects to Zurn’s HW6 power converter (sold separately), which supports up to 8 valves. Optional junction boxes are available for multi-valve setups.
Q: Can I retrofit an existing battery-powered valve to hardwired?
A: Retrofitting is possible using Zurn’s metal sensor cap kit and HW6 converter. Always confirm compatibility before modifying power configurations.
Detailed Features & Benefits
Sensor Accuracy: Factory-calibrated infrared sensor with courtesy flush and LED indicators. DIP switch settings allow customization for specific restroom layouts.
Water Efficiency: The ONE model supports LEED credits and WaterSense labeling, offering conservation without compromising flush performance.
Infrastructure Ready: Ideal for facilities with centralized power systems or where battery maintenance is impractical. Reduces long-term service costs.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
