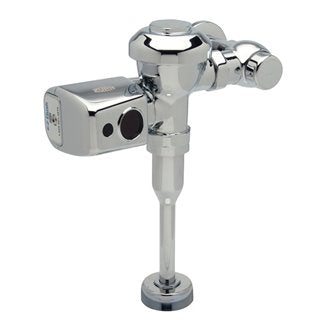

Zurn ZER6003PL-WS1-CPM | AquaFlush Series Sensor Flush Valve | Battery-Powered, 1.0 gpf

The Zurn ZER6003PL-WS1-CPM is an advanced, sensor-operated battery-powered flush valve designed for 3/4" urinals. This AquaFlush® model combines water efficiency, hygiene, and durability, featuring a 1.0 GPF flow rate and a range of innovative technologies that make it an ideal choice for modern, high-traffic restroom facilities.

Key Specifications:

• Flow Rate: 1.0 gallons per flush (WS1), balancing water conservation with effective flushing
• Power: Battery-powered 6VDC motor actuator with 4 "C" batteries
• Body: AquaFlush® chrome-plated brass with polished exterior
• Sensor: Infrared with 10-degree angle for optimal detection

Features & Benefits:

• Water Conservation: The 1.0 GPF design significantly reduces water usage compared to traditional flush valves without compromising performance
• Hygienic Operation: Touchless sensor activation minimizes the spread of germs in public restrooms
• Superior Diaphragm Technology: AquaFlush® TPE, chloramine-resistant, dual seal design with clog-resistant by-pass ensures reliable operation
• Smart Sensing: 3-second delay prevents false flushes with 24-hour auto-flush capability for maximum efficiency
• Vandal Resistance: Includes a vandal-resistant stop cap and durable construction to prevent tampering in commercial environments

What's Included:

• 1 x ZER6003PL-WS1-CPM Sensor Flush Valve
• 1 x AquaFlush® TPE Diaphragm Assembly
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece and Coupling Assembly
• 1 x Spud Coupling Assembly
• 1 x Sweat Solder Kit with Cast Wall Flange
• 4 x "C" Size Batteries
• 1 x Installation Wrench
• 1 x Allen Key for Battery Compartment

Options Available:

• ZER6003PL-ULF-CPM: Ultra-low flow model with 0.125 gallons per flush for maximum water conservation in compatible fixtures.

FAQ

Q: Is this flush valve compatible with existing urinal fixtures?

A: Yes, the ZER6003PL-WS1-CPM is designed for 3/4" urinals, making it compatible with most standard urinal fixtures. However, it's always recommended to verify your specific urinal model's requirements before installation. The adjustable tailpiece provides flexibility to fit various rough-in dimensions, making it suitable for a wide range of installations. For optimal performance, ensure the existing fixture is compatible with a 1.0 gpf flow rate and consult with a professional plumber when retrofitting.

Q: How long do the batteries typically last in this model?

A: The ZER6003PL-WS1-CPM uses 4 standard "C" size batteries, which are included with the product. Thanks to the energy-efficient E-Z Flush electronics, you can expect extended battery life. Under normal commercial usage conditions, the batteries typically last up to a year, depending on flush frequency. The low battery indicator light will alert you when it's time for a replacement, ensuring uninterrupted operation. This long battery life, combined with the ease of replacement, ensures minimal maintenance interruptions in busy commercial restroom environments.

Q: How does this flush valve contribute to water conservation?

A: The ZER6003PL-WS1-CPM operates at 1.0 gallons per flush, reducing water usage significantly compared to older 1.5 or 3.0 GPF models. In high-traffic settings, this can save thousands of gallons annually per fixture. The sensor activation prevents unnecessary flushes, while the 3-second delay feature eliminates false activations when someone briefly walks by. The AquaFlush® technology ensures effective performance despite the lower water volume, making this an excellent choice for facilities aiming to reduce water consumption without sacrificing performance.

Detailed Features & Benefits

Advanced Sensor Technology: The ZER6003PL-WS1-CPM utilizes a sophisticated infrared sensor system with precision-engineered components for reliable operation. The 10-degree angled sensor optimizes detection range while minimizing false activations. A 3-second delay prevents unnecessary flushes when someone briefly walks by, and the 24-hour auto-flush feature ensures fixture cleanliness even in low-use periods. The high-impact polycarbonate housing with chrome-plated metal cover protects the electronics while maintaining an upscale appearance. A convenient manual override button provides backup operation when needed.

Superior AquaFlush® Design: The AquaFlush® designation indicates this model features Zurn's premium valve technology with chloramine-resistant components that provide exceptional durability in challenging water conditions. The TPE diaphragm with dual seal design and clog-resistant by-pass delivers consistent, reliable performance even with reduced water volume. This advanced engineering ensures the 1.0 GPF flow rate provides effective waste removal while conserving water, making it ideal for facilities seeking to balance environmental responsibility with reliable operation in high-traffic environments.

Commercial-Grade Durability: Built specifically for demanding public restroom environments, the ZER6003PL-WS1-CPM features robust construction that withstands frequent use and potential vandalism. The chrome-plated brass body with polished exterior offers an attractive appearance while resisting corrosion in humid environments. The vandal-resistant stop cap prevents unauthorized adjustment, while the internal siphon-guard protection maintains proper operation. The adjustable tailpiece accommodates various installation configurations, simplifying both new construction and retrofit applications while ensuring long-term reliability with minimal maintenance requirements.

NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
