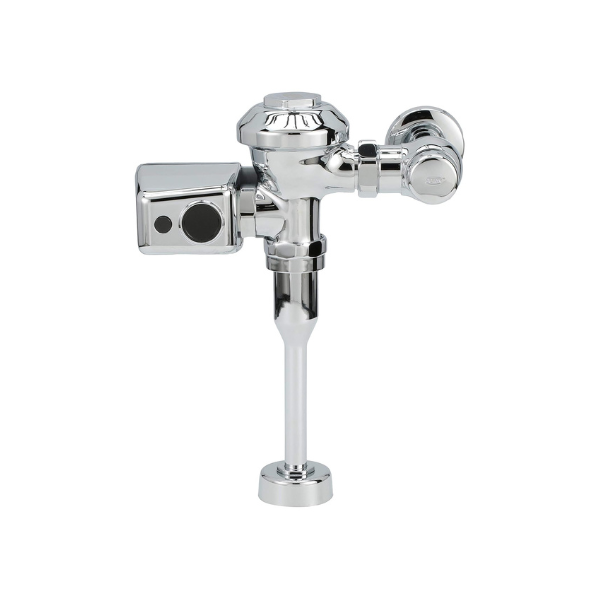

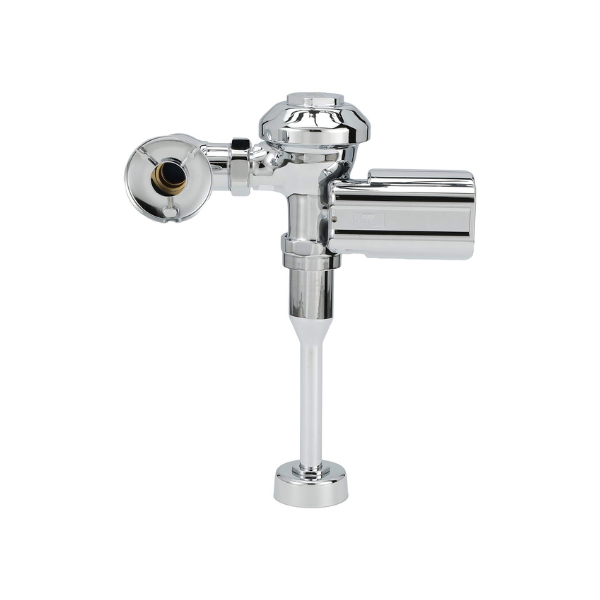

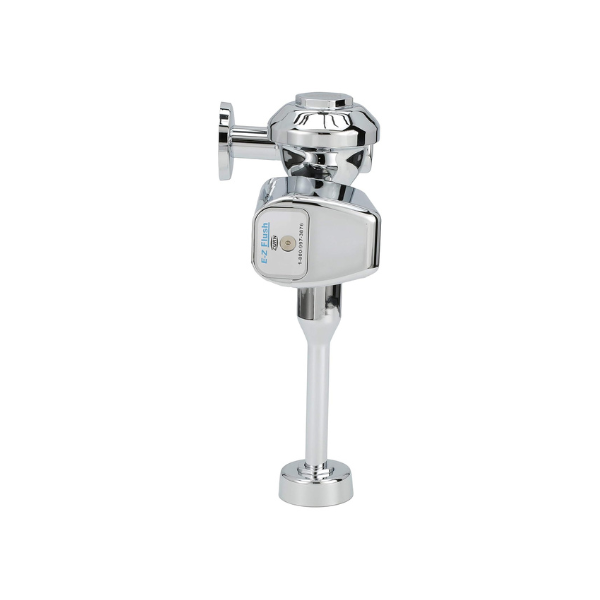

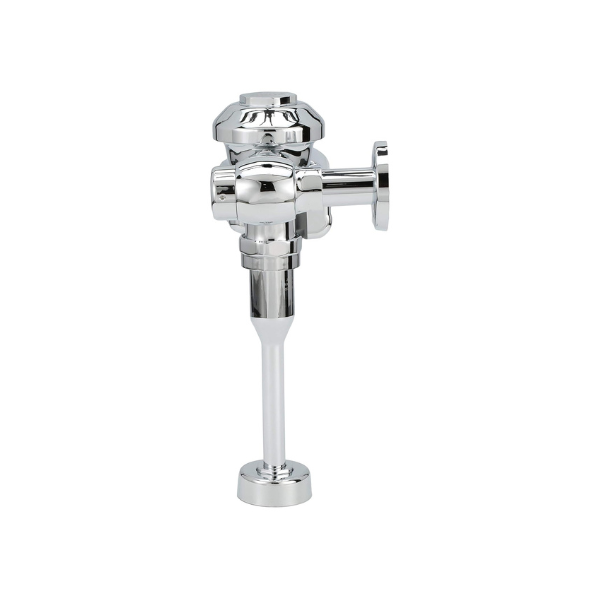

Zurn ZER6003PL-ULF-CPM | ZER Series Sensor Flush Valve | Battery-Powered, 0.125 gpf
Zurn ZER6003PL-ULF-CPM | ZER Series Sensor Flush Valve | Battery-Powered, 0.125 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6003PL-ULF-CPM | ZER Series Sensor Flush Valve | Battery-Po...
The ZER6003PL-ULF-CPM delivers reliable sensor-operated performance with exceptional water conservation for 3/4" urinals in commercial restrooms. Its AquaFlush® technology combines with ultra-low flow operation and vandal-resistant features for dependable hands-free flushing that maximizes hygiene and minimizes maintenance.
Key Specifications:
- Flow Rate: Ultra-Low Flow 0.125 gpf for maximum water conservation.
- Power: Battery-powered 6VDC motor actuator with sensor operation.
- Body: AquaFlush® chrome-plated brass with polished exterior.
- Sensor: Infrared with manual override push button.
Features & Benefits:
- Extreme Water Conservation: The ultra-low 0.125 gpf significantly reduces water consumption, leading to substantial cost savings and environmental benefits.
- Hygienic Operation: Touchless sensor activation minimizes cross-contamination in public restrooms, promoting better hygiene standards.
- Superior Diaphragm Technology: AquaFlush® TPE, chloramine-resistant, dual seal design with clog-resistant by-pass ensures reliable operation.
- Smart Sensing: Infrared sensor with delay prevents false flushes with manual override capability for maximum efficiency.
- Vandal Resistance: Includes a vandal-resistant stop cap and durable construction to prevent tampering in commercial environments.
What's Included:
- 1 x ZER6003PL-ULF-CPM Sensor Flush Valve
- 1 x AquaFlush® TPE Diaphragm Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece and Coupling Assembly
- 1 x Spud Coupling Assembly
- 1 x Sweat Solder Kit with Cast Wall Flange
- 4 x "C" Size Batteries
- 1 x Installation Wrench
- 1 x Allen Key for Battery Compartment
Options Available:
- ZER6003PL-WS1-CPM: Standard flow model with 1.0 gallons per flush for balanced efficiency in compatible fixtures.
FAQ
Q: Is this flush valve compatible with existing urinal fixtures?
A: Absolutely! The ZER6003PL-ULF-CPM is designed for 3/4" urinals, making it compatible with most standard urinal fixtures. It features a standard top spud connection and comes with an adjustable tailpiece, allowing it to adapt to various plumbing configurations. However, when retrofitting, it's important to ensure that the existing urinal fixture is compatible with the ultra-low 0.125 GPF flow rate. Some older urinal designs may require modification or replacement to function effectively with such a low water volume. For optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber, especially when retrofitting this valve into an existing system.
Q: How long do the batteries typically last in this model?
A: The ZER6003PL-ULF-CPM uses standard "C" size batteries, which are included with the product. Thanks to the energy-efficient design, you can expect extended battery life. Under normal commercial usage conditions, the batteries typically last up to 2-3 years, depending on flush frequency. A convenient low battery indicator will alert you when it's time for replacement, ensuring uninterrupted operation. This long battery life, combined with the ease of replacement, ensures minimal maintenance interruptions in busy commercial restroom environments.
Detailed Features & Benefits
Ultra-Low Flow Technology: At just 0.125 GPF, this model reduces water usage by up to 87.5% compared to standard urinal valves. This dramatic efficiency helps meet strict building codes, contributes to LEED certification, and delivers significant water bill savings while maintaining effective waste removal.
Advanced Sensor Technology: The hands-free operation enhances hygiene in public restrooms while preventing water waste. The intelligent sensor system prevents false activations, while the convenient manual override button ensures functionality even if the battery power is depleted.
Commercial-Grade Durability: Built for high-traffic environments, the chrome-plated brass construction resists corrosion and tampering. The vandal-resistant features and chloramine-resistant components ensure reliable performance even in challenging conditions, reducing maintenance requirements and extending the product's service life.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
