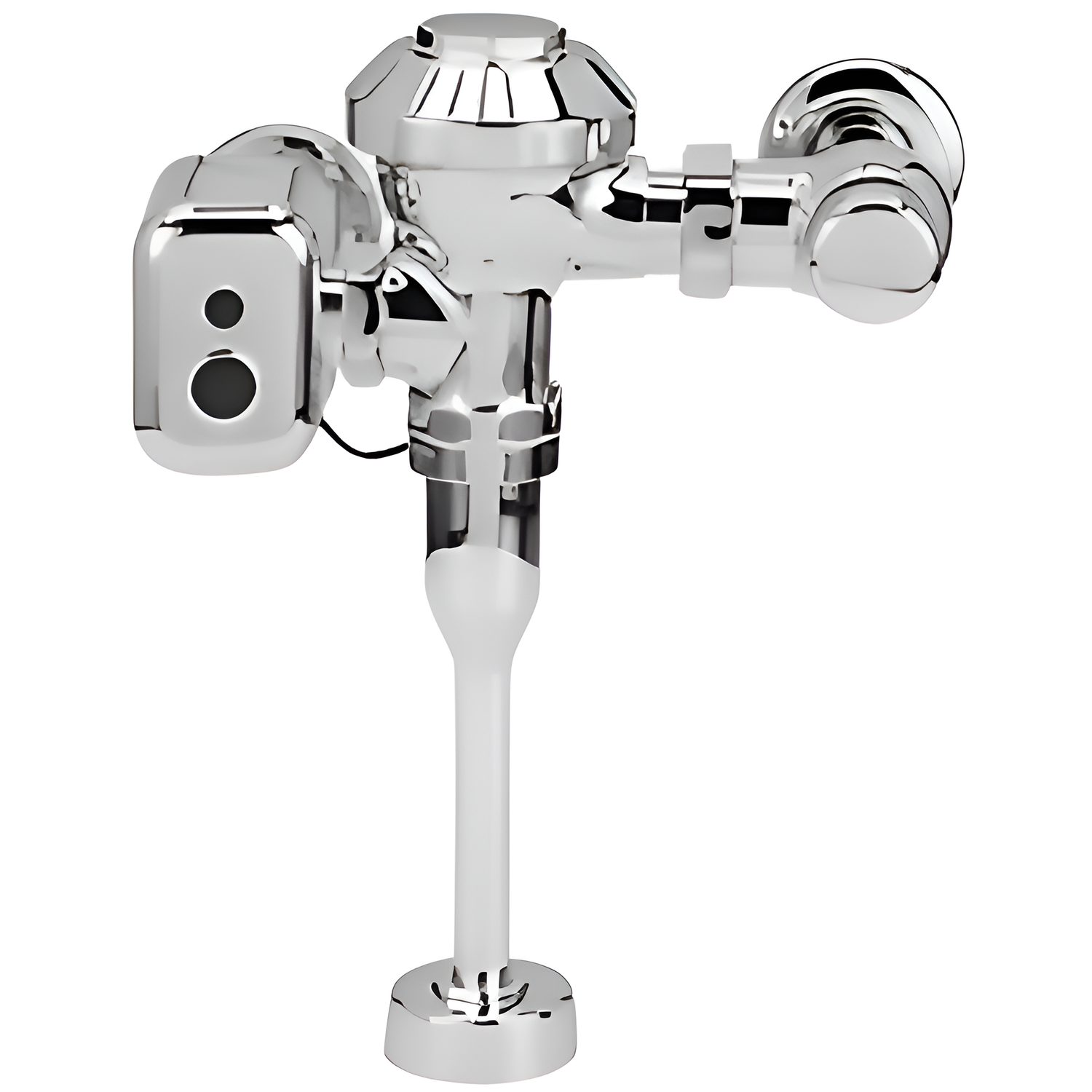

Zurn ZEMS6003PL-EWS-IS | ZEMS-IS Series Sensor Flush Valve | Hardwired For 3/4" Urinals, 0.5 gpf
Zurn ZEMS6003PL-EWS-IS | ZEMS-IS Series Sensor Flush Valve | Hardwired For 3/4" Urinals, 0.5 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
The Zurn ZEMS6003PL-EWS-IS is a cutting-edge, hardwired automatic sensor flush valve designed for 3/4" urinals in high-traffic commercial settings. This AquaFlush Plus model combines advanced sensor technology with an ultra-efficient 0.5 GPF (gallons per flush) flow rate, offering unparalleled water conservation, hygiene, and performance that sets a new standard in the commercial plumbing industry.
Key Specifications:
- Flow Rate: Extra Water Saver (EWS) 0.5 GPF for maximum water conservation.
- Power Source: Hardwired 6 VDC motorized actuator for reliable operation.
- Sensor Type: Integral infrared convergence-type proximity sensor for accurate detection.
- Diaphragm: Chloramine-resistant, dual seal diaphragm with clog-resistant by-pass.
- Construction: Chrome plated, all-metal housing for durability and aesthetics.
Features & Benefits:
- Water Conservation: Ultra-low 0.5 GPF significantly reduces water consumption, leading to substantial cost savings.
- Hygienic Operation: Touchless sensor activation minimizes cross-contamination in public restrooms.
- Reliable Performance: Hardwired power ensures consistent operation without battery replacement concerns.
- Durability: AquaFlush Plus body and chloramine-resistant components ensure long-lasting performance in demanding environments.
- Easy Maintenance: Clog-resistant by-pass and robust construction reduce the frequency of servicing.
What's Included:
- ZEMS6003PL-EWS-IS Flush Valve System
FAQ
Q: How does the ZEMS6003PL-EWS-IS contribute to water conservation efforts?
A: The ZEMS6003PL-EWS-IS is an Extra Water Saver (EWS) model, operating at just 0.5 gallons per flush. This ultra-low flow rate represents a significant reduction in water usage compared to standard 1.0 GPF or older 1.5 GPF urinal models. In high-traffic commercial settings, this can translate to thousands of gallons of water saved annually per fixture. The sensor operation also helps prevent unnecessary flushes, further conserving water. Despite the lower water volume, the AquaFlush technology ensures effective flushing performance, maintaining hygiene standards while dramatically reducing water consumption and associated costs.
Q: Is the ZEMS6003PL-EWS-IS compatible with existing plumbing systems?
A: Yes, the ZEMS6003PL-EWS-IS is designed for versatile installation, making it suitable for both new construction and retrofit applications. It features a standard 3/4" top spud connection and comes with an adjustable tailpiece, allowing it to adapt to various plumbing configurations. The exposed design simplifies installation and maintenance. However, when retrofitting, it's important to ensure that the existing fixture is compatible with a 0.5 GPF flow rate. Some older urinal designs may require more water for effective flushing. For optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber, especially when retrofitting this valve into an existing system.
Detailed Features & Benefits
Advanced Sensor Technology: The ZEMS6003PL-EWS-IS utilizes a sophisticated 6 VDC motorized actuator coupled with an integral infrared convergence-type proximity sensor. This technology offers several key advantages:
- Highly accurate user detection, reducing false activations and unnecessary flushes.
- Hardwired operation ensures continuous, reliable functionality without the need for battery replacements.
- The sensor's design optimizes detection range and accuracy, improving user experience in various lighting conditions.
- Integrated into an all-metal, chrome-plated housing for durability and vandal resistance.
- Manual override button provides a backup option, ensuring the restroom remains functional in all scenarios.
- Low power consumption contributes to overall energy efficiency of the restroom facility.
Water-Saving Performance: The Extra Water Saver (EWS) 0.5 GPF flow rate is a standout feature of the ZEMS6003PL-EWS-IS:
- Reduces water consumption by up to 50% compared to standard 1.0 GPF urinal flush valves.
- Can result in significant cost savings on water bills for high-traffic facilities.
- Helps buildings meet or exceed stringent water conservation regulations and green building standards.
- Contributes to LEED certification points in the water efficiency category.
- The precise sensor activation ensures that the reduced water volume is used effectively, maintaining hygiene standards.
- AquaFlush technology optimizes the flush pattern to ensure bowl cleansing despite the lower water volume.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
