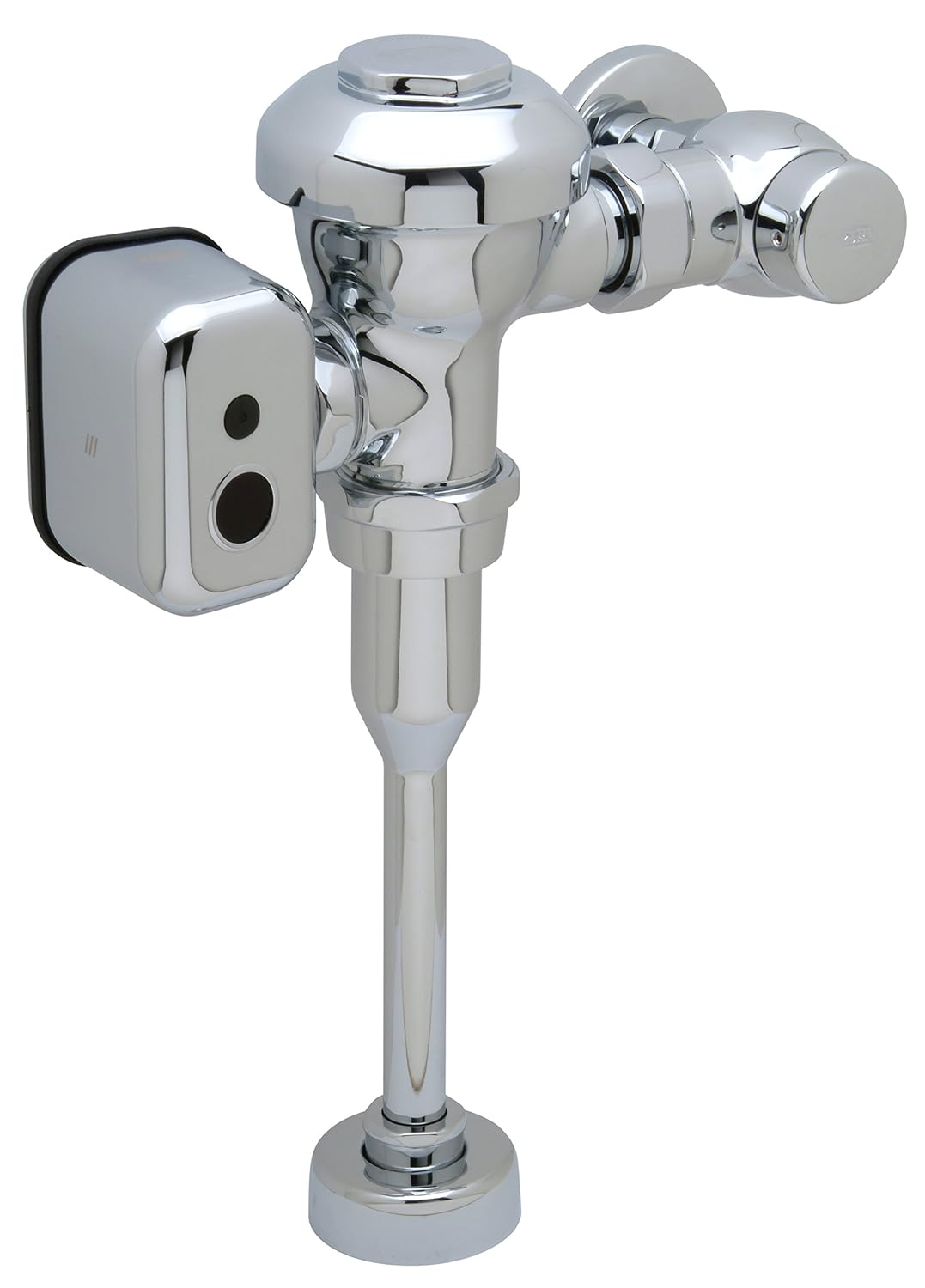

Zurn ZEMS6003AV-ULF-IS | AquaVantage ZEMS Exposed Hardwired Sensor Flush Valve, Chrome
Zurn ZEMS6003AV-ULF-IS | AquaVantage ZEMS Exposed Hardwired Sensor Flush Valve, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6003AV-ULF-IS | AquaVantage ZEMS Exposed Hardwired Sensor ...
The ZEMS6003AV-ULF-IS delivers ultra-low flush performance for urinals in commercial restrooms. Engineered with AquaVantage® diaphragm technology and a hardwired sensor actuator, it provides hygienic, touchless operation at just 0.125 gallons per flush. Ideal for high-efficiency installations seeking maximum water savings and ADA compliance.
Key Specifications:
- Flow Rate: 0.125 gallons per flush (Ultra Low Flow).
- Operation: Sensor-activated flush with capacitive manual override button.
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" overall valve height; top spud connection.
Features & Benefits:
- Ultra Low Flush Efficiency: At just 0.125 gpf, this valve supports LEED credits and meets EPA WaterSense criteria when paired with compatible fixtures. It’s ideal for facilities aiming to minimize water usage without compromising performance.
- Reliable Sensor Activation: The integral infrared sensor provides consistent, hands-free flushing. Powered by Zurn’s HW6 converter, it supports up to eight valves per unit and includes a manual override for maintenance flexibility.
- Durable Build: The valve features a dezincification-resistant brass body, vandal-resistant stop cover, and reinforced diaphragm. Internal seals are chloramine-resistant for long-term reliability in treated water systems.
What's Included:
- 1 x ZEMS6003AV-ULF-IS Exposed Urinal Flush Valve
- 1 x Sensor-Activated Actuator Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Vandal-Resistant Stop Cover
- 1 x Installation Hardware
Options Available:
- ZEMS6003AV-WS1-IS: Low Consumption model with 1.0 gpf and hardwired sensor activation
-
ZEMS6003AV-IS-EWS: Extra Water Saver model with 0.5 gpf and hardwired sensor activation
FAQ
Q: Is this valve compatible with all urinal types?
A: The ZEMS6003AV-ULF-IS is designed for 3/4" top spud urinals rated for ultra-low flow. Always confirm fixture compatibility with 0.125 gpf before installation.
Q: What power supply is required?
A: This valve must be powered by Zurn’s HW6 hardwire power converter or PC6 plug-in converter. Using non-Zurn power supplies may result in malfunction or damage to the sensor system.
Detailed Features & Benefits
Water Conservation: The 0.125 gpf flush volume supports aggressive water-saving goals in restrooms with high daily traffic. It’s ideal for airports, stadiums, and LEED-certified buildings.
Sensor Accuracy: The actuator uses infrared convergence sensing to avoid false triggers and ensure consistent performance. Range and courtesy flush settings are adjustable for custom environments.
Commercial-Grade Durability: Built with a chrome-plated brass body and reinforced diaphragm, the valve resists corrosion and clogging. The vandal-resistant stop cover and cast wall flange add extra protection in public settings.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
