Zurn  |  SKU: ZEMS6000PL

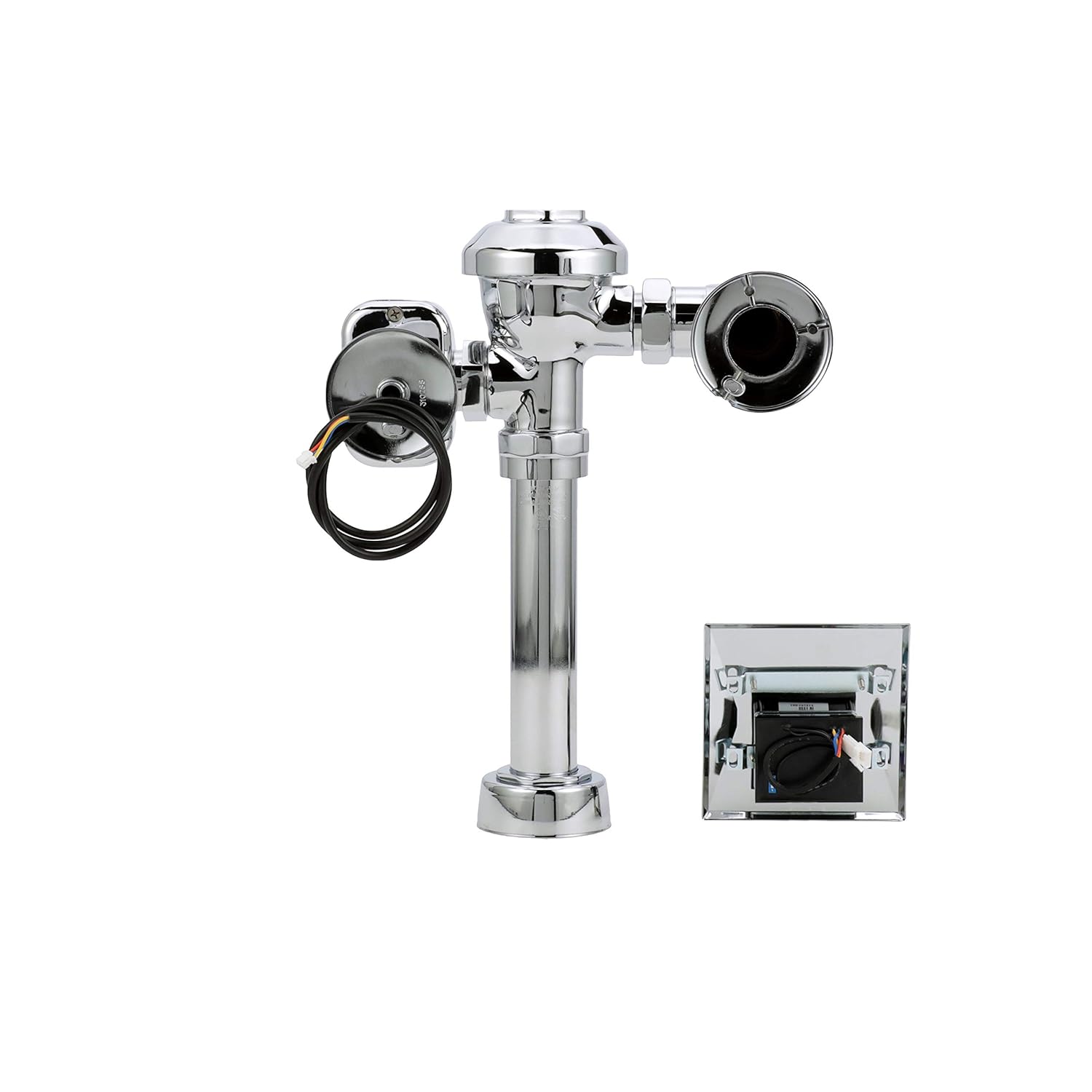

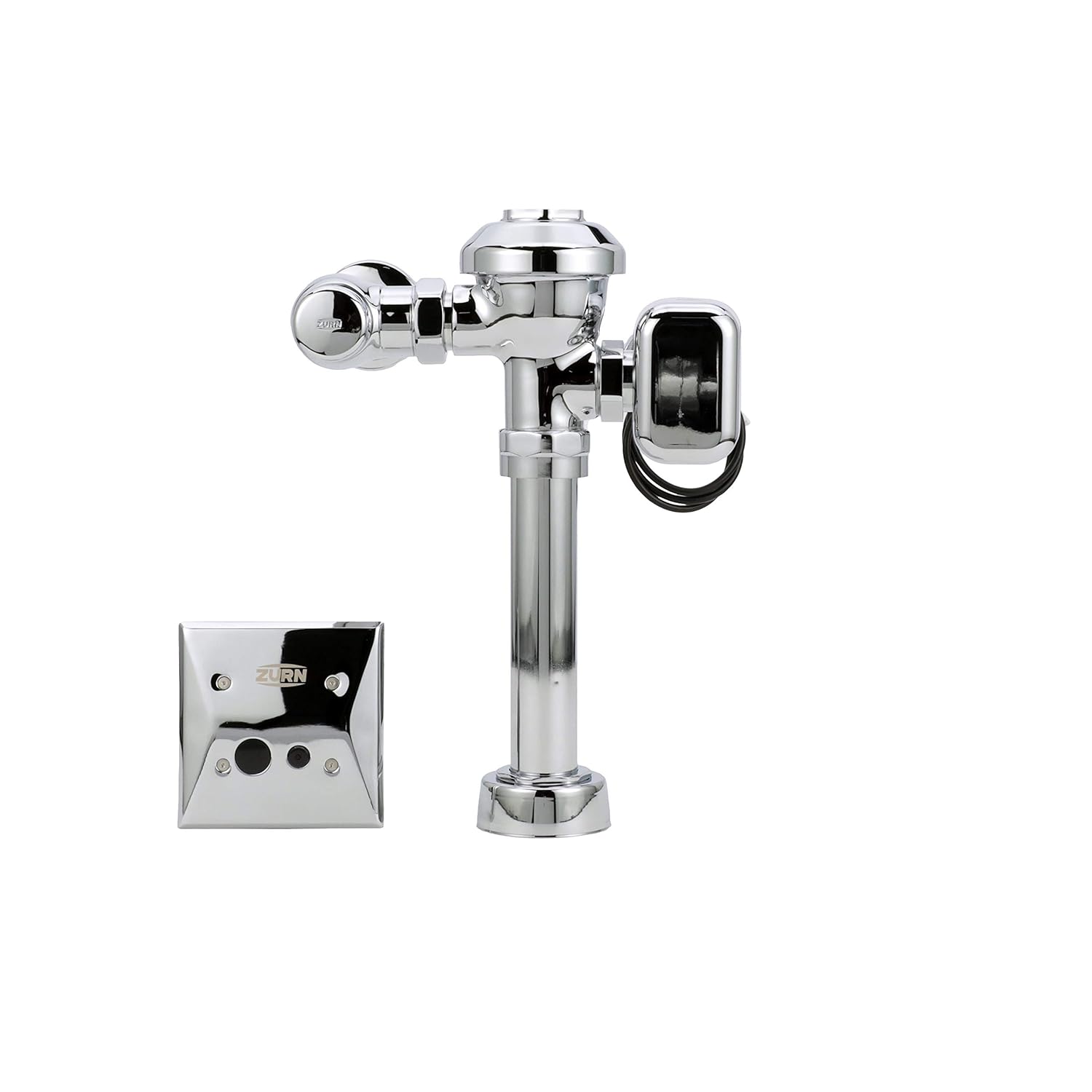

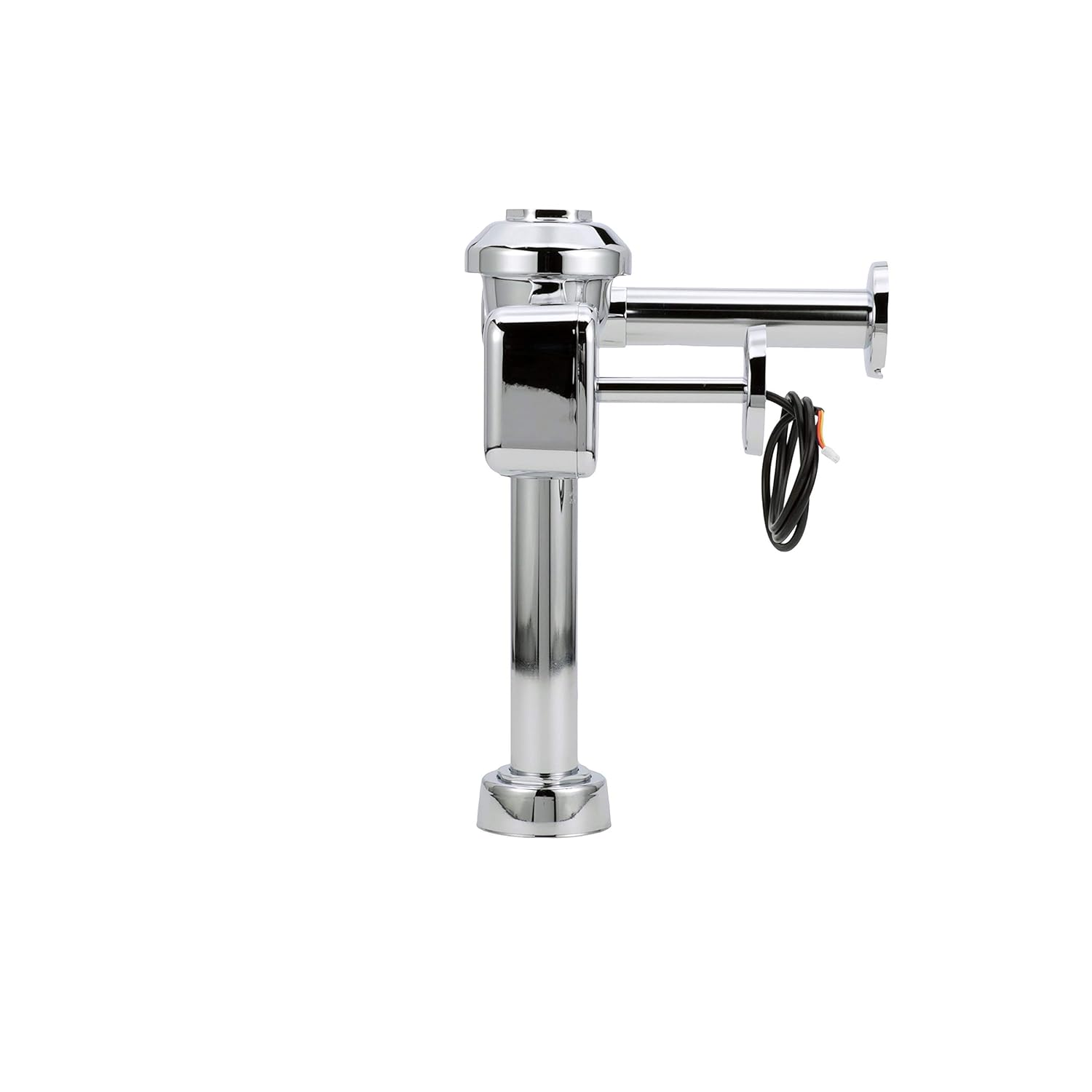

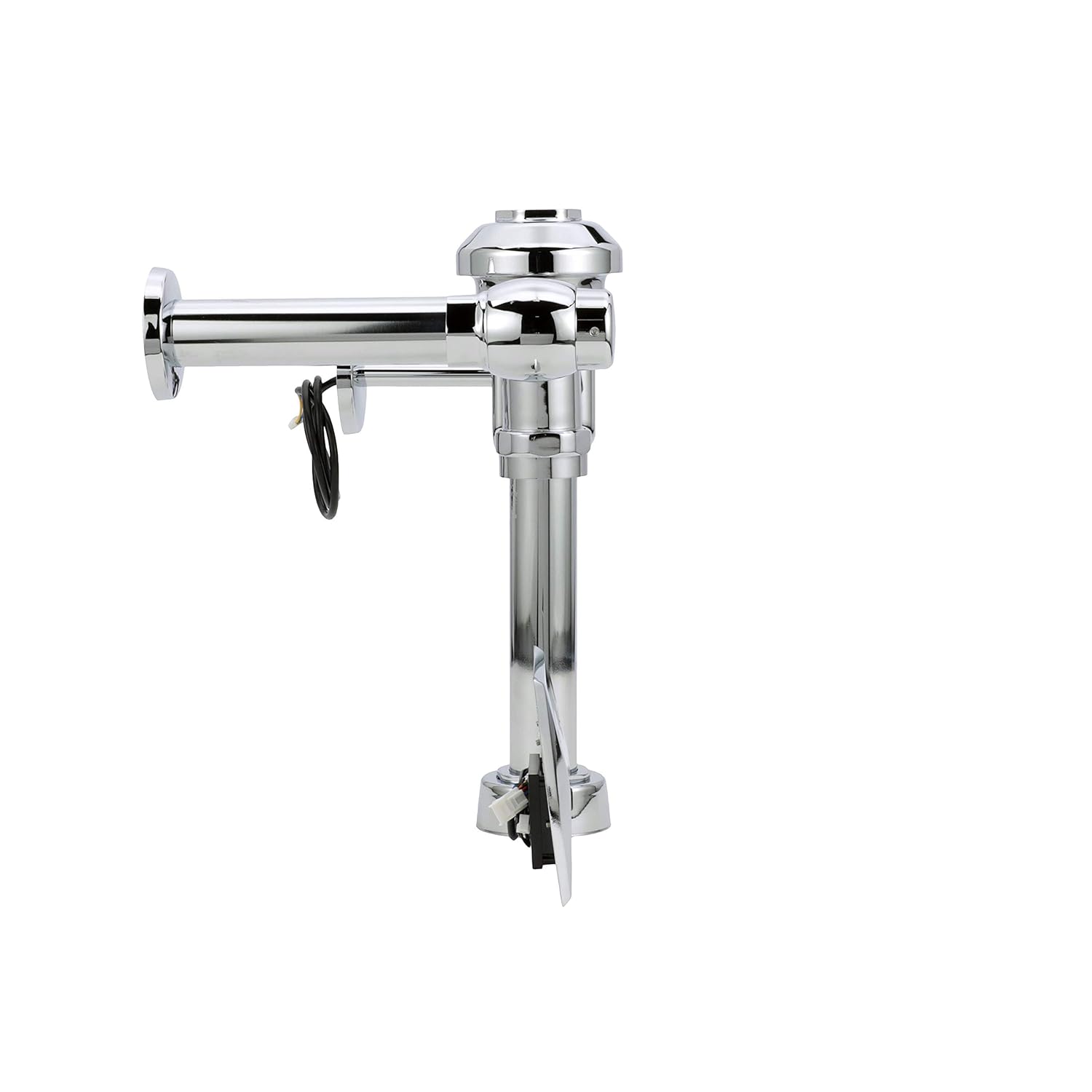

Zurn ZEMS6000PL | ZEMS Series Sensor Flush Valve | 3.5 gpf

$ 560.99
Shipping calculated at checkout.


Product Care Information

Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Zurn ZEMS6000PL is a cutting-edge exposed flush valve for water closets, engineered to excel in high-traffic commercial restrooms. This AquaFlush Plus model, in its standard configuration, combines advanced sensor technology with a proprietary dezincification-resistant low lead brass alloy body, offering superior durability, hygiene, and robust performance. It sets a new benchmark in the commercial plumbing industry, balancing powerful flushing action with controlled water usage.


Key Specifications:

  • Valve Body: Proprietary dezincification-resistant low lead brass alloy for enhanced longevity.
  • Sensor Technology: 6VDC motor actuator with automatic capacitive sensing and manual override.
  • Flow Rate: 3.5 gpf (gallons per flush) for powerful flushing action.
  • Power Source: Compatible with 7.6VDC plug-in or hardwired power supply options.
  • Diaphragm: Chloramine-resistant, dual seal diaphragm with a clog-resistant by-pass.
  • Finish: Chrome plated exterior for a sleek, professional appearance.
  • Rough-in: 11 1/2" from top of fixture to center line of supply.


Features & Benefits:

  • Enhanced Durability: AquaFlush Plus body resists dezincification, ensuring longer life in harsh water conditions.
  • Hygienic Operation: Touchless sensor activation minimizes germ spread in public restrooms.
  • Powerful Performance: 3.5 gpf provides robust flushing suitable for high-traffic areas.
  • Vandal Resistance: Includes a vandal-resistant stop cover for added security.
  • User-Friendly: Manual override button ensures functionality during power outages.


What's Included:

  • ZEMS6000PL Flush Valve


FAQ


Q: How does the AquaFlush Plus body improve the longevity of the flush valve?

A: The AquaFlush Plus body of the ZEMS6000PL is crafted from a proprietary dezincification-resistant low lead brass alloy. This advanced material significantly reduces the risk of dezincification, a form of corrosion that can affect brass fittings exposed to water over extended periods. By resisting this type of corrosion, the valve maintains its structural integrity and performance for much longer than typical brass valves, especially in areas with aggressive water conditions. This translates to reduced maintenance costs, fewer replacements, and more reliable operation throughout the product's lifecycle, making it an excellent investment for high-traffic commercial restrooms.

Q: Is the ZEMS6000PL suitable for retrofitting into existing plumbing systems?

A: Absolutely! The ZEMS6000PL is designed with versatility in mind, making it an excellent choice for both new construction and retrofit applications. Its 11 1/2" rough-in height is compatible with most existing water closet installations. The valve features a standard inlet for connection to existing plumbing, and its exposed design simplifies the installation process. Additionally, the product comes with a sweat solder kit and adjustable tailpiece, enhancing its adaptability to various installation scenarios. The chrome-plated finish ensures it will look great in any modern restroom setting. However, for optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber when retrofitting this valve into an existing system.


Detailed Features & Benefits


Advanced Sensor Technology: The ZEMS6000PL utilizes a sophisticated 6VDC motor actuator coupled with an automatic capacitive sensing system. This technology offers several key advantages:

  • Highly accurate user detection, reducing false activations and unnecessary flushes.
  • Capacitive sensing is less affected by environmental factors compared to traditional infrared sensors, ensuring consistent performance in various lighting conditions.
  • The motor actuator provides precise control over the flush cycle, optimizing water usage for each activation.
  • A manual override push button is integrated into the design, ensuring functionality even in the event of power loss or sensor malfunction.
  • The sensor's 10-degree angled design optimizes detection range and accuracy, improving user experience.
  • Low power consumption contributes to the overall energy efficiency of the restroom facility.

Robust Performance and Efficiency: The ZEMS6000PL's 3.5 gpf flow rate is designed to meet the demands of high-traffic commercial environments:

  • Provides powerful flushing action suitable for heavy use scenarios, ensuring effective waste removal with each flush.
  • The precise sensor activation helps prevent overuse and unnecessary multiple flushes.
  • The chloramine-resistant diaphragm and clog-resistant by-pass work together to maintain consistent performance over time, reducing the need for maintenance and adjustments.
  • The high back pressure vacuum breaker ensures safe operation by preventing backflow, protecting the water supply from potential contamination.
  • For facilities requiring this level of flushing power, the ZEMS6000PL offers a balance between performance and controlled water usage.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
