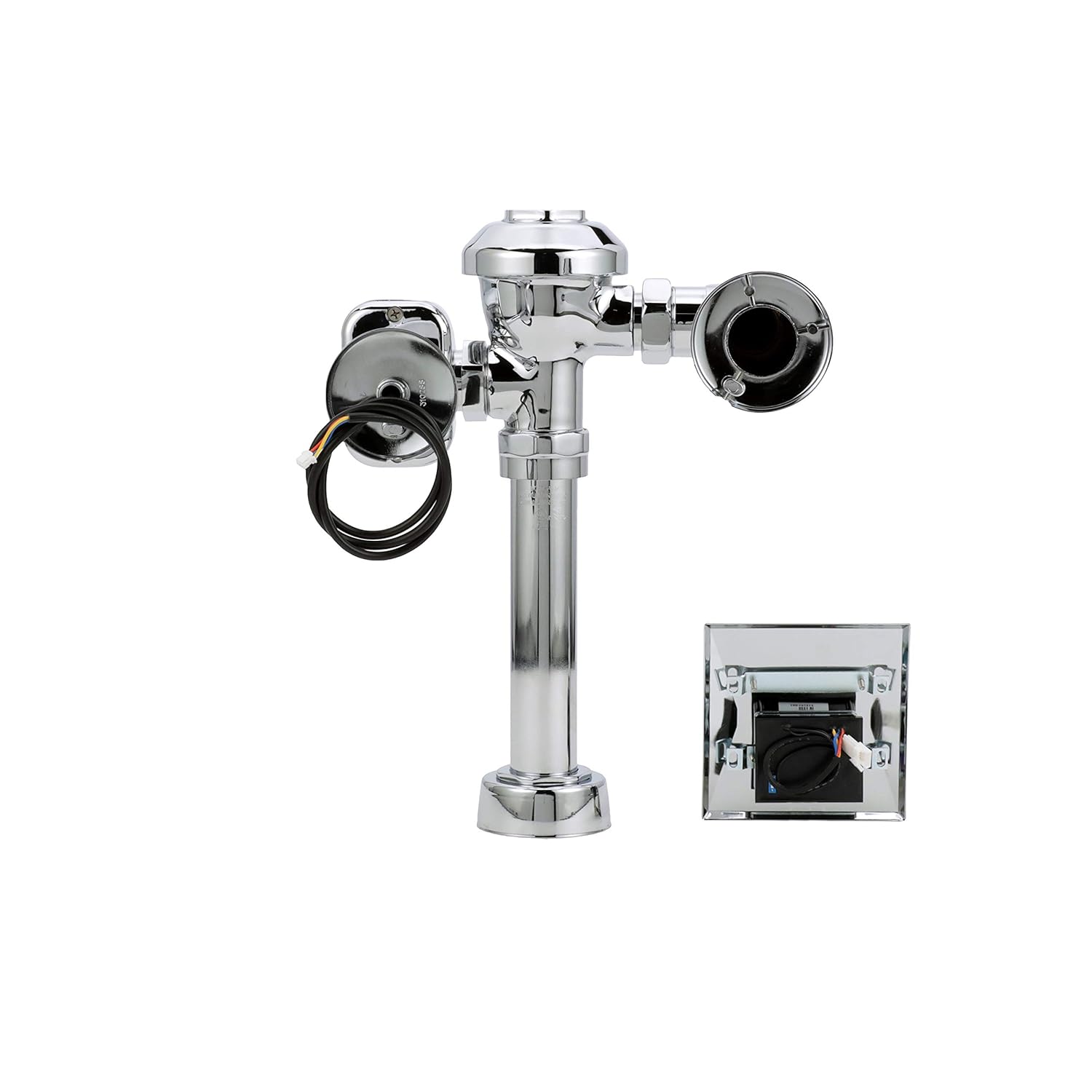

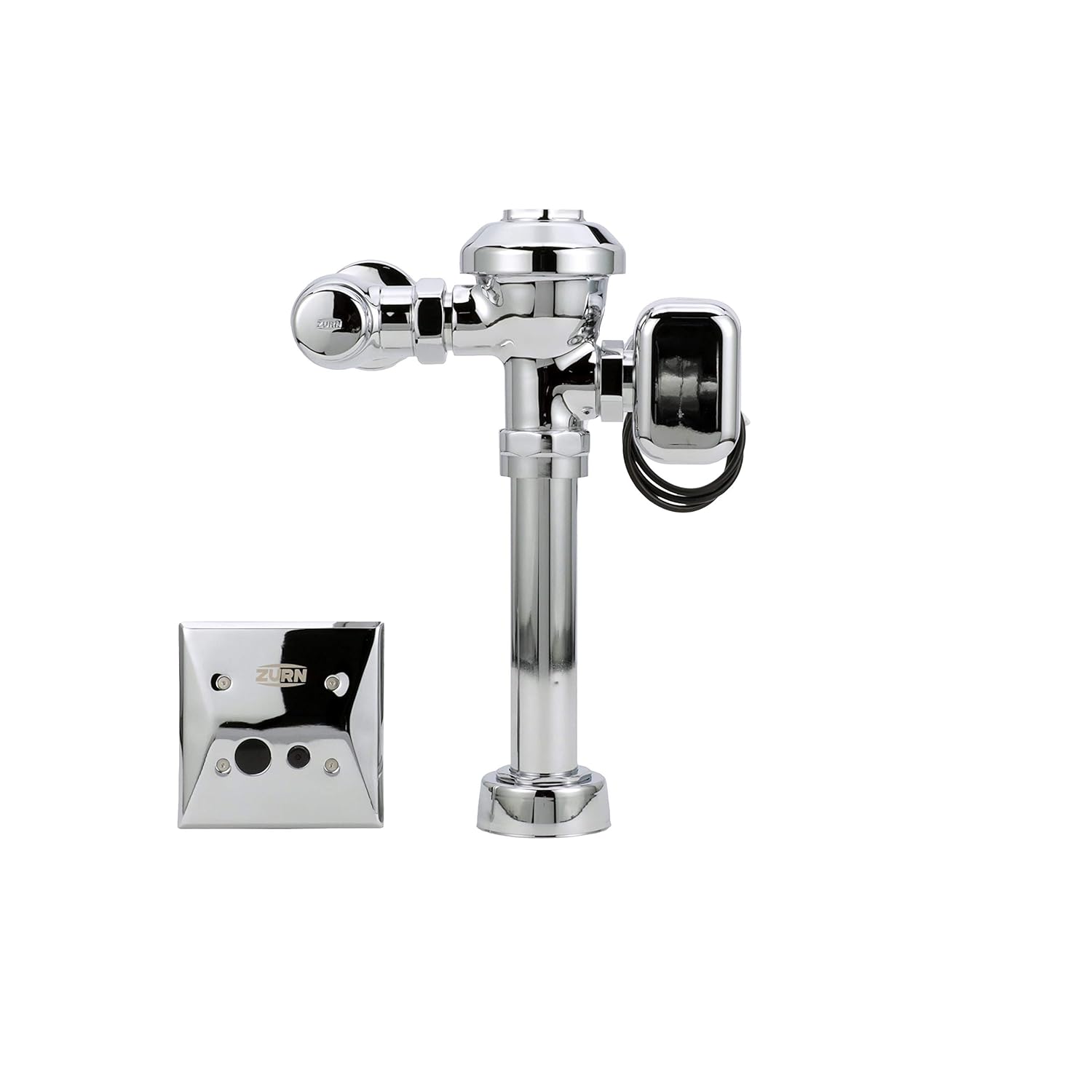

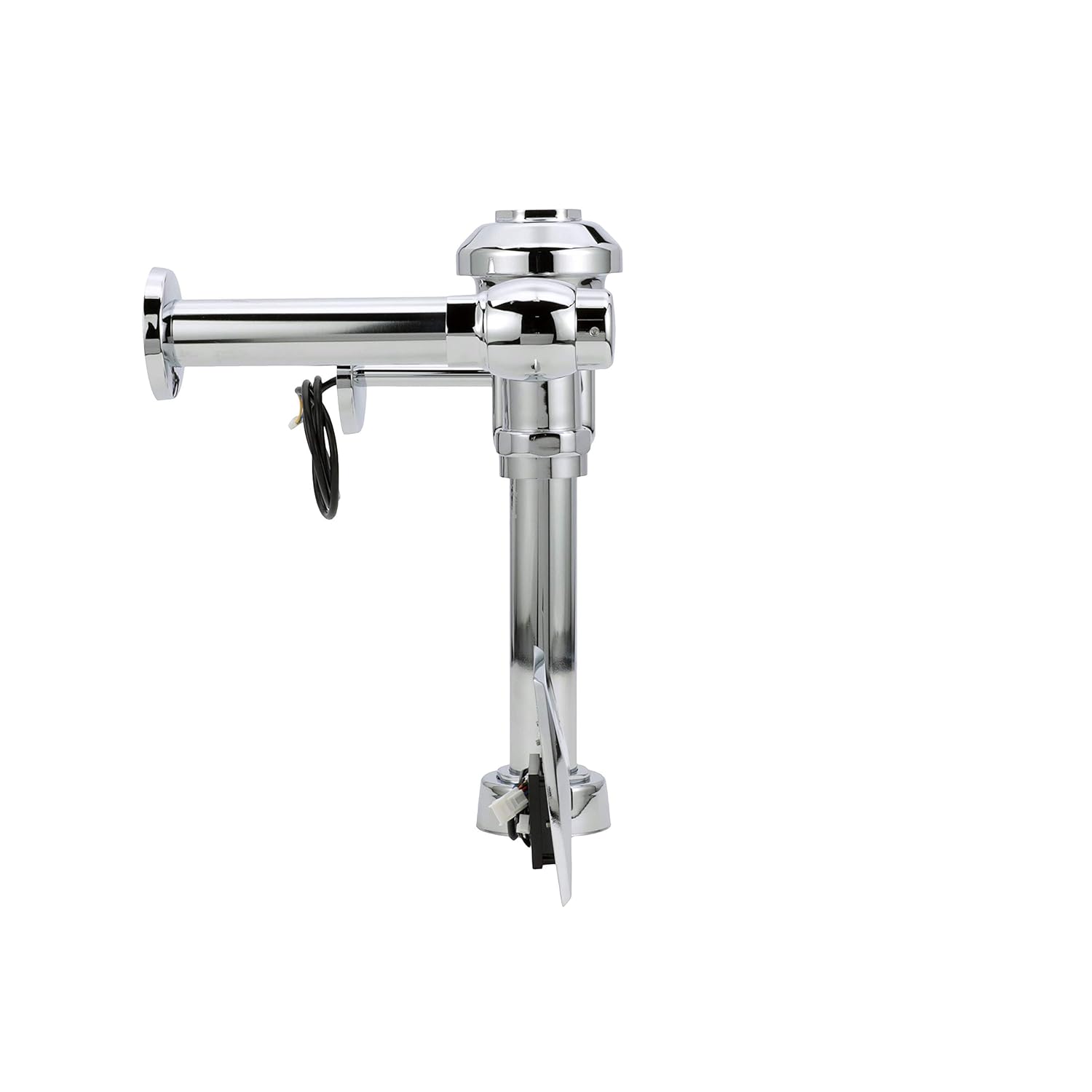

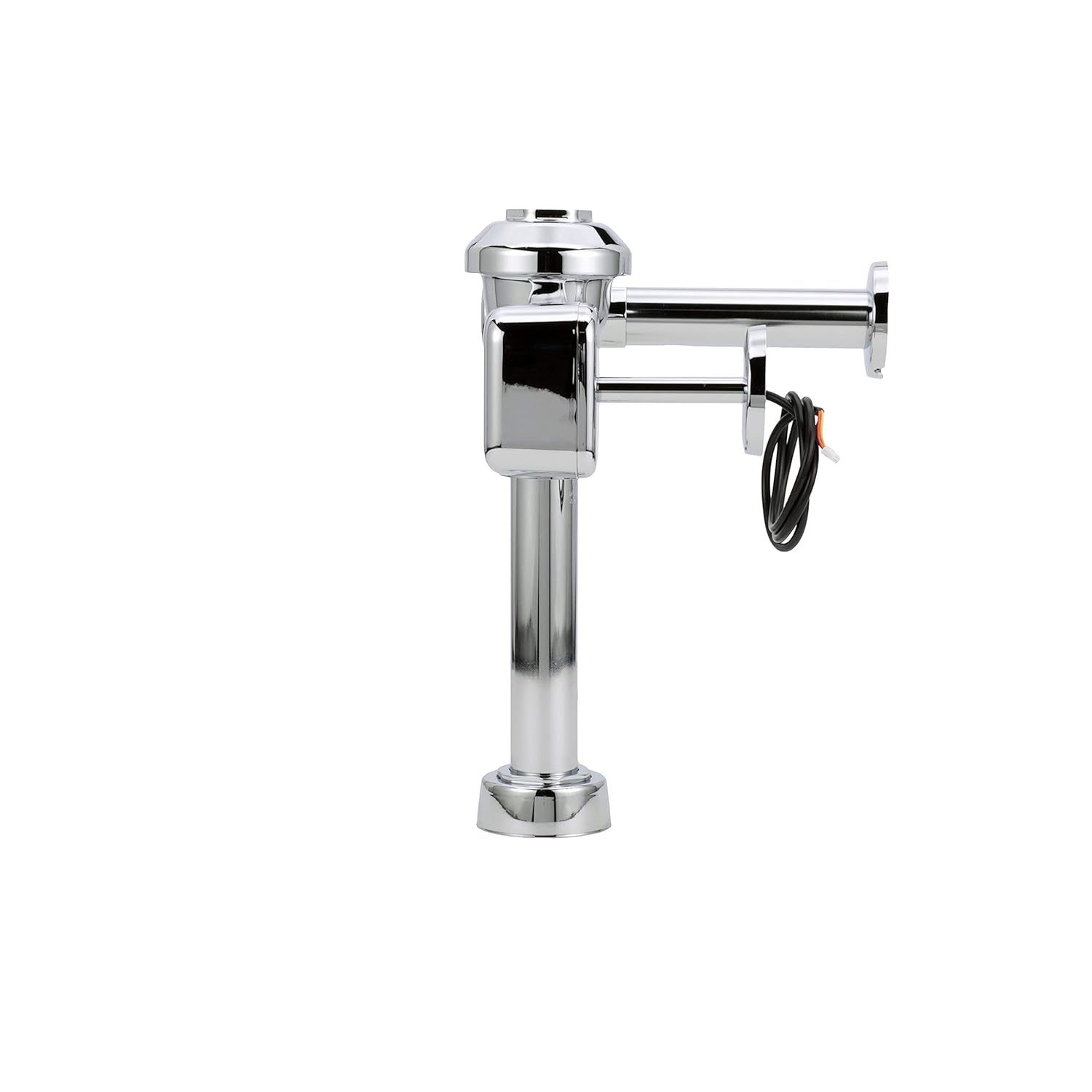

Zurn ZEMS6000PL-HET | AquaFlushPlus ZEMS Exposed Hardwired Sensor Flush Valve, In Wall Sensor, Chrome
Zurn ZEMS6000PL-HET | AquaFlushPlus ZEMS Exposed Hardwired Sensor Flush Valve, In Wall Sensor, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6000PL-HET | AquaFlushPlus ZEMS Exposed Hardwired Sensor F...
The ZEMS6000PL-HET is a high-efficiency sensor-operated flush valve designed for commercial water closets. Featuring Zurn’s AquaSense® technology and Aquaflush Plus upgrade, it delivers reliable 1.28 gpf performance while maintaining durability and ADA compliance. Ideal for facilities seeking water conservation without sacrificing flush power.
Key Specifications:
- Flow Rate: 1.28 gallons per flush (HET designation).
- Operation: Sensor-activated flush with capacitive manual override button.
- Construction: Dezincification-resistant low-lead brass body with chrome-plated finish.
- Dimensions: 11-1/2" overall valve height; top spud connection.
Features & Benefits:
- Water-Saving Performance: The 1.28 gpf flush volume meets EPA WaterSense criteria, reducing water usage by up to 20% compared to standard 1.6 gpf models.
- Aquaflush Plus Upgrade: Includes vandal-resistant stop cover and proprietary low-lead brass body for long-term durability in high-traffic environments.
- Touchless Activation: Sensor detects user presence and initiates flush automatically. Override button allows manual operation when needed.
What's Included:
- 1 x ZEMS6000PL-HET Exposed Closet Flush Valve
- 1 x Sensor-Activated Actuator Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Vandal-Resistant Stop Cover
- 1 x Installation Hardware
Options Available:
- ZEMS6000PL: Base model with Aquaflush Plus upgrade and manual operation only. Standard flow rate: 3.5 gpf.
- ZEMS6000PL-WS1: Sensor-operated version with Aquaflush Plus upgrade and 1.6 gpf flush volume.
FAQ
Q: What does the “HET” designation mean?
A: “HET” stands for High-Efficiency Toilet. This model flushes at 1.28 gpf, helping facilities reduce water usage while maintaining effective waste evacuation. It meets EPA WaterSense criteria when paired with compatible fixtures.
Q: Is this valve compatible with standard water closets?
A: Yes. The ZEMS6000PL-HET is designed for top spud water closets rated for 1.28 gpf. It performs reliably with water pressure between 10 and 100 psi.
Q: What power supply is required?
A: This valve must be powered by Zurn’s HW6 hardwire power converter or PC6 plug-in converter. Using non-Zurn power supplies may result in malfunction or damage to the sensor system.
Detailed Features & Benefits
Sensor Accuracy: The actuator uses capacitive sensing to avoid false triggers and ensure consistent performance. Range and courtesy flush settings are adjustable for custom environments.
Durable Materials: The Aquaflush Plus body resists dezincification and corrosion, while internal seals are chloramine-resistant for treated water systems.
ADA & WaterSense Compliant: Meets accessibility and efficiency standards when installed with compatible fixtures. Ideal for schools, healthcare, and public facilities.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
