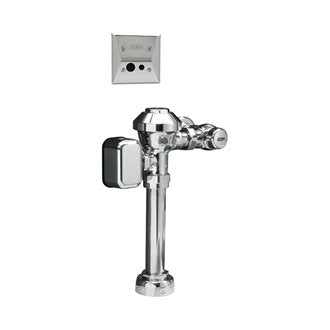

Zurn ZEMS6000PL-HET-W1 | AquaFlushPlus ZEMS Exposed Hardwired Sensor Flush Valve, In Wall Sensor, Chrome
Zurn ZEMS6000PL-HET-W1 | AquaFlushPlus ZEMS Exposed Hardwired Sensor Flush Valve, In Wall Sensor, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZEMS6000PL-HET-W1 | AquaFlushPlus ZEMS Exposed Hardwired Senso...
The ZEMS6000PL-HET-W1 delivers reliable, water-conserving performance with advanced in-wall sensor technology for commercial restrooms. Its durable AquaFlush® Plus technology combines with vandal-resistant components and dezincification-resistant brass construction, making it an ideal solution for high-use facilities seeking both efficient performance and a sleek, modern aesthetic.
Key Specifications:
- Flow Rate: 1.28 gallons per flush with high-efficiency performance, offering significant water conservation compared to standard models.
- Operation: In-wall sensor (W1) with capacitive sensing technology and manual override button for dependable hands-free performance.
- Construction: Proprietary dezincification resistant low lead brass alloy with polished chrome finish for extended service life.
- Compliance: ADA compliant and WaterSense certified to meet the highest standards for accessibility and efficiency.
Features & Benefits:
- In-Wall Sensor Design: The W1 in-wall sensor configuration provides a sleek, vandal-resistant installation that integrates beautifully with modern restroom designs.
- Water Conservation: The 1.28 gpf performance reduces water consumption by up to 63% compared to standard 3.5 gpf flush valves while providing effective waste evacuation.
- Hands-Free Operation: Infrared sensor with capacitive sensing technology eliminates the need to touch the flush valve, reducing cross-contamination in public restrooms.
- Durable Design: AquaFlush® Plus features include vandal-resistant components and dezincification-resistant brass construction for extended service life in demanding environments.
- Smart Technology: Automatic 8-hour flush feature ensures fresh fixture conditions even during periods of non-use.
What's Included:
- 1 x ZEMS6000PL-HET-W1 AquaFlush® Plus Exposed Sensor Flush Valve
- 1 x In-Wall Sensor Assembly with Manual Override Button
- 1 x Electronics Box with Hardwired Power Connection
- 1 x Control Stop with Internal Siphon-Guard Protection
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Mounting Hardware Kit
Options Available:
- ZEMS6000PL-HET: AquaFlush® Plus model with 1.28 gallons per flush with standard sensor configuration
FAQ
Q: What does the W1 designation indicate?
A: The W1 designation indicates that this model features an in-wall sensor installation. The sensor is mounted inside a 2-gang electrical box within the wall, creating a sleek appearance and offering superior vandal resistance compared to exposed sensor models.
Q: What are the installation requirements for the in-wall sensor?
A: The in-wall sensor requires a standard 2-gang electrical box (4" x 4" x 2-1/8") installed in the wall according to the specified dimensions. The installation also requires access to 120VAC power for the hardwired connection using the P6000-HW6 power converter.
Detailed Features & Benefits
Advanced In-Wall Sensor Technology: The ZEMS6000PL-HET-W1 features a sophisticated in-wall sensor design that enhances both aesthetics and functionality. The sensor is securely installed in a 2-gang electrical box with a 10-degree angled sensor for optimal user detection, while the manual override button provides backup operation if needed. This configuration protects the sensor components from vandalism while maintaining a clean, modern appearance.
Professional Grade Construction: The AquaFlush® Plus dezincification resistant low lead brass alloy with polished chrome finish provides superior durability in commercial environments. Designed to withstand frequent use and resist vandalism, the ZEMS6000PL-HET-W1 maintains its attractive appearance while delivering reliable performance year after year.
Optimized Sensor Placement: The in-wall sensor configuration allows for ideal positioning relative to the user, ensuring consistent detection and operation. This specialized design eliminates false activations while providing a streamlined appearance that architects and designers prefer for premium commercial restroom environments.
NOTICE: All products come with a limited five-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
