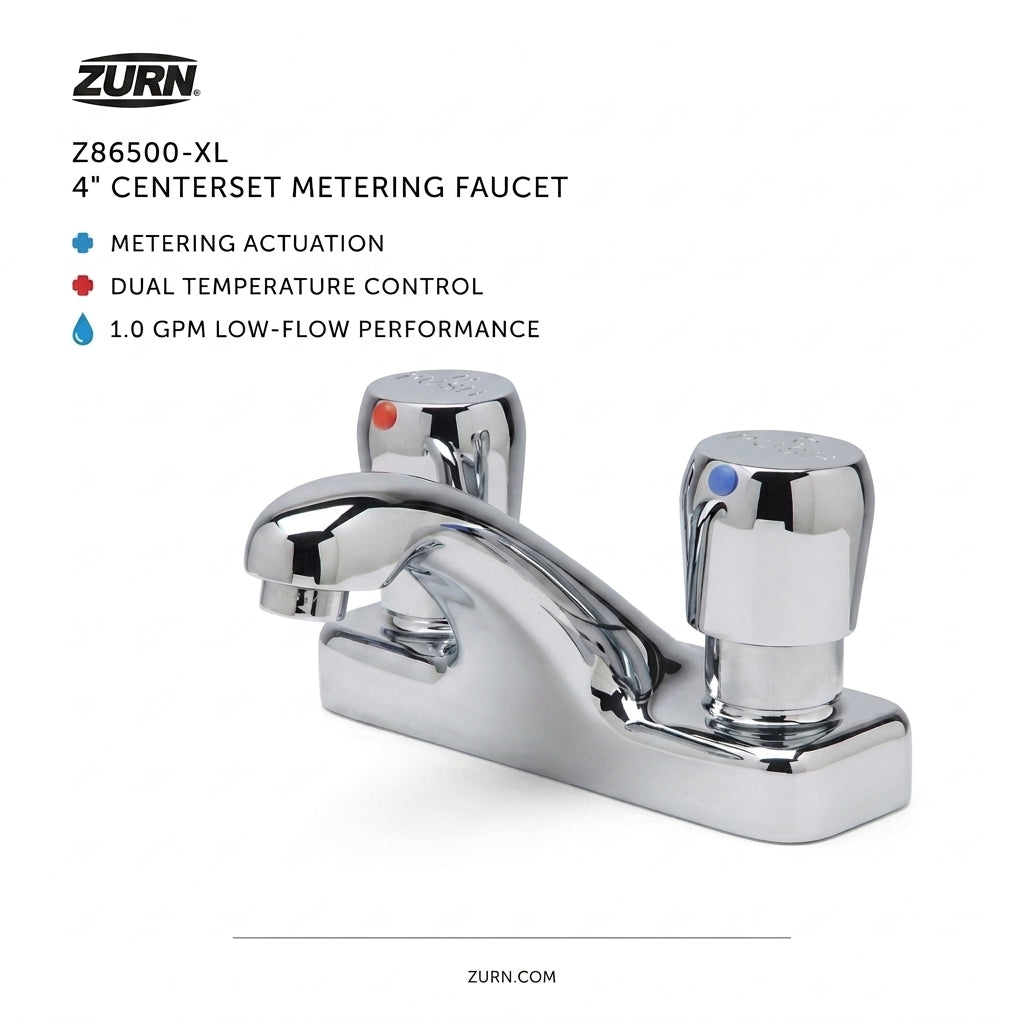

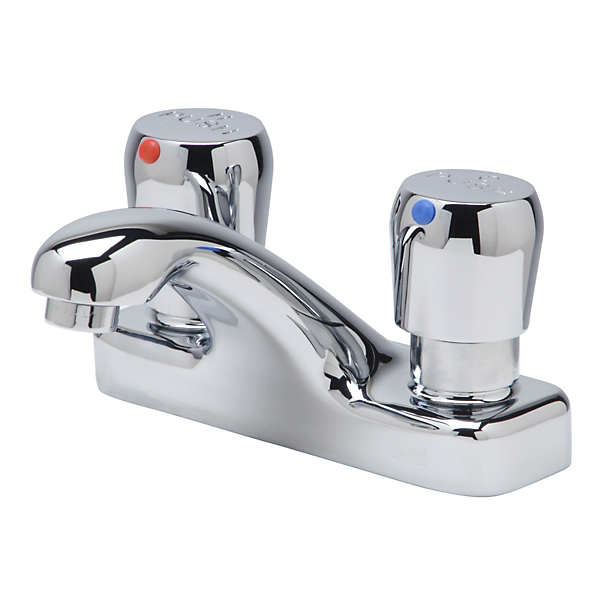

Zurn Z86500-XL | 4" Centerset Metering Faucet | 1.0 GPM
The Zurn Z86500-XL Series is a deck-mount metering faucet featuring temperature control, vandal-resistant handles, and lead-free brass construction. It is designed for high-traffic commercial restrooms where durability, water conservation, and ADA accessibility are essential.
Key Specifications:
- Flow Rate: Delivers 1.0 GPM, preset for efficient water use while still providing effective handwashing
- Outlet Type: Uses a spray outlet that produces a controlled stream suitable for public and institutional sinks
- Finish: Built with polished chrome-plated cast brass that resists corrosion and maintains a professional appearance
- Activation: Operated by manual metering handles that are ADA compliant and require less than 5 lbs of force
- Cycle Time: Factory preset to 10 seconds at 80 PSI, with easy adjustment to meet facility requirements
Features & Benefits:
- Temperature Control: Adjustable hot and cold mixing protects users from scalding while ensuring comfort
- ADA Accessibility: Easy-to-use handles meet ANSI A117.1 standards for universal access
- Vandal-Resistant Design: Durable brass handles and construction withstand heavy use in public facilities
- Water Conservation: Adjustable cycle timing and low-flow aerator options reduce water consumption
- Lead-Free Safety: Complies with SDWA Section 1417 and NSF 372 standards for safe drinking water
Related Variants:
| SKU | Flow Rate | Outlet Type |
|---|---|---|
| Z86500-XL | 1.0 GPM | Spray |
| Z86500-XL-16M | 1.0 GPM | Spray |
| Z86500-XL-22M | 1.0 GPM | Laminar |
| Z86500-XL-3M | 0.5 GPM | Spray |
| Z86500-XL-7M | 1.0 GPM | Spray |
| Z86500-XL-25M | 0.35 GPM | Spray |
| Z86500-XL-28M | 0.5 GPM | Laminar |
What's Included:
- 1 x Z86500-XL Faucet Body with Integral Shanks
- 1 x Standard 1.0 GPM Spray Outlet (installed)
- 2 x Vandal-Resistant ADA Compliant Handles
- Integral Shank Filters
- Mounting Hardware and Coupling Nuts
- Maintenance Tag
FAQ
Q: What is the cycle time for the Z86500-XL Series metering faucet?
A: Preset to 10 seconds at 80 PSI, adjustable to meet facility requirements.
Q: Is this faucet lead-free and safe for drinking water applications?
A: Yes, constructed with lead-free brass compliant with SDWA Section 1417 and NSF 372 standards.
Q: Can I replace the aerator to change the flow rate?
A: Yes, multiple aerator options are available from 0.35 GPM to 1.0 GPM in spray or laminar outlets.
Q: Is the faucet ADA compliant?
A: Yes, it requires less than 5 lbs of force to activate, meeting ANSI A117.1 accessibility standards.
Q: How should the faucet be maintained?
A: Clean with mild soap and water; avoid harsh chemicals to protect the chrome finish.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
- Flush the water supply lines thoroughly before installing the faucet to prevent debris from damaging internal components.
- Place the faucet body on the sink and secure from underneath using the supplied mounting nuts; hand‑tighten only to avoid damage.
- Connect the lavatory supply line from the outlet of the supply stop to the faucet shank using the riser nut provided.
- Install the spray outlet into the faucet and hand‑tighten; use only 1.0 GPM or 0.5 GPM spray outlets.
- If applicable, install optional pop‑up drain, grid strainer, or offset grid drain in the sink outlet and connect the waste line.
- Turn on the water supply and operate the faucet while checking all connections for leaks.
- The metering cartridge is factory preset for a 10–15 second cycle at 60 psi; adjust cycle time if necessary using the handle adjustment nut.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Clean exterior surfaces with mild soap and water; avoid acids or abrasive cleaners that can damage the chrome finish.
- Periodically remove and inspect the metering cartridge; replace if worn or contaminated.
- Back‑flush or replace the integral shank filter if flow is reduced due to sediment buildup.
- Inspect and clean the aerator regularly to maintain proper flow.
- Adjust cycle time by tightening or loosening the handle adjustment nut; clockwise increases run time, counterclockwise decreases it.
- Ensure water pressure remains within the recommended 60–80 psi range for optimal performance.
- Disconnect water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified service representative.
