Zurn Z86500-XL-3M | 4" Centerset Metering Faucet | 0.5 GPM
Zurn Z86500-XL-3M | 4" Centerset Metering Faucet | 0.5 GPM is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Always consult with a licensed professional and check local codes before installation. For further details, check the Owners Manual.
Contact us at support@bottlefillingstations.com with any questions.

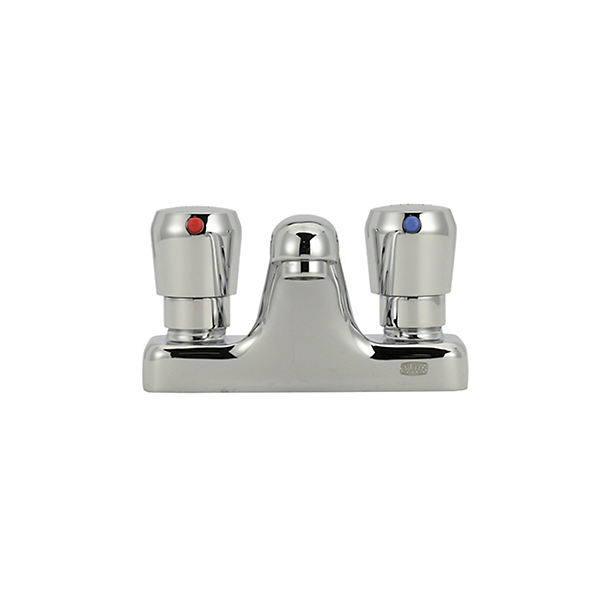

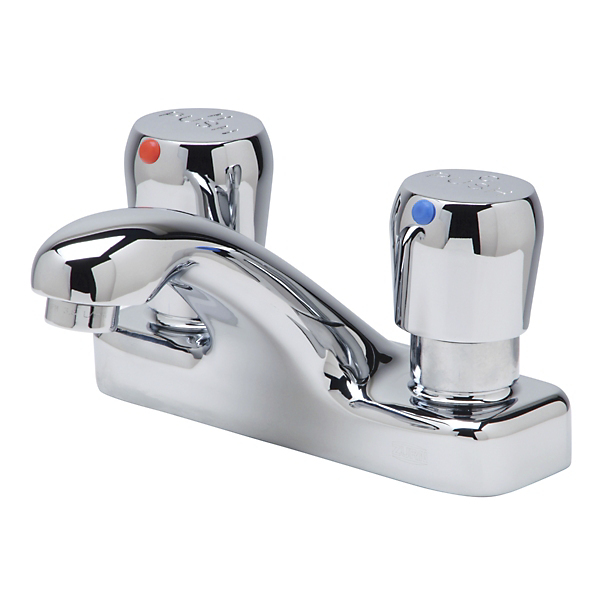

Zurn Z86500-XL-3M | 4" Centerset Metering Faucet | 0.5 GPM
A lead-free deck-mount metering faucet with temperature control, vandal-resistant features, and 0.5 GPM spray outlet.
Key Specifications:
- Flow Rate: 0.5 GPM
- Vandal Resistant: Yes
- Outlet Type: Spray
- Finish: Polished Chrome-Plated Cast Brass
- Activations: Manual Activation
Features & Benefits:
- Vandal-Resistant Design: Equipped with durable vandal-resistant ADA compliant color-coded handles and spray outlet, ensuring long-lasting performance in high-traffic areas.
- Water Conservation: Ultra-low 0.5 GPM flow rate significantly reduces water consumption while maintaining functionality, helping facilities meet sustainability goals.
- Easy Maintenance: Features adjustable cycle timing preset to 10 seconds at 80 PSI, polymer metering cartridge sleeve, and integral shank filters for simplified servicing and reliable operation.
- Lead-Free Compliance: Constructed with lead-free brass compliant with SDWA Section 1417, ensuring safe water delivery for users in healthcare, education, and institutional settings.
Compliance and Certifications:
- ADA
- ASME A112.18.1/CSA B125.1
- NSF 372
- IPC
FAQ
Q: What is the cycle time for the Z86500-XL-3M Series and can it be adjusted?
A: The Z86500-XL-3M Series comes preset to a 10-second cycle time at 80 PSI. The cycle timing is fully adjustable to meet specific facility requirements and user needs.
Q: Is this faucet ADA compliant and what is the activation force required?
A: Yes, the Z86500-XL-3M Series is fully ADA compliant and requires less than 5 pounds of force to activate per ANSI A117.1 standards, making it accessible for all users.
Q: What is included with the Z86500-XL-3M Series faucet?
A: The unit comes complete with integral shank filters, mounting hardware, and 1/2" coupling nuts for a straightforward installation on standard deck-mount applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
