Zurn Z6203-WS1-YB-YC | Metroflush exposed piston operated flush valve for urinals
Zurn Z6203-WS1-YB-YC | Metroflush exposed piston operated flush valve for urinals is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn Z6203-WS1-YB-YC | Metroflush exposed piston operated flush val...

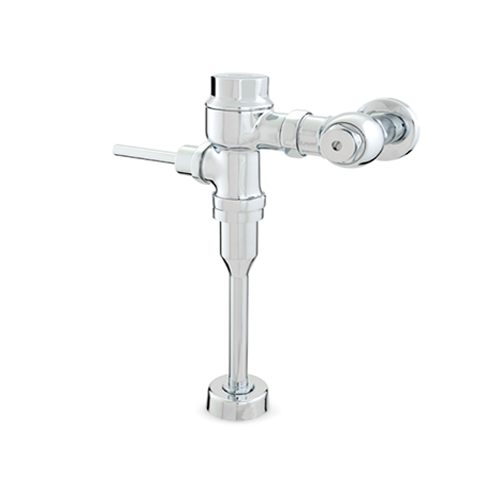

The Z6203-WS1-YB-YC delivers reliable performance with efficient water usage for urinals in commercial restrooms. Its piston-operated design combines proven Metroflush technology with durable construction, making it an ideal solution for facilities seeking consistent operation with standard water efficiency.
Key Specifications:
- Flow Rate: 1.0 gallon per flush (Water Saver).
- Operation: Manual flush with ADA compliant handle.
- Construction: Low-lead brass with clog-resistant filtered by-pass.
- Compliance: ADA compliant with non-hold open features.
Features & Benefits:
- Balanced Performance: The 1.0 gpf flow rate provides optimal flushing power for most commercial urinal fixtures while still offering water savings compared to older 1.5-3.0 gpf models.
- Reliable Operation: Piston with clog-resistant filtered by-pass prevents operational issues and ensures consistent flushing even in challenging water conditions.
- Durable Construction: Chloramine-resistant seals and low-lead brass alloys provide extended service life with lower maintenance costs in treated water systems.
- Vandal Resistant: Control stop with internal siphon-guard protection prevents unauthorized adjustments in public restrooms.
- Easy Installation: Includes sweat solder kit and cast wall flange for straightforward exposed installation.
Options Available:
- Z6203-EWS-YB-YC: Extra Water Saver model at 0.5 gallons per flush for maximum water conservation in facilities with compatible fixtures.
What's Included:
- 1 x Z6203-WS1-YB-YC Exposed Urinal Flush Valve
- 1 x ADA Compliant Handle Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit (YB)
- 1 x Cast Wall Flange with Set Screw (YC)
- 1 x Installation Hardware
FAQ
Q: Will this flush valve work with my existing urinal fixture?
A: The Z6203-WS1-YB-YC is designed to work with most standard urinals, including older fixtures that may require the full 1.0 gpf flow rate for proper evacuation. The valve operates effectively with water pressure from 10 to 100 psi, with a recommended minimum of 25 psi. The 1.0 gpf flow rate provides excellent performance across a wide range of urinal fixtures, making it an ideal choice for retrofit applications.
Q: How does this piston-operated valve differ from diaphragm valves?
A: Piston-operated flush valves typically offer more consistent performance in varied water conditions and can be more resistant to harsh water environments. The filtered by-pass design helps prevent clogging issues that can affect performance, and the chloramine-resistant seals provide extended service life, particularly in municipal water systems that use chloramine treatment.
Detailed Features & Benefits
Advanced Piston Technology: The Z6203-WS1-YB-YC utilizes Zurn's Metroflush piston technology with a clog-resistant filtered by-pass. This design prevents debris from affecting the valve's operation while providing consistent water delivery and reliable shut-off. The chloramine-resistant seals protect against premature deterioration in treated water supplies, extending the service life of the valve and minimizing maintenance requirements.
Optimal Flushing Performance: The 1.0 gpf flow rate delivers the ideal balance of water efficiency and flushing power for most commercial urinal applications. This flow rate ensures complete bowl cleaning and waste removal while still conserving water compared to older, less efficient models. The high back pressure vacuum breaker ensures reliable operation and prevents backflow contamination, while the control stop can be easily adjusted to fine-tune performance.
Exposed Installation Ready: The valve comes complete with a sweat solder kit (YB) and cast wall flange with set screw (YC), making installation straightforward for both new construction and retrofit applications. The exposed installation design offers easy access for maintenance and adjustments, reducing service time and costs throughout the product's lifecycle. The standard ADA-compliant handle ensures comfortable operation for all users.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
