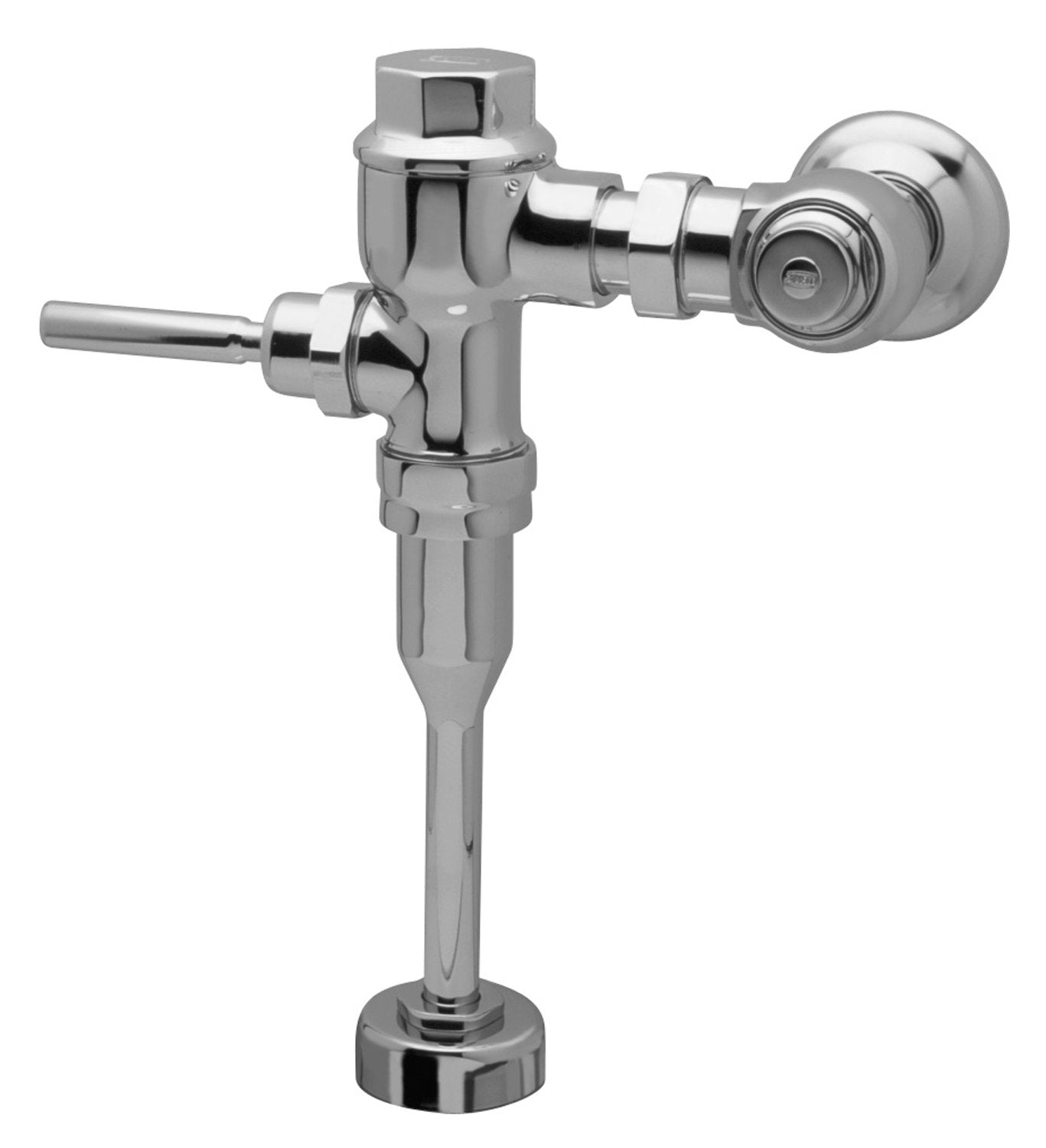

Zurn Z6203-EWS-YB-YC | Metroflush Exposed Piston Flush Valve for Urinals, Extra Water Saver
Zurn Z6203-EWS-YB-YC | Metroflush Exposed Piston Flush Valve for Urinals, Extra Water Saver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn Z6203-EWS-YB-YC | Metroflush Exposed Piston Flush Valve for Ur...
The Z6203-EWS-YB-YC delivers reliable performance with exceptional water conservation for urinals in commercial restrooms. Its piston-operated design combines proven Metroflush technology with durable construction, making it an ideal solution for facilities seeking to balance water efficiency with dependable operation.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (Extra Water Saver).
- Operation: Manual flush with ADA compliant handle.
- Construction: Low-lead brass with clog-resistant filtered by-pass.
- Compliance: WaterSense certified and ADA compliant.
Features & Benefits:
- Water Conservation: The 0.5 gpf flow rate reduces water consumption by up to 50% compared to standard 1.0 gpf urinal flush valves.
- Reliable Performance: Piston with clog-resistant filtered by-pass prevents operational issues and ensures consistent flushing.
- Durable Construction: Chloramine-resistant seals and low-lead brass alloys provide extended service life with lower maintenance costs.
- Vandal Resistant: Control stop with internal siphon-guard protection prevents unauthorized adjustments in public restrooms.
- Easy Installation: Includes sweat solder kit and cast wall flange for straightforward exposed installation.
Options Available:
- Z6203-WS1-YB-YC: Water Saver model at 1.0 gallon per flush for applications requiring additional flushing power while still offering water savings compared to older models.
What's Included:
- 1 x Z6203-EWS-YB-YC Exposed Urinal Flush Valve
- 1 x ADA Compliant Handle Assembly
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit (YB)
- 1 x Cast Wall Flange with Set Screw (YC)
- 1 x Installation Hardware
FAQ
Q: Will this flush valve work with my existing urinal fixture?
A: The Z6203-EWS-YB-YC is designed to work with most standard urinals rated for 0.5 gpf operation. The valve operates effectively with water pressure from 10 to 100 psi, with a recommended minimum of 25 psi for proper fixture evacuation. Before installation, it's important to verify your fixture manufacturer's minimum flow requirements to ensure proper evacuation.
Q: How does this piston-operated valve differ from diaphragm valves?
A: Piston-operated flush valves typically offer more consistent performance in varied water conditions and can be more resistant to harsh water environments. The filtered by-pass design helps prevent clogging issues that can affect performance, and the chloramine-resistant seals provide extended service life, particularly in municipal water systems that use chloramine treatment.
Detailed Features & Benefits
Advanced Piston Technology: The Z6203-EWS-YB-YC utilizes Zurn's Metroflush piston technology with a clog-resistant filtered by-pass. This design prevents debris from affecting the valve's operation while providing consistent water delivery and reliable shut-off. The chloramine-resistant seals protect against premature deterioration in treated water supplies, extending the service life of the valve and minimizing maintenance requirements.
Precision Engineered Water Delivery: The 0.5 gpf flow rate is precisely calibrated to provide effective bowl cleaning while conserving water. The high back pressure vacuum breaker ensures reliable operation and prevents backflow contamination. The control stop features internal siphon-guard protection and can be easily adjusted to fine-tune the flow for optimal performance with your specific fixture and water pressure conditions.
Exposed Installation Ready: The valve comes complete with a sweat solder kit (YB) and cast wall flange with set screw (YC), making installation straightforward for both new construction and retrofit applications. The exposed installation design offers easy access for maintenance and adjustments, reducing service time and costs throughout the product's lifecycle.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
