Zurn  |  SKU: Z6003PL-ULF

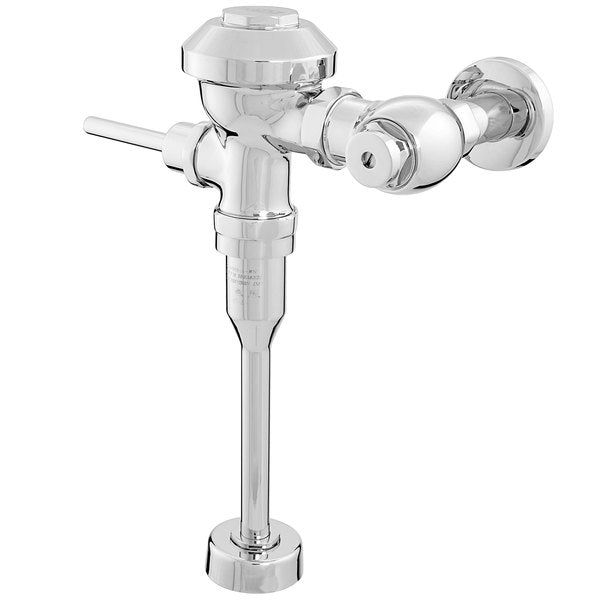

Zurn Z6003PL-ULF | Aquaflush PL Plus Exposed Manual Flush Valve, Ultra Low Flow | 0.125 GPF

$ 174.99
Shipping calculated at checkout.

Product Care Information
Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Z6003PL-ULF delivers exceptional water conservation with reliable performance for urinals in commercial restrooms. Its diaphragm-operated design combines premium Aquaflush Plus technology with ultra-low flow operation, making it an ideal solution for facilities seeking maximum water efficiency.


Key Specifications:

  • Flow Rate: 0.125 gallons per flush (Ultra-Low Flow).
  • Operation: Manual flush with ADA compliant handle.
  • Construction: Dezincification-resistant low lead brass alloy body.
  • Compliance: WaterSense certified and ADA compliant.


Features & Benefits:

  • Premium Construction: Aquaflush Plus includes vandal-resistant stop cover and dezincification-resistant low lead brass alloy body for superior durability.
  • Maximum Water Conservation: The 0.125 gpf flow rate reduces water consumption by up to 96% compared to older 3.5 gpf models while maintaining effective evacuation.
  • Reliable Performance: Diaphragm with clog-resistant by-pass prevents operational issues and ensures consistent flushing even in challenging water conditions.
  • Vandal Resistant: Control stop with internal siphon-guard protection and vandal-resistant stop cover prevents unauthorized adjustments in public restrooms.
  • Complete Package: Includes sweat solder kit and cast wall flange with setscrew for professional installation.


What's Included:

  • 1 x Z6003PL-ULF Exposed Urinal Flush Valve (3/4")
  • 1 x ADA Compliant Handle Assembly
  • 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
  • 1 x Adjustable Tailpiece
  • 1 x Spud Coupling and Flange for Top Spud Connection (3/4")
  • 1 x Sweat Solder Kit
  • 1 x Cast Wall Flange with Set Screw
  • 1 x Vandal-Resistant Stop Cover
  • 1 x Installation Hardware


Options Available:

  • Z6003PL-WS1: Water saving model with 1.0 gallon per flush for urinals
  • Z6003PL-EWS: Extra water saving model with 0.5 gallon per flush for urinals


FAQ


Q: Will this flush valve work with my existing urinal fixture?

A: The Z6003PL-ULF is designed to work with most urinals rated for 0.125 gpf operation. The valve operates effectively with water pressure from 10 to 100 psi, with a recommended minimum of 25 psi for proper fixture evacuation. Before installation, it's important to verify your fixture manufacturer's minimum flow requirements to ensure proper evacuation with this ultra-low flow rate.

Q: How much water can I save by switching to this flush valve?

A: The Z6003PL-ULF operates at just 0.125 gallons per flush, which can reduce water consumption by up to 87.5% compared to standard 1.0 gpf models and up to 96% compared to older 3.5 gpf models. In a typical commercial setting with 100 uses per day, this can translate to savings of approximately 32,000 gallons of water annually when replacing a standard 1.0 gpf valve.


Detailed Features & Benefits


Advanced Aquaflush Plus Technology: The Z6003PL-ULF utilizes Zurn's premium Aquaflush Plus technology with a clog-resistant by-pass and dezincification-resistant low lead brass alloy body. This design prevents debris from affecting the valve's operation while providing consistent water delivery and reliable shut-off. The chloramine-resistant dual seal diaphragm protects against premature deterioration in treated water supplies, extending the service life of the valve and minimizing maintenance requirements.

Ultra-Low Flow Performance: The 0.125 gpf flow rate is precisely calibrated to provide effective urinal evacuation while maximizing water conservation. Despite using significantly less water than standard models, the engineered flow pattern ensures reliable performance that meets commercial standards. The high back pressure vacuum breaker ensures dependable operation and prevents backflow contamination, a critical feature in commercial restroom settings.

Enhanced Security Features: The vandal-resistant stop cover provides additional security against tampering in high-traffic public restrooms. Combined with the internal siphon-guard protection in the control stop, these features ensure the flush valve maintains its proper settings even in challenging environments, reducing maintenance calls and ensuring consistent performance.


NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
