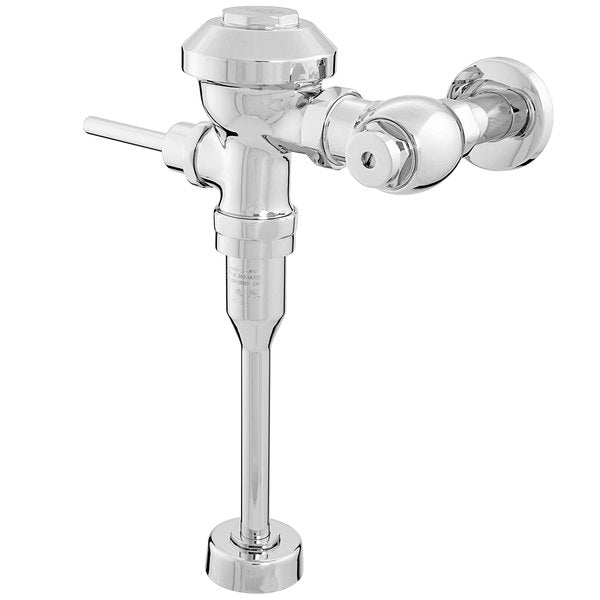

Zurn Z6003PL-EWS | Aquaflush PL Plus Exposed Manual Flush Valve, Enhanced Water Saving | 0.5 GPF
Zurn Z6003PL-EWS | Aquaflush PL Plus Exposed Manual Flush Valve, Enhanced Water Saving | 0.5 GPF is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn Z6003PL-EWS | Aquaflush PL Plus Exposed Manual Flush Valve, En...
The Z6003PL-EWS delivers exceptional water conservation with reliable performance for urinals in commercial restrooms. Its diaphragm-operated design combines premium Aquaflush Plus technology with enhanced water-saving operation, making it an ideal solution for facilities seeking high water efficiency.
Key Specifications:
- Flow Rate: 0.5 gallons per flush (Enhanced Water Saving).
- Operation: Manual flush with ADA compliant handle.
- Construction: Dezincification-resistant low lead brass alloy body.
- Compliance: WaterSense certified and ADA compliant.
Features & Benefits:
- Premium Construction: Aquaflush Plus includes vandal-resistant stop cover and dezincification-resistant low lead brass alloy body for superior durability.
- Enhanced Water Conservation: The 0.5 gpf flow rate reduces water consumption by up to 86% compared to older 3.5 gpf models while maintaining effective evacuation.
- Reliable Performance: Diaphragm with clog-resistant by-pass prevents operational issues and ensures consistent flushing even in challenging water conditions.
- Vandal Resistant: Control stop with internal siphon-guard protection and vandal-resistant stop cover prevents unauthorized adjustments in public restrooms.
- Complete Package: Includes sweat solder kit and cast wall flange with setscrew for professional installation.
What's Included:
- 1 x Z6003PL-EWS Exposed Urinal Flush Valve (3/4")
- 1 x ADA Compliant Handle Assembly
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection (3/4")
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Vandal-Resistant Stop Cover
- 1 x Installation Hardware
Options Available:
- Z6003PL-ULF: Ultra-low flow model with 0.125 gallon per flush for maximum water conservation
- Z6003PL-WS1: Low consumption model with 1.0 gallon per flush for standard efficiency
FAQ
Q: Will this flush valve work with my existing urinal fixture?
A: The Z6003PL-EWS is designed to work with most urinals rated for 0.5 gpf operation. The valve operates effectively with water pressure from 10 to 100 psi, with a recommended minimum of 25 psi for proper fixture evacuation. Before installation, it's important to verify your fixture manufacturer's minimum flow requirements to ensure proper evacuation with this enhanced water-saving flow rate.
Q: How much water can I save by switching to this flush valve?
A: The Z6003PL-EWS operates at 0.5 gallons per flush, which can reduce water consumption by up to 50% compared to standard 1.0 gpf models and up to 86% compared to older 3.5 gpf models. In a typical commercial setting with 100 uses per day, this can translate to savings of approximately 18,250 gallons of water annually when replacing a standard 1.0 gpf valve.
Detailed Features & Benefits
Advanced Aquaflush Plus Technology: The Z6003PL-EWS utilizes Zurn's premium Aquaflush Plus technology with a clog-resistant by-pass and dezincification-resistant low lead brass alloy body. This design prevents debris from affecting the valve's operation while providing consistent water delivery and reliable shut-off. The chloramine-resistant dual seal diaphragm protects against premature deterioration in treated water supplies, extending the service life of the valve and minimizing maintenance requirements.
Enhanced Water-Saving Performance: The 0.5 gpf flow rate is precisely calibrated to provide effective urinal evacuation while delivering significant water conservation. Despite using half the water of standard low-consumption models, the engineered flow pattern ensures reliable performance that meets commercial standards. The high back pressure vacuum breaker ensures dependable operation and prevents backflow contamination, a critical feature in commercial restroom settings.
Enhanced Security Features: The vandal-resistant stop cover provides additional security against tampering in high-traffic public restrooms. Combined with the internal siphon-guard protection in the control stop, these features ensure the flush valve maintains its proper settings even in challenging environments, reducing maintenance calls and ensuring consistent performance.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
