Scotsman APRC1-P | Aqua Patrol Plus Replacement Cartridge
Scotsman APRC1-P | Aqua Patrol Plus Replacement Cartridge is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installing the Scotsman Water Filtration System involves a few steps to ensure that your ice machine receives the best possible water quality. Here’s a simplified guide to help you with the installation:
-
Identify the Installation Location: Choose a location where the filter will be easily accessible for maintenance and cartridge replacement. Ensure there’s enough clearance around the filter for easy installation and servicing.
-
Mount the Filter Head: Securely mount the filter head to a wall or a panel near the ice machine, making sure it’s in a vertical position with the cartridges hanging down.
-
Install the Cartridge: Insert the cartridge into the filter head. Make sure it’s firmly seated and locked in place.
-
Connect Water Supply: Attach the incoming water line to the inlet side of the filter head. Ensure all connections are secure to prevent leaks.
-
Flush the System: Before connecting the outlet side to your ice machine, flush the system according to the manufacturer’s instructions to remove any carbon fines and to ensure the system is filled with water.
-
Connect to Ice Machine: After flushing, connect the outlet side of the filter to the water inlet of your ice machine.
-
Check for Leaks: Turn on the water supply and check all connections for leaks. Tighten any fittings if necessary.
-
Register the Product: Don’t forget to register your product for warranty purposes and to get support from Scotsman if needed.
For detailed instructions, it’s always best to refer to the official installation manual provided by Scotsman. If you’re not comfortable performing the installation yourself, consider hiring a professional technician to ensure it’s done correctly.

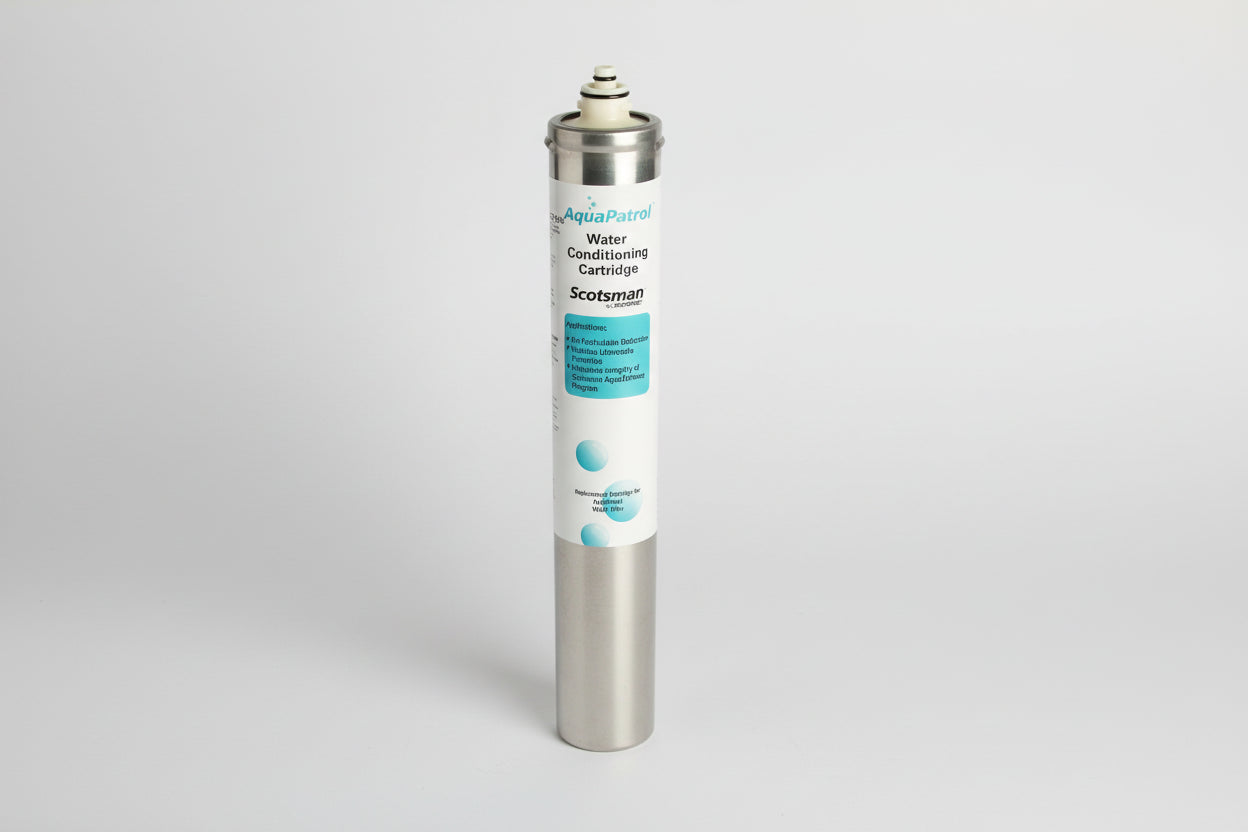

The APRC1-P is a high-performance replacement cartridge for Scotsman's AquaPatrol Plus ice machine water filtration system. This innovative filter offers half-micron filtration, extending machine life and reducing service calls while maintaining some chlorine in the water for prolonged cleanliness. Its compact design and advanced features make it an ideal choice for commercial ice machine applications.
Key Specifications:
- Filtration Level: 0.5 micron rating for superior contaminant removal.
- Pressure Requirements: Operates effectively between 20-80 psi.
- Temperature Range: Air temperature 50°-100°F, water temperature 40°-100°F.

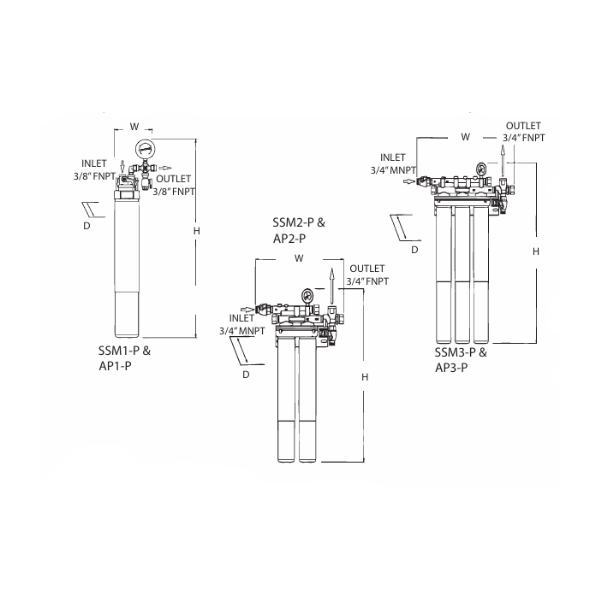

- Dimensions: Compact size of 10" W x 21" D x 6" H for flexible installation.
- Certifications: NSF certified to Standards 42 and 53 for various contaminant reductions.
Features & Benefits:
- Chlorine Retention: Unique design allows some chlorine to remain in the water, keeping the ice machine cleaner for longer periods.
- Scale Prevention: Incorporates a polyphosphate feed to inhibit scale buildup, protecting machine components.
- Easy Maintenance: Designed for simple installation and maintenance, reducing downtime and service costs.
- Comprehensive Filtration: Removes particles, reduces turbidity, and filters out cysts and asbestos for improved ice quality and machine performance.
- Space-Efficient Design: Smaller footprint offers greater flexibility in tight installation spaces.
What's Included:
- APRC1-P AquaPatrol Plus Water Filter Replacement Cartridge
- Installation instructions
- Warranty information
FAQ
Q: How often should the APRC1-P cartridge be replaced?
A: While the exact replacement interval can vary based on usage and water quality, it's generally recommended to replace the cartridge every 3-6 months for optimal performance.
Q: Is this filter compatible with all Scotsman ice machines?
A: The APRC1-P is designed specifically for use with Scotsman AquaPatrol Plus ice machine water filtration systems. Always check your machine's specifications to ensure compatibility.
Q: What is the warranty coverage for the APRC1-P?
A: The warranty covers manifold parts exclusively for five years in commercial installations across North, South, and Central America. For residential applications, both parts and labor are covered for one year.
Detailed Features & Benefits
Advanced Filtration Technology: The APRC1-P utilizes a sophisticated 0.5-micron filtration system that effectively removes a wide range of contaminants, including particles, cysts, and asbestos. This level of filtration not only improves the quality of ice produced but also protects the ice machine from potential damage caused by impurities. The filter's ability to reduce chlorine taste and odor while still allowing some chlorine to remain in the water is a unique feature that helps maintain cleanliness within the ice machine, potentially extending the time between cleaning cycles.
Optimized for Ice Machine Performance: The APRC1-P is specifically designed to enhance ice machine operation. Its polyphosphate feed technology actively works to prevent scale buildup, a common issue that can significantly impact ice machine efficiency and longevity. By inhibiting scale formation, the filter helps maintain optimal heat transfer in the ice-making components, ensuring consistent ice production and reducing the frequency of descaling procedures. This feature, combined with the filter's particle removal capabilities, can lead to fewer service calls and lower maintenance costs over time, making it an economical choice for businesses relying on ice production.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
