Hoshizaki KMD-505MWJ | Modular Crescent Cuber Ice Machine, Water-Co...

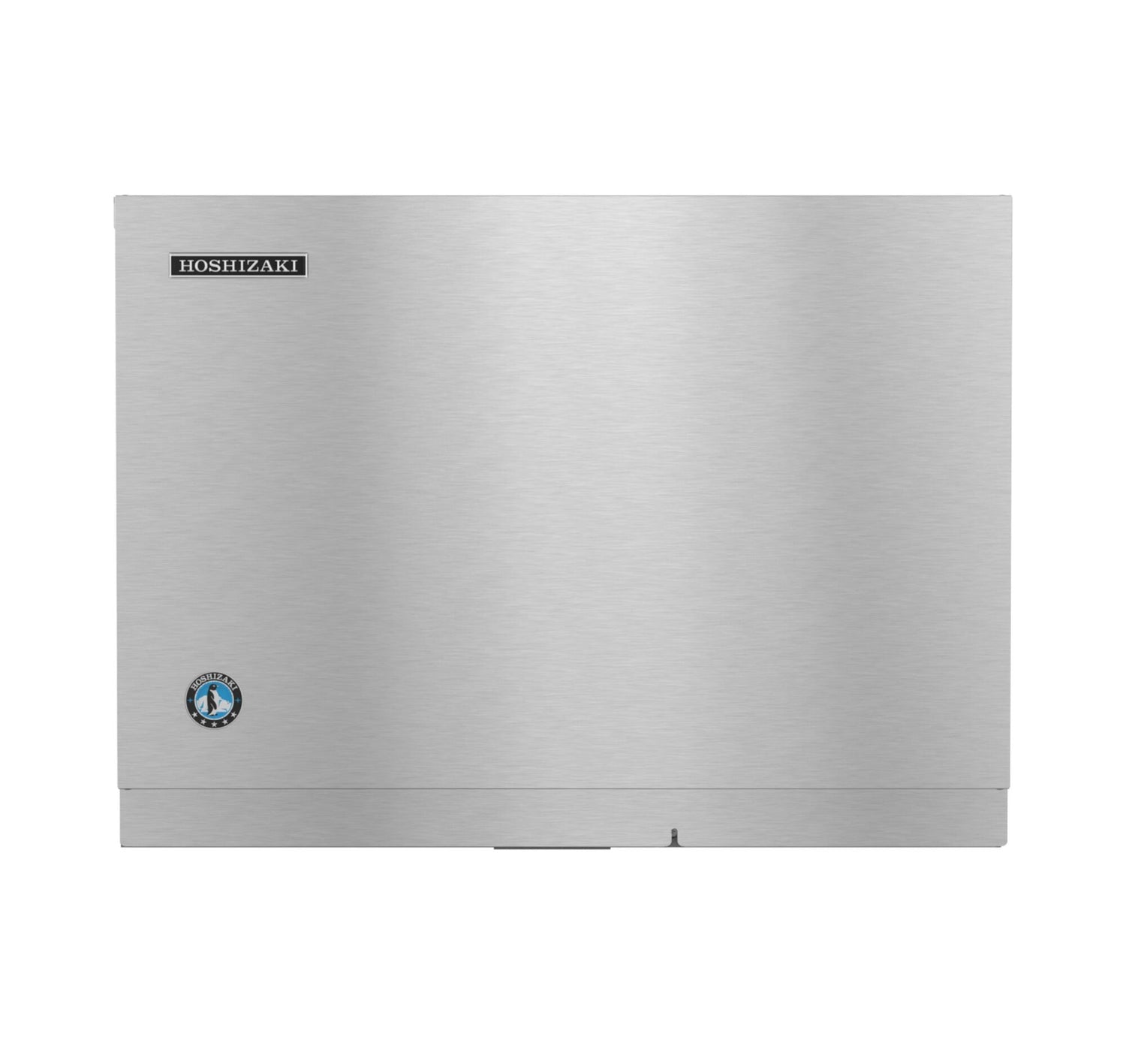

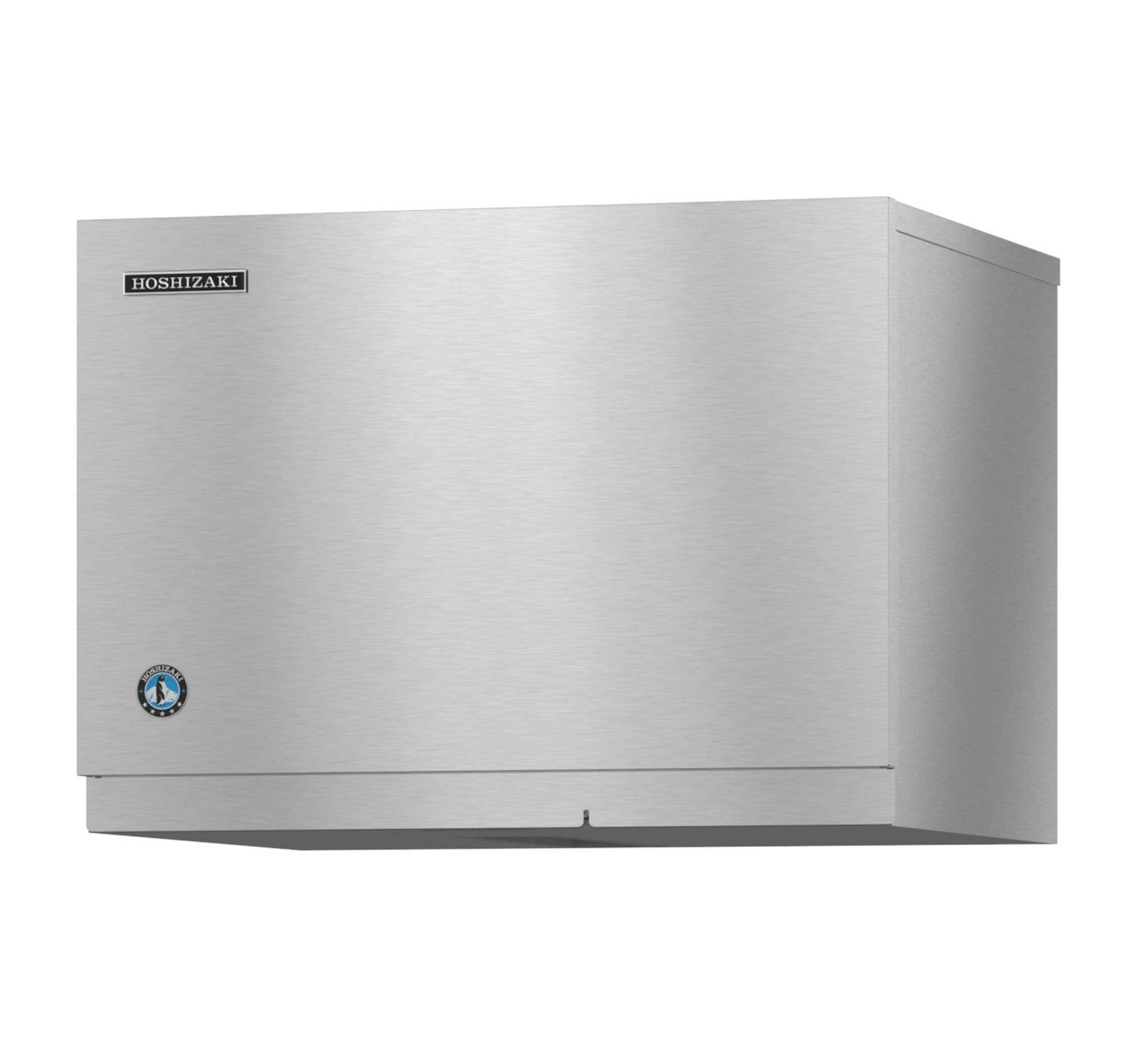

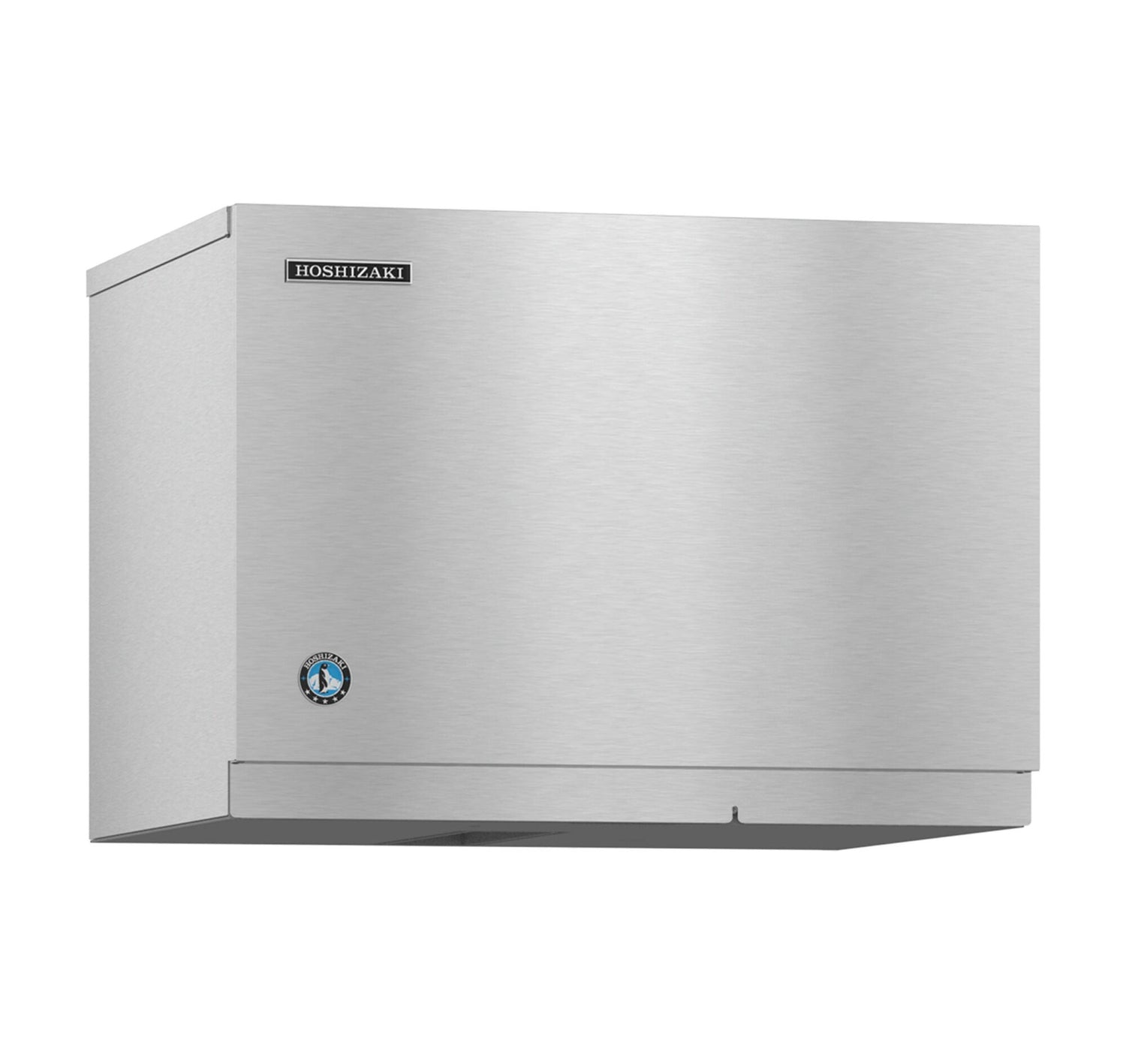

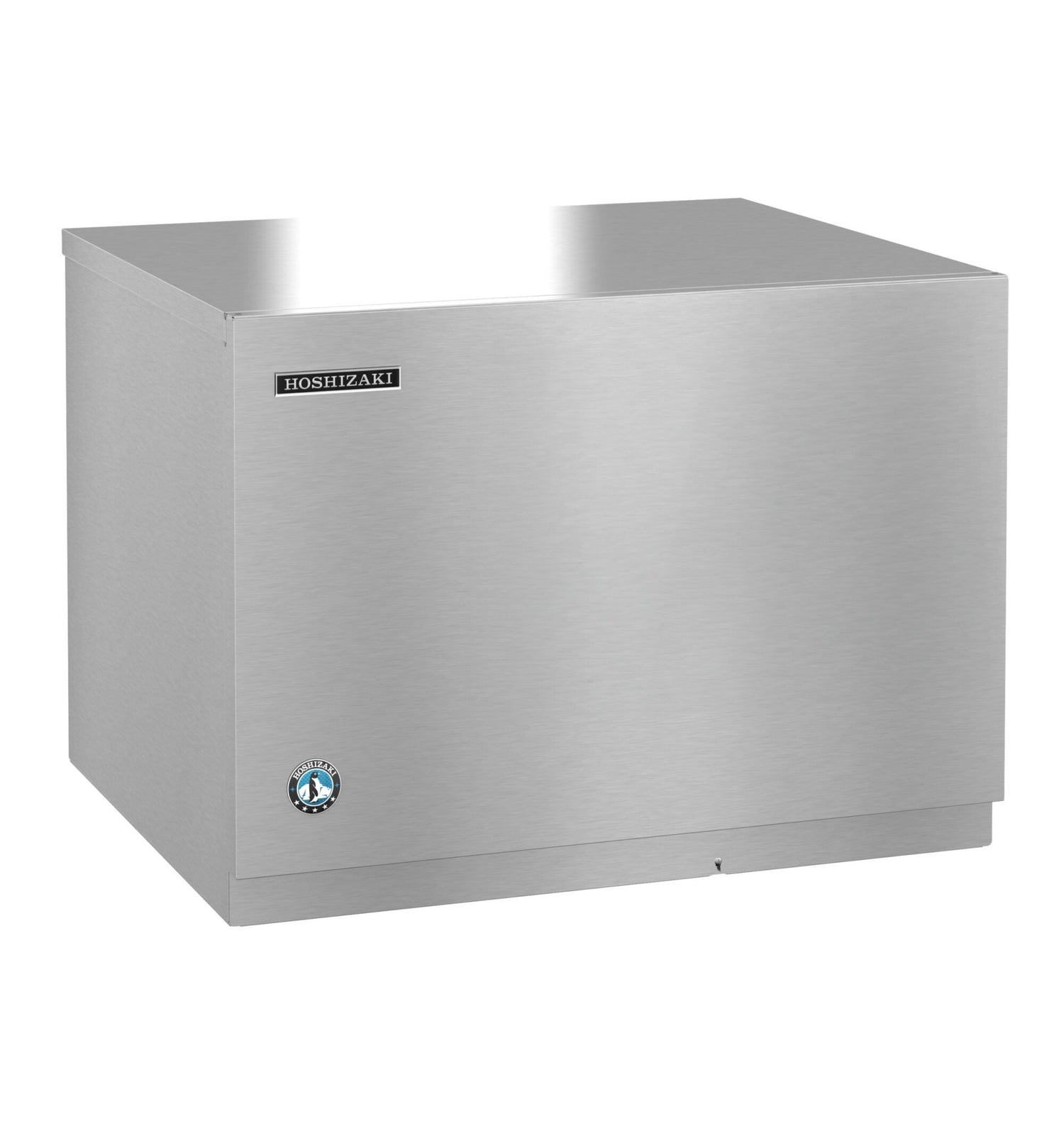

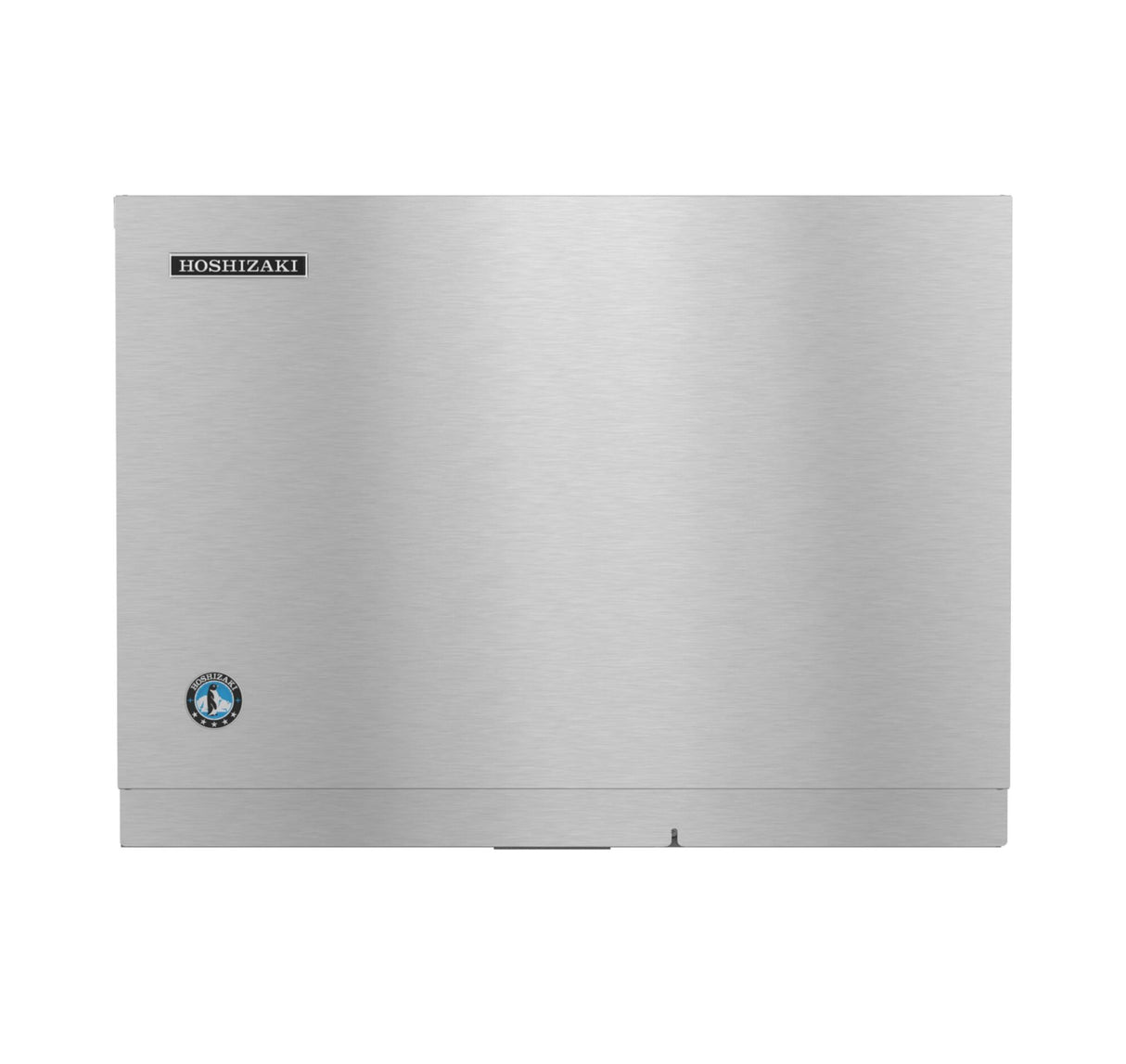

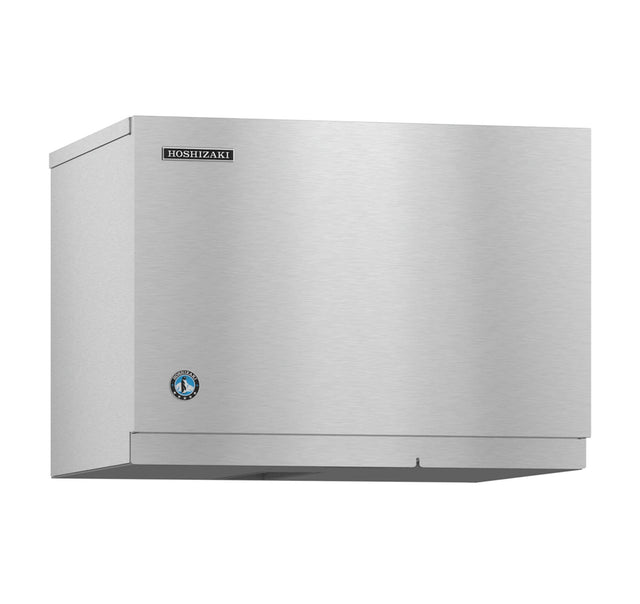

The Hoshizaki KMD-505MWJ is a water-cooled modular crescent cuber designed to deliver high ice output with efficient energy use for ice and beverage dispensing applications.
Key Specifications:
- Condenser Type: Water-Cooled
- Ice Production Capacity: 592 lbs/24 hrs (70°F/50°F)
- Dimensions (W x D x H): 30" x 24" x 22"
- Refrigerant: R-404A, 15.9 oz
- Heat Rejection: 8,600 BTU/hr
Features & Benefits:
- High Ice Output: The KMD-505MWJ produces up to 592 lbs of crescent ice daily, ideal for high-demand dispensing needs.
- Energy Efficient Cooling: Water-cooled condenser design allows for lower energy consumption at just 4.15 kWh per 100 lbs of ice produced.
- Easy Maintenance: CLEANASSIST™ technology enables a simple one-hour cleaning cycle, minimizing downtime.
- Smart Monitoring: EverCheck™ alert system and factory-installed ultrasonic bin control ensure optimal performance and easy adjustments.
What’s Included:
- Hoshizaki KMD-505MWJ Ice Machine Head
- Stainless Steel Double-Sided Evaporator
- Factory-Installed Ultrasonic Bin Control
Options Available:
- KMD-505MRJZ: Remote Air-Cooled, 560lbs/24hrs (70°/ 50°F) or 490lbs/24hrs (90°/ 70°F)
- KM-530MAK: Air-Cooled, 545lbs/24hrs (70°/ 50°F) or 424lbs/24hrs (90°/ 70°F)
FAQ
Q: What plumbing is required for the KMD-505MWJ?
A: This model requires a standard icemaker water supply and drain line, plus a separate condenser water supply and drain/return line since it is water-cooled.
Q: How does the KMD-505MWJ differ from the KMD-505MRJZ and KMD-505MAJ/KM-530MAK?
A: The MWJ is water-cooled, offering the highest ice output (555 lbs/24hr @ 90°/70°F) and lowest energy use, but requires additional condenser water plumbing. The MRJZ is air-cooled with a remote condensing unit installed away from the machine head. The MAJ (replaced by KM-530MAK) is a fully self-contained air-cooled unit with no remote unit or water lines needed; the KM-530MAK also uses eco-friendly R-290 refrigerant instead of R-404A.
Q: What bins are compatible with the KMD-505MWJ?
A: Compatible bins include B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, and B-1300SS, among others listed in the bin specification sheets.
Q: What is the warranty coverage for this unit?
A: The KMD-505MWJ comes with 3 years parts & labor on the entire machine, 5 years parts & labor on the evaporator, and 5 years parts on the compressor.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
