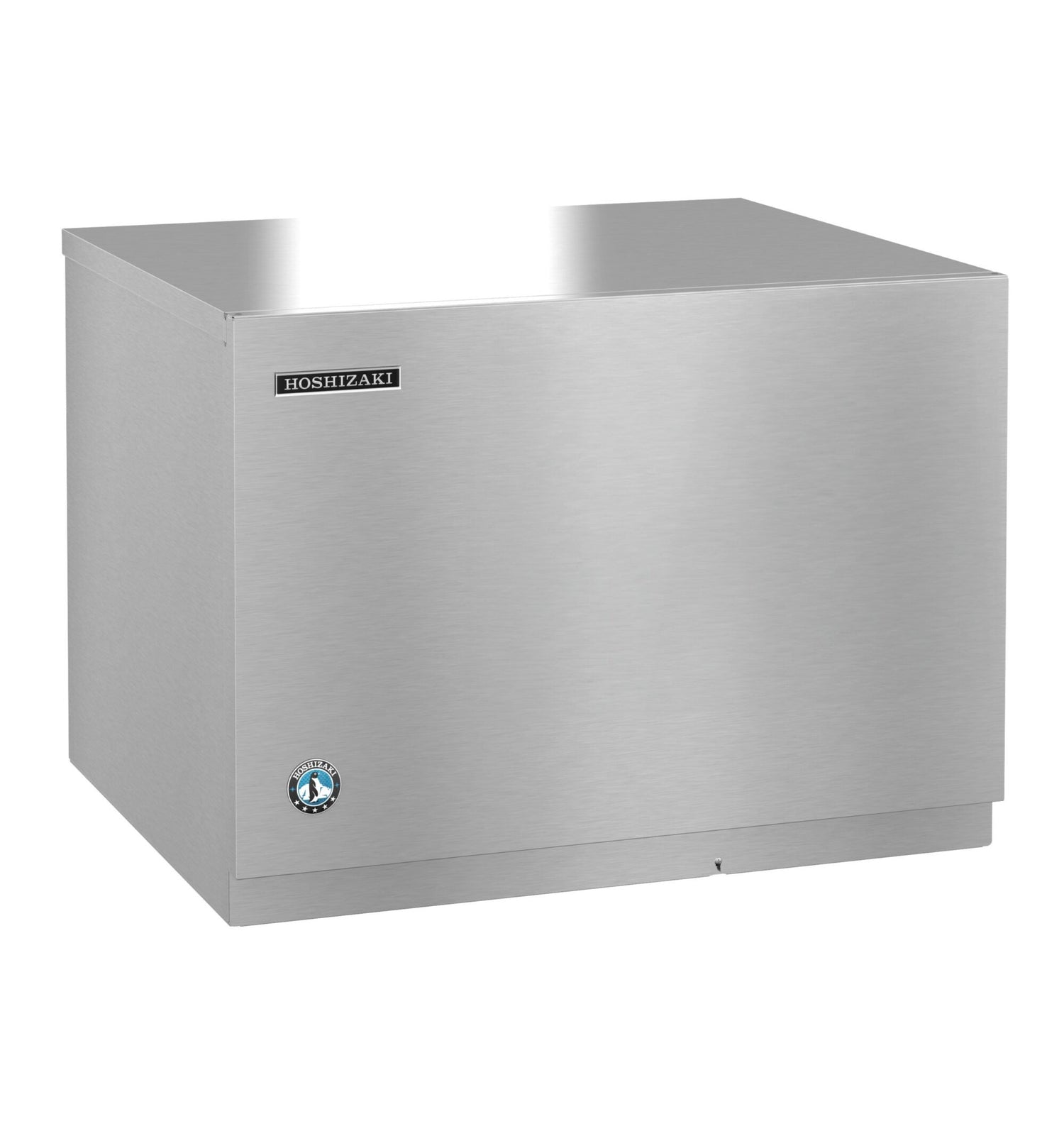

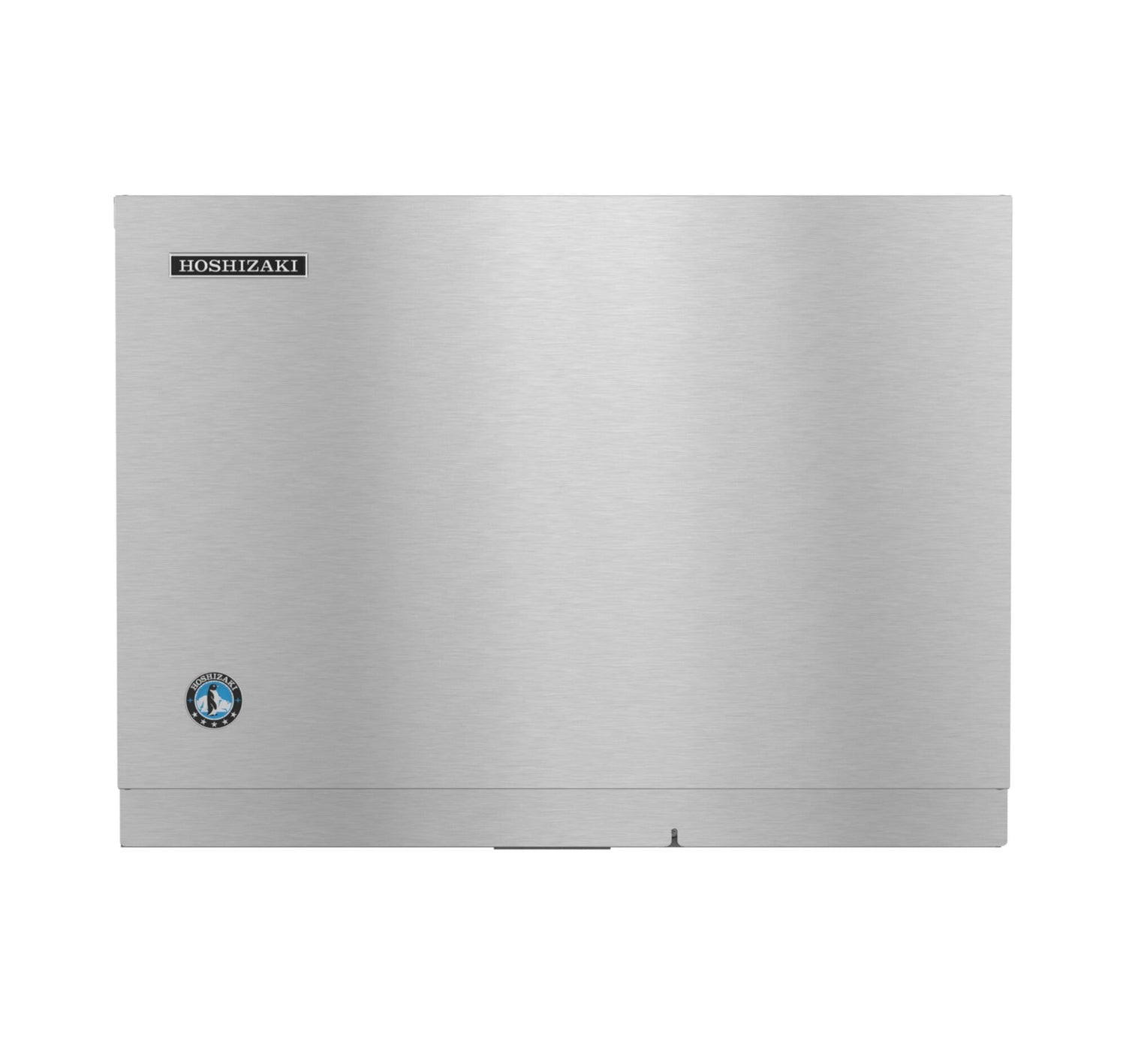

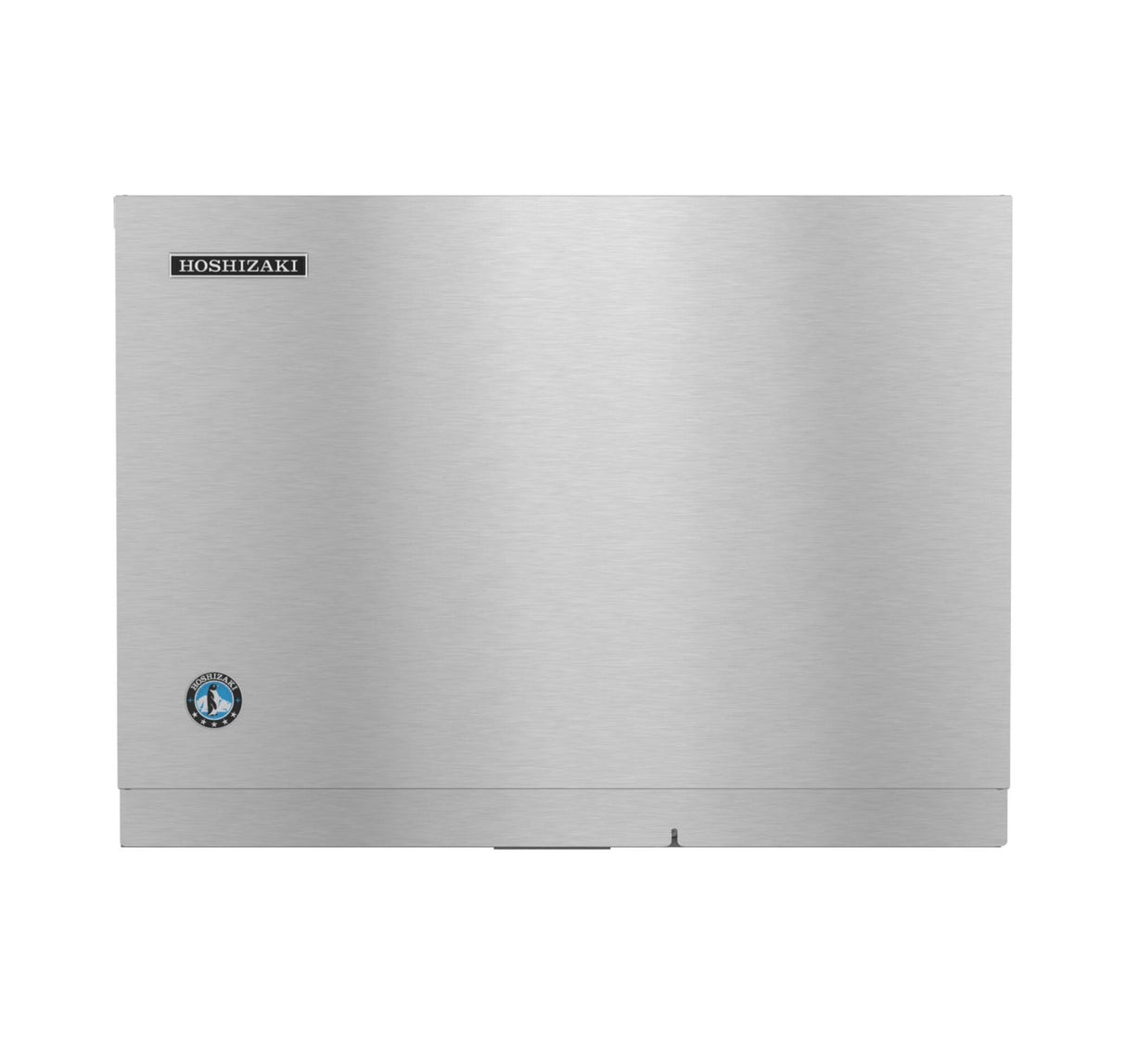

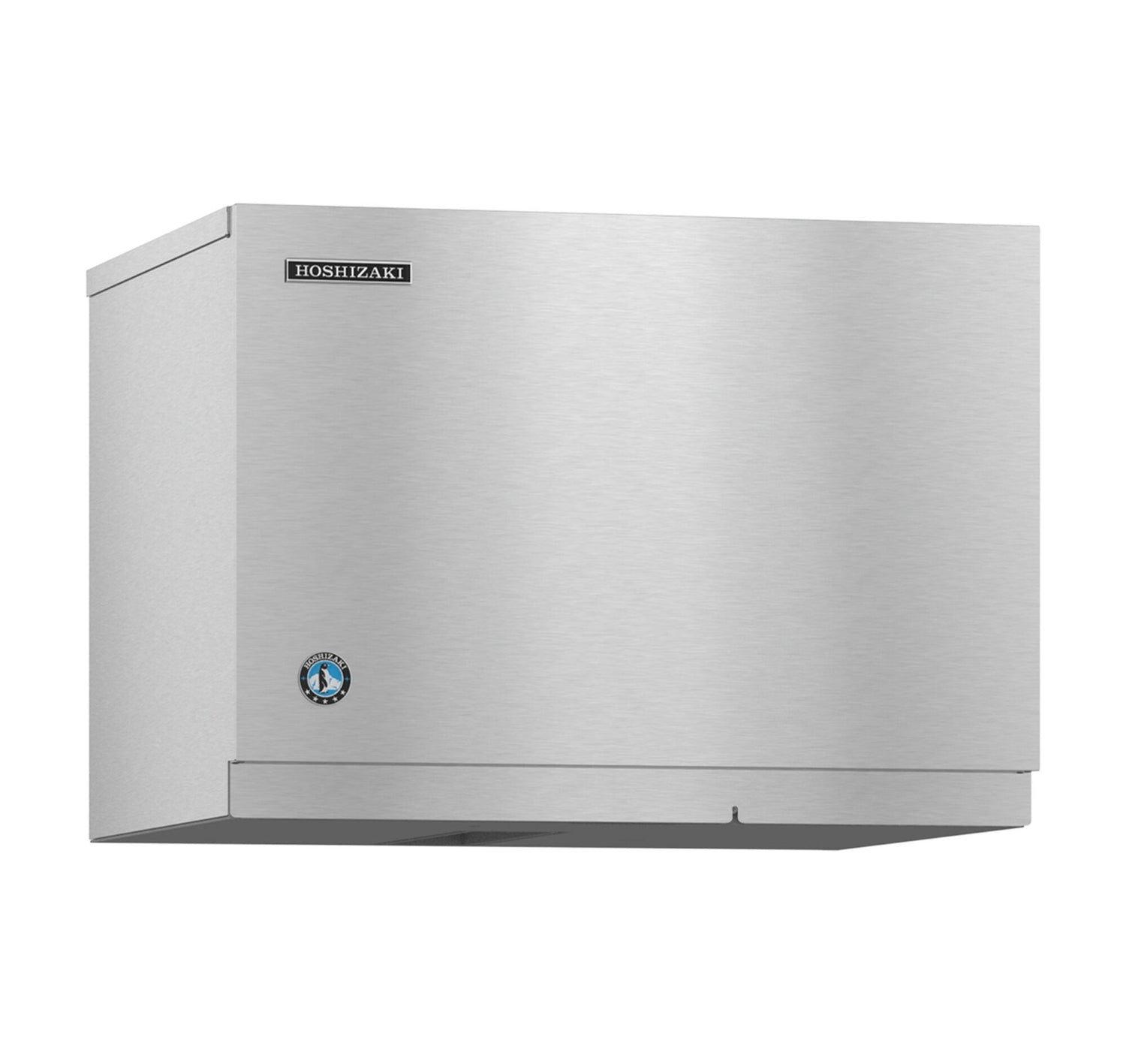

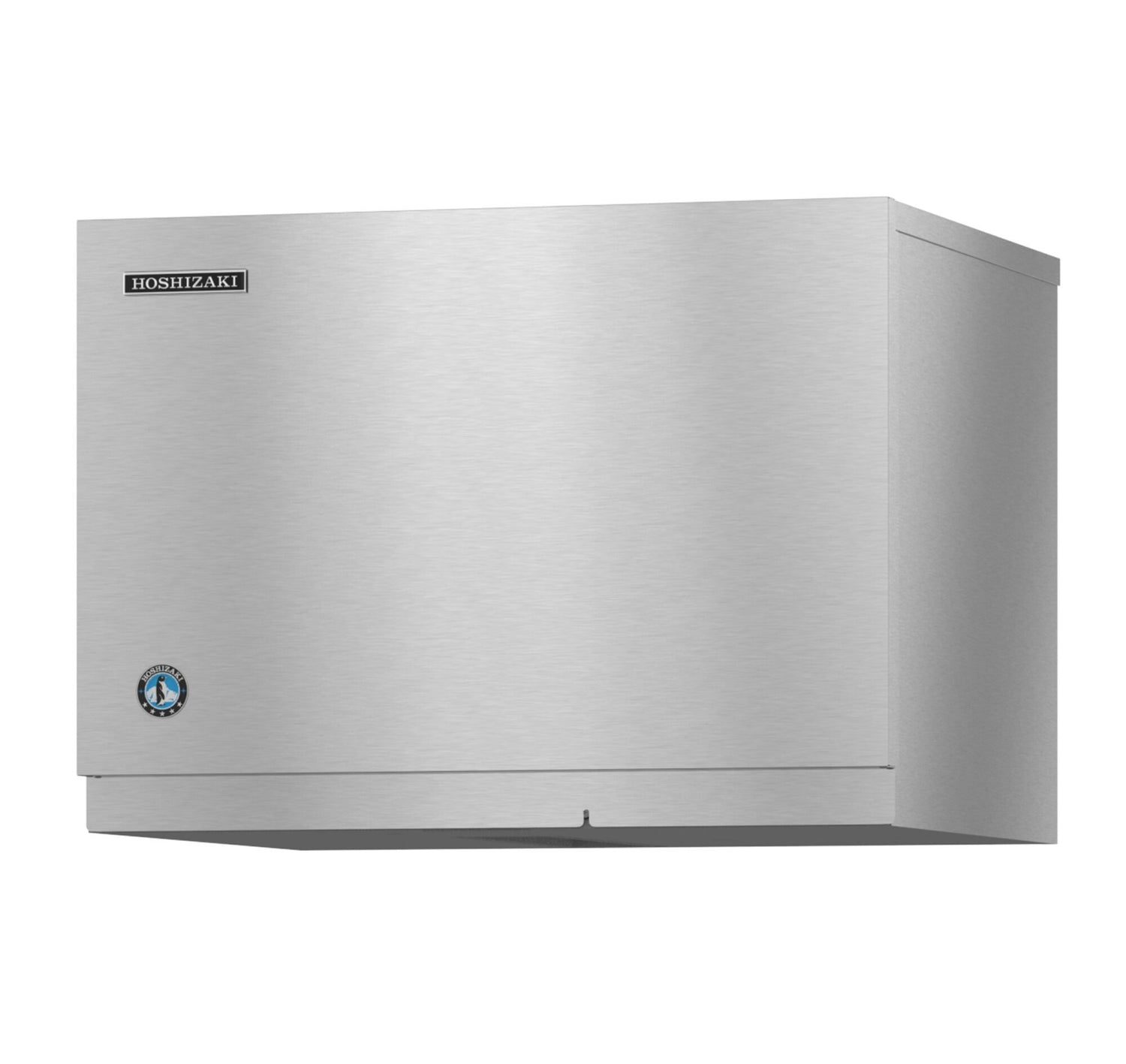

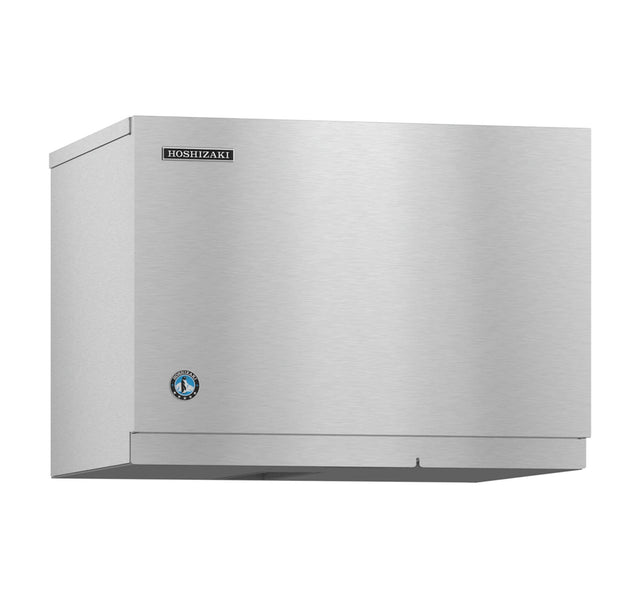

Hoshizaki KMD-505MRJZ | Modular Crescent Cuber Ice Machine, Remote ...
The Hoshizaki KMD-505MRJZ is a remote air-cooled modular crescent cuber producing up to 560 lbs of ice daily for dispenser applications.
Key Specifications:
- Condenser Type: Remote Air-Cooled
- Ice Production Capacity: 560 lbs/24 hrs (70°/50°F)
- Dimensions (W x D x H): 30" x 24" x 22"
- Refrigerant: R-404A, 2 lb 13.9 oz charge
- Heat Rejection: 7,900 BTU/hr
Features & Benefits:
- Flexible Installation: The remote condensing design of the KMD-505MRJZ allows the compressor and condenser to be located up to 35 feet away, reducing heat and noise near the ice machine.
- Efficient Cleaning: CLEANASSIST™ technology enables a simple one-hour cleaning cycle, minimizing downtime.
- Smart Bin Monitoring: Factory-installed ultrasonic bin control on the KMD-505MRJZ can be field-adjusted for optimal ice level management.
- Durable, Low-Maintenance Design: Snap-fit components and a stainless steel double-sided evaporator ensure long-lasting performance and easy servicing.
What’s Included:
- Hoshizaki KMD-505MRJZ Ice Machine Head Unit
Options Available:
- KMD-505MWJ: Water-Cooled, 592lbs/24hrs (70°/ 50°F) or 555lbs/24hrs (90°/ 70°F)
- KM-530MAK: Air-Cooled, 545lbs/24hrs (70°/ 50°F) or 424lbs/24hrs (90°/ 70°F)
FAQ
Q: Does the KMD-505MRJZ require a separate condenser unit?
A: Yes, it requires the URC-5FZ remote condenser (sold separately), connected via a brazed refrigerant line set up to 35 feet away.
Q: What is the difference between the KMD-505MWJ, KMD-505MRJZ, and KMD-505MAJ/KM-530MAK?
A: The KMD-505MRJZ uses a split/remote condensing system with the compressor located separately via the URC-5FZ unit, offering middle-range output (490 lbs/24hr @ 90°/70°F). The KMD-505MWJ is water-cooled with higher output (555 lbs/24hr), while the KMD-505MAJ (now replaced by the KM-530MAK) is fully self-contained air-cooled with lower output (415 lbs/24hr) and no remote unit required; the KM-530MAK also uses R-290 refrigerant instead of R-404A.
Q: What ice type does the KMD-505MRJZ produce?

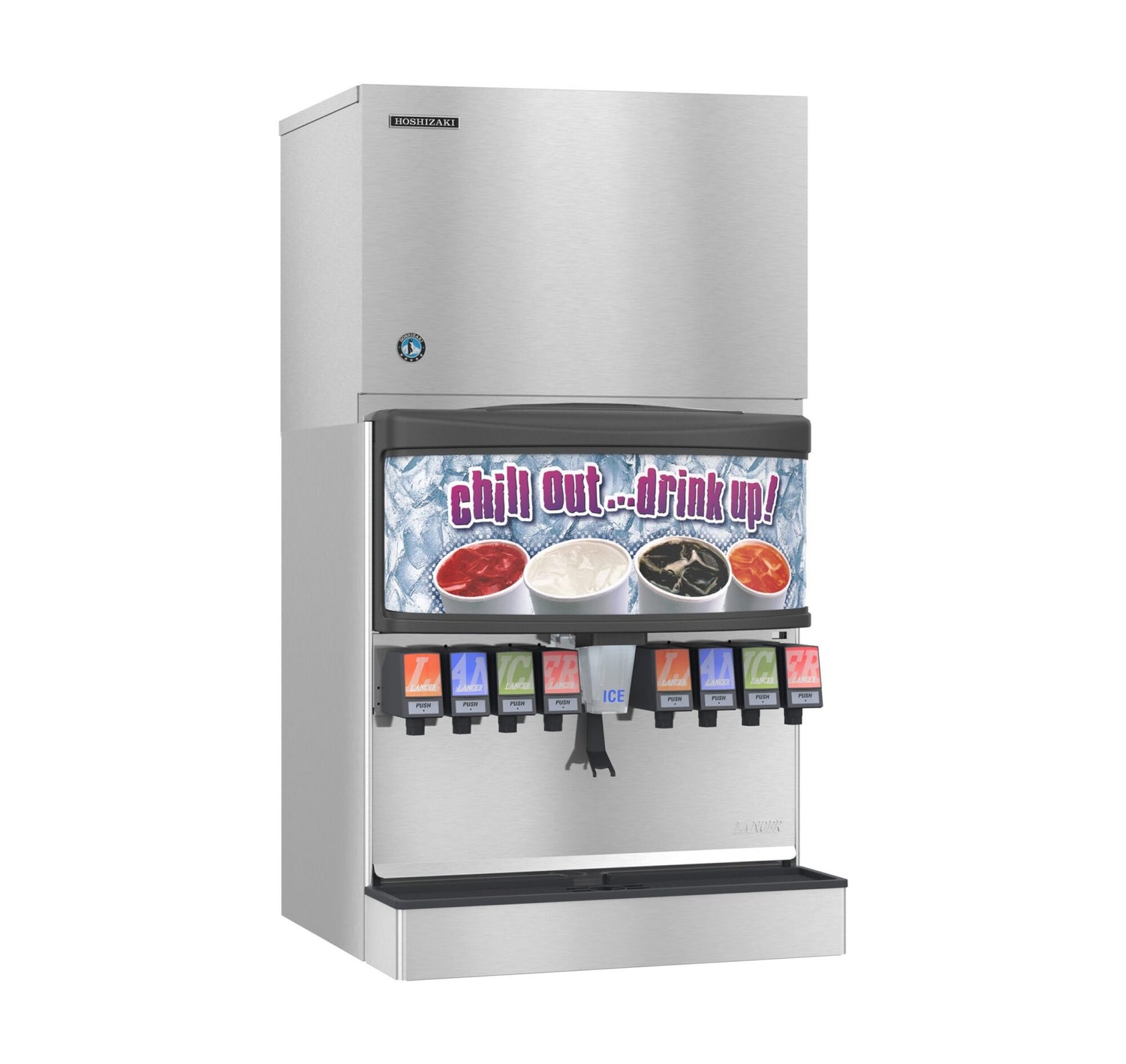

A: It produces individual crescent cube ice, optimized for use with ice and beverage dispensers.
Q: What is the water and electrical requirement for installation?
A: The KMD-505MRJZ requires a minimum 1/4" copper water supply line, 3/4" drain line, and 115V/60/1 electrical service with 12.4 amps draw.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
