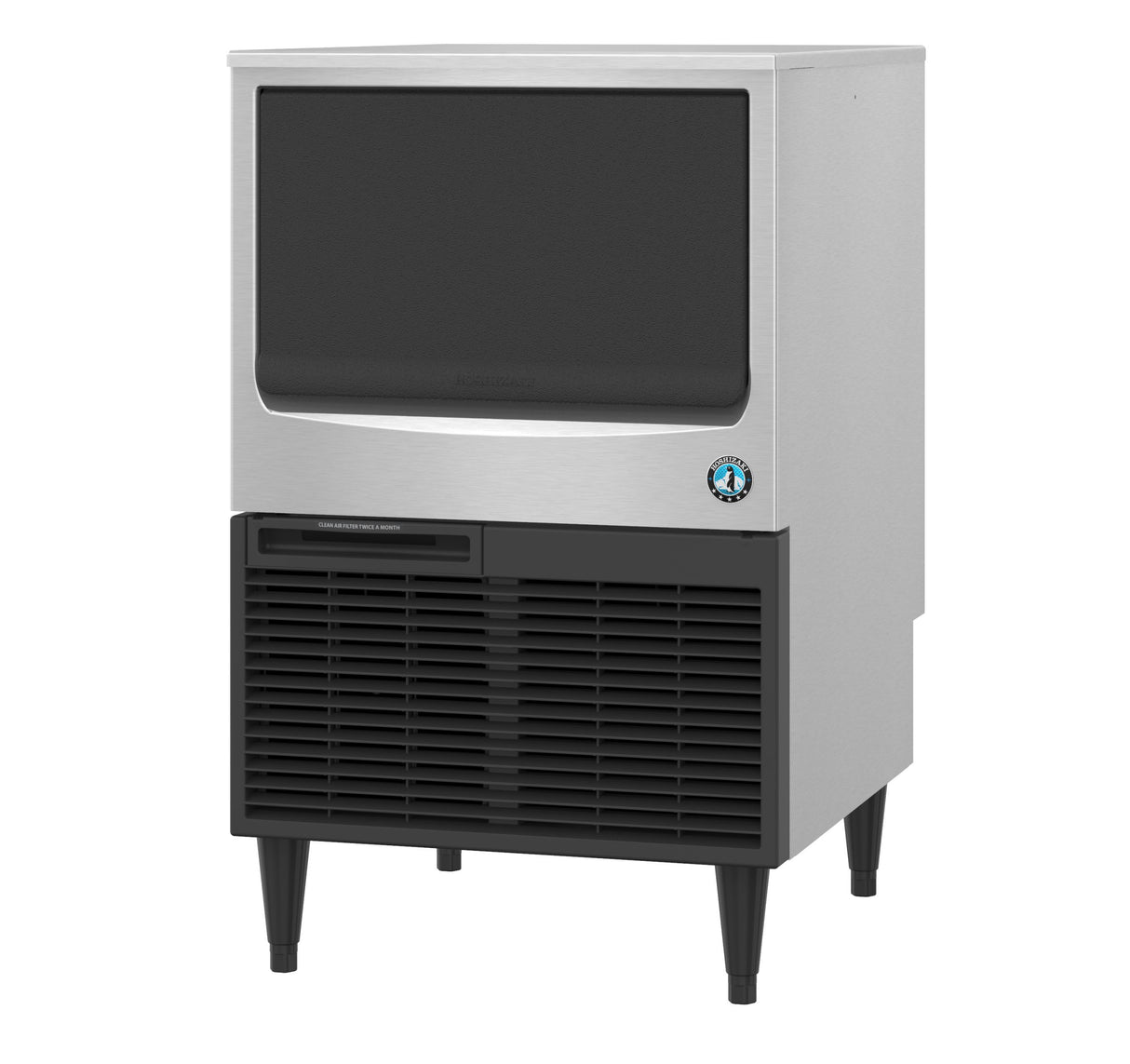

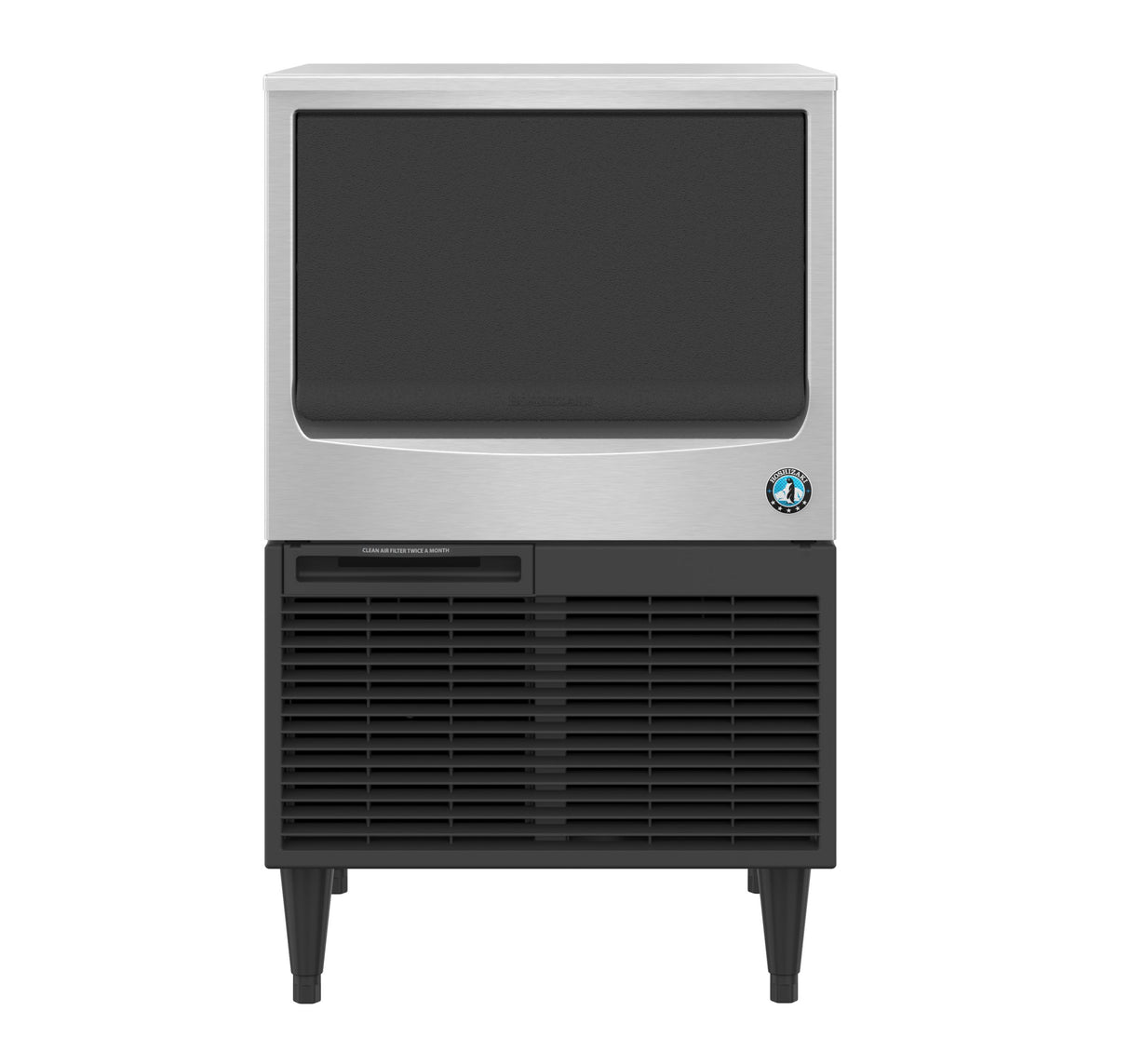

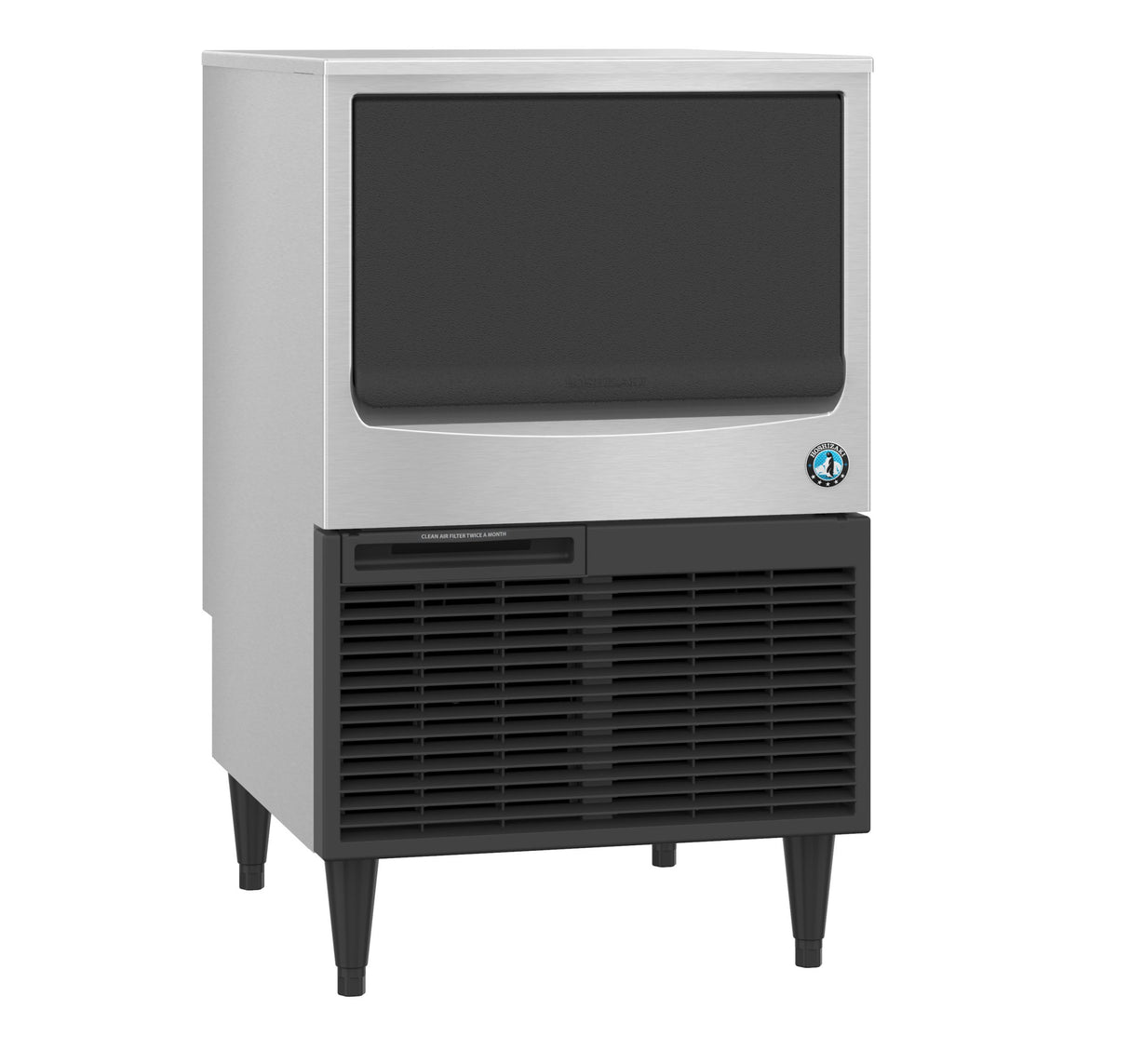

Hoshizaki KM-161BAJ | Undercounter Crescent Cuber Icemaker, Air-cooled, 78 lbs capacity
Hoshizaki KM-161BAJ | Undercounter Crescent Cuber Icemaker, Air-cooled, 78 lbs capacity is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
This icemaker must be installed in accordance with applicable national, state, and local codes and regulations. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service.
Maintenance
Clean and sanitize this icemaker at least once a year. In certain water conditions, more frequent cleaning and sanitizing may be necessary.
Hoshizaki KM-161BAJ | Undercounter Crescent Cuber Icemaker, Air-coo...
The KM-161BAJ is a high-performance, self-contained crescent cuber ice machine from Hoshizaki America, Inc. This versatile unit combines efficient ice production with built-in storage, making it ideal for various commercial applications. Its standout features include high daily ice output, compact design, and the innovative CycleSaver™ technology, setting it apart in the commercial ice machine market with its ability to produce clear, individual crescent cubes.
Key Specifications:
- Ice Production: Up to 163 lbs. of ice production per 24 hours, with a built-in storage capacity of 2.6 ft³/78 lbs.
- Dimensions: 23¾" W x 28" D x 39" H (including 6" legs), offering a compact footprint for space-efficient installation.
- Electrical: 115V/60/1, 7.1A running load, 15A maximum fuse size.
- Refrigerant: R-134a, with a charge amount of 7.4 oz.
- Operating Limits: Ambient temperature range of 45-100°F, water temperature range of 45-90°F.
Features & Benefits:
- CycleSaver™ Design: Enhances energy efficiency and extends the life of the compressor by reducing the number of start-stop cycles.
- EverCheck™ Alert System: Monitors machine status for optimal performance and early problem detection.
- Durable Construction: Stainless steel exterior and evaporator ensure longevity and easy cleaning in demanding commercial environments.
- Easy Maintenance: Front-in, front-out airflow with removable air filter simplifies routine cleaning and servicing.
- ADA Compliant: Design meets accessibility standards, ensuring usability in various commercial settings.
What's Included:
- KM-161BAJ Self-Contained Crescent Cuber Ice Machine
- 6.5 ft. (2000 mm) power cord with NEMA 5-15P plug
- Removable air filter
- 6" adjustable legs
- Ice scoop
- Installation and operation manual
- Warranty information
FAQ
Q: What are the water supply requirements for the KM-161BAJ?
A: The ice machine requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for the water supply line. The water pressure should be between 10-113 PSIG, and the water temperature should be within 45-90°F.
Q: How much clearance is required for proper installation and operation?
A: The KM-161BAJ requires at least 12" (30 cm) clearance at the front, at least 0.6" (15 mm) clearance at the top for maintenance, and enough space at the rear for water supply and drain connections.
Q: What type of warranty does the KM-161BAJ come with?
A: The KM-161BAJ comes with a 3-year parts and labor warranty on the entire machine, a 5-year parts and labor warranty on the evaporator, and a 5-year parts warranty on the compressor and air-cooled condenser coil.
Detailed Features & Benefits
Advanced Ice Production Technology: The KM-161BAJ utilizes Hoshizaki's innovative crescent ice technology, producing up to 163 lbs of ice per day. The individual crescent-shaped cubes are formed on a stainless steel evaporator, ensuring high-quality, crystal-clear ice. This shape is not only aesthetically pleasing but also functional, as it allows for efficient cooling of beverages without rapid dilution. The CycleSaver™ design further enhances efficiency by reducing the number of start-stop cycles, which not only saves energy but also extends the life of the compressor. This combination of high production capacity and energy efficiency makes the KM-161BAJ an excellent choice for businesses looking to balance performance with operational costs.
User-Friendly Design and Maintenance: The KM-161BAJ is engineered with user convenience and easy maintenance in mind. The front-in, front-out airflow design, coupled with a removable air filter, simplifies routine cleaning and maintenance tasks. This design not only extends the life of the machine but also ensures consistent ice production quality over time. The EverCheck™ alert system further enhances maintenance efficiency by monitoring the machine's status and alerting users to potential issues before they become serious problems. Additionally, the power switch is accessible without panel removal, allowing for quick and easy operation. The slide-in door design provides easy access to the ice storage bin, making ice retrieval simple and efficient. These features collectively contribute to reduced downtime, lower maintenance costs, and improved operational efficiency for businesses relying on consistent ice production.
NOTICE: Ensure proper maintenance and cleaning of your ice machine to guarantee the highest quality ice production and machine longevity.
