Hoshizaki H9320-51 | Single 4HC-H Water Filter System with Manifold...

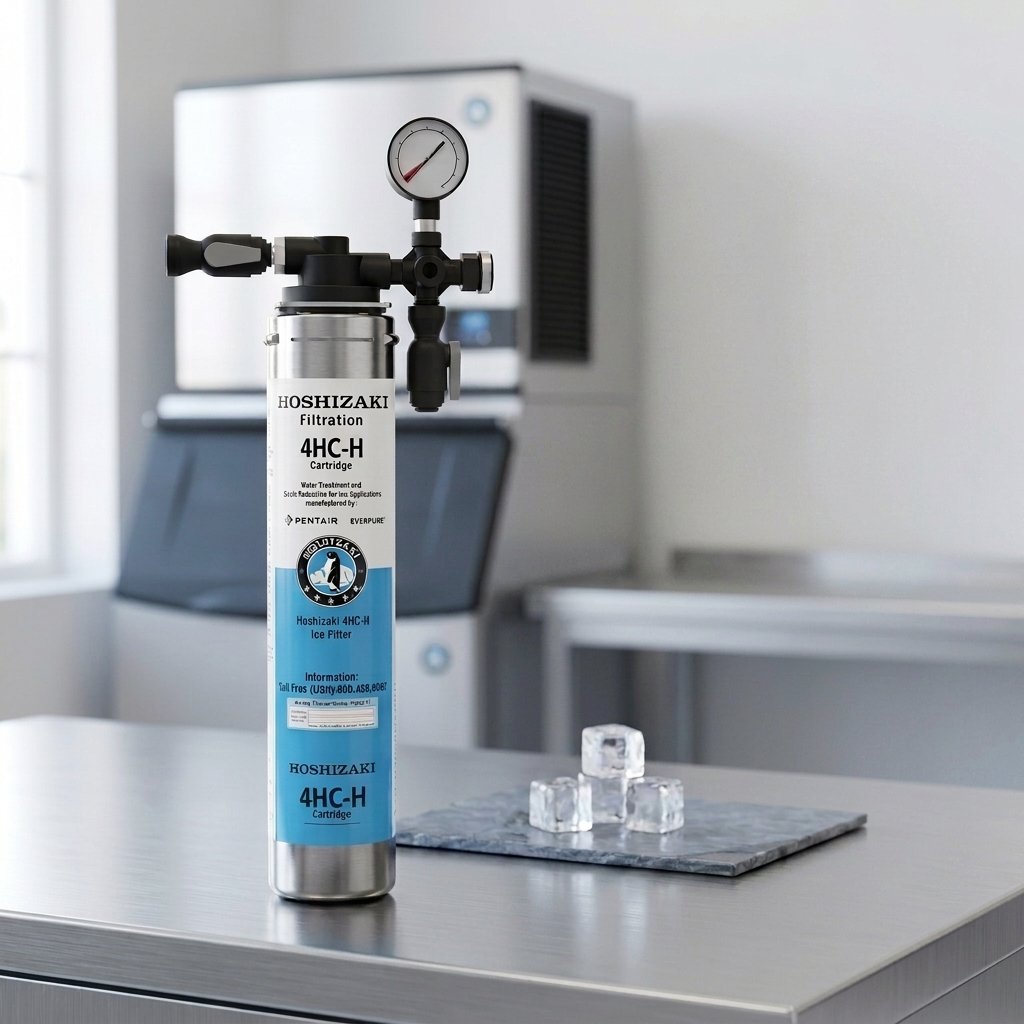

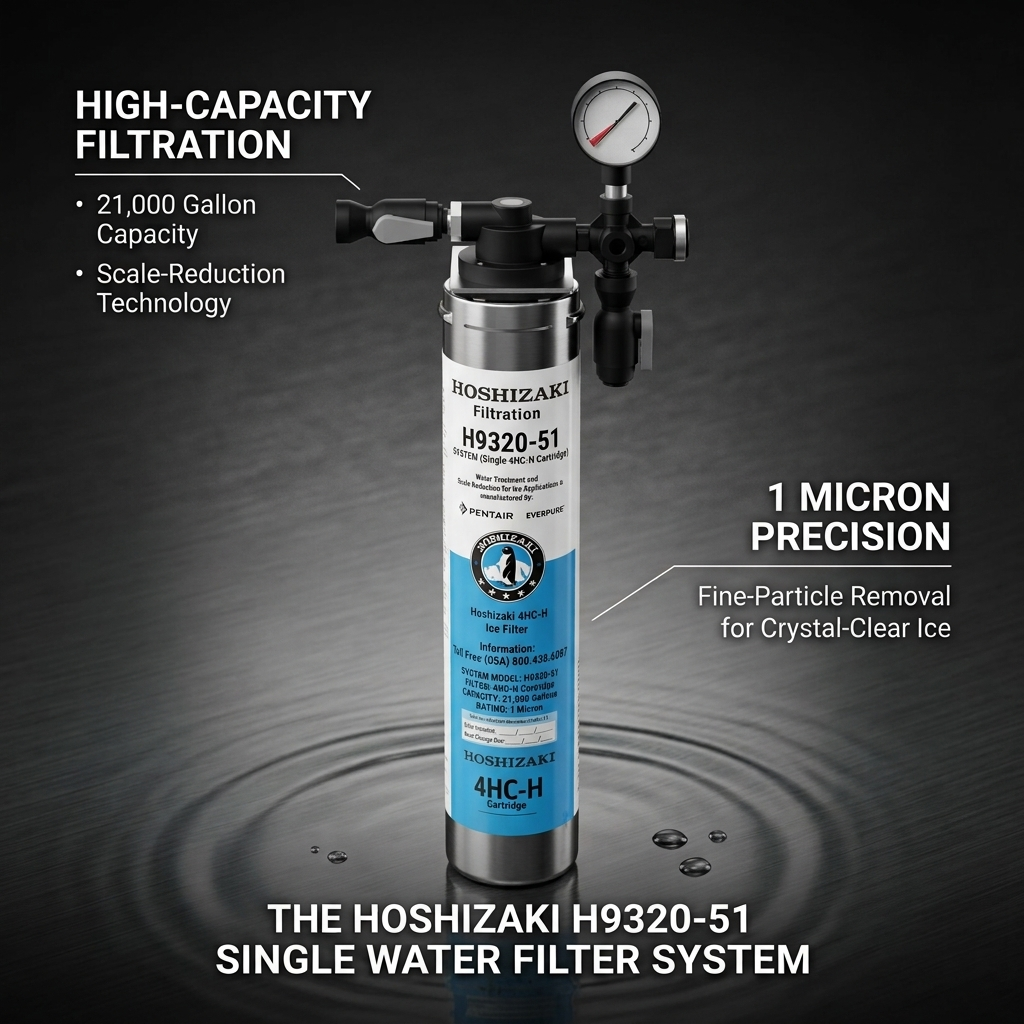

The Hoshizaki H9320‑51 is a single‑configuration water filter system designed to optimize ice machine performance and deliver crystal‑clear ice. Using the 4HC‑H cartridge, it reduces chlorine, taste, odor, and particulates while minimizing scale buildup and maintenance needs.
Key Specifications:
| Contaminants Filtered | Chlorine taste/odor (~97% reduction), particulates 1 micron, filterable cysts, sediment, and scale |
| Filter Capacity | 21,000 gallons |
| Compatibility | Recommended for undercounter KMs and smaller cubers (AM‑50, KM‑81, KM‑116, KM‑161, KM‑231, KM‑301), select IM cubers, flakers, and DCM/DB dispensers |
| Certifications | NSF/ANSI Standard 42, Class 1 for taste, odor, chlorine, and particulate reduction |
| Number of Filters | Single configuration (1 × 4HC‑H cartridge) |
Features & Benefits:
- NSF Certified: Ensures high‑quality filtration for taste, odor, and particulate reduction
- Scale Reduction: Helps prevent lime scale buildup, extending ice machine life
- Crystal Clear Ice: Filters particles down to 1 micron nominal for clean, high‑quality ice
- Reliable Performance: Maintains full ice maker capacity with consistent water quality
- Extended Equipment Life: Reduces maintenance needs and protects internal components
What's Included:
- H9320‑51 Filter System with 4HC‑H Cartridge
- Mounting hardware and manifold assembly
- Installation instructions
Hoshizaki H9320 System Series Comparison:
| System Model | H9320-51 (This System) | H9320-52 (Twin) | H9320-53 (Triple) |
|---|---|---|---|
| Cartridges Used | (1) 4HC-H Cartridge | (2) 4HC-H Cartridges | (3) 4HC-H Cartridges |
| Total Capacity | 21,000 Gallons | 42,000 Gallons | 63,000 Gallons |
| Max Flow Rate | 2.0 GPM | 4.0 GPM | 6.0 GPM |
| Recommended Ice Production | Undercounter & small cubers (up to 300 lbs/day) | Medium cubers & dispensers (up to 800 lbs/day) | High-volume commercial cubers (800+ lbs/day) |
How to Replace the Hoshizaki H9320‑51 Filter
- Turn Off Water Supply: Shut off the incoming water line before beginning replacement.
- Disconnect Inlet/Outlet: For the single configuration, detach the 3/8" FNPT inlet and outlet fittings from the manifold.
- Remove Cartridge: Twist the existing 4HC‑H cartridge counterclockwise until it releases from the manifold head.
- Install New Cartridge: Insert the replacement 4HC‑H cartridge into the manifold and twist clockwise until secure.
- Flush System: Turn the water supply back on and flush at least 5 gallons of water through the new cartridge to remove carbon fines and air bubbles.
- Check For Leaks: Inspect all connections and fittings to ensure there are no leaks before resuming normal operation.
Tip: For areas with high sediment, consider adding a Hoshizaki E‑10 prefilter to extend cartridge life and reduce maintenance.
FAQ
Q: What Ice Machines Are Compatible with the H9320‑51?
A: The H9320‑51 is recommended for undercounter KMs and smaller cubers such as AM‑50, KM‑81, KM‑116, KM‑161, KM‑231, and KM‑301. It also supports select IM cubers, flakers, and DCM/DB dispensers.
Q: Can This Filter Be Used in Areas with High Dirt Content in the Water?
A: Yes. For enhanced protection, pair with the Hoshizaki E‑10 Prefilter System, which traps larger particles and extends the life of the 4HC‑H cartridge.
Q: How Often Should the Filter Be Replaced?
A: Replace the cartridge when flow rate slows or before reaching the 21,000‑gallon capacity. Annual replacement is recommended for optimal performance. The correct replacement cartridge is the Hoshizaki H9655‑11 4HC‑H Replacement Cartridge.
Q: Is the H9320‑51 Certified for Cyst Reduction?
A: Yes. It is certified to reduce filterable cysts such as Cryptosporidium and Giardia by mechanical means.
Q: What Is the Warranty Coverage for the H9320‑51?
A: The H9320‑51 system includes a one‑year warranty on the entire system and one‑year coverage on replaceable elements for defects in materials and workmanship.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Hoshizaki H9320‑51 Single 4HC‑H Water Filter System provides high‑capacity filtration for ice machines and beverage equipment. With a 21,000‑gallon capacity and 0.5 micron rating, it reduces chlorine taste, odor, sediment, and scale buildup to extend equipment life and improve water quality.
Key Installation Requirements:
- Install vertically with cartridge hanging down
- Connect cold water supply line only (40–100°F operating temperature)
- Allow clearance for cartridge replacement and servicing
- Flush system thoroughly before use to purge carbon fines
- Follow local plumbing codes and regulations for installation
Important Notes Before Installing:
- Do not connect to hot water lines
- Replace cartridge every 12 months or when capacity is reached
- Depressurize system before servicing or replacing cartridge
- Ensure proper flow direction through manifold assembly
- Use only genuine Hoshizaki cartridges to maintain certification and performance
- Protect unit from freezing conditions to avoid damage
Basic Installation & Replacement Overview:
- Mount manifold securely to wall or frame
- Connect cold water supply line to inlet fitting
- Connect outlet line to ice machine or beverage equipment
- Insert cartridge into manifold head and rotate clockwise until locked
- Turn on water supply and flush system for 5 minutes
- Inspect all connections for leaks before returning unit to service
- For replacement: shut off water, relieve pressure, remove old cartridge, install new cartridge, flush, and test
For complete specifications and installation guidelines, download the official Hoshizaki Water Filters Spec Sheet.
