Hoshizaki AM-50BAJ | Undercounter Top Hat Cuber Icemaker, Air-coole...

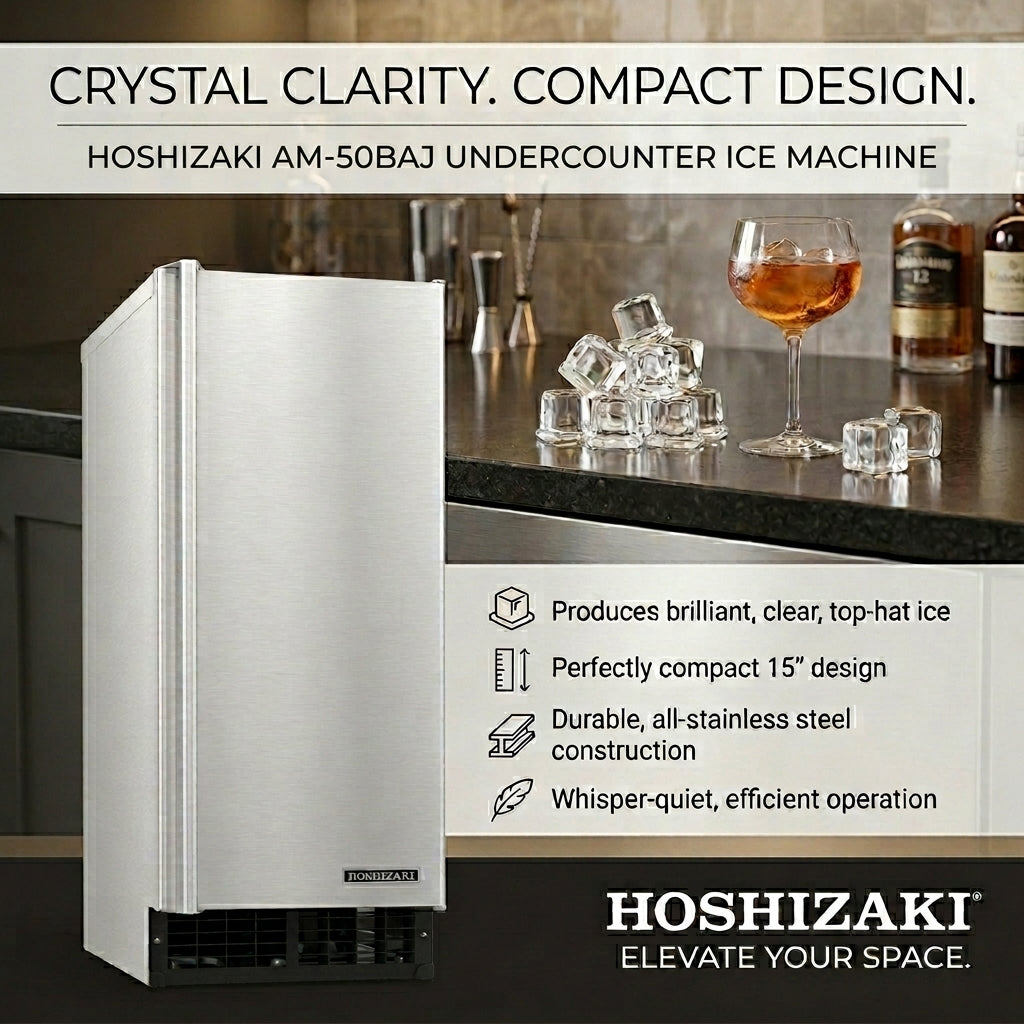

The Hoshizaki AM‑50BAJ Series is a compact, self‑contained undercounter ice machine with a built‑in storage bin. Designed for commercial and residential applications, it produces distinctive “Top Hat” gourmet cubes and offers ADA‑compliant and custom cabinetry options. With UL outdoor approval and simplified maintenance features, it is ideal for bars, restaurants, offices, and outdoor kitchens requiring reliable ice production in tight spaces.
Key Specifications:
- Ice Production Capacity: Up to 55 lbs per 24 hours at 70°F air/50°F water; 34–35 lbs at 90°F air/70°F water
- Dimensions: 14⅞" W x 22⅝" D x 33½" H (ADA models under 32")
- Electrical: Operates on 115V/60Hz, 3.8A, max fuse size 15A
- Refrigerant: R‑134a, 4.2 oz charge
- Storage Capacity: Built‑in bin holds up to 22 lbs of ice
*NOTE: The updated SKU code for this model is AM‑50BAK. The product is the same.
Features & Benefits:

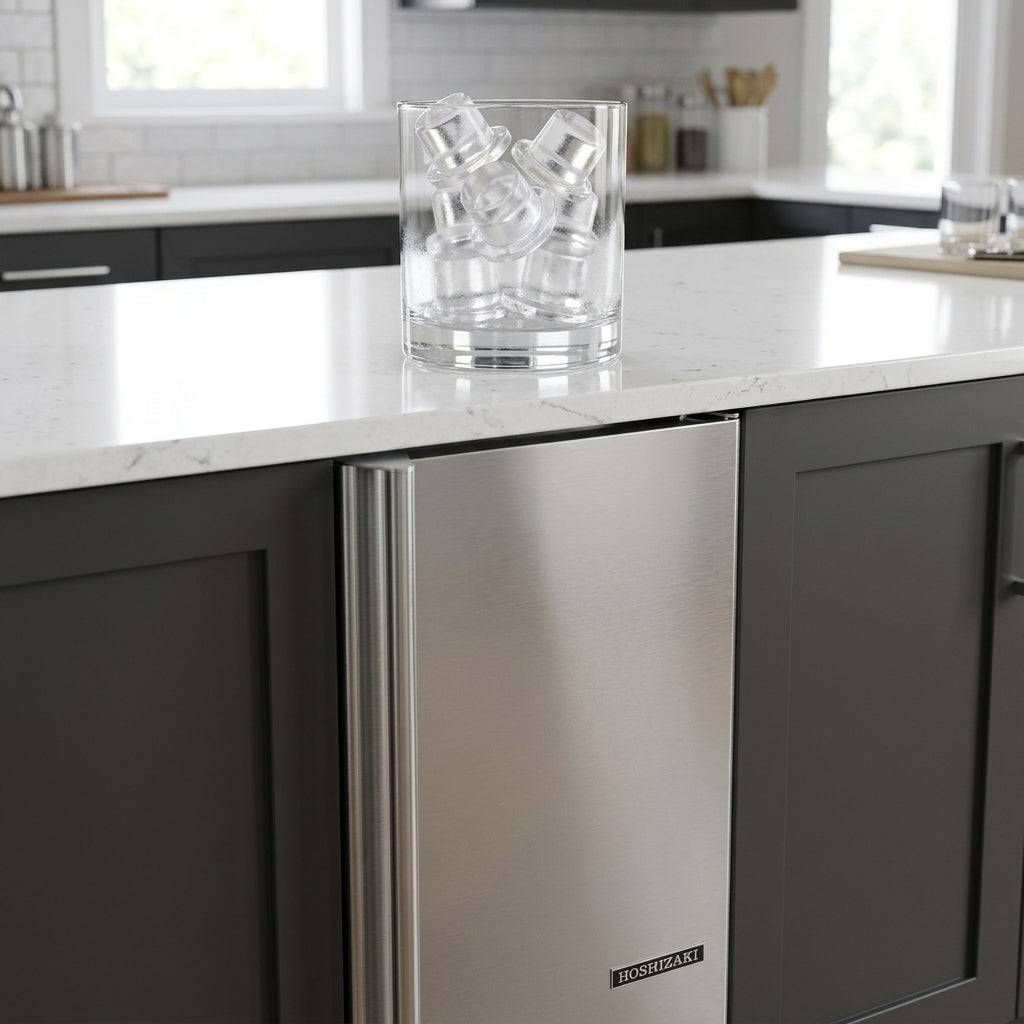

- Space‑Saving Undercounter Design: Less than 34" tall (ADA version under 32") fits neatly under counters
- Consistent Gourmet Ice Production: Produces distinctive “Top Hat” cubes that melt slowly and enhance beverage presentation
- Flexible Installation: UL approved for outdoor use, front‑in/front‑out airflow requires no side clearance
- Simplified Maintenance: Easily disassembled water circuit and front‑accessible power switch reduce service time
- Durable Build: Stainless steel construction with optional drain pump compatibility for versatile placement
What's Included:
- AM‑50BAJ Ice Machine Unit
- 6 ft. Power Cord with NEMA 5‑15 Plug
- Installation and Operation Manual
- Warranty Documentation
FAQ
Q: What Type Of Ice Does The AM‑50BAJ Produce?
A: It produces distinctive “Top Hat” gourmet cubes, approximately 1" tall, designed to melt slowly and enhance beverage quality.
Q: Is The AM‑50BAJ ADA Compliant?
A: The standard AM‑50BAJ and AM‑50BAJ‑DS models are not ADA compliant. The AM‑50BAJ‑AD and AM‑50BAJ‑ADDS models meet ADA height requirements at less than 32".
Q: Can This Model Be Installed Outdoors?
A: Yes. The AM‑50BAJ series is UL approved for outdoor use, making it suitable for patios, bars, and outdoor kitchens when installed in a protected location.
Q: Does The AM‑50BAJ Require A Drain Pump?
A: A drain pump is optional. The HS‑5061 drain pump assembly can be added if a gravity drain is not available at the installation site.
Q: How Often Should The Unit Be Cleaned?
A: Hoshizaki recommends cleaning and sanitizing the water circuit at least twice per year. In areas with poor water quality or heavy usage, more frequent cleaning may be necessary.
Q: What Are The Plumbing Requirements?
A: The unit requires a minimum 1/4" Nominal ID Copper Water Tubing or equivalent for water supply and a minimum 1/2" Nominal ID Hard Pipe or equivalent for drainage. Water pressure should be between 7–113 PSIG.
Q: What Warranty Coverage Is Provided?
A: Hoshizaki offers a 2‑year parts and labor warranty on the entire machine, plus a 1‑year parts and labor warranty on the HS‑5061 drain pump assembly.
Q: What Electrical Requirements Should I Know?
A: The AM‑50BAJ operates on 115V/60Hz with a maximum fuse size of 15A and draws approximately 3.8A. If GFCI protection is required, a GFCI breaker must be used instead of a GFCI receptacle.
Q: What Kind Of Water Filtration Is Recommended?
A: It is strongly recommended to pair the AM‑50BAJ with a H9320‑51 Single 4HC‑H Water Filter System to reduce chlorine, taste, odor, and particulates. Proper filtration extends machine life and ensures crystal‑clear ice.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Place the icemaker indoors or outdoors on a firm, level surface with proper clearance (15" at front, space at rear for connections).
- Ensure the unit is at floor level on a finished floor, even if installed under a cabinet.
- Connect the cold water supply line (1/2" FPT inlet, minimum 10 psi, maximum 113 psi). Install a shut‑off valve.
- Connect the drain line (1/2" FPT outlet) with a proper air gap to a floor drain. If using optional drain pump HS‑5061, follow pump instructions.
- Plug into a grounded 115V, 60Hz, 3‑prong outlet (NEMA 5‑15). Do not use extension cords or adapters.
- Level the icemaker front‑to‑back and side‑to‑side by adjusting the feet.
- Check all connections for leaks, then switch the control to “ICE” to begin operation.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Clean and sanitize the icemaker and bin every 6 months using Hoshizaki “Scale Away” cleaner and sanitizer.
- Inspect and clean the condenser coil regularly to maintain airflow.
- Check the ice storage bin drain every 3 months to ensure it remains clear.
- If using the optional drain pump, test its operation during each cleaning cycle.
- Replace external water filters as needed to maintain proper water quality.
- Do not operate the unit in freezing conditions; drain and prepare for non‑use if temperatures drop below 32°F (0℃).
- Always unplug the unit and shut off water before servicing.
- For service or repairs, consult the manual.
