Halsey Taylor  |  SKU: HTHBSM-WF

Halsey Taylor HTHBSM-WF | Surface Mount Bottle Filler | Filtered, Non-refrigerated, Fully-automatic

$ 1,054.85
Shipping calculated at checkout.


In Stock
Free Shipping

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

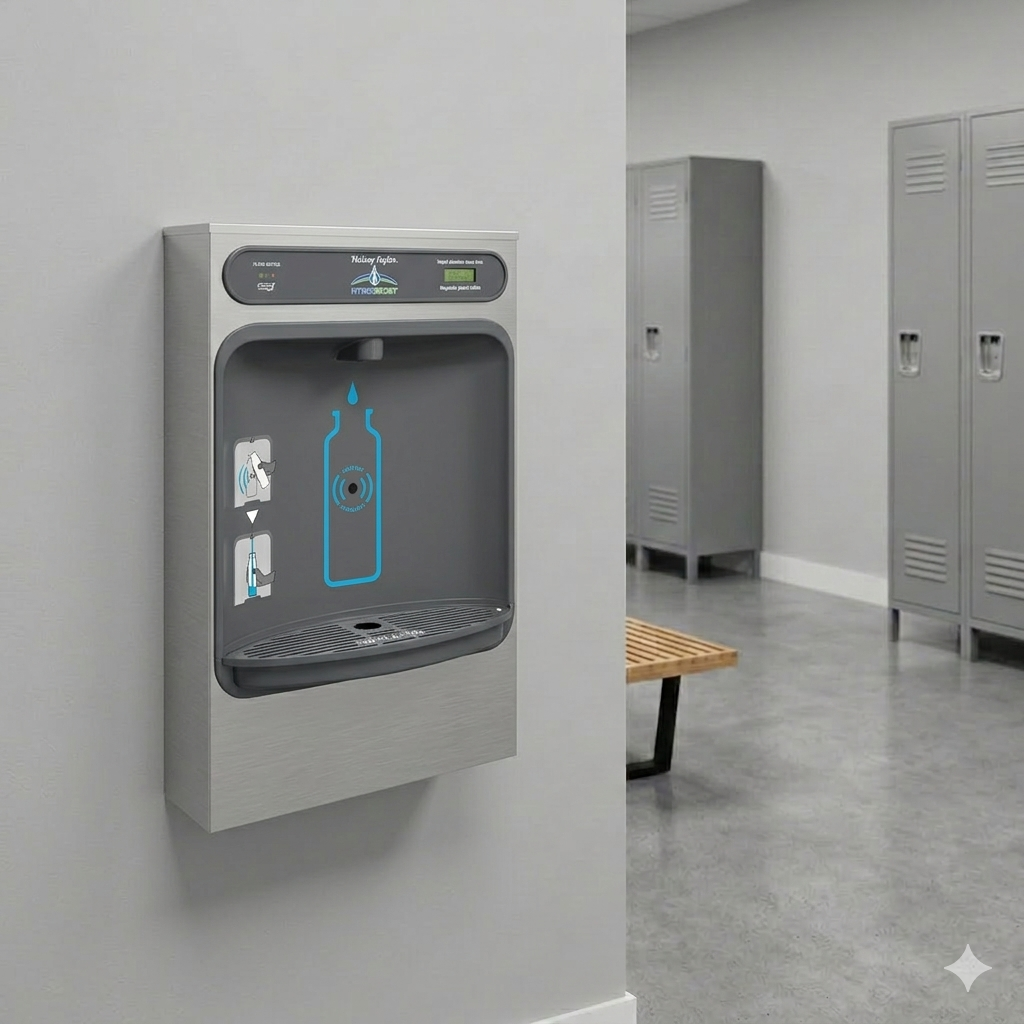

The Halsey Taylor HTHBSM-WF is a sensor-activated filtered surface-mount bottle filling station with a stainless steel color finish. Ideal for setups with limited wall depth, the Halsey Taylor HTHBSM-WF Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

Being a ‘hands-free’ unit, the Halsey Taylor HTHBSM-WF stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.

While this Halsey Taylor bottle filling station doesn't come directly refrigerated because of size constraints, these units can be hooked to remote chillers located within 15 feet. Please contact us if you'd need more details!

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Filtered with 3000 Gallon WaterSentry filtration with LED that shows when replacement is necessary.

Halsey Taylor HTHBSM-WF Spec Sheet HERE
Halsey Taylor HTHBSM-WF Installation manual HERE

You may also be interested in Elkay's LIV built-in bottle fillers!

FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

Non-Refrigerated

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

No fountain (bottle filler only)

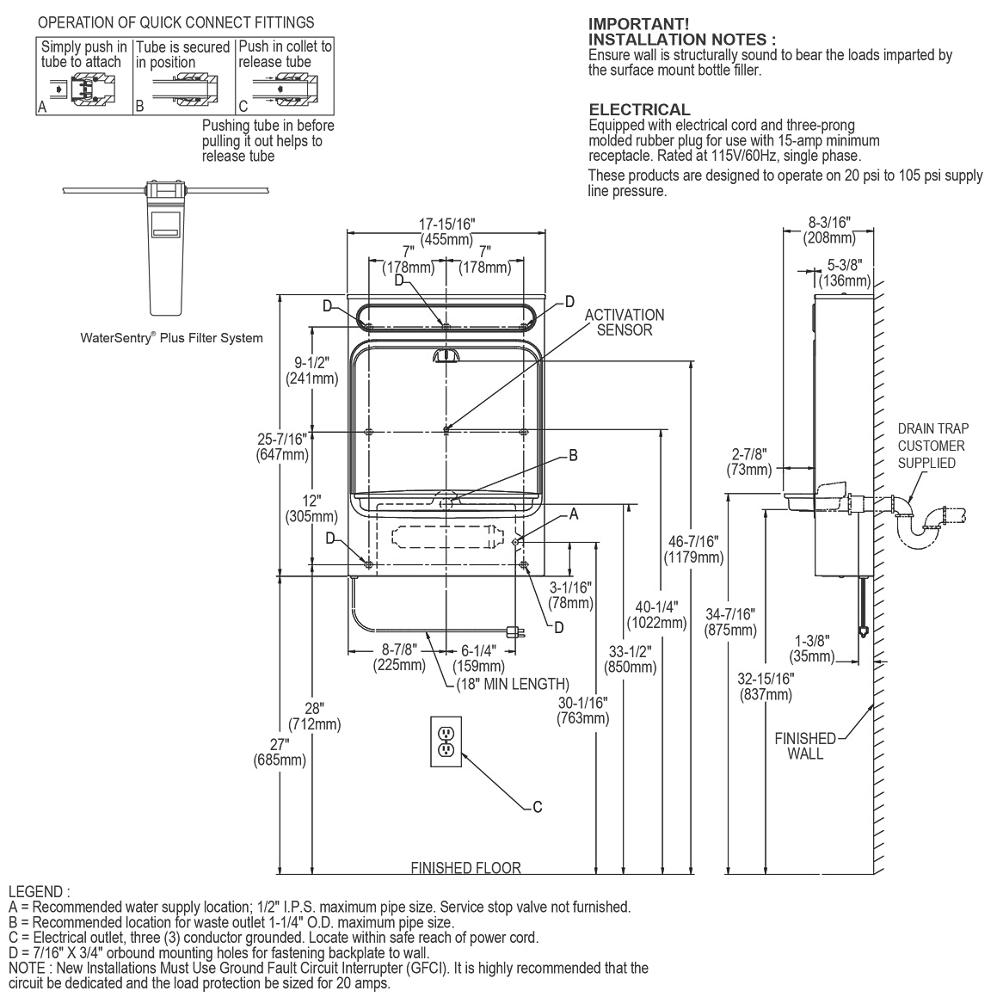

DIMENSIONS

D: 17-15/16"

W: 8-3/16"

H: 25-7/16"

SHIPPING WEIGHT

28 lbs

PRODUCT COMPLIANCE

  • ADA & ICC A117.1
  • CAN/CSA C22.2 No. 120
  • GreenSpec
  • NSF 372 (lead free)
  • NSF 42
  • NSF 53
  • NSF 61
  • UL 399
  • Buy American Act



Warranty

Refrigeration System (IF APPLICABLE)

Halsey Taylor HTHBSM-WF refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Halsey Taylor HTHBSM-WF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Halsey Taylor HTHBSM-WF requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Halsey Taylor HTHBSM-WF MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

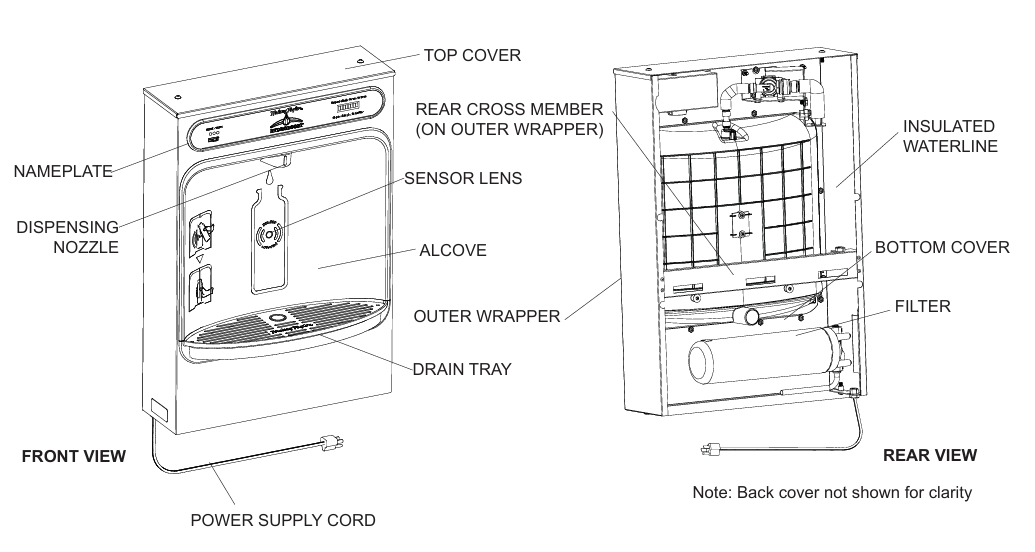

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: Does the Surface Mount Bottle Filler come with a chiller?

A: No. However, this system can utilize an existing or new remote chiller installed within 15 ft. Be sure to verify chiller’s GPH capacity.

Q: Does the Surface Mount Bottle Filling Station include drainage?

A: Yes, the Surface Mount comes with a drain system to eliminate standing water.

Q: Can someone without a bottle drink from the Surface Mount?

A: Unlike Water Bottle Filling Stations that contain a bubbler, like the HTHB-HAC8SS-WF, Surface Mount bottle fillers are only intended for users with reusable bottles, cups, or other personal liquid containers.



*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Halsey Taylor HTHBSM-WF Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
