Halsey Taylor HTHBHVR8 | Wall-mounted Bottle Filling Station | Filtered, Refrigerated, Vandal-resistant, Stainless Steel color finish
Halsey Taylor HTHBHVR8 | Wall-mounted Bottle Filling Station | Filtered, Refrigerated, Vandal-resistant, Stainless Steel color finish is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

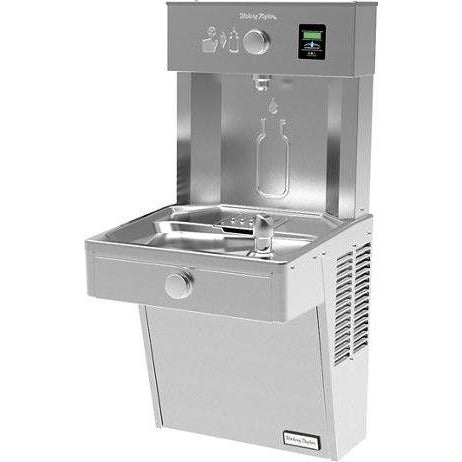

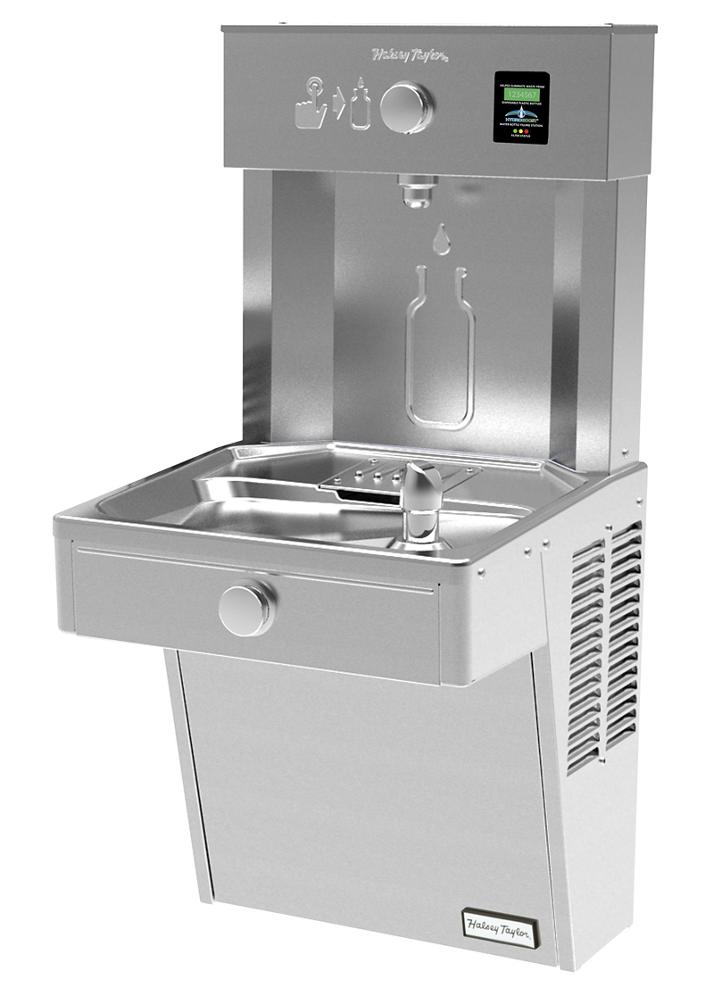

The HTHBHVR8 is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and a drinking fountain. This model has a Stainless Steel color finish.

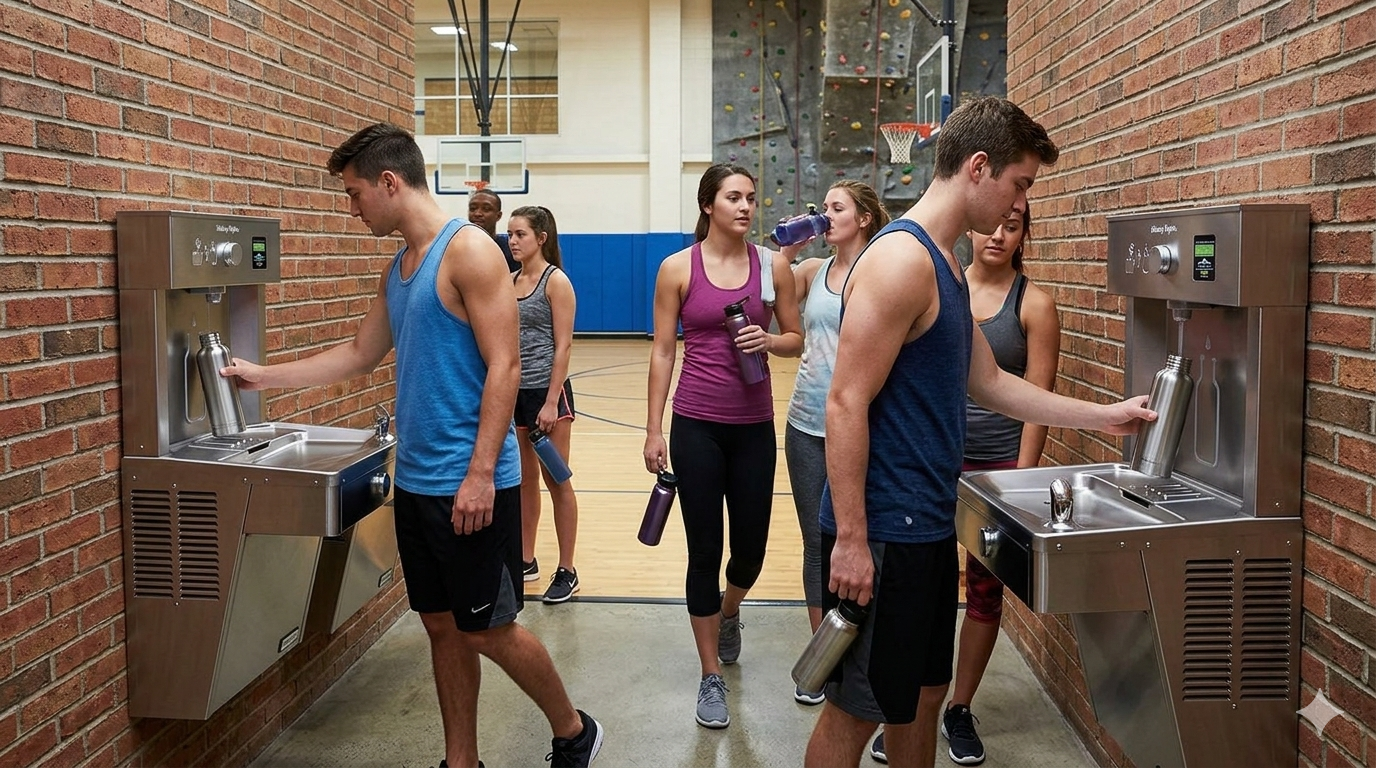

The HTHBHVR8 is a heavy-duty, vandal-resistant unit that features a chrome-plated bubbler, push-button, and fountain basin as well as a bulkier, all stainless steel design perfect for heavy usage and for educational and indoor recreational facilities.
The HTHBHVR8 chrome-plated bubblers are protected by an integral hood guard to prevent contamination from other users, airborne deposits and tampering.
-
ADA compliant design
- Vandal resistant push-button design for bottle filler, with automatic 20 second shut off
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
- Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
Halsey Taylor HTHBHVR8 resources:
- Halsey Taylor HTHBHVR8 Spec sheet
- Halsey Taylor HTHBHVR8 Installation manual

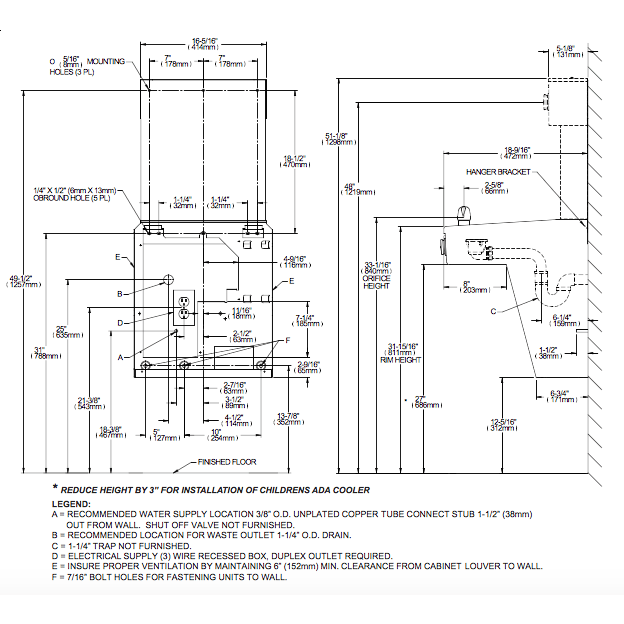

- Halsey Taylor HTHBHVR8 CAD symbols: FRONT - TOP - SIDE
FILTERED? |
Yes |
COOLER CABINET FINISH |
Stainless Steel |
POWER |
115V/60Hz |
BUBBLER OPTION |
Vandal-Resistant |
MOUNTING DETAILS |
Wall Mount (On-Wall) |
CHILLING DETAILS |
8 GPH |
INSTALLATION LOCATION |
Indoor |
NUMBER OF STATIONS |
Single Station (one bottle filler and one drinking fountain) |
DIMENSIONS |
L: 18" W: 18-5/8" H: 38-13/16" |
SHIPPING WEIGHT |
88 lbs |
PRODUCT COMPLIANCE |
● ADA & ICC A117.1 ● ASME A112.19.3/CSA B45.4 ● Buy American Act ● CAN/CSA C22.2 No. 120 ● GreenSpec ● NSF 42 ● NSF 53 ● NSF 61 ● NSF 372 (lead free) ● UL 399
|
Warranty
Refrigeration System
Halsey Taylor HTHBHVR8 refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Halsey Taylor HTHBHVR8 warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor whichever date falls first. View more warranty details here.
Installation Notes

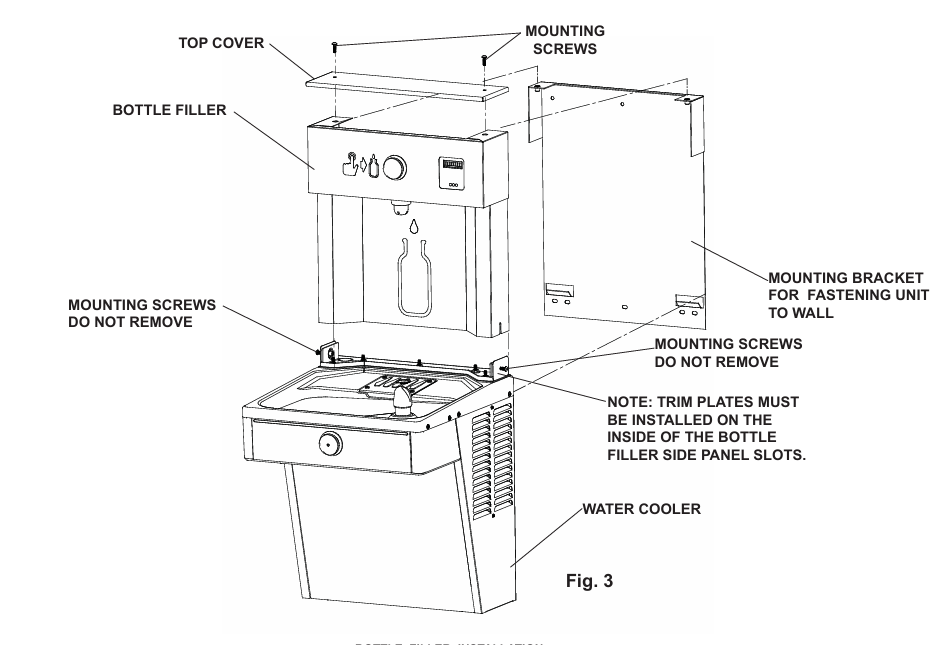

- Halsey Taylor HTHBHVR8 requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Halsey Taylor HTHBHVR8 MANUAL.
Maintenance
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.

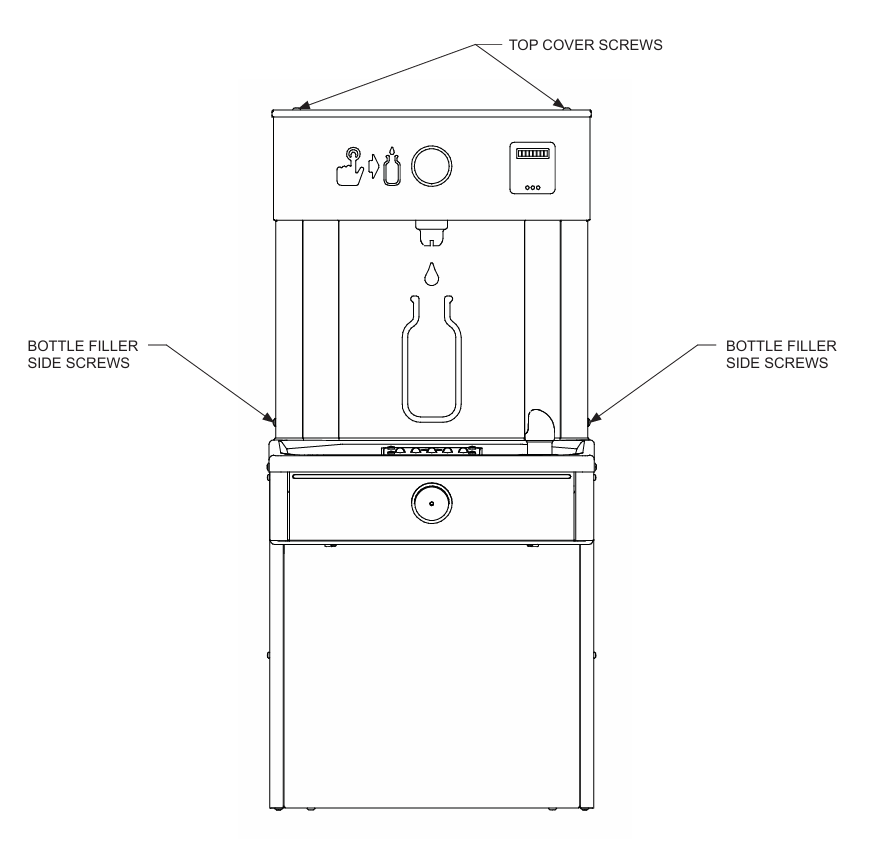

5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed Cooler cabinet
- Heavy-duty, one-piece, Chrome plated bubble
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
*MADE IN THE UNITED STATES.
