Halsey Taylor HTHB-HACG8SS-WF | Wall-mounted Bottle Filling Station...

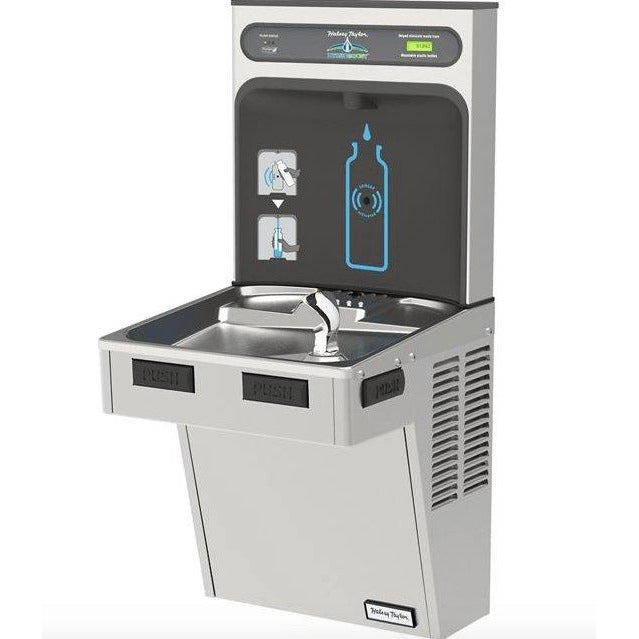

The Halsey Taylor HTHB‑HACG8SS‑WF is a wall‑mount bottle filling station with integrated HAC‑style cooler. This refrigerated, filtered, high‑efficiency unit combines hands‑free bottle filling with ADA‑compliant cooler access, delivering reliable hydration for schools, offices, and public facilities.
Key Specifications:
| Design | Wall‑mount installation with bottle filler + ADA cooler |
| Finish | Stainless Steel. Also available in Platinum Vinyl (HTHB‑HACG8PV‑WF) |
| Filtration | Includes the 55898C Replacement Filter for lead reduction and contaminant removal |
| Refrigeration | 8.0 GPH chilling capacity at 50°F (based on 80°F inlet and 90°F ambient) |
| Stations Served | 1 (bottle filler + ADA cooler) |
Features & Benefits:
- Hands‑Free Sensor: Electronic activation with LED lighting for hygienic bottle filling
- Green Counter™: Tracks number of plastic bottles saved from waste
- Quick Filter Change: Easy access for efficient filter replacement
- Energy‑Saving Mode: Reduces energy consumption during low‑use periods
- ADA Compliant: Meets accessibility requirements when installed to standards
What's Included:
- HTHB‑HACG8SS‑WF bottle filler
- ADA‑compliant HAC‑style cooler
- 55898C replacement filter
- Installation hardware (fasteners not included)
Comparison of Halsey Taylor Bottle Filling Stations:
| Feature | HTHB‑HACG8SS‑WF | HTHBGRN8‑WF | 4400BFFRK |
|---|---|---|---|
| Finish | Stainless Steel (Platinum Vinyl option available) | Stainless Steel with in‑wall mounting frame | Freestanding, freeze‑resistant design |
| Filtration | 55898C Replacement Filter included | Filtered, high‑efficiency chiller system | Filterless, non‑refrigerated |
| Best For | Schools, offices, and public facilities needing wall‑mount cooler + filler | Facilities requiring in‑wall installation with hands‑free filler | Outdoor or cold‑climate installations needing freeze‑resistant hydration |
| Features | Hands‑free sensor, Green Counter™, energy‑saving mode | Hands‑free sensor, mounting frame included | Freeze‑resistant, non‑refrigerated, filterless design |
| Stations Served | 1 (bottle filler + ADA cooler) | 1 (in‑wall bottle filler) | 1 (freestanding bottle filler) |
How to Install the HTHB‑HACG8SS‑WF:
- Mount the unit: Secure the hanger bracket to wall studs using designated bolt holes.
- Hang the cooler: Engage cooler slots onto the bracket and ensure proper alignment.
- Connect water supply: Attach shut‑off valve and connect the 3/8" O.D. copper tube inlet.
- Install the filter: Insert the 55898C filter into the filter head and lock into place.
- Connect electrical supply: Plug into a dedicated GFCI outlet and check for leaks before startup.
How to Maintain the HTHB‑HACG8SS‑WF:
- Replace the filter: Every 12 months or when capacity is reached. Use only Elkay/Halsey Taylor certified filters.
- Clean surfaces: Wipe stainless steel panels with mild soap and water; avoid abrasives.
- Check bubbler and sensor: Ensure proper flow and sensor activation; adjust stream height if needed.
- Inspect drain and trap: Confirm no leaks or blockages in the waste line.
- Service components: Electrical and refrigeration maintenance should be performed by authorized personnel.
FAQ
Q: Are There Other Finish Options Available?
A: Yes. In addition to Stainless Steel, you can choose Platinum Vinyl (HTHB‑HACG8PV‑WF).
Q: What Filter Does the HTHB‑HACG8SS‑WF Use?
A: It includes the 55898C Replacement Filter for lead reduction and contaminant removal.
Q: How Often Should the Filter Be Replaced?
A: The 55898C filter should be replaced every 12 months or after reaching its rated capacity, whichever comes first.
Q: Is This Unit ADA Compliant?
A: Yes. When installed according to ADA & ICC A117.1 standards, it meets accessibility requirements.
Q: What Type of Activation Does the Bottle Filler Use?
A: It uses a hands‑free electronic sensor with LED lighting, plus a pushbar for the cooler bubbler.
Q: What Accessories Are Available for This Model?
A: Accessories include the MLP100 In‑Wall Carrier and the 98324C Cane Apron for HAC‑style coolers.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us Now
The Halsey Taylor HTHB‑HACG8SS‑WF HydroBoost® Bottle Filling Station & Single ADA Cooler delivers filtered, refrigerated water in a stainless steel finish. It combines a cooler and bottle filler in one ADA‑compliant design, offering advanced filtration, antimicrobial surfaces, and sustainable hydration.

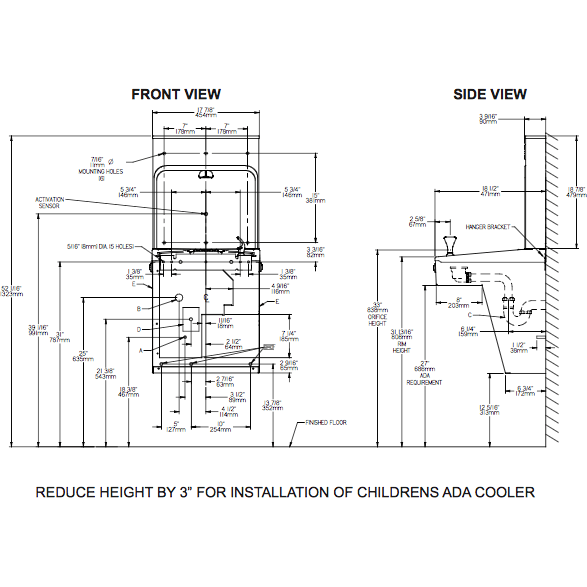

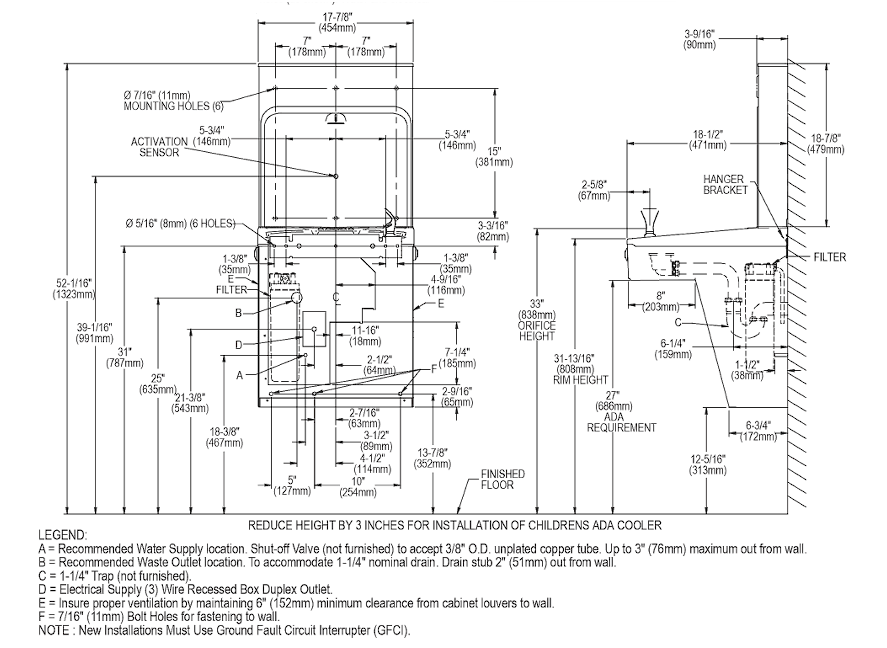

Key Installation Requirements:
- Wall‑mounted installation with hanger bracket support
- Cold water line only (40–100°F operating temperature)
- Water supply line: 3/8" O.D. copper tube with shut‑off valve (not included)
- Drain connection: 1‑1/4" O.D. trap (not included)
- Electrical supply: 115V / 60Hz with dedicated GFCI circuit required
- Maintain 6" clearance from cabinet louvers to wall for ventilation
- Allow proper clearance for filter cartridge changes
Important Notes Before Installing:
- Do not connect to hot water line
- Stream height is factory set for 45–50 PSI; adjust if supply pressure varies
- Certified ADA compliant when installed at proper height
- Visual filter monitor provides LED status for replacement timing
- Always refer to the official HTHB‑HACG8SS‑WF Spec Sheet for detailed specifications
Basic Installation Overview:
- Remove hanger bracket from cooler and mount securely to wall using all bolt holes
- Hang cooler on bracket, ensuring proper engagement with slots on the back
- Connect water inlet line to shut‑off valve and 3/8" tubing
- Install 1‑1/4" trap to drain line and tighten securely
- Install bottle filler wall plate and gasket, route water line and power cord
- Attach bottle filler to wall plate tabs and secure top cover
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply, flush system, and check for leaks
- Plug unit into grounded GFCI outlet and verify proper operation
For complete step‑by‑step instructions, download the official HTHB‑HACG8SS‑WF Installation & Maintenance Manual.
