Halsey Taylor  |  SKU: HTHB-HACG8PV-WF

Halsey Taylor HTHB-HACG8PV-WF | Wall-mount Bottle Filling Station | Filtered, High-efficiency chiller, HAC-style fountain, Platinum Vinyl

$ 1,506.85
Shipping calculated at checkout.


In Stock
Free Shipping

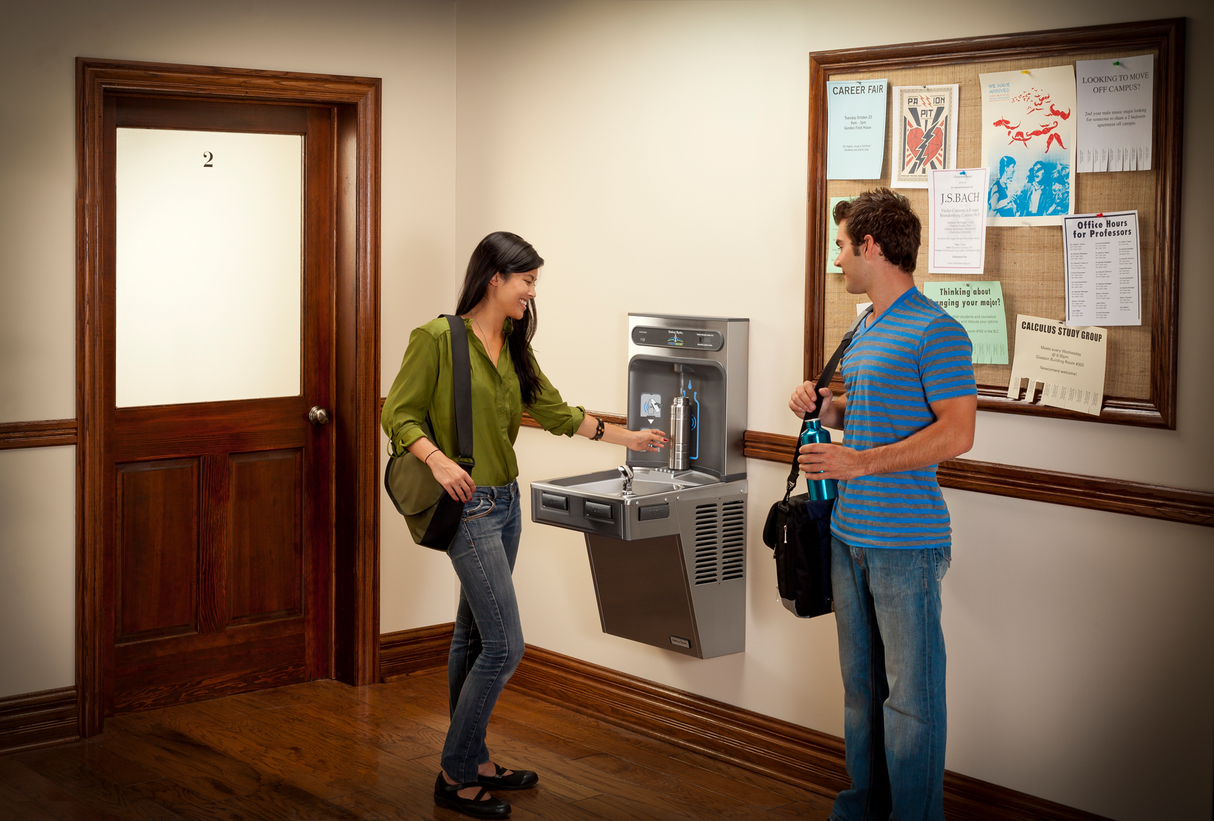

One of the most popular models, the Halsey Taylor HTHB-HACG8PV-WF Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

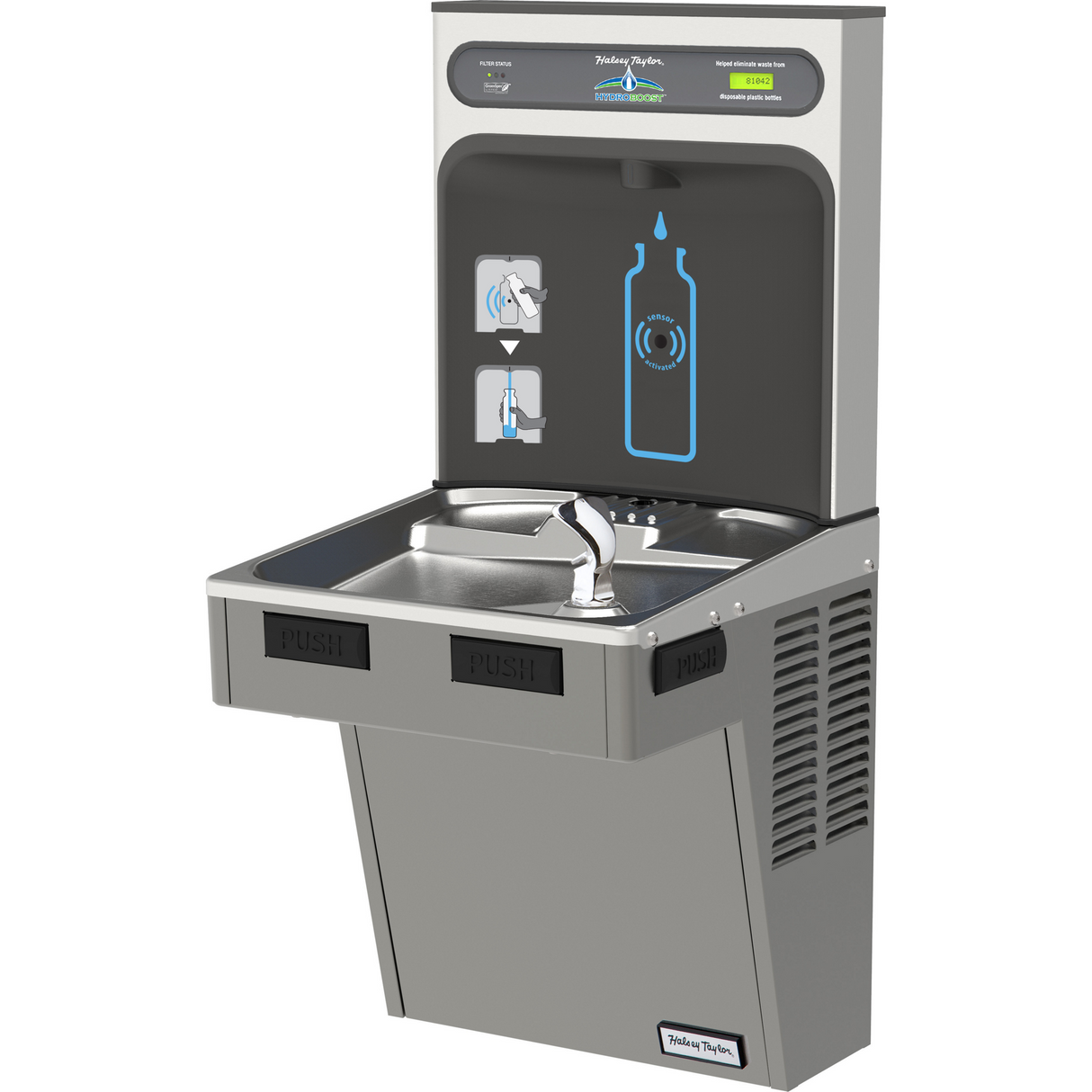

The HTHB-HACG8PV-WF is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and a drinking fountain. This model has a Platinum Vinyl color finish.

The HTHB-HACG8PV-WF drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

The HTHB-HACG8PV-WF features an energy-efficient 'Green' refrigeration system that is an estimated 35% more efficient than market standards, ensuring long-term savings on energy, and cost.

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Filtered with 3000 gallon capacity WaterSentry
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • 35% More energy efficient than market standard.
  • Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary

Halsey Taylor HTHB-HACG8PV-WF resources:

FILTERED?

Yes

COOLER CABINET FINISH

Platinum Vinyl

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard StreamSaver

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

8 GPH

INSTALLATION LOCATION

INDOOR

NUMBER OF STATIONS

Single Station (One bottle filler and one fountain)

DIMENSIONS

L: 17-7/8"

W: 19"

H: 39-1/16"

SHIPPING WEIGHT

85 lbs

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 53
  • NSF 42
  • NSF 372 (no lead)

Halsey Taylor HTHB-HACG8PV-WF Includes

  • Water Cooler
  • Water Sentry Filter
  • Water Bottle Filling Station

Warranty

Refrigeration System (IF APPLICABLE)

Halsey Taylor HTHB-HACG8PV-WF refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Halsey Taylor HTHB-HACG8PV-WF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Halsey Taylor HTHB-HACG8PV-WF requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Halsey Taylor HTHB-HACG8PV-WF MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: What is the difference between the Cooler Combo and the Green model series?

A: According to CSA 815-99, the Green Bottle Filling Station series exceeds average Energy Efficiency market performance by 35%


*MADE IN THE UNITED STATES.
