Elkay VRCTLR8WSK | Vandal-Resistant Wall-mount Bi-Level Reverse Bot...

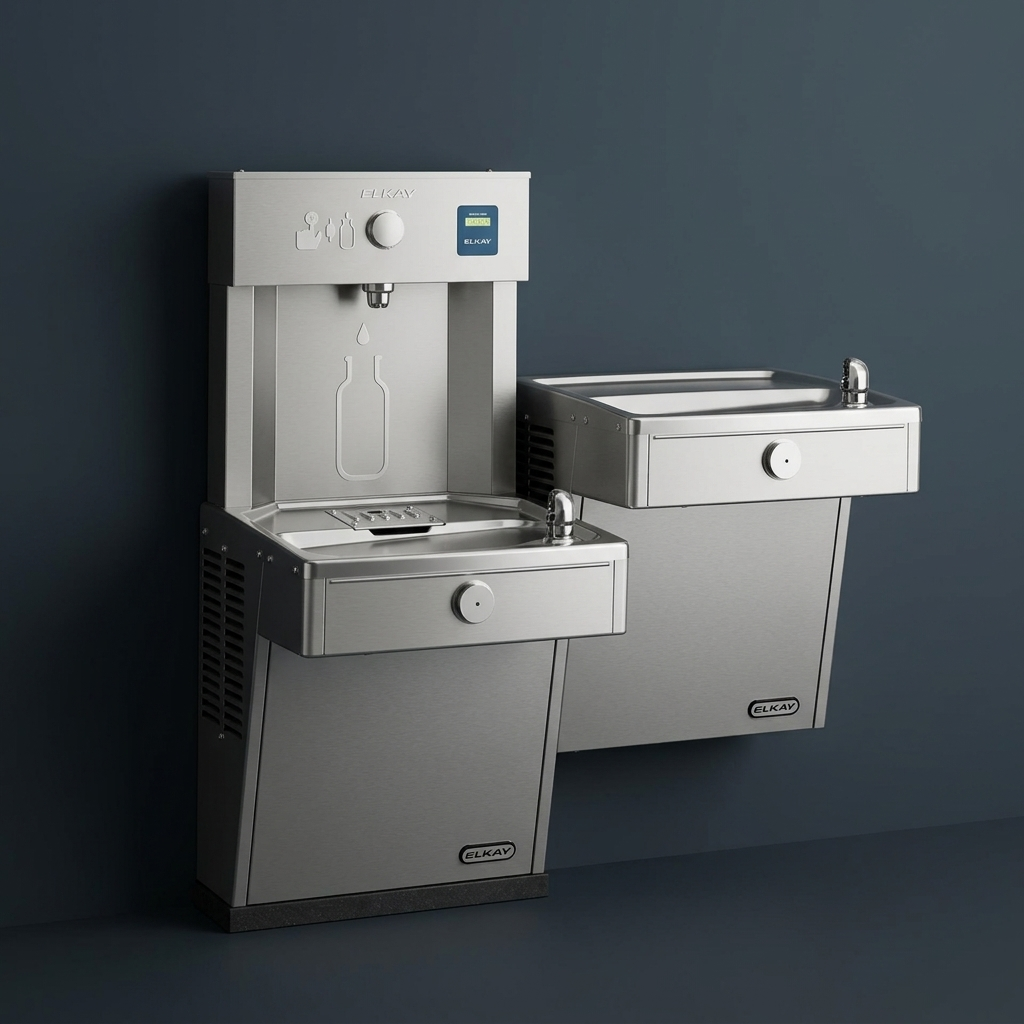

The Elkay VRCTLR8WSK is a vandal‑resistant ezH2O® Bottle Filling Station & Bi‑Level Reverse Cooler designed for indoor and outdoor use. This non‑filtered, refrigerated stainless steel unit combines durability, efficiency, and eco‑friendliness, making it ideal for high‑traffic areas such as schools, parks, and public spaces.
Key Specifications:
| Design | Bi‑level reverse cooler with integrated bottle filler, vandal‑resistant bubblers |
| Finish | Stainless Steel |
| Filtration | Non‑filtered. For filtered option, choose the Elkay LVRCTL8WSK. |
| Refrigeration | Refrigerated, 8.0 GPH chilled water |
| Stations Served | 2 (Bi-level drinking fountains + bottle filler) |
Features & Benefits:
- Bi‑Level Design: Provides accessibility for all ages and abilities, ADA compliant.
- Green Ticker™: Displays bottles saved from waste, promoting sustainability.
- Laminar Flow: Clean, splash‑free filling for better hygiene.
- Real Drain System: Eliminates standing water, reducing maintenance.
- Indoor + Outdoor Use: Suitable for versatile installation environments.
What's Included:
- Elkay VRCTLR8WSK Bottle Filling Station & Bi‑Level Reverse Cooler
Comparison of Elkay Bottle Filling Stations:
| Feature | VRCTLR8WSK | VRCGRNTL8WSK | LZSTL8WSBPRO |
|---|---|---|---|
| Design | Bi‑level reverse cooler with integrated bottle filler, vandal‑resistant bubblers | Bi‑level cooler with vandal‑resistant bubblers | Bi‑level ADA cooler with integrated bottle filler, Pro Filtration system |
| Finish | Stainless Steel | Stainless Steel | Black Stainless Steel |
| Filtration | Non‑filtered | Non‑filtered | FL10 Pro Filtration system with enhanced contaminant reduction |
| Refrigeration | Refrigerated, 8.0 GPH chilled water | Refrigerated, 8.0 GPH chilled water (High-effficiency) | Refrigerated, 8.0 GPH chilled water |
| Activation | Mechanical bottle filler button + mechanical bubbler button | Electronic bottle filler sensor + Mechanical bubbler button | Electronic bottle filler sensor + mechanical bubbler button |
| Best For | Indoor/outdoor schools, parks, and public facilities needing vandal‑resistant refrigerated hydration | Green‑certified facilities and outdoor spaces requiring vandal‑resistant refrigerated hydration | Indoor facilities requiring advanced Pro Filtration with refrigerated hydration |
FAQ
Q: What Is Included with the Elkay VRCTLR8WSK?
A: The Elkay VRCTLR8WSK ships in multiple boxes and includes the bi‑level reverse cooler (VRCTLR8WSC) and the bottle filler (VRCWS). Installation instructions and warranty documentation are also provided.
Q: How Does the Elkay VRCTLR8WSK Provide Vandal Resistance?
A: The Elkay VRCTLR8WSK features a vandal‑resistant bubbler, reinforced stainless steel panels, a heavy‑duty pushbutton, and secure mounting hardware to withstand high‑traffic environments.
Q: What Filtration Options Are Available for the Elkay VRCTLR8WSK?
A: The Elkay VRCTLR8WSK is non‑filtered by default. For facilities requiring filtration, the compatible option is the Elkay 51299C WaterSentry® Replacement Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards.
Q: What Accessories Are Compatible with the Elkay VRCTLR8WSK?
A: Recommended accessories include the Elkay 98324C Cane Apron for ADA compliance and the Elkay 36292C Power Block for multistation bottle filling installations.
Q: What Are the Electrical Requirements for the Elkay VRCTLR8WSK?
A: The Elkay VRCTLR8WSK requires 115V/60Hz power, rated at 370 watts with a full load of 1 amp. New installations must use a Ground Fault Circuit Interrupter (GFCI) for safety.
Q: What Is the Cooling Capacity of the Elkay VRCTLR8WSK?
A: The Elkay VRCTLR8WSK provides 8.0 GPH of chilled water at 50°F, based on 80°F inlet water and 90°F ambient conditions, tested per ASHRAE 18 standards.
Q: Can the Elkay VRCTLR8WSK Be Installed Outdoors?
A: Yes. The Elkay VRCTLR8WSK is rated for indoor and outdoor use. In non‑temperature controlled environments, the unit must be winterized or protected from extreme heat to prevent damage.
Q: What Warranty Coverage Applies to the Elkay VRCTLR8WSK?
A: The Elkay VRCTLR8WSK includes a 5‑year limited warranty on the refrigeration system and 12‑month coverage on electrical components and the water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay VRCTLR8WSK is a vandal‑resistant bi‑level bottle filling station with integrated refrigerated coolers. Built for high‑traffic public areas, it delivers chilled, ambient water with mechanical activation and heavy‑duty construction for durability.

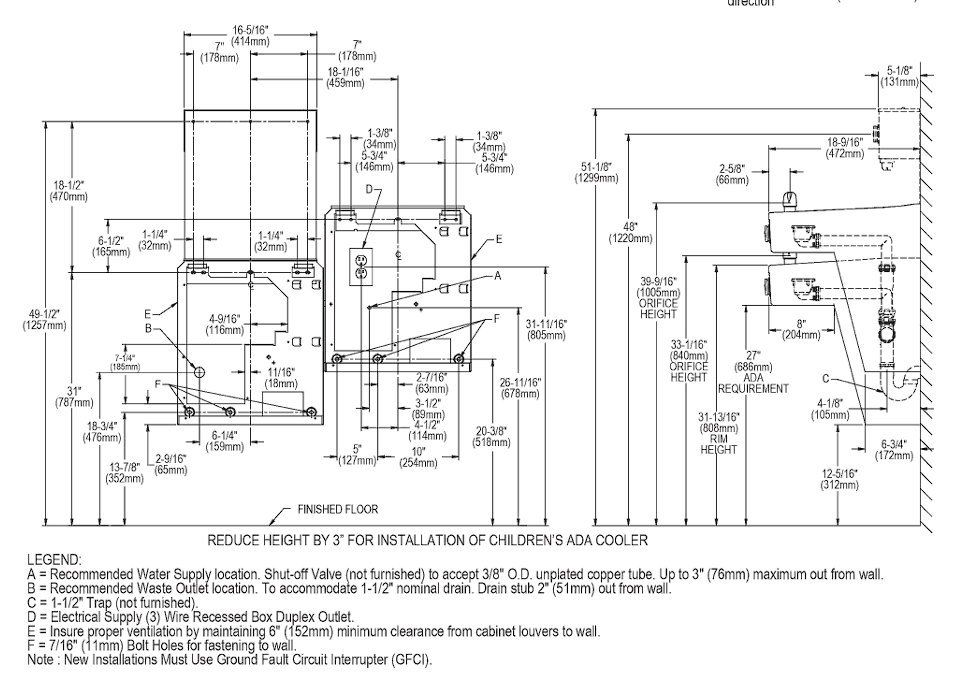

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for servicing refrigeration components
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless — delivers chilled and ambient water only
- Always depressurize water line before servicing
- Provide adequate ventilation clearance around refrigeration louvers
- Outdoor installation requires winterization or protection in extreme climates
- Secure fountains firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Install in‑wall carrier securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Mount cooler and bottle filler assembly to carrier, ensuring tubing and wires are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify refrigeration system powers on
- Pressurize system slowly and check for leaks
- Test mechanical push‑button activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and finish trim
For complete specifications and installation guidelines, download the official VRCTLR8WSK Spec Sheet and the Installation & Maintenance Manual.
