Elkay LVRCTL8WSK | Vandal-Resistant, Bi-level Bottle Filling Station | Filtered, Refrigerated
Elkay LVRCTL8WSK | Vandal-Resistant, Bi-level Bottle Filling Station | Filtered, Refrigerated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LVRCTL8WSK | Vandal-Resistant, Bi-level Bottle Filling Statio...

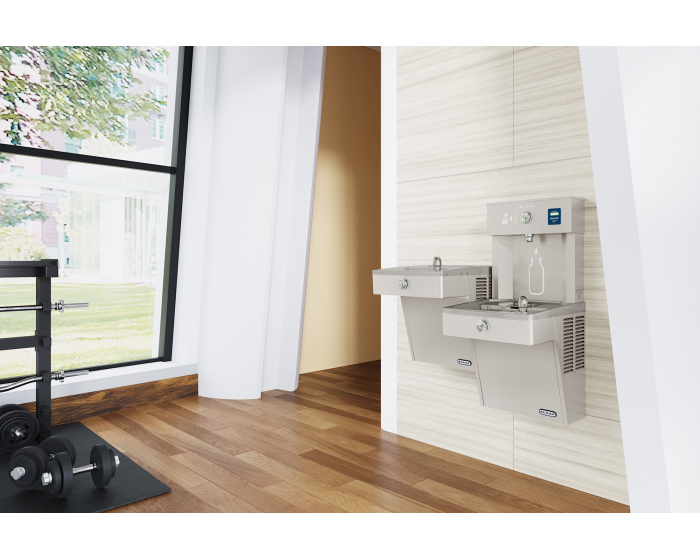

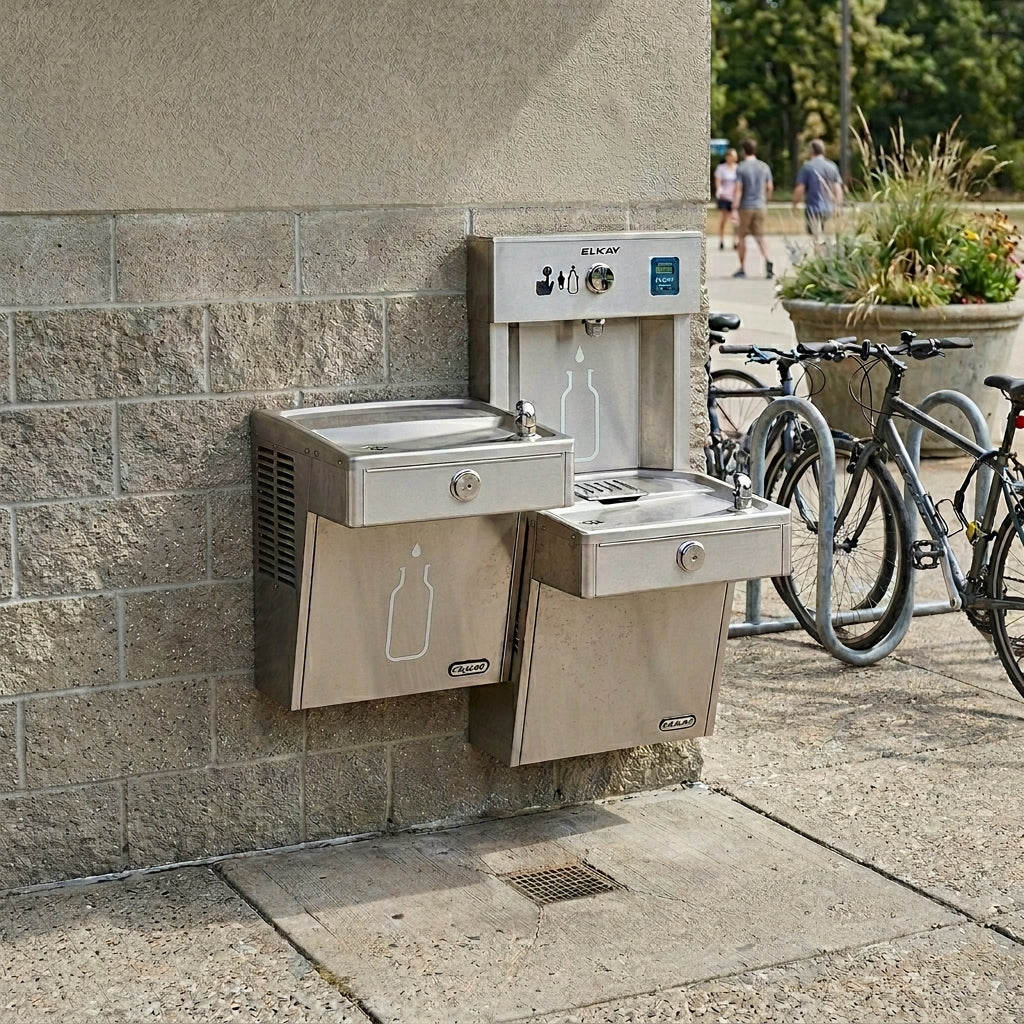

The Elkay LVRCTL8WSK is a vandal-resistant ezH2O® Bottle Filling Station & Bi-Level Cooler that delivers filtered, refrigerated water in high-traffic indoor environments. With NSF-certified filtration, ADA accessibility, and a stainless steel build, it’s ideal for schools, offices, and public spaces promoting sustainable hydration.
Key Specifications:
- Chilling Capacity: 8.0 GPH (gallons per hour) of 50°F drinking water, based on 80°F inlet water and 90°F ambient temperature
- Filtration System: NSF 42 and 53 certified for lead, cyst, particulate, chlorine, taste, and odor reduction; 3,000-gallon capacity
- Construction: Vandal-resistant stainless steel finish for durability and easy maintenance
- Dimensions: 36-1/8" L x 18-5/8" W x 38-13/16" H, suitable for wall-mount installation
- Power Requirements: 115V/60Hz, 370 Watts, 1 Amp full load
Features & Benefits:
- Dual Functionality: Combines a bottle filling station with a bi-level water cooler, catering to various user preferences and accessibility needs
- Green Ticker™: Displays the number of 20 oz. plastic water bottles saved from waste, promoting environmental awareness
- Visual Filter Monitor: LED indicator alerts users when it's time to change the filter, ensuring consistently high water quality
- Laminar Flow: Provides a clean, splash-free fill for a more hygienic and user-friendly experience
- Real Drain System: Eliminates standing water, reducing the risk of bacterial growth and improving overall hygiene
What's Included:
- LVRCTL8WSK ezH2O Bottle Filling Station & Bi-Level Cooler unit
- Integrated WaterSentry® filtration system
- Vandal-resistant bubbler
- Installation hardware and instructions
- Limited warranty documentation
FAQ
Q: Is the LVRCTL8WSK compatible with existing plumbing systems?
A: Yes, the Elkay LVRCTL8WSK is designed for easy integration with standard plumbing and electrical systems. It requires a 115V/60Hz connection and is wall-mountable. Professional installation is recommended for optimal performance and code compliance.
Q: How often does the filter need to be replaced?
A: The integrated WaterSentry® filter has a 3,000-gallon capacity. Replacement frequency varies by usage and water quality, but the Visual Filter Monitor will alert users when it’s time — typically every 6 to 12 months.
Q: Can the unit continue to function during power outages?
A: Yes. While cooling and filtration require electricity, the LVRCTL8WSK includes a mechanically-activated bubbler that continues to dispense water during service disruptions.
Q: What filter model is compatible with this unit?
A: The compatible replacement filter is the Elkay 51300C WaterSentry® Filter, available in single and bulk packs.
Detailed Features & Benefits
Advanced Filtration System: The LVRCTL8WSK’s WaterSentry® filtration system is certified to NSF 42 and 53 standards, effectively reducing lead, cysts, particulates, chlorine, and unpleasant tastes and odors. With a 3,000-gallon capacity, it ensures a consistent supply of clean, great-tasting water. The Visual Filter Monitor simplifies maintenance by alerting users when it’s time for replacement, helping facilities maintain optimal water quality without guesswork.
Sustainability and Environmental Impact: The Green Ticker™ feature provides a real-time count of plastic bottles saved, encouraging users to choose reusable bottles and reduce waste. This visual reminder reinforces sustainability goals in schools, offices, and public spaces, making hydration a conscious, eco-friendly act.
Durability and Accessibility: Built with a vandal-resistant stainless steel exterior, the LVRCTL8WSK is engineered for durability in high-traffic environments. Its bi-level design meets ADA standards, ensuring hydration access for users of all abilities. The laminar flow and real drain system further enhance hygiene and ease of use.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
