Elkay VRCTL8SC | Wall-mount Bi-level Vandal-Resistant Drinking Foun...

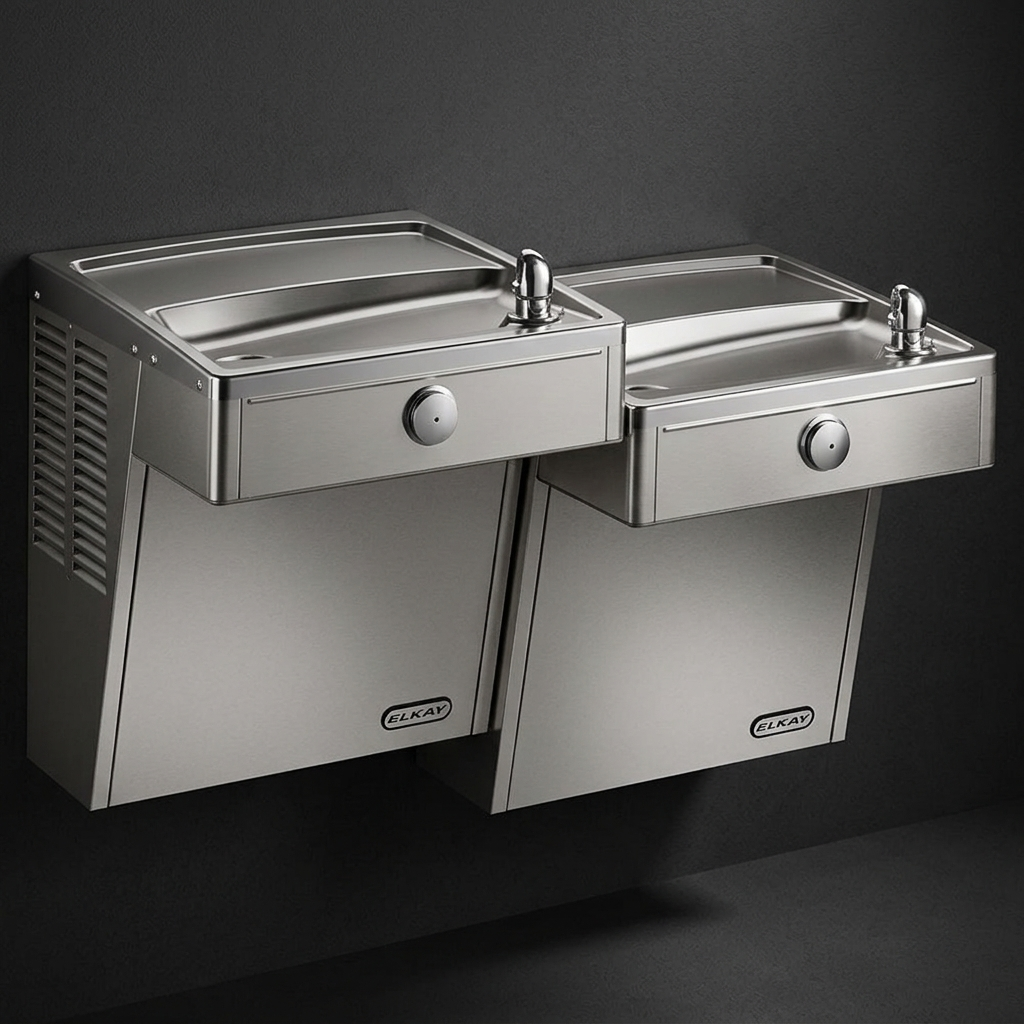

The Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler delivers chilled drinking water in a durable stainless steel package designed for demanding indoor and outdoor environments. Featuring vandal-resistant bubblers, mechanical activation, and a high-efficiency refrigeration system, this unit provides reliable hydration for schools, parks, transit facilities, and other high-traffic locations.
Key Specifications:
| Design | Wall Mount Vandal-Resistant Bi-Level ADA Cooler with Mechanical Activation |
| Finish | Stainless Steel |
| Filtration | Non-filtered model. For the filtered version, choose LVRCTL8SC. Also compatible with the EWF172 WaterSentry® Universal Filtration Kit. |
| Refrigeration | 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient conditions) |
| Stations Served | 2 drinking stations |

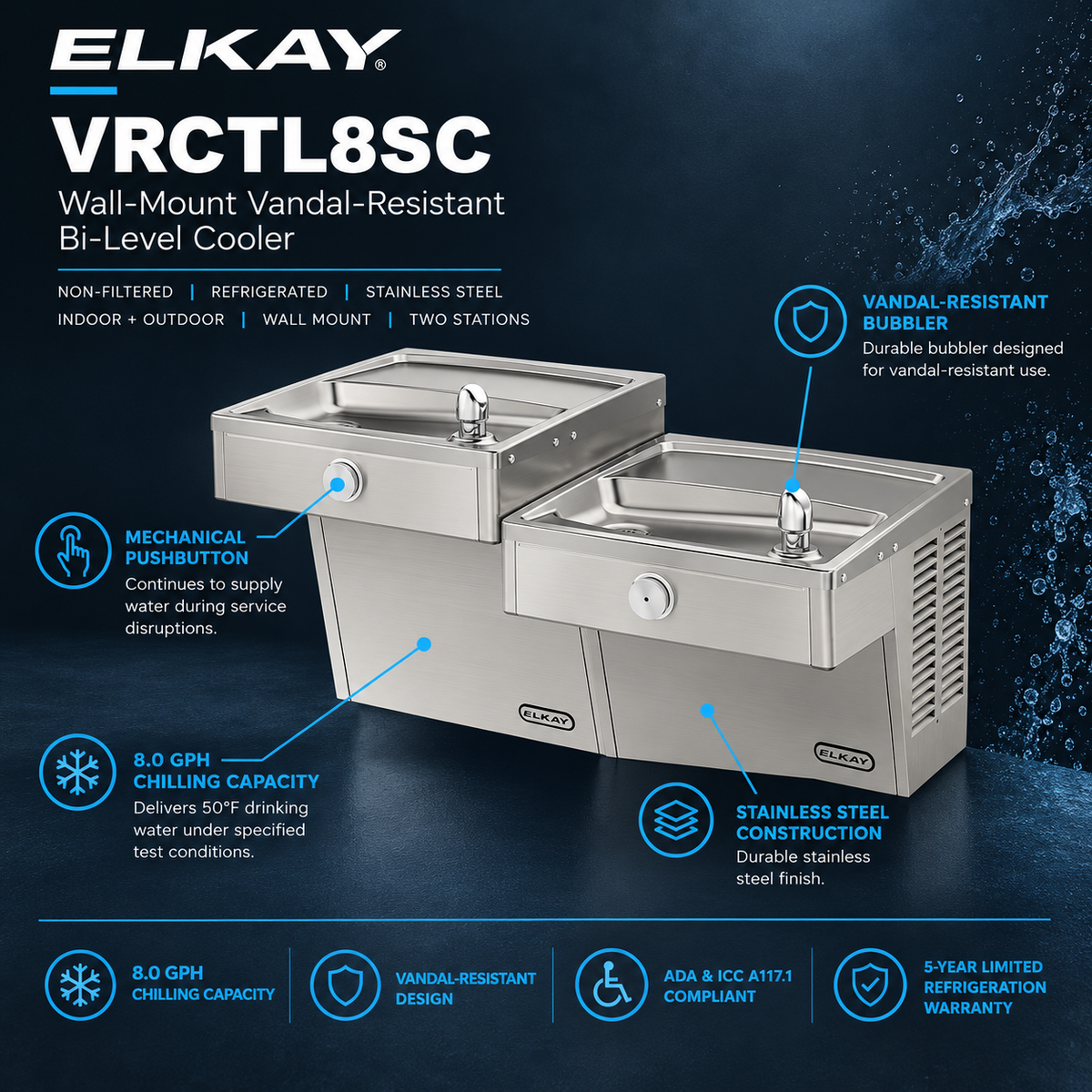

Features & Benefits:
- Vandal-Resistant Construction: Heavy-duty stainless steel design and vandal-resistant bubblers help withstand demanding public environments.
- Bi-Level ADA Accessibility: Dual-height configuration accommodates a wide range of users when installed according to ADA requirements.
- Reliable Refrigeration System: Delivers up to 8.0 GPH of chilled drinking water for busy facilities.
- Mechanical Activation: Front pushbutton operation provides dependable water delivery and continued functionality during service interruptions.
- Indoor and Outdoor Installation: Suitable for both indoor and outdoor locations when properly installed and protected.
What's Included:
- Elkay VRCTL8SC Bi-Level ADA Cooler
- Pre-installed Vandal-Resistant Bubblers
- Hanger Bracket
- Installation Instructions
- Owner's Manual
FAQ
Q: Is the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler Filtered?
A: No. The Elkay VRCTL8SC is a non-filtered model. For factory-installed filtration, see the LVRCTL8SC.
Q: Can Filtration Be Added to the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler?
A: Yes. Filtration can be added using the EWF172 WaterSentry® Universal Filtration Kit.
Q: Is the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler ADA Compliant?
A: Yes. The Elkay VRCTL8SC complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: Where Can the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler Be Installed?
A: The VRCTL8SC is approved for both indoor and outdoor installations. In non-temperature-controlled environments, the unit should be winterized and protected from extreme temperatures when required.
Q: What Is the Chilling Capacity of the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler?
A: The refrigeration system is rated to deliver 8.0 gallons per hour of 50°F drinking water based on 80°F inlet water and 90°F ambient conditions.
Q: What Accessories Are Available for the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler?
A: Compatible accessories include the MLP200 In-Wall Carrier, 98324C Cane Apron, EWF172 Filtration Kit, and 98669C Filter Mounting Cover.
Q: What Warranty Coverage Is Included with the Elkay VRCTL8SC Wall Mount Vandal-Resistant Bi-Level ADA Cooler?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on the electrical components and water system for drinking water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay VRCTL8SC is a bi‑level, vandal‑resistant drinking fountain designed for demanding public environments. With durable stainless steel construction and a filterless design, it provides chilled drinking water while helping minimize maintenance requirements in schools, transit facilities, parks, and other high‑traffic locations.

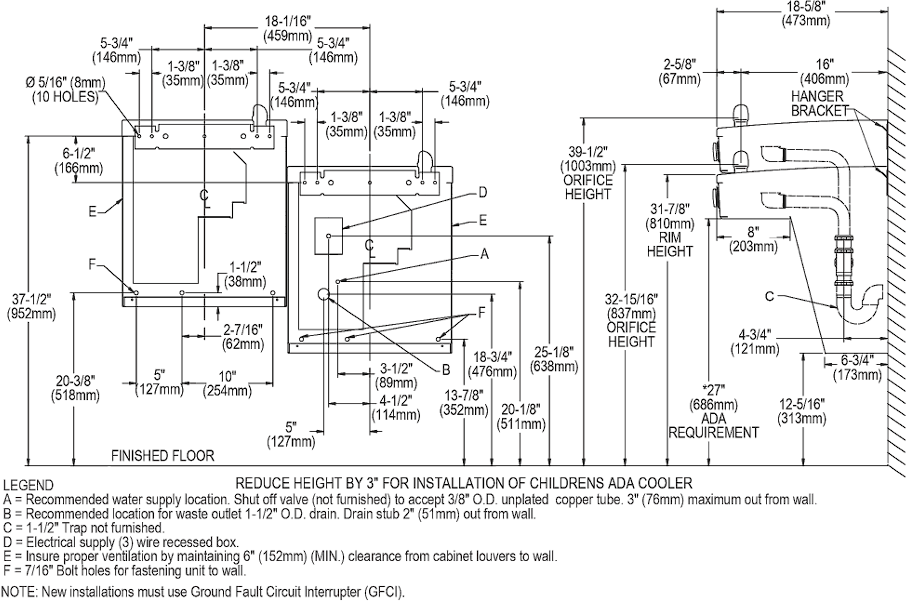

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both fountain basins
- Provide adequate clearance for servicing refrigeration components
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is filterless and delivers chilled water only
- Always depressurize water line before servicing
- Secure unit firmly to wall structure to maintain vandal‑resistant performance
- Provide adequate ventilation clearance around louvers
- Inspect all plumbing connections for leaks before placing unit into service
Basic Installation Overview:
- Install in‑wall carrier securely to support the fountain assembly
- Connect cold water supply line and flush plumbing thoroughly
- Connect drain lines from both basins to the building drainage system
- Mount fountain assembly to carrier and secure all hardware
- Connect electrical supply to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test water flow and adjust stream height if necessary
- Install access panels and complete final inspection
For complete specifications and installation guidelines, download the official VRCTL8SC Spec Sheet and the Installation Manual.
Want to Order the VRCTL8SC Drinking Fountain or Get a Custom Quote?
Shop VRCTL8SC Drinking Fountain
