Elkay LZWSSM | Surface Mount Bottle Filler | Filtered, Non-refriger...

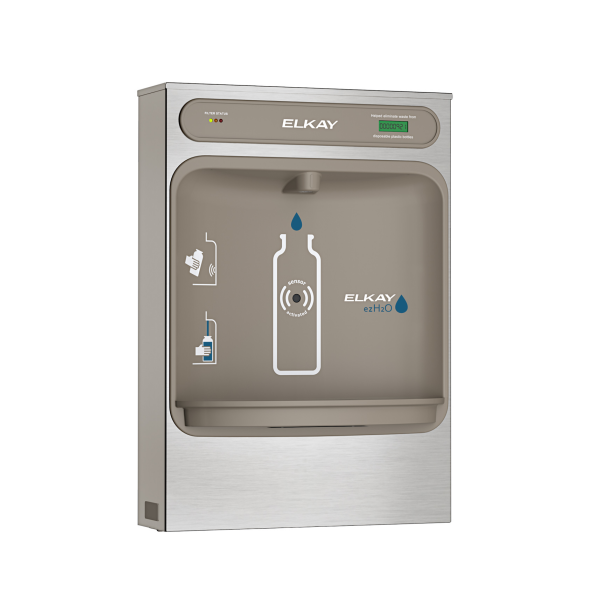

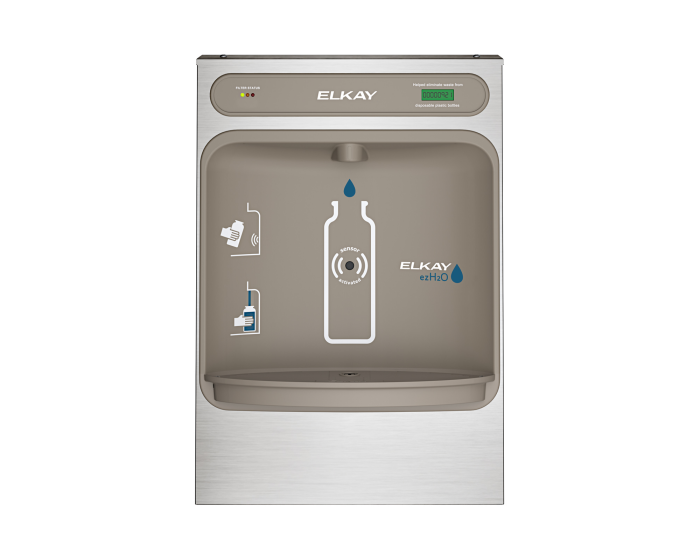

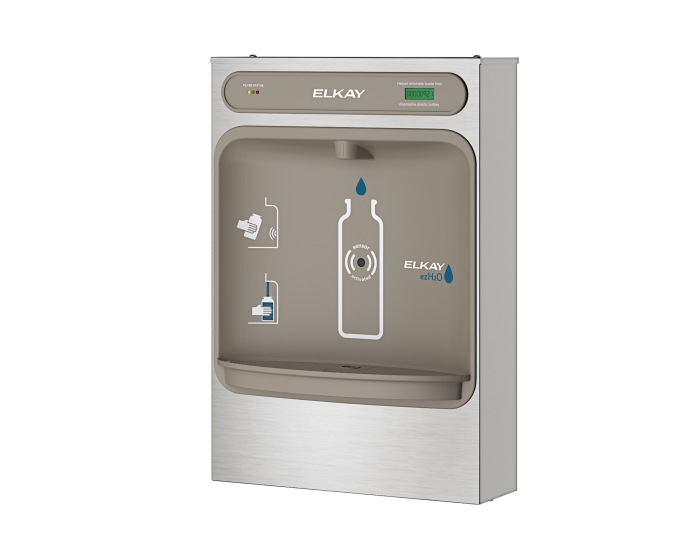

The Elkay LZWSSM ezH2O® Bottle Filling Station Surface Mount is a filtered, non-refrigerated stainless steel unit designed for modern indoor commercial environments. With hands-free sensor activation, antimicrobial protection, and advanced NSF-certified filtration, it delivers clean, fresh water while promoting sustainability through the Green Ticker™ bottle counter. Its slim surface-mount design makes it ideal for schools, offices, gyms, and healthcare facilities.
Key Specifications:
- Activation: Hands-free electronic sensor for hygienic bottle filling.
- Finish: Stainless steel construction for durability and modern look.
- Filtration: Includes 51300C WaterSentry® Plus filter, NSF/ANSI certified to reduce lead, microplastics, cysts, and chlorine taste/odor.
- Refrigeration: Non-refrigerated design; compatible with ECH8 Remote Chiller for chilled water delivery.
- Stations Served: Single-station bottle filler for indoor use.
Features & Benefits:
- Antimicrobial Components: Silver ion agents resist stains, odors, and bacterial growth. This ensures cleaner surfaces and helps maintain hygiene in high-traffic environments.
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed. Users can easily track filter status to maintain consistent water quality.
- Green Ticker™: Displays bottles saved from waste for sustainability tracking. It reinforces environmental responsibility by showing the impact of reusable bottles.
- Laminar Flow: Provides a clean, splash-free stream for easy filling. This minimizes mess and ensures efficient bottle filling in busy settings.
- Real Drain System: Eliminates standing water to maintain hygiene. It reduces maintenance needs and prevents odors or bacterial growth.
What's Included:
- LZWSSM Bottle Filling Station
- 51300C WaterSentry® Plus Filter Cartridge
- Mounting hardware kit
- Installation manual
- Warranty documentation
FAQ
Q: Does the LZWSSM include a chiller?
A: No, it is non-refrigerated but can be paired with the ECH8 Remote Chiller for chilled water delivery.
Q: How often should the filter be replaced?
A: The included 51300C filter should be replaced every 3,000 gallons or 12 months. For extended service, the 51600C filter is available as an optional upgrade with 6,000 gallon capacity.
Q: Is the unit ADA compliant?
A: Yes, when installed according to ADA and ICC A117.1 standards.
Q: Does the unit provide drainage?
A: Yes, it includes a real drain system to eliminate standing water.
Detailed Features & Benefits
Advanced Filtration: The included 51300C WaterSentry® Plus filter is NSF/ANSI certified to reduce lead, microplastics, cysts, and chlorine taste/odor. For longer service intervals, the optional 51600C filter doubles capacity to 6,000 gallons, reducing maintenance frequency.
Hands-Free Operation: Sensor activation ensures hygienic use in busy commercial spaces. This touchless design minimizes cross-contamination and enhances user convenience.
Sustainability Focus: The Green Ticker™ display quantifies bottles saved, helping organizations track and promote their environmental impact. It encourages users to choose reusable bottles, reducing plastic waste.
Durable Stainless Steel: Provides a modern look and resists wear in demanding environments. The robust finish ensures long-term reliability and maintains a professional appearance.
Easy Maintenance: Visual filter monitor and real drain simplify upkeep and reduce downtime. Staff can quickly identify when service is needed, keeping the unit consistently operational.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
