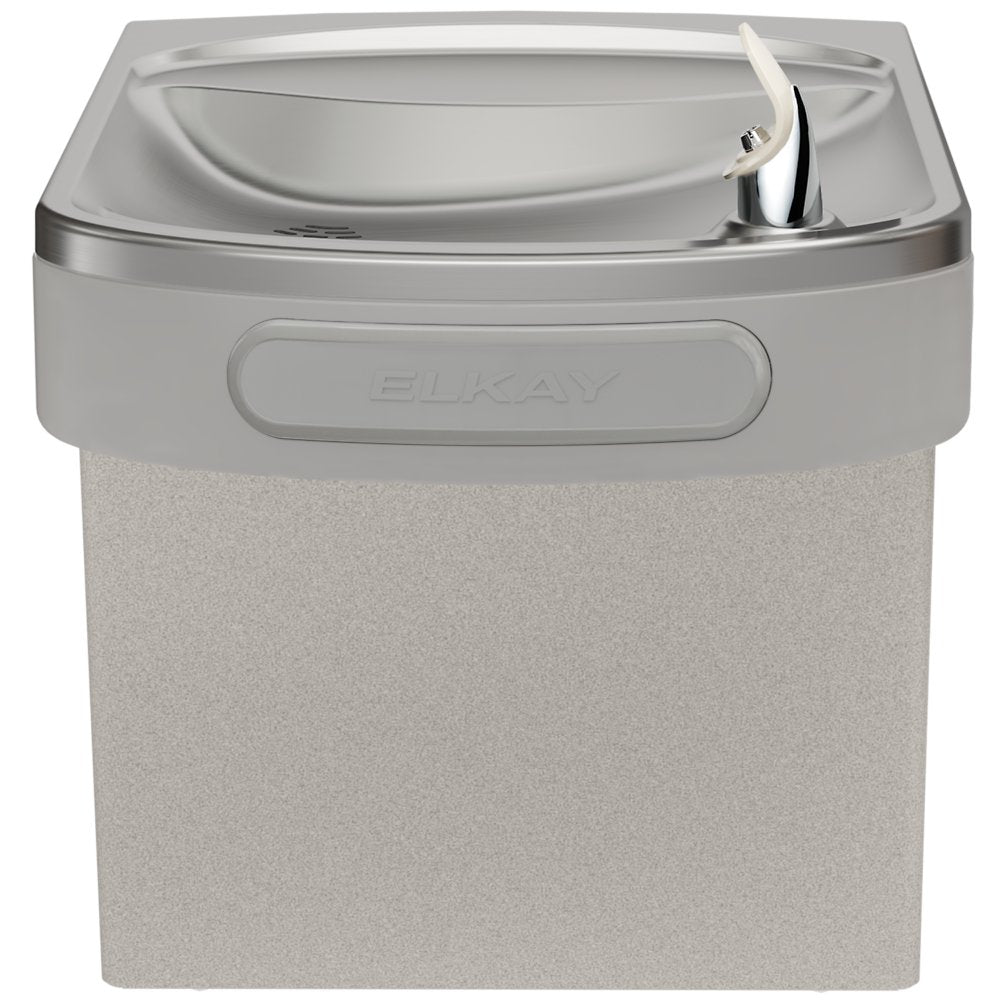

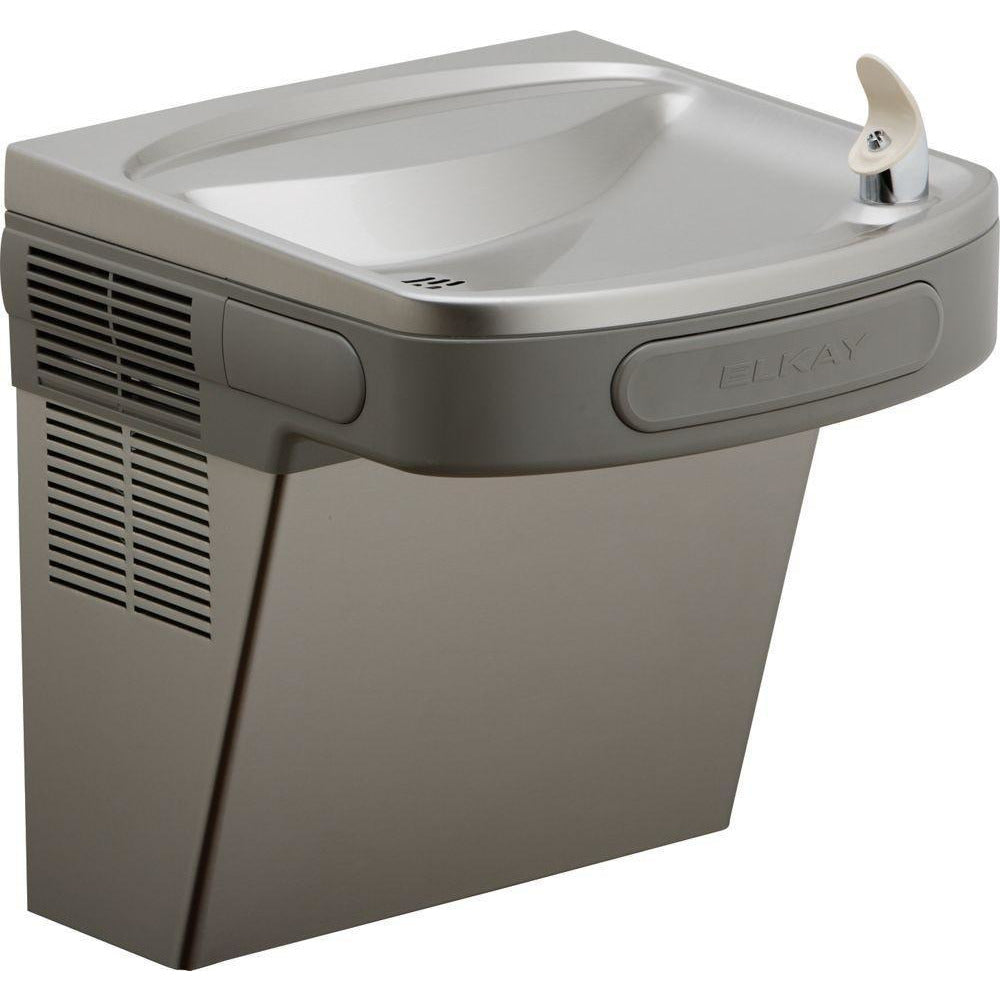

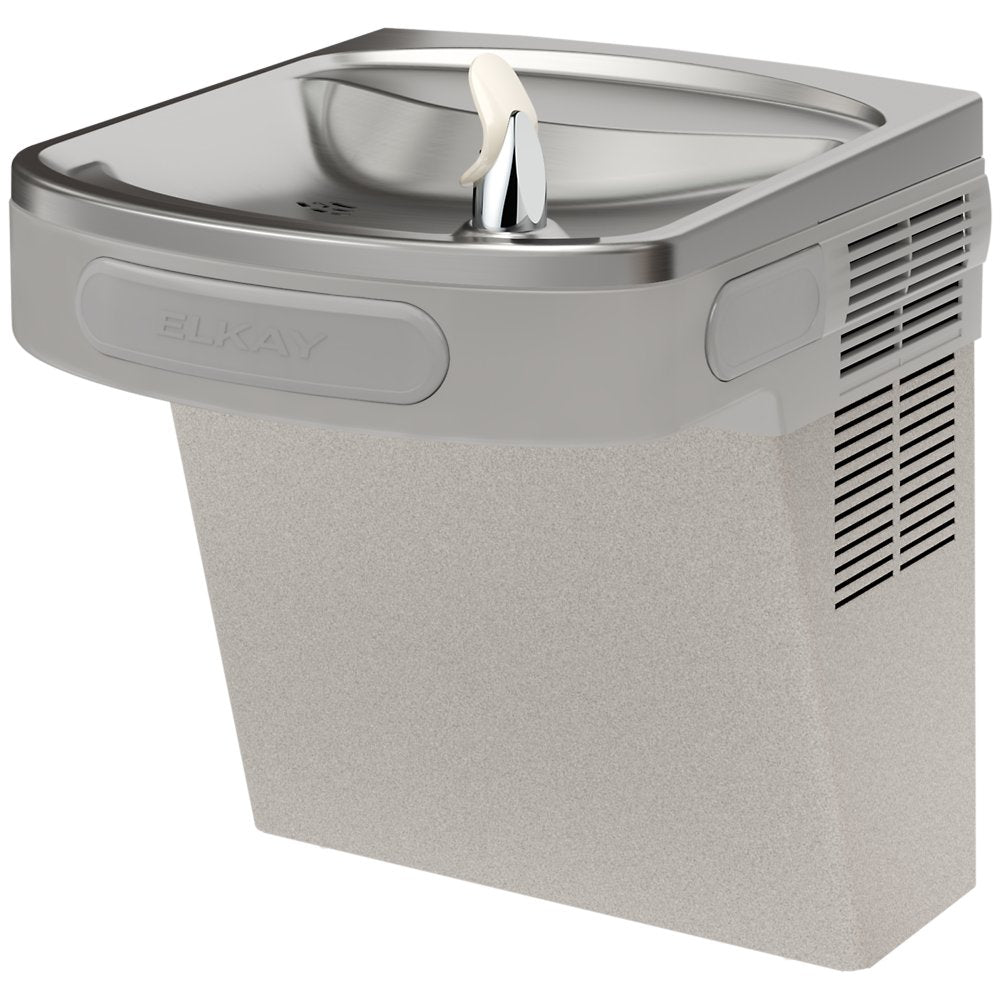

Elkay LZS8L | Wall-mount EZ-style Drinking Fountain | Filtered, Refrigerated, Granite Gray
Elkay LZS8L | Wall-mount EZ-style Drinking Fountain | Filtered, Refrigerated, Granite Gray is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZS8L | Wall-mount EZ-style Drinking Fountain | Filtered, Ref...
The Elkay LZS8L is a Wall Mount ADA Cooler with a filtered, refrigerated system in a Light Gray Granite finish. Designed for indoor use, this unit combines reliable cooling performance with advanced filtration, making it a safe and sustainable hydration solution for schools, offices, and public facilities.
Key Specifications:
- Design: Wall-mounted ADA-compliant cooler serving 1 station.
- Finish: Light Gray Granite.
- Filtration: Includes the 51300C WaterSentry® Plus filter, 3,000-gallon capacity or 1 year after installation.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient).
- Power Requirements: 115V/60Hz, 370W, 5 full load amps.
- Dimensions: 18-3/8" L × 19" W × 19-13/16" H.
- Stations Served: 1.
Features & Benefits:
- Filtered Hydration: Provides cleaner, safer water by reducing lead, microplastics, chlorine, and other contaminants.
- Flexi-Guard® Safety Bubbler: Antimicrobial mouth guard helps protect against injury and microorganisms.
- Electronic Activation: Front and side pushbar activation ensures easy, accessible use.
- Reliable Cooling: Hermetically sealed refrigeration system with R-134a refrigerant delivers consistent chilled water.
- ADA Compliant: Meets ADA & ICC A117.1 accessibility standards when installed properly.
What's Included:
- LZS8L Wall Mount ADA Cooler unit
- 51300C WaterSentry® Plus filter
- Installation instructions and user manual
FAQ
Q: What type of filter does the LZS8L use?
A: The LZS8L uses the Elkay 51300C WaterSentry® Plus filter, certified for lead, microplastics, chlorine, and more. Replace every 3,000 gallons or 12 months, whichever comes first.
Q: Is the LZS8L ADA compliant?
A: Yes, the LZS8L is ADA compliant when installed according to ADA & ICC A117.1 standards.
Q: Does the LZS8L come with a mounting frame?
A: The cooler includes hanger brackets. For added structural support, the MLP100 In-Wall Carrier can be ordered separately.
Q: What accessories are available?
A: Optional accessories include the 51300C filter, MLP100 In-Wall Carrier, LKAPREZL Cane Apron, and 97446C Vandal-Resistant Bubbler Kit.
Detailed Features & Benefits
Advanced Filtration: Certified to NSF/ANSI 42, 53, 372, and 401, the 51300C filter reduces lead, microplastics, chlorine, and more for safer drinking water.
Efficient Cooling: Hermetically sealed compressor and fan-cooled condenser deliver reliable chilled water. EPS foam insulation meets UL safety requirements.
Durability: Stainless steel basin and Light Gray Granite finish resist wear and maintain an attractive appearance.
Accessibility: ADA-compliant design ensures inclusive access for all users.
Safety: Flexi-Guard® bubbler with antimicrobial mouth guard protects against injury and microorganisms.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
