Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hands-free
Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hands-free is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hand...
Requires a minimum of 12" of wall depth for installation.
This unit does not include the MFWS100 mounting frame, which is required and must be ordered separately for early installation (if you need both the unit and mounting frame, please order the Elkay LZWSM8K instead.)

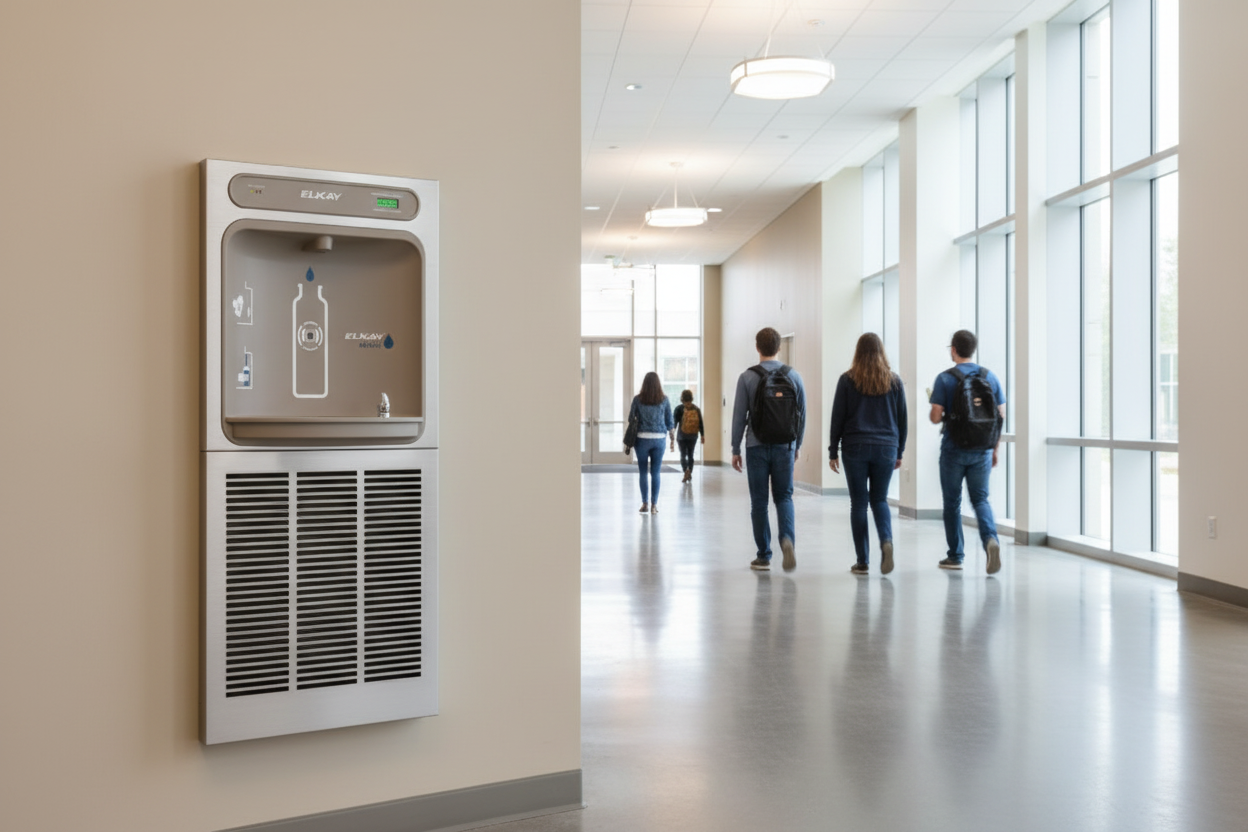

The Elkay LZWS8K ezH2O® In-Wall Bottle Filling Station delivers filtered, refrigerated hydration in a sleek stainless steel design. With touchless sensor activation, antimicrobial components, and LED filter monitoring, this unit is ideal for modern facilities seeking a space-saving, ADA-compliant hydration solution.
Key Specifications:
- Design: In-wall bottle filling station, serving 1 station.
- Finish: Stainless Steel.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (ASHRAE 18 tested, based on 80°F inlet and 90°F ambient).
- Activation: Electronic bottle filler sensor.
- Bubbler Style: None (bottle filler only).
- Power: 115V/60Hz, 370W, 1 full load amp.
- Filtration: Includes EWF3000 WaterSentry® Plus Filter (3,000-gallon capacity, NSF/ANSI 42, 53, 372, 401 certified). Optional replacement: Elkay 51300C.
Features & Benefits:
- Filtered Hydration: Certified filter reduces lead, microplastics, particulates, cysts, chlorine taste and odor.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Hands-Free Operation: Touchless sensor activation provides hygienic, convenient bottle filling.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Laminar Flow & Real Drain: Provides a clean, splash-free fill and eliminates standing water.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- ADA Accessibility: Meets ADA requirements when installed correctly, providing inclusive access for all users.
What's Included:
- LZWS8K In-Wall Bottle Filling Station
- ECH8 Chiller
- EWF3000 WaterSentry® Plus Filter
- Installation hardware
- Owner’s manual and warranty guide
FAQ
Q: How often should the filter be replaced?
A: The included EWF3000 filter should be replaced every 3,000 gallons or 12 months. Optional replacement filters include the Elkay 51300C for continued performance.
Q: Is this unit ADA compliant?
A: Yes, the LZWS8K meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What warranty is included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: Are there accessories available for this model?
A: Yes. The required MFWS100 Mounting Frame must be purchased separately unless you order the LZWSM8K kit. Optional replacement filters include the 51300C.
Q: What makes this model different from other ezH2O® units?
A: The LZWS8K is an in-wall design, offering a sleek, space-saving installation with integrated chiller and filter, ideal for facilities that want a streamlined bottle filling station without external coolers or bubblers.
Detailed Features & Benefits
Advanced Filtration: The LZWS8K includes the EWF3000 WaterSentry® Plus filter certified to reduce lead, microplastics, particulates, cysts, chlorine taste and odor. Optional 51300C filter provides additional replacement flexibility.
Space-Saving Design: In-wall mounting creates a sleek, integrated look while saving floor space.
Energy Efficiency: Built-in chiller delivers 8.0 GPH of chilled water while minimizing power consumption.
ADA Accessibility: Designed to meet ADA requirements, providing inclusive hydration access for all users.
Durability: Stainless steel construction ensures long-lasting performance in demanding environments such as schools, hospitals, and public facilities.
Enhanced User Experience: LED filter monitor and Green Ticker™ encourage use and promote sustainability by tracking bottles saved.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
