Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hands-free
Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hands-free is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hand...
Requires a minimum of 12" of wall depth for installation.
This unit does not include the MFWS100 mounting frame, which is required and must be ordered separately for early installation (if you need both the unit and mounting frame, please order the Elkay LZWSM8K instead.)

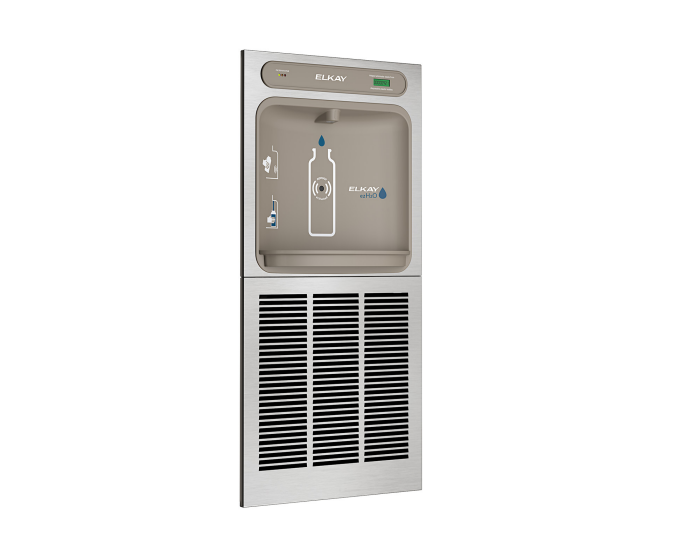

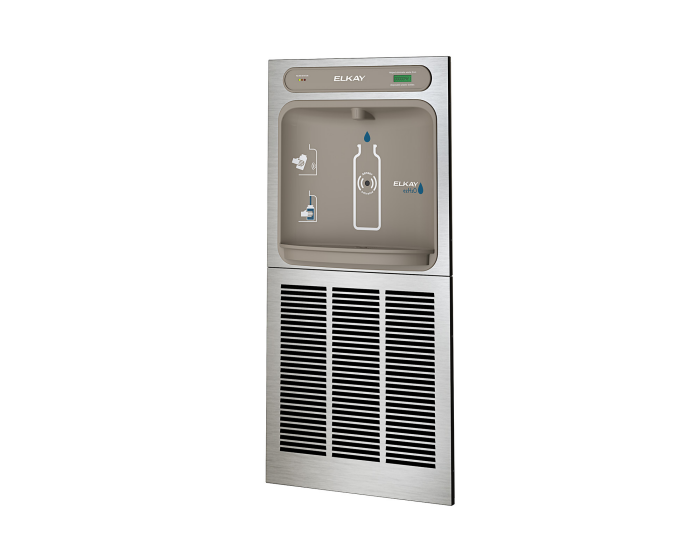

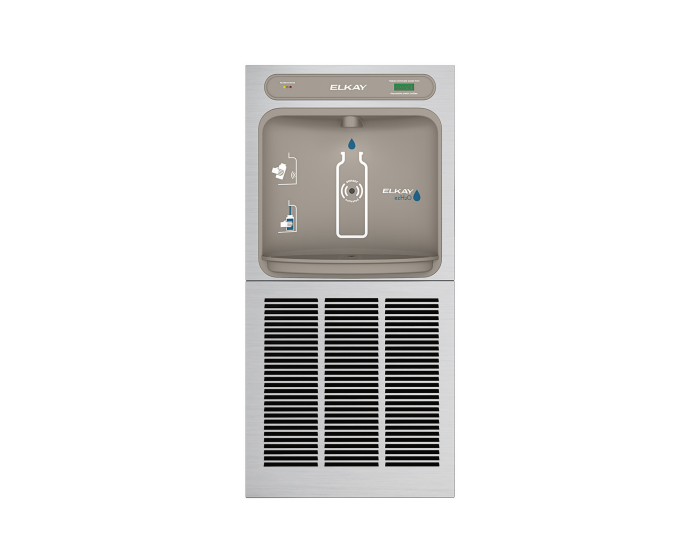

The LZWS8K is an in-wall, refrigerated bottle filler. This model has a Stainless Steel color finish.
One of the most popular models, the Elkay LZWS8K bottle filling station makes drinking water more practical, safe, and appealing than ever before.
Being a ‘hands-free’ unit, the LZWS8K stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.
-
Fully recessed in-wall design
- Hands-free sensor activation
- ADA compliant
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
- Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
Elkay LZWS8K resources:
- Elkay LZWS8K Spec Sheet
- Elkay LZWS8K Installation manual
- Elkay LZWS8K - Refrigeration package manual
- Elkay LZWS8K CAD symbols: FRONT - TOP - SIDE
- Care and Cleaning for Elkay ezH2o Bottle Fillers (Video)
- How to Maintain Filtered Bottle Filling Stations (Guide)
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
MOUNTING DETAILS |
Wall Mount (In-Wall Frame/Plate) |
|
CHILLING DETAILS |
8 GPH |
|
REFRIGERANT |
R-134 |
|
TEMPERATURE CAPACITY |
50°F drinking water |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF FOUNTAINS |
No drinking fountain (bottle filler only) |
|
DIMENSIONS |
L: 19-3/4″ W: 3-1/2″ H: 40-13/16″ |
|
SHIPPING WEIGHT |
80 lbs |
|
PRODUCT COMPLIANCE |
|
Elkay LZWS8K Includes
- Chiller
- Bottle Filler
- Filter kit
Warranty
Refrigeration System (IF APPLICABLE)
Elkay LZWS8K refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay LZWS8K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
Installation Notes
- Elkay LZWS8K requires installation from licensed plumber.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay LZWS8K MANUAL.
Maintenance
How to Clean
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
How to Change Filter (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
Read GUIDES on how to REPLACE an Elkay EZH20 Filter and MAINTAIN an EZH2O Bottle Filler
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame? What is the difference between the LZWS8K and the LZWSM8K.
A: This unit does not include the MFWS100 mounting frame, which is required and must be ordered separately for early installation (if you need both the unit and mounting frame, please order the Elkay LZWSM8K instead.).
*ASSEMBLED IN THE UNITED STATES.
