Elkay LZWS8K | In-wall Bottle Filler | Filtered, Refrigerated, Hand...

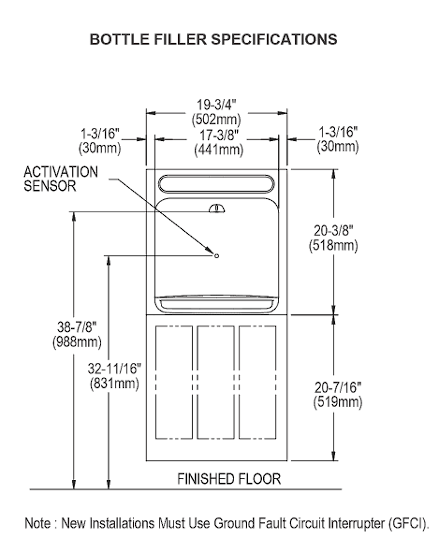

Requires a minimum of 12" of wall depth for installation.
This unit does not include the MFWS100 Mounting Frame, which is required and must be ordered separately for early installation. If you need both the bottle filling station and mounting frame, order the LZWSM8K kit instead.

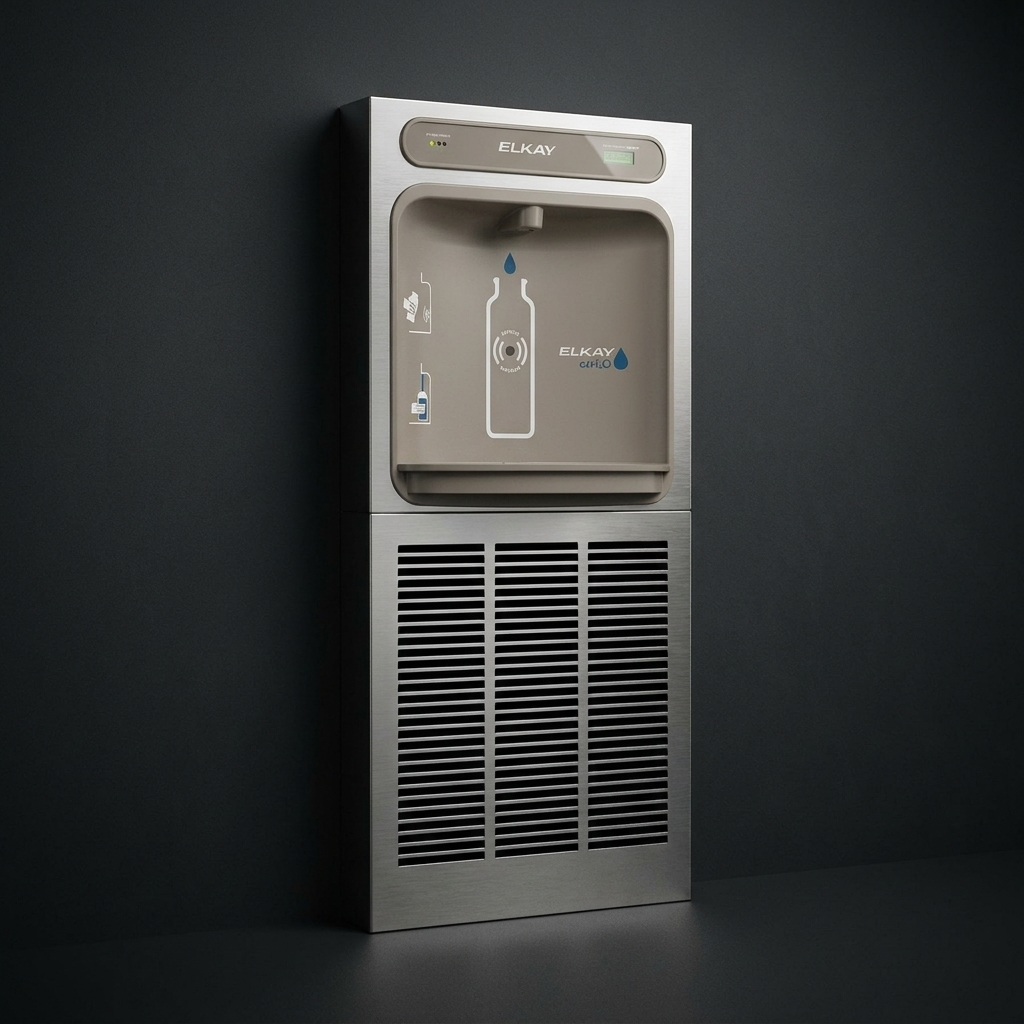

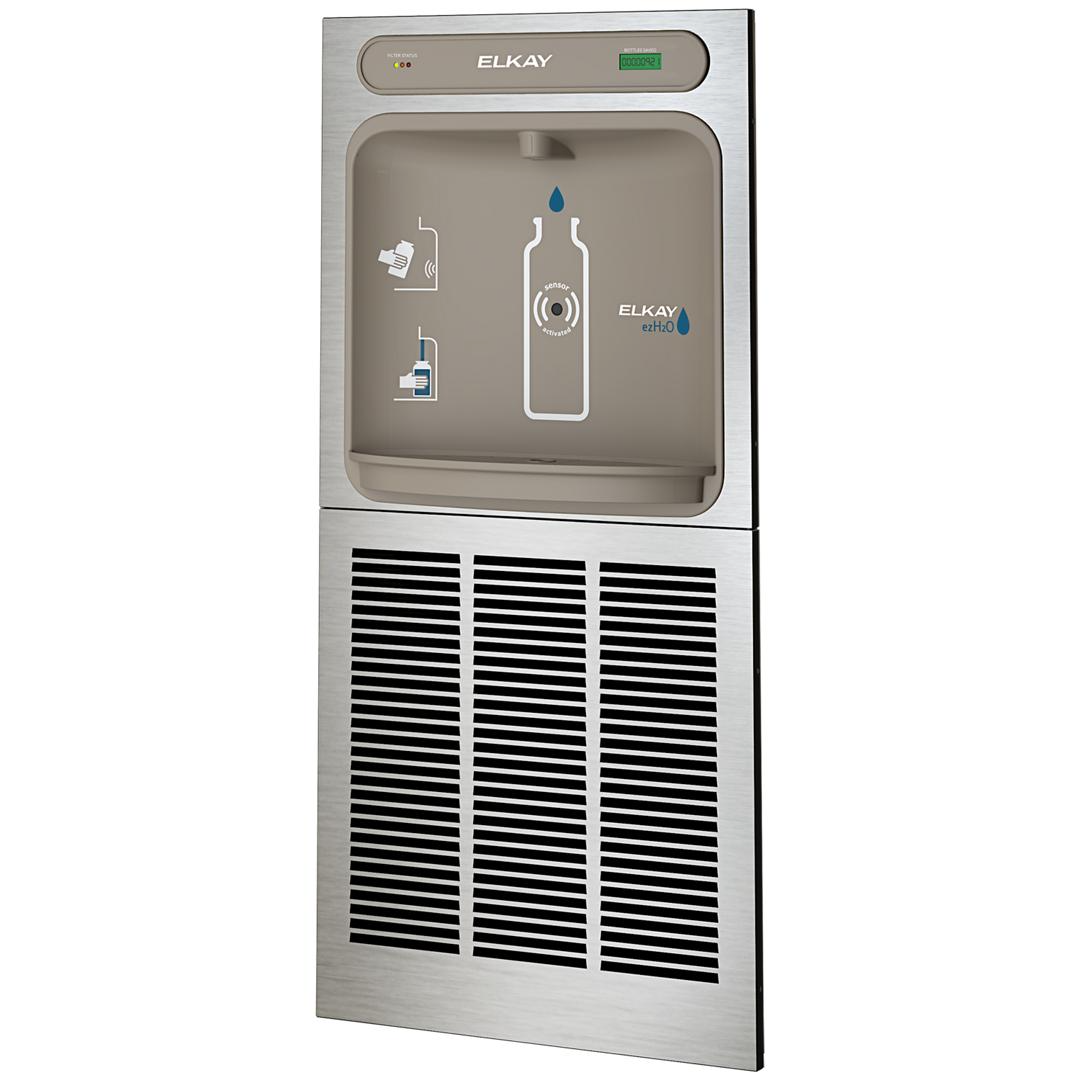

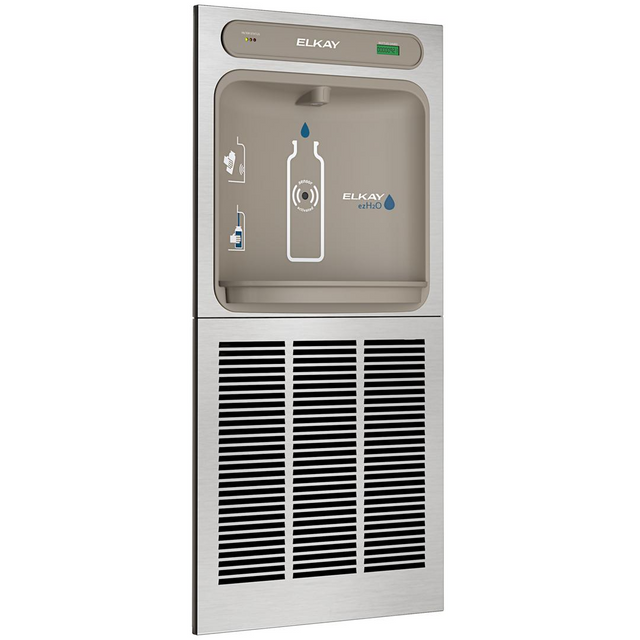

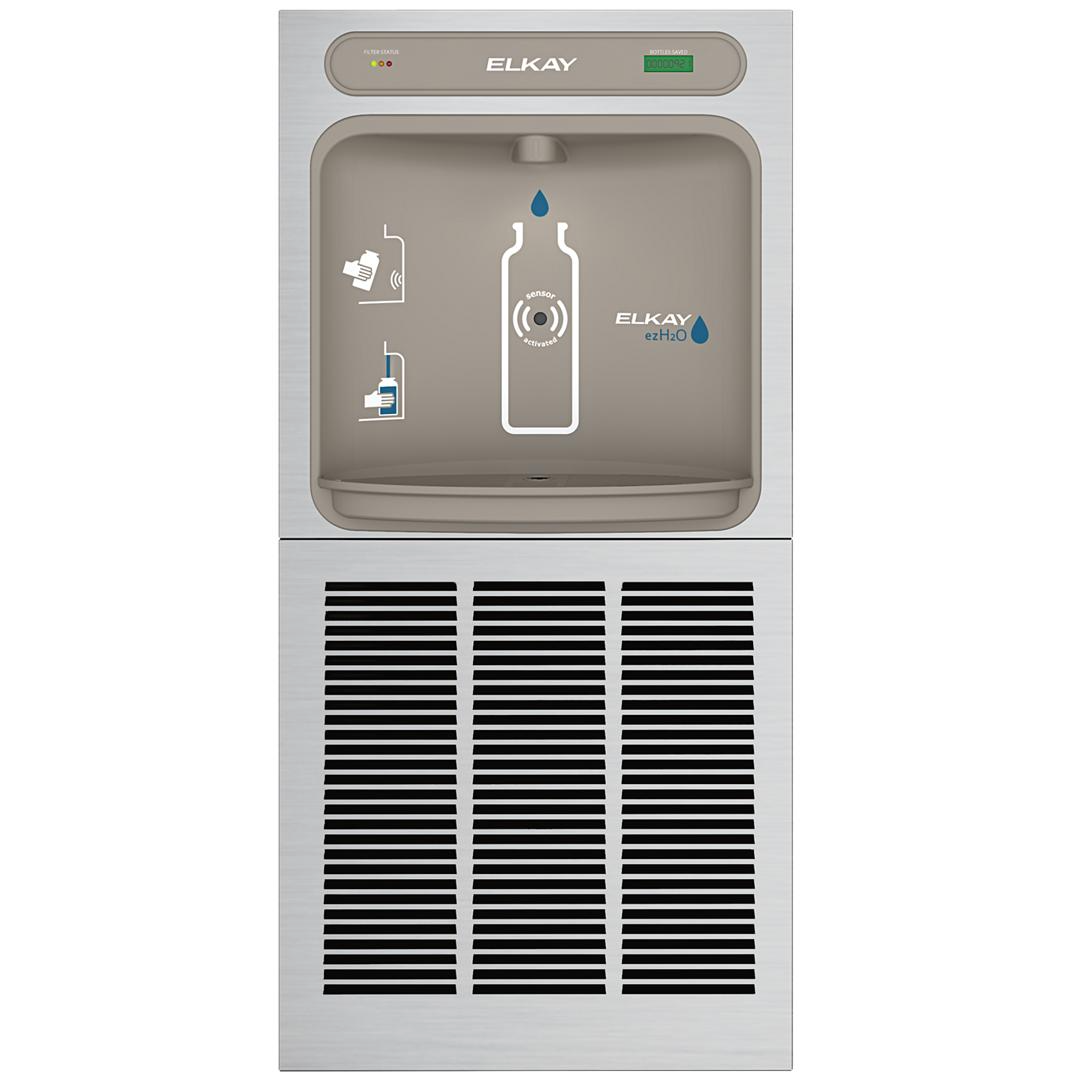

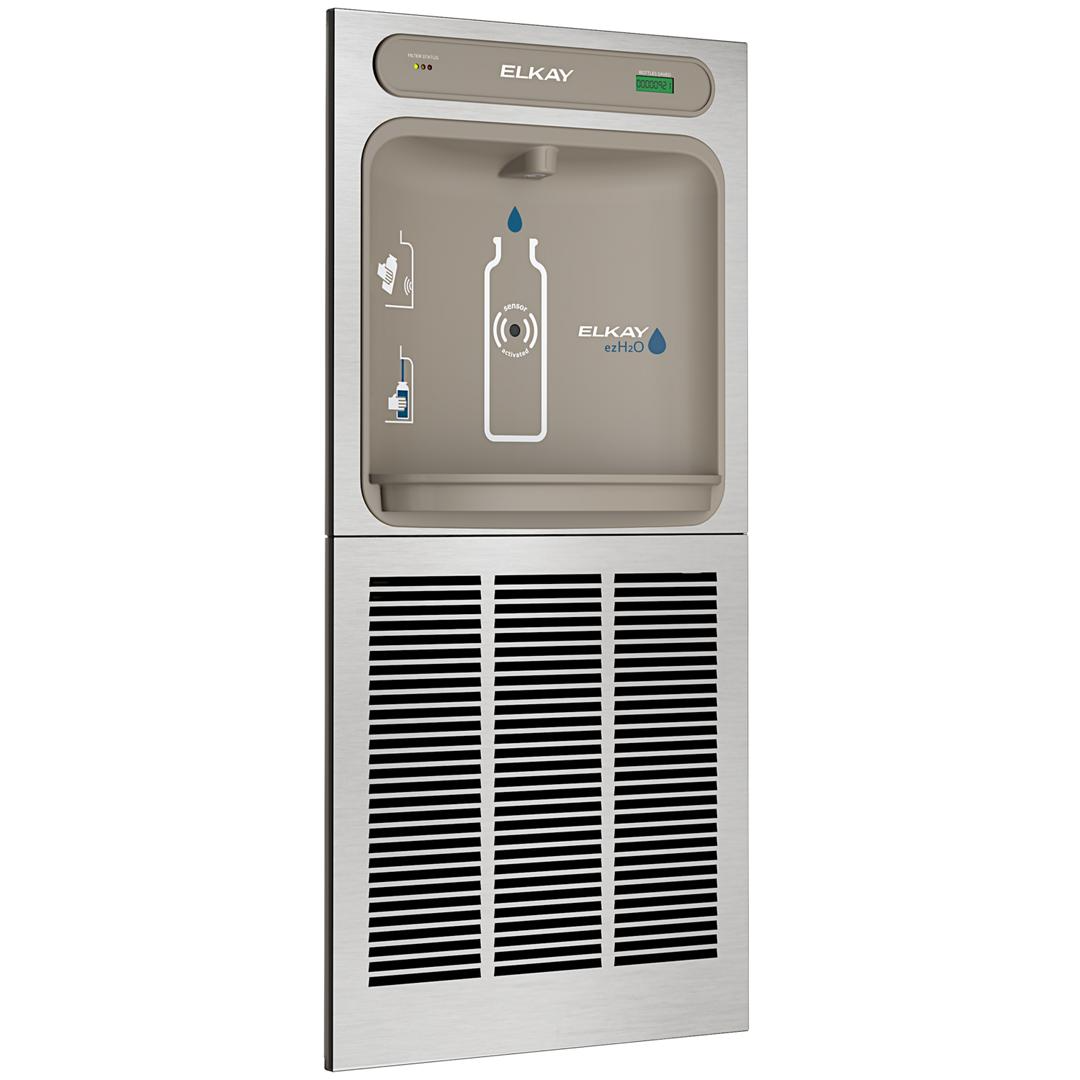

The Elkay LZWS8K ezH2O® In-Wall Bottle Filling Station delivers filtered, refrigerated hydration in a sleek stainless steel design. Featuring touchless sensor activation, WaterSentry® filtration, and a space-saving in-wall configuration, it provides cleaner drinking water while maintaining a minimal footprint in schools, offices, healthcare facilities, and public buildings.
Key Specifications:
| Design | In-Wall ezH2O® Bottle Filling Station |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Plus Filter, NSF/ANSI certified for reduction of lead, microplastics, particulates, cysts, and chlorine taste and odor (3,000-gallon capacity). |
| Refrigeration | 8.0 GPH of 50°F Drinking Water |
| Stations Served | 1 Bottle Filling Station |

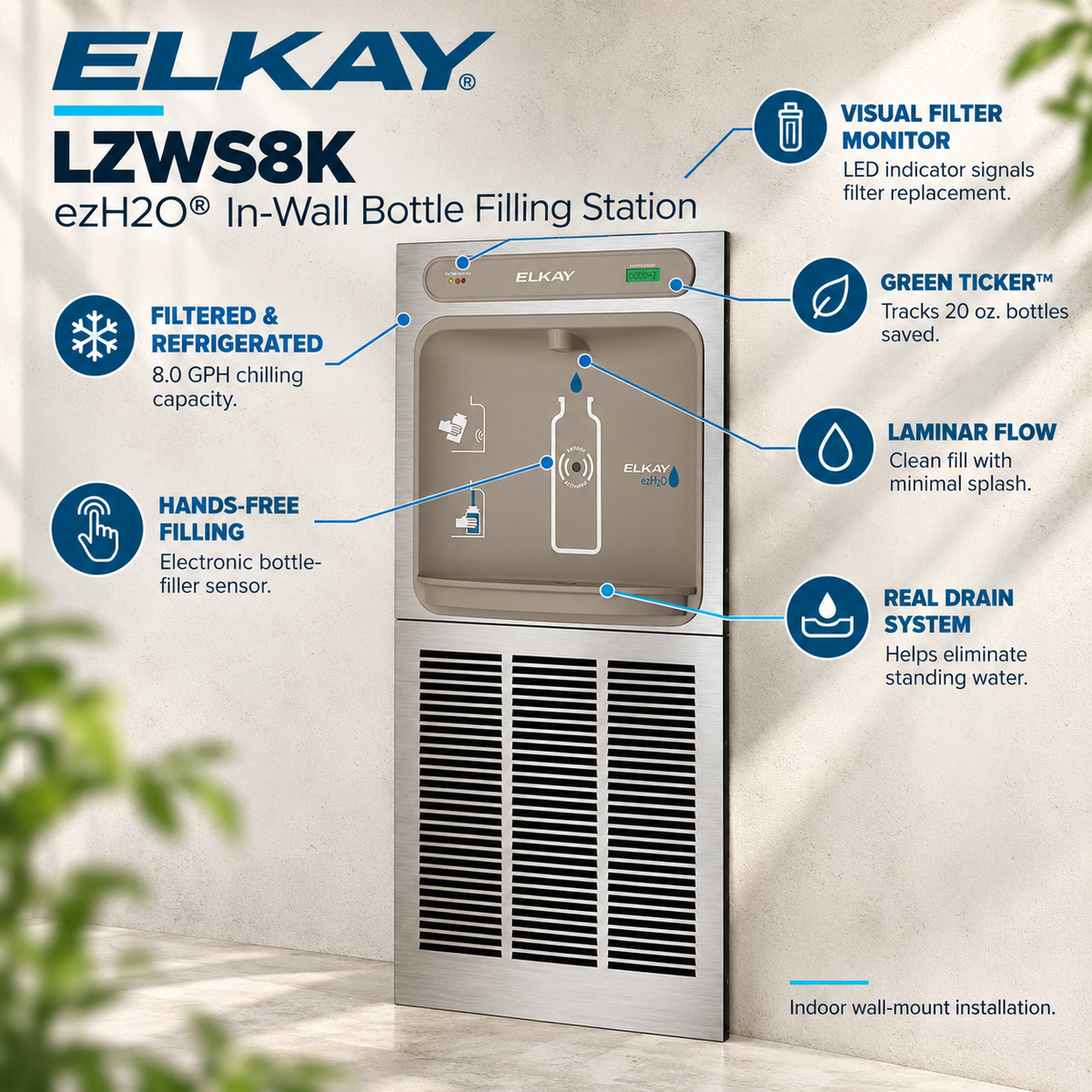

Features & Benefits:
- Filtered Hydration: WaterSentry® Plus filtration reduces lead, microplastics, particulates, cysts, chlorine taste, and odor.
- Hands-Free Operation: Sensor activation provides convenient, touchless bottle filling.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is required.
- Green Ticker™: Tracks the number of disposable plastic bottles diverted from waste.
- Space-Saving In-Wall Design: Recessed installation minimizes corridor protrusion while maintaining ADA accessibility.
What's Included:
- LZWSM8C In-Wall Bottle Filling Station
- ECH8 Chiller
- 51300C WaterSentry® Plus Filter
- Installation Instructions
- Operation Manual
FAQ
Q: What Filter Does the Elkay LZWS8K Use?
A: The Elkay LZWS8K includes the 51300C WaterSentry® Plus Filter, certified to NSF/ANSI 42, 53, 372, and 401 standards for reduction of lead, microplastics, particulates, cysts, chlorine taste, and odor.
Q: How Often Should the 51300C Filter Be Replaced in the Elkay LZWS8K?
A: The 51300C WaterSentry® Plus Filter should be replaced every 3,000 gallons or 12 months, whichever occurs first.
Q: Is the Elkay LZWS8K Refrigerated?
A: Yes. The refrigeration system provides 8.0 gallons per hour of 50°F drinking water based on 80°F inlet water and 90°F ambient air temperature conditions.
Q: Is the Elkay LZWS8K ADA Compliant?
A: Yes. The Elkay LZWS8K complies with ADA and ICC A117.1 accessibility requirements when installed according to applicable standards.
Q: What Accessories Are Available for the Elkay LZWS8K?
A: The required MFWS100 Mounting Frame must be purchased separately unless you order the LZWSM8K In-Wall Kit, which includes the mounting frame.
Q: What Makes the Elkay LZWS8K Different from Standard ezH2O® Bottle Filling Stations?
A: The LZWS8K features a recessed in-wall design that helps maximize usable space while providing integrated refrigeration and filtration.
Q: What Is the Minimum Wall Depth Required for the Elkay LZWS8K?
A: Elkay specifies a minimum wall cavity depth of 12" for installation.
Q: What Warranty Coverage Is Included with the Elkay LZWS8K?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 12-month warranty on electrical components and the water system for drinking water applications.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

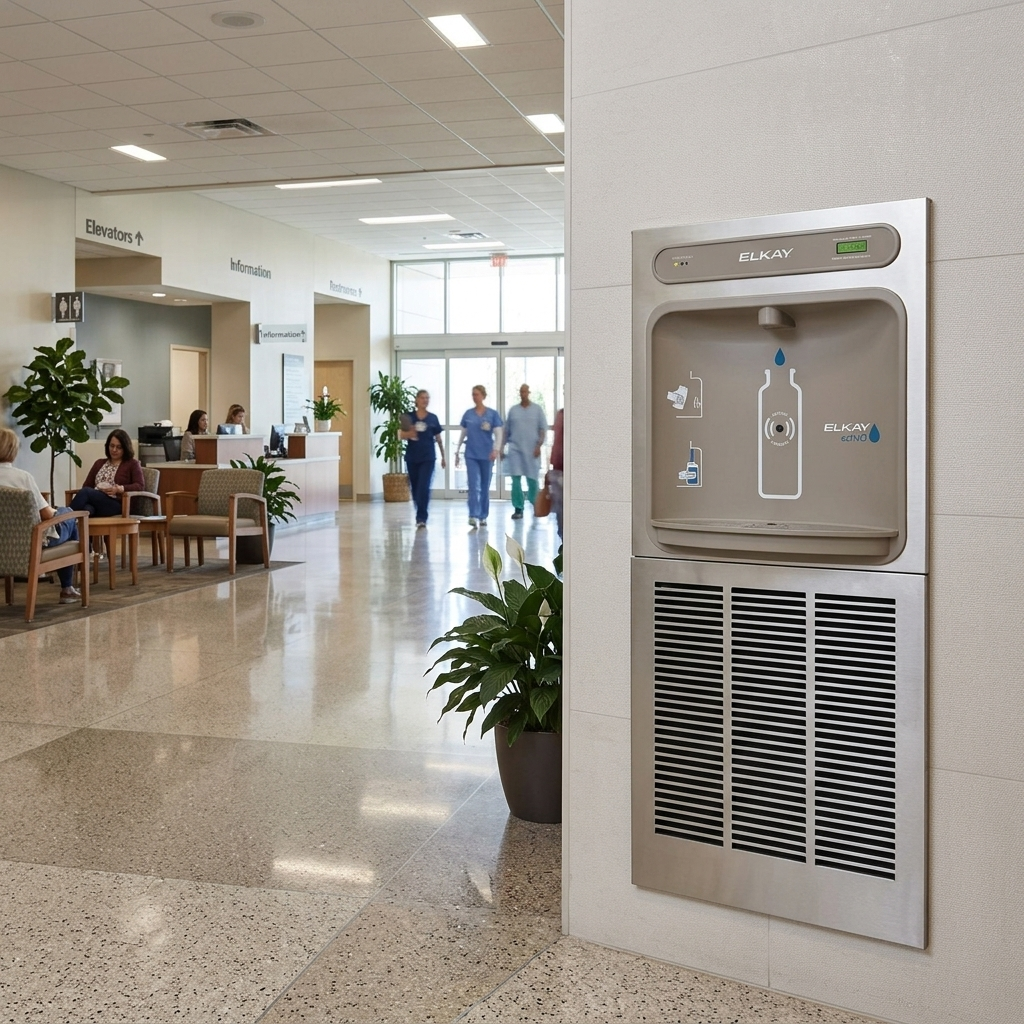

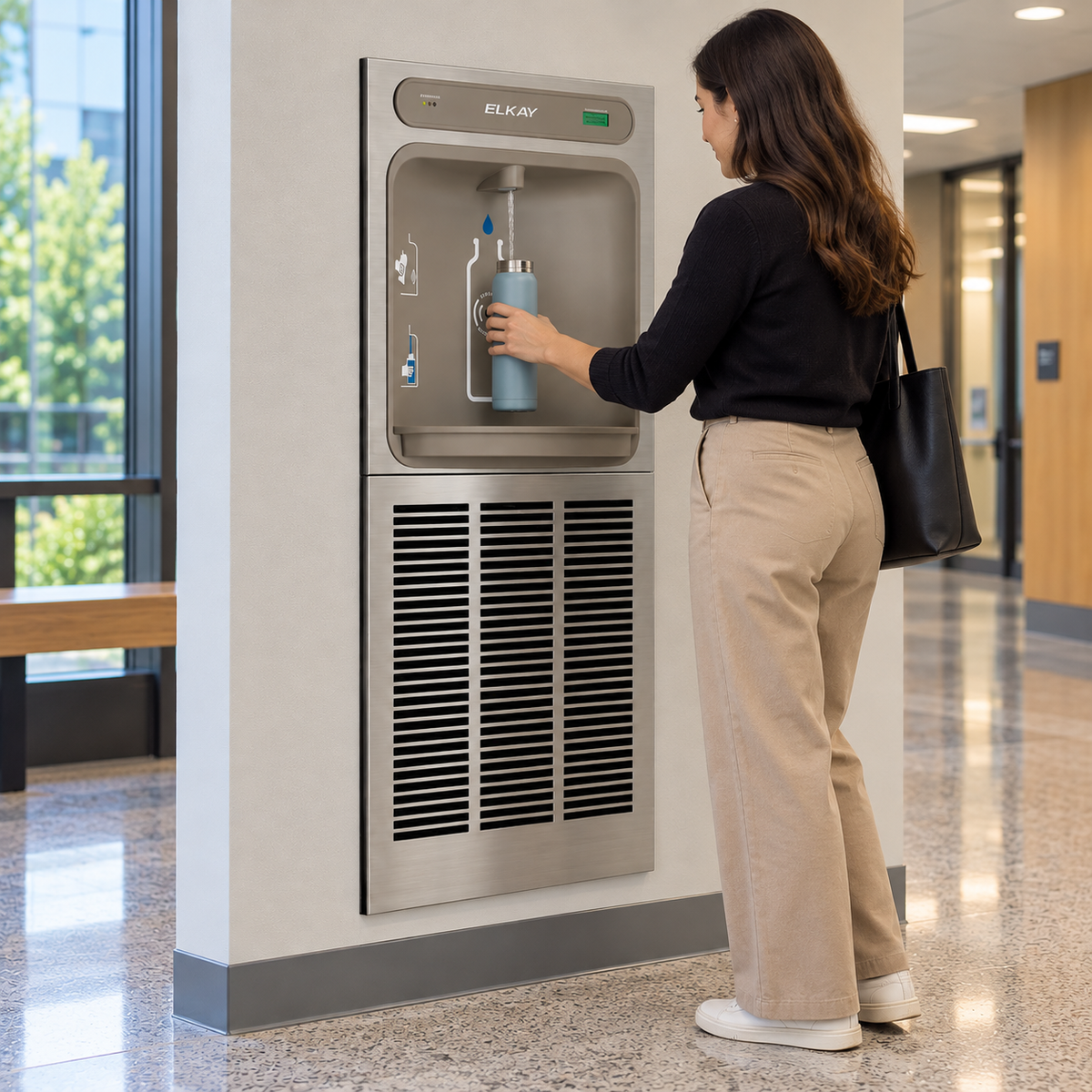

The Elkay LZWS8K is a single‑level, filtered bottle filling station designed for schools, offices, healthcare facilities, and other commercial environments. Featuring hands‑free sensor activation and integrated filtration, it delivers chilled, cleaner water while encouraging reusable bottle use.
Key Installation Requirements:
- Wall‑mounted installation with proper carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connection required for the bottle filler basin
- Maintain clearance for filter replacement and unit servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize the water line before servicing or replacing the filter
- Use only genuine Elkay replacement filters to maintain certification and performance
- Ensure the sensor area remains unobstructed for reliable activation
- Provide adequate ventilation clearance around refrigeration components
- Inspect all plumbing and electrical connections before operation
Basic Installation Overview:
- Install the wall carrier and secure mounting hardware according to specifications
- Connect the cold water supply line and flush the plumbing thoroughly
- Install the filter head and filter cartridge
- Mount the bottle filling station securely to the carrier assembly
- Connect the drain line to the building drainage system
- Connect electrical power to a grounded outlet
- Pressurize the system and inspect all connections for leaks
- Test bottle filler activation, water flow, and cooling performance
- Install finish panels and complete final adjustments
For complete specifications and installation guidelines, download the official LZWS8K Spec Sheet and the Installation Manual.
