Elkay  |  SKU: LZWS-ERFP8-RF

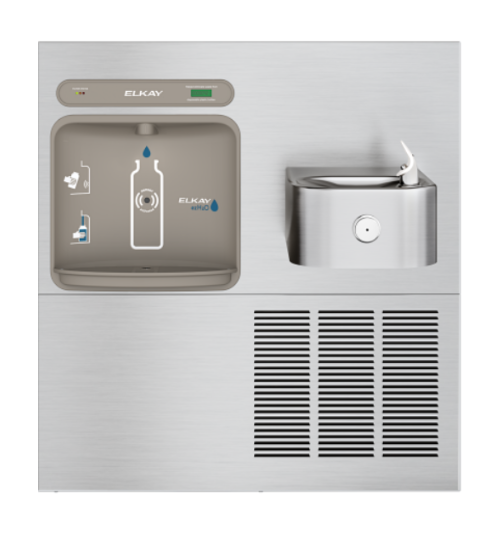

Elkay LZWS-ERFP8-RF | In-wall Retrofit Bottle Filler | Filtered, Refrigerated (For use with Elkay bi-level refrigerated Soft-sides fountains)

$ 2,112.85
Shipping calculated at checkout.
_____________________________________
_____________________________________

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:



Requires a minimum of 12" of wall depth for installation.

The Elkay LZWS-ERFP8-RF is a Retrofit bottle filler kit designed to equip existing bi-level refrigerated Soft Sides fountains into filtered bottle filling stations.

Do you have an existing refrigerated Bi-Level Soft Sides fountain? If so, the Elkay LZWS-ERFP8-RF Retrofit is a great option to transform your drinking fountain into a Bottle Filling Station.

We advise that NON-CHILLED fountains less than 10 years old are suitable for a retrofit. We advise that CHILLED fountains less than 5 years are suitable for a retrofit. Not sure how old your model is?  We can find out for you. Email support@bottlefillingstations.com with your existing fountain’s serial #, which you can find at the bottom of your fountain. Please note existing fountain(s) must have been installed per spec.

  • NOTE: Utilizes existing single fountain, right mounting frame and water chiller.
  • ADA compliant design
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.

Elkay LZWS-ERFP8-RF Spec Sheet HERE
Elkay LZWS-ERFP8-RF Installation manual HERE

FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard Safety

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

8 GPH

Elkay LZWS-ERFP8-RF INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

One (existing) fountain

DIMENSIONS

L: 38-1/2"

W: 19-1/4"

H: 40-13/16"

SHIPPING WEIGHT

55 lbs

Elkay LZWS-ERFP8-RF

PRODUCT COMPLIANCE
  • GreenSpec
  • ADA Compliant
  • NSF/ANSI 61
  • NSF 372
  • NSF 53
  • NSF 42
  • UL 399
  • Safe Drinking Water Act

SPECIAL NOTE

Utilizes existing single fountain, right mounting frame and water chiller.
  • ASSEMBLED IN USA
  • ADA COMPLIANT

Includes

  • Integral Bottle Filling Station
  • Mounting Frame
  • Panels
  • Water Sentry Filter

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZWS-ERFP8-RF refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LZWS-ERFP8-RF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWS-ERFP8-RF requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWS-ERFP8-RF MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How long does it take to install this retrofit?

A: Depending on factors such as existing mounting, electrical access, and drainage, installation typically falls between 2-5 hours.

Q: Does this retrofit come with a chiller?

A: No. However, the retrofit will utilize the compressor from your existing fountain (if applicable).

Q: Where is the filter status and bottle counter button located on this retrofit?

A: If properly installed, the programming button should be located in the pushbar of the previously existing fountain.

*ASSEMBLED IN THE UNITED STATES.
