Elkay EZWS-ERFP8-RF | In-wall Retrofit Bottle Filling Station | Filterless, Refrigerated, For use with Soft-sides fountains, Stainless Steel
Elkay EZWS-ERFP8-RF | In-wall Retrofit Bottle Filling Station | Filterless, Refrigerated, For use with Soft-sides fountains, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EZWS-ERFP8-RF | In-wall Retrofit Bottle Filling Station | Fil...
Requires a minimum of 12" of wall depth for installation.

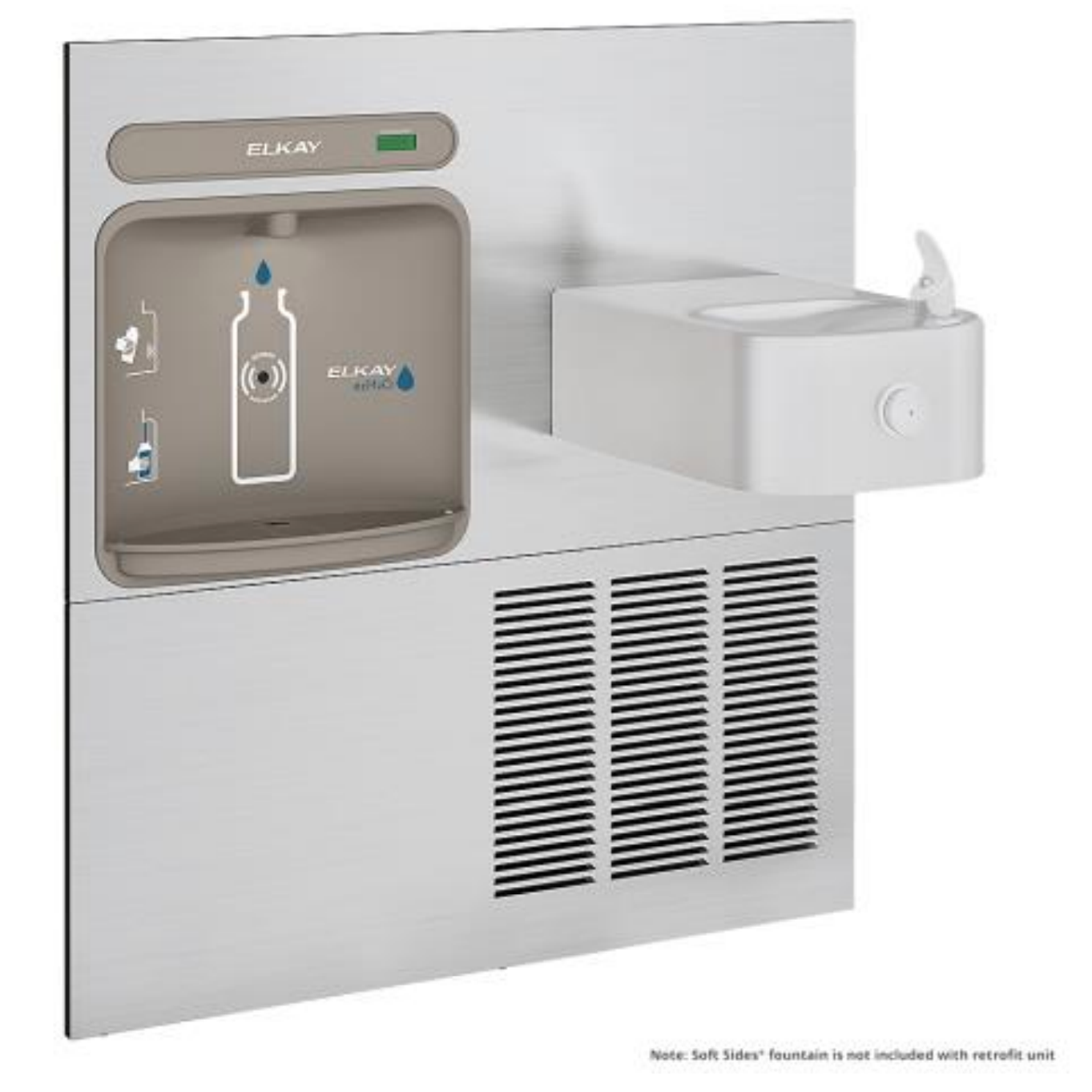

The Elkay EZWS-ERFP8-RF is a Retrofit bottle filler kit designed to equip existing bi-level refrigerated Soft Sides fountain into bottle filling stations.
Do you have an existing refrigerated Bi-Level SwirlFlo®? If so, the Elkay retrofit bottle filling station is a great option to transform your drinking fountain into a bottle filler.
We advise that NON-CHILLED fountains less than 10 years old are suitable for a retrofit. We advise that CHILLED fountains less than 5 years are suitable for a retrofit. Not sure how old your model is? We can find out for you. Email support@bottlefillingstations.com with your existing fountain’s serial #, which you can find at the bottom of your fountain. Please note existing fountain(s) must have been installed per spec.
- NOTE: Utilizes existing single fountain, right mounting frame and water chiller.
- ADA compliant design
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
Elkay EZWS-ERFP8-RF Spec Sheet HERE
Elkay EZWS-ERFP8-RF Installation manual HERE
|
FILTERED? |
No |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
FlexiGuard Safety |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF FOUNTAINS |
One (existing) fountain |
|
DIMENSIONS |
L: 38-1/2" W: 19-1/4" H: 34-5/8" |
|
SHIPPING WEIGHT |
50 lbs |
|
PRODUCT COMPLIANCE |
|
|
SPECIAL NOTE |
Utilizes existing single fountain, right mounting frame and water chiller. |
- ASSEMBLED IN USA
- ADA COMPLIANT
Includes
- Integral Bottle Filling Station
- Mounting Frame
- Panels
Warranty
Refrigeration System (IF APPLICABLE)
Elkay EZWS-ERFP8-RF refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay EZWS-ERFP8-RF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
Installation Notes
- Elkay EZWS-ERFP8-RF requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay EZWS-ERFP8-RF MANUAL.
Maintenance
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: How long does it take to install this retrofit?
A: Depending on factors such as existing mounting, electrical access, and drainage, installation typically falls between 2-5 hours.
Q: Does this retrofit come with a chiller?
A: No. However, the retrofit will utilize the compressor from your existing fountain (if applicable).
Q: Where is the filter status and bottle counter button located on this retrofit?
A: If properly installed, the programming button should be located in the pushbar of the previously existing fountain.
*ASSEMBLED IN THE UNITED STATES.
