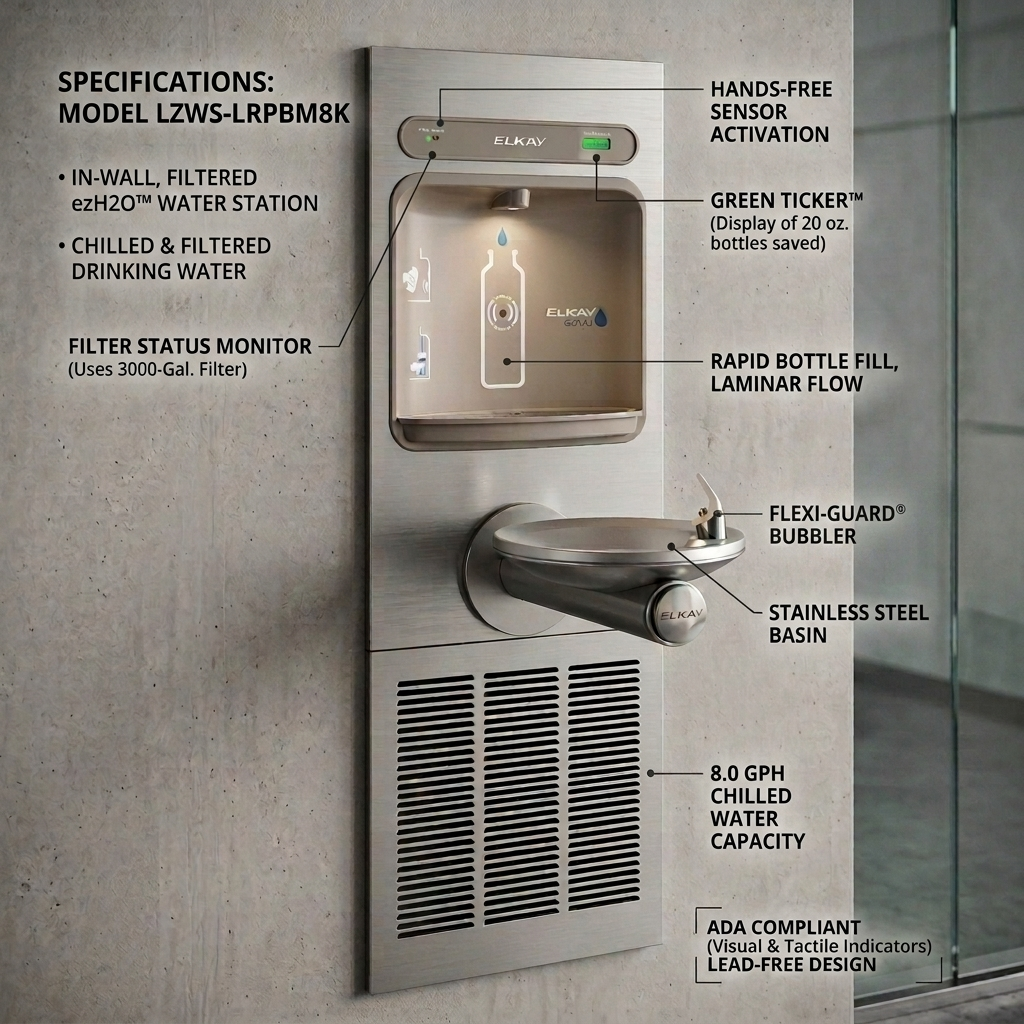

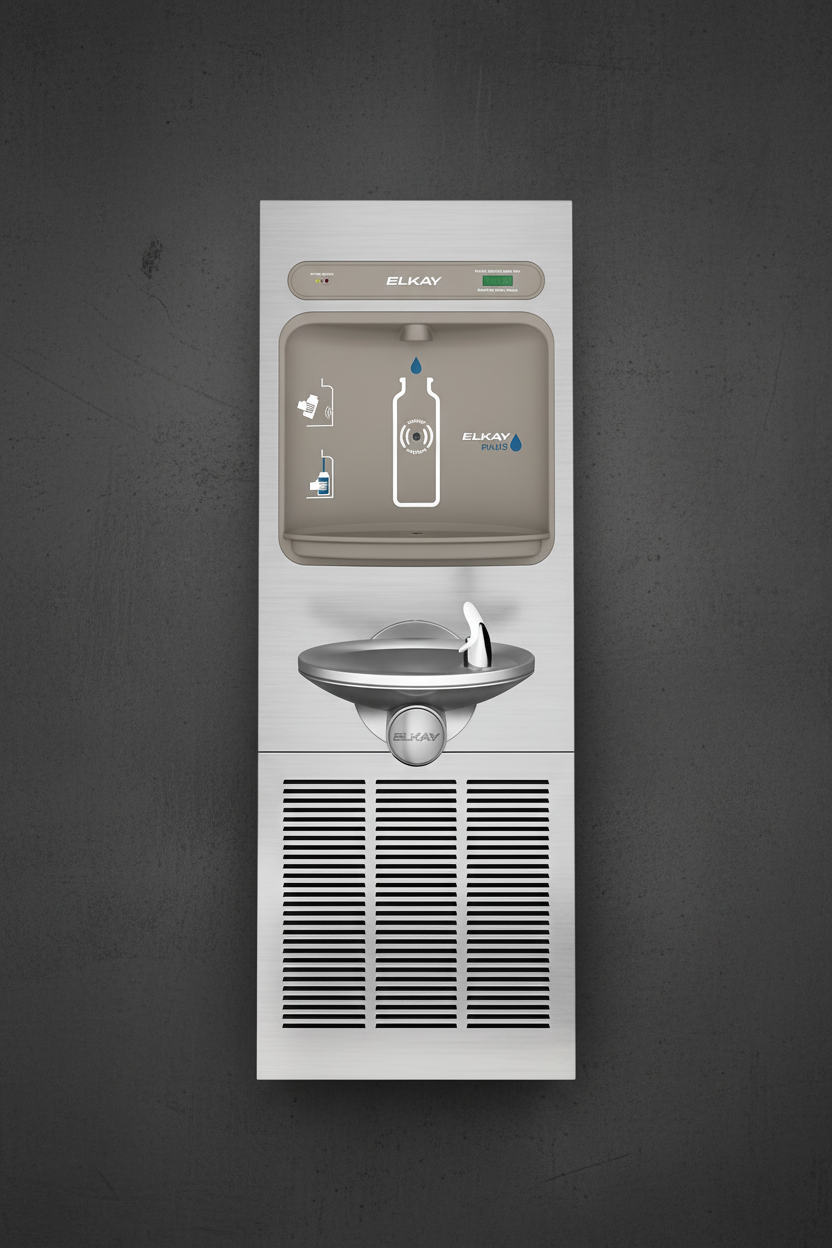

The Elkay LZWS-LRPBM8K ezH2O® Bottle Filling Station with Integral SwirlFlo® Fountain delivers filtered, refrigerated hydration with a classic SwirlFlo® design. Featuring a Flexi-Guard® safety bubbler, LED filter monitoring, and ADA compliance, this unit is ideal for schools, hospitals, and public facilities requiring reliable hydration with architectural appeal.
Key Specifications:
| Design | Integral SwirlFlo® fountain with bottle filler, Flexi-Guard® safety bubbler, mechanical front button activation |
| Finish | Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Plus Filter, 3,000-gallon capacity, NSF 42/53/372/401 certified |
| Refrigeration | 8.0 GPH chilled water at 50°F, R-134a refrigerant |
| Stations Served | 1 (Single fountain with bottle filler) |
Features & Benefits:
- Filtered Hydration: Certified filter reduces lead, chlorine, particulates, cysts, and odors.
- Visual Filter Monitor: LED indicator alerts users when filter replacement is needed.
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Flexi-Guard® Safety Bubbler: Provides added protection against injury and contamination.
- ADA Accessibility: Meets ADA requirements when installed according to standards.
What's Included:
- LZWS-LRPBM8K Bottle Filling Station with Integral SwirlFlo® Fountain
- Mounting Frame (MFWSF110)
- Remote Chiller (ECH8)
- 51300C WaterSentry® Plus Filter
- Installation hardware
- Owner’s manual and warranty guide
Comparison of Elkay Bottle Filling Stations:
| Feature | LZWS-LRPBM8K | LZWSM8K | LBWDC00 |
|---|---|---|---|
| Design | Integral SwirlFlo® fountain with Flexi-Guard® safety bubbler | In-wall bottle filling station with integrated cooler | Built-in LIV commercial water dispenser with minimalist design |
| Refrigeration | 8.0 GPH chilled water | 8.0 GPH chilled water | Non-refrigerated |
| Activation | Electronic sensor bottle filler + mechanical push button bubbler | Electronic sensor bottle filler + pushbar bubbler | Electronic sensor bottle filler only (no bubbler) |
| Best For | Hospitals, schools, and offices needing architectural SwirlFlo® design | Indoor campuses, gyms, and offices requiring in-wall installation | Modern offices, lounges, and hospitality spaces needing filtered but non-refrigerated water |
FAQ
Q: How Often Should the Filter Be Replaced on the Elkay LZWS-LRPBM8K?
A: The Elkay LZWS-LRPBM8K includes the 51300C WaterSentry® Plus Filter, which should be replaced every 3,000 gallons or 12 months, whichever comes first.
Q: Is the Elkay LZWS-LRPBM8K ADA Compliant?
A: Yes. The Elkay LZWS-LRPBM8K meets ADA & ICC A117.1 accessibility requirements when installed according to standards.
Q: What Warranty Is Included with the Elkay LZWS-LRPBM8K?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 1-year coverage on electrical and water components.
Q: What Accessories Are Compatible with the Elkay LZWS-LRPBM8K?
A: Optional accessories include the LKAPR1 Cane Apron for ADA compliance and the 51300C Replacement Filter.
Q: What Is the Chilling Capacity of the Elkay LZWS-LRPBM8K?
A: The Elkay LZWS-LRPBM8K provides 8.0 gallons per hour of 50°F drinking water, based on 80°F inlet water and 90°F ambient air temperature, per ASHRAE 18 testing.
Q: How Is the Elkay LZWS-LRPBM8K Activated?
A: The bottle filler uses an electronic sensor for hands-free operation, while the bubbler is activated by a mechanical front push button.

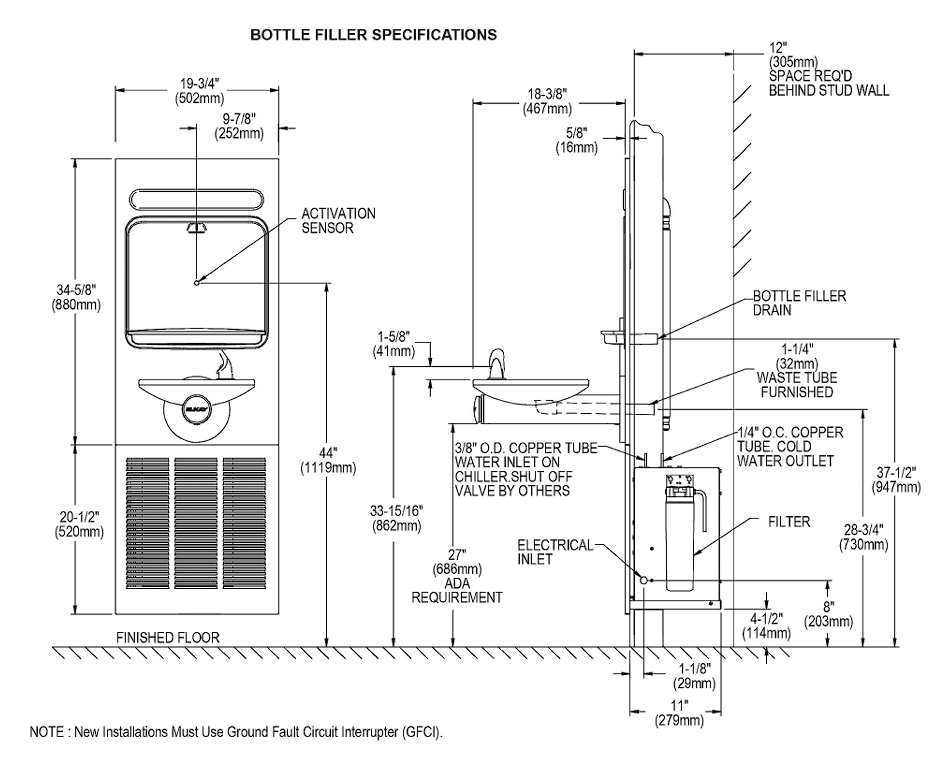

Q: What Installation Depth Is Required for the Elkay LZWS-LRPBM8K?
A: The Elkay LZWS-LRPBM8K requires a minimum of 12" of wall depth for installation.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us

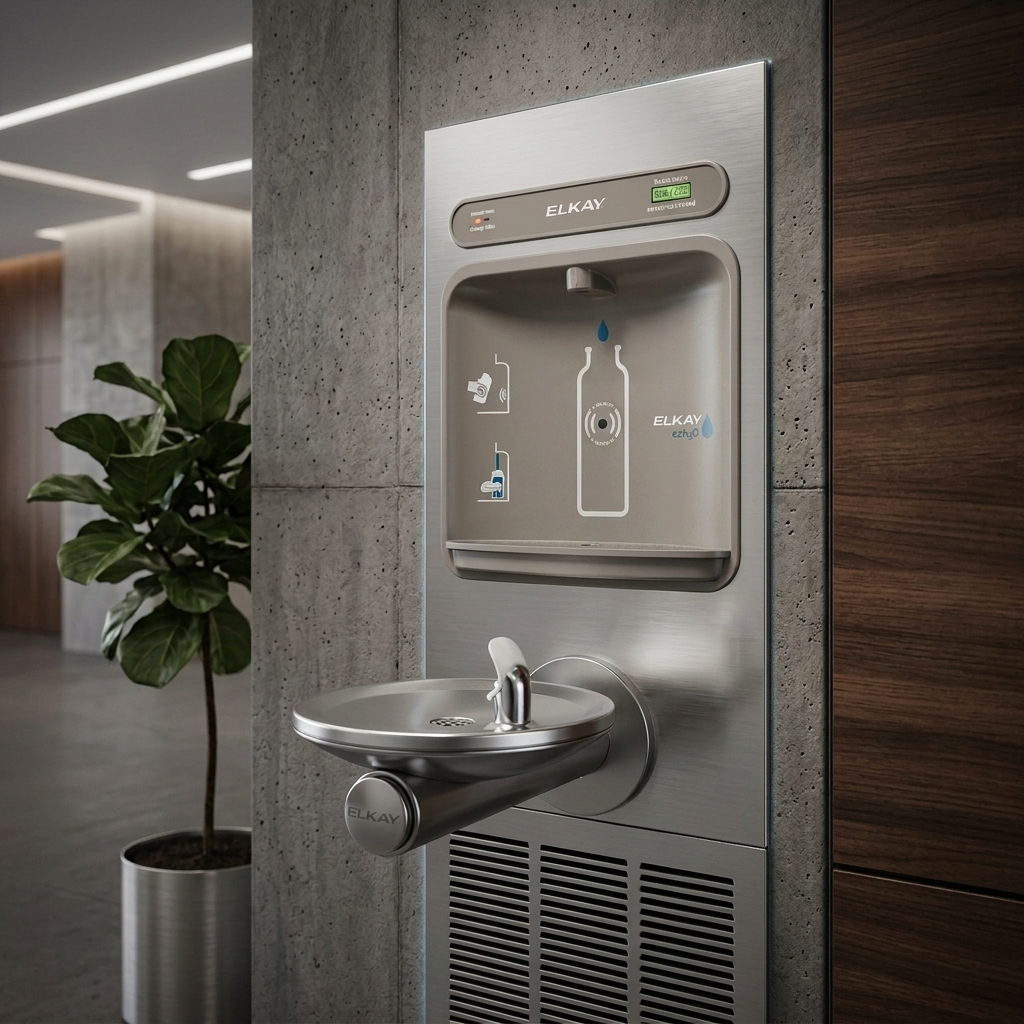

The Elkay LZWS‑LRPBM8K is a SwirlFlo® single fountain with integrated filtered ezH2O® bottle filler. Designed for indoor wall‑mount installations, it delivers chilled drinking water and touchless bottle filling in one ADA‑compliant unit.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for both fountain basin and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit must be installed indoors or in protected environments
- Always depressurize water line before servicing or replacing filter
- Provide adequate ventilation clearance around louvers
- Use only genuine Elkay filters to maintain certification and performance
- Ensure proper drainage to avoid water damage from spillage
Basic Installation Overview:
- Mount in‑wall carrier securely to support fountain and bottle filler weight
- Position fountain and bottle filler assembly, secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from basin and bottle filler to building drain system
- Wire electrical supply to grounded 115V outlet
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply and flush system for 5 minutes
- Test fountain and bottle filler for proper flow, cooling, and sensor activation
For complete specifications and installation guidelines, download the official LZWS‑LRPBM8K Spec Sheet and the Installation & Maintenance Manual.
