Elkay LZWS-EDFPBM117K | In-wall Bi-level Bottle Filling Station | Filtered, Non-Refrigerated, SwirlFlo fountain
Elkay LZWS-EDFPBM117K | In-wall Bi-level Bottle Filling Station | Filtered, Non-Refrigerated, SwirlFlo fountain is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZWS-EDFPBM117K | In-wall Bi-level Bottle Filling Station | ...

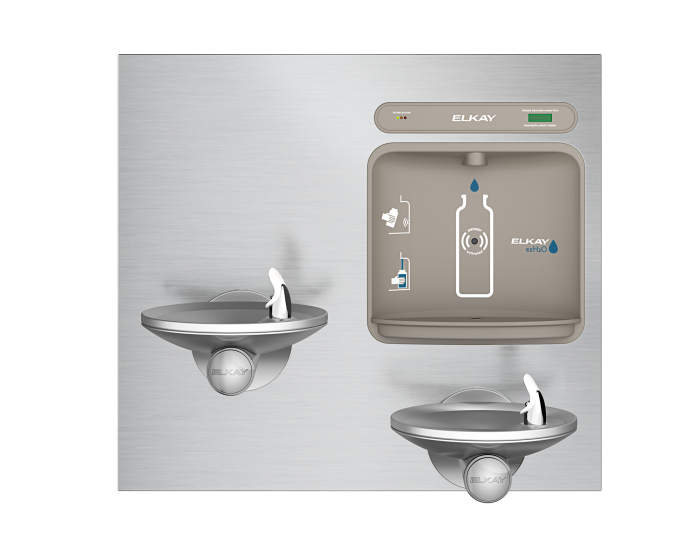

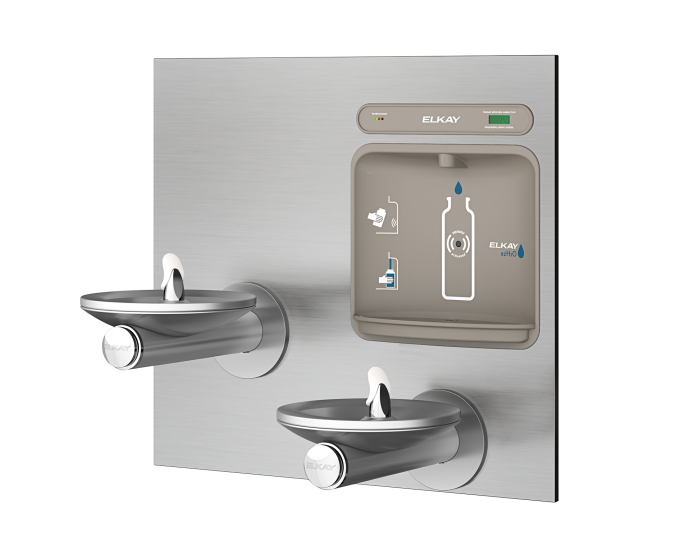

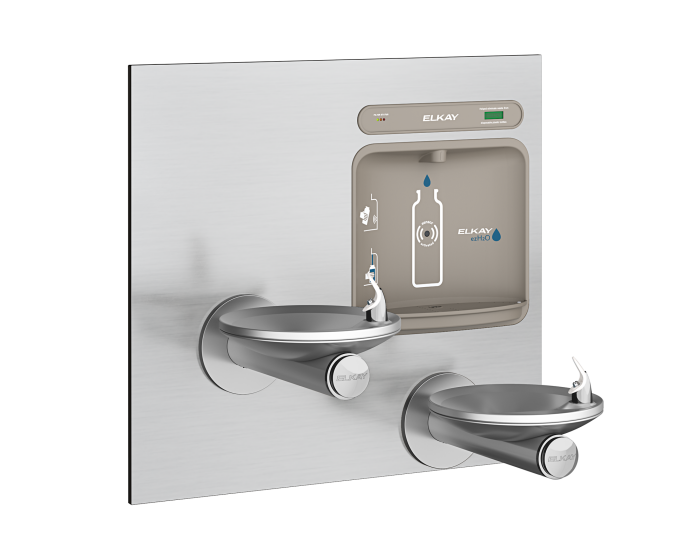

The Elkay LZWS-EDFPBM117K is a filtered, non-refrigerated ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo® Fountain, designed for high-traffic indoor environments. With NSF-certified filtration, hands-free activation, ADA compliance, and a vandal-resistant stainless steel build, it’s ideal for schools, offices, and public spaces promoting sustainable hydration and water quality.
Key Specifications:
- Chilling Capacity: Non-refrigerated
- Filtration System: NSF/ANSI 42, 53, 372, and 401 certified; 3,000-gallon capacity
- Activation: Electronic sensor for bottle filler; mechanical push button for bubbler
- Construction: Stainless steel finish with Flexi-Guard® Safety Bubbler
- Dimensions: 38-1/2" L x 19" W x 36-5/8" H
Features & Benefits:
- NSF-Certified Filtration: Reduces lead, microplastics, Class 1 particulates, cysts, and chlorine taste & odor
- Visual Filter Monitor: LED indicator alerts users when it’s time to replace the filter
- Green Ticker™: Displays the number of 20 oz. plastic water bottles saved from waste
- Laminar Flow: Provides a clean, splash-free fill for a more hygienic and user-friendly experience
- Real Drain System: Eliminates standing water, reducing the risk of bacterial growth
What's Included:
- LZWS-EDFPBM117K Bottle Filling Station & Bi-Level SwirlFlo® Fountain unit
- Flexi-Guard® Safety Bubbler
- Mounting Frame (MFWS200)
- WaterSentry® Filter (51300C)
- Installation hardware and instructions
- 12-month warranty on electrical components and water system
Options Available:
- EZWS-EDFPBM117K: Non-filtered bi-level fountain with bottle filler, offering similar features without integrated filtration.
FAQ
Q: Is the LZWS-EDFPBM117K compatible with standard plumbing?
A: Yes. It connects to standard 3/8" water lines and requires a 115V/60Hz electrical connection. A mounting frame is included, and optional access panels are available for installations without rear access.
Q: How often does the filter need to be replaced?
A: The included WaterSentry® filter (51300C) should be replaced every 3,000 gallons or approximately once per year. You can find replacements here.
Q: Does this unit work during power outages?
A: Yes. While the bottle filler requires electricity, the bubbler is mechanically activated and continues to dispense water during service disruptions.
Detailed Features & Benefits
Advanced Filtration System: The LZWS-EDFPBM117K includes a WaterSentry® filter certified to NSF/ANSI 42, 53, 372, and 401 standards. It reduces lead, microplastics, chlorine taste and odor, Class 1 particulates, and cysts. The Visual Filter Monitor provides real-time feedback, ensuring timely replacements and consistent water quality.
Architectural Integration: The bi-level SwirlFlo® design with stainless steel finish blends seamlessly into modern environments. Its in-wall mounting frame ensures a clean, flush installation, while optional access panels allow for flexible servicing in tight spaces.
Environmental Impact: The Green Ticker™ displays the number of plastic bottles saved, encouraging users to choose reusable bottles and reduce waste. This visual feedback reinforces sustainability goals and supports eco-conscious facility management.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
