Elkay LZSG8WSLK | Wall-mount Bottle Filling Station | Filtered, Hig...

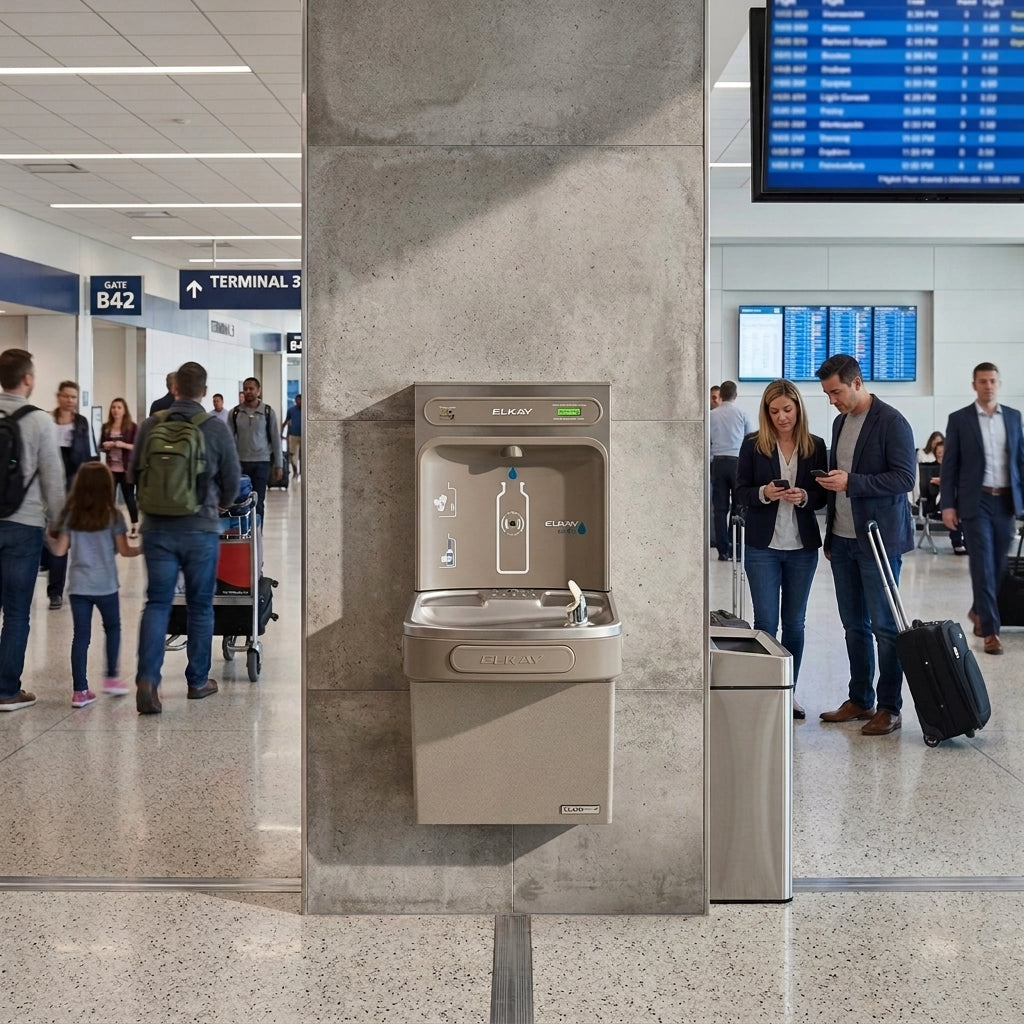

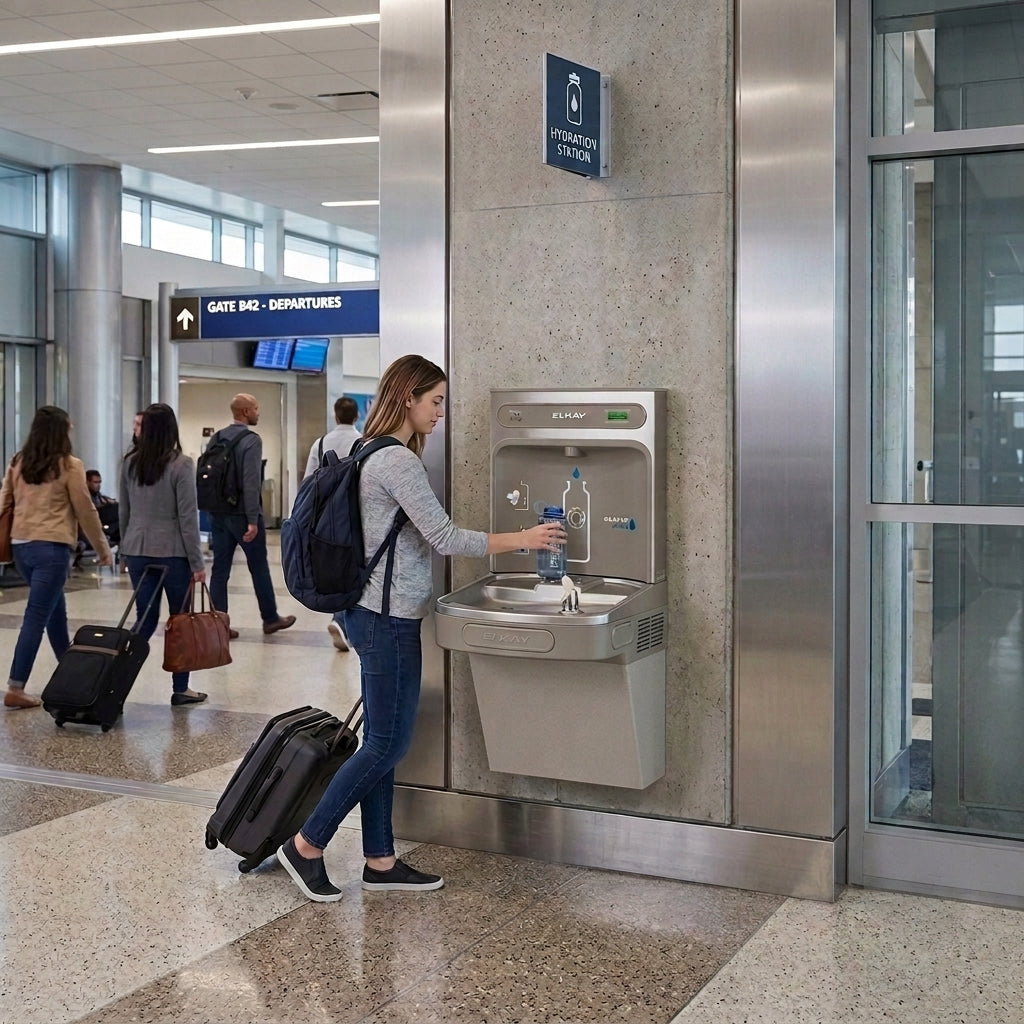

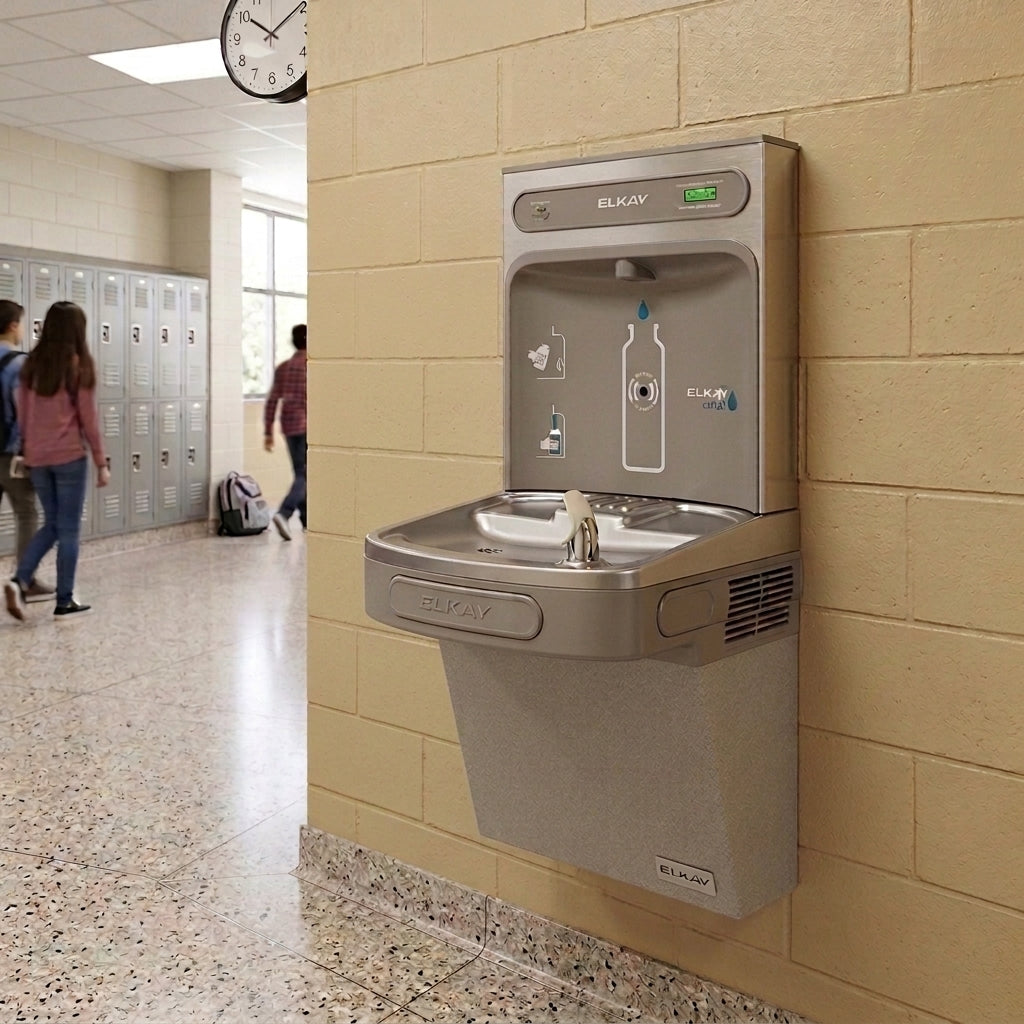

The Elkay LZSG8WSLK Single Green Bottle Filling Station is a high‑efficiency, ADA‑compliant cooler with integrated ezH2O® bottle filler. This Granite Gray model delivers 8.0 GPH of chilled water, combining hands‑free bottle filling with bubbler activation for reliable indoor hydration.
Key Specifications:
| Design | Wall mount single ADA cooler with electronic bottle filler sensor and bubbler pushbar activation |
| Finish | Granite Gray. For Stainless Steel option, see LZSG8WSSK. |
| Filtration | Includes 51300C WaterSentry® Filter, certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, particulates, cysts, and chlorine taste/odor. 3,000 gallon capacity or 1 year after installation. |
| Refrigeration | 8.0 GPH chilling capacity at 50°F based on ASHRAE 18 testing |
| Stations Served | 1 (single cooler + bottle filler) |
Features & Benefits:
- Hands‑Free Bottle Filling: Sensor‑activated bottle filler reduces touchpoints and improves hygiene.
- Flexi‑Guard® StreamSaver™ Bubbler: Provides safe, efficient drinking with reduced splash.
- Green Ticker™: Displays the number of plastic bottles saved from waste.
- Antimicrobial Protection: Key plastic components include silver ion antimicrobial agents.
- ADA Compliant: Meets ADA and ICC A117.1 accessibility standards when installed correctly.
What's Included:
- LZSG8WSLK ADA cooler with single design
- ezH2O® bottle filling station
- Flexi‑Guard® StreamSaver™ bubbler
- 51300C WaterSentry® Filter
- Mounting hardware
Comparison of ADA Bottle Filling Coolers:
| Feature | LZSG8WSLK | LZWS‑LRPBM28K | LZSTLDWSSPRO |
|---|---|---|---|
| Finish | Granite Gray (Stainless Steel option available) | Stainless Steel | Stainless Steel |
| Filtration | Includes 51300C 3,000 gallon capacity | Filtered, 51300C 3,000 gallon capacity | FL10 Pro Filtration, 10,000 gallon capacity |
| Best For | Indoor environments such as schools, offices, and healthcare facilities needing single‑station hydration with bottle filling | High‑traffic public spaces like airports, universities, and gyms requiring filtered hydration | Large commercial buildings and institutions needing advanced filtration and dual‑station service |
| Features | Hands‑free bottle filler, Green Ticker™, antimicrobial components | Filtered bottle filler, dual activation, ADA compliant | Pro Filtration system, refrigerated cooling, ADA compliant |
How to Install the LZSG8WSLK:
- Prepare the mounting location by ensuring wall support and ADA clearance requirements.
- Attach the hanger brackets securely to the wall using all designated bolt holes.
- Hang the cooler unit onto the brackets, making sure it locks into place properly.
- Connect the water supply line using a dielectric coupling and attach the drain trap with the provided gasket and slip nut.
- Connect electrical supply to a dedicated GFCI outlet, then flush the system and check for leaks.
How to Maintain the LZSG8WSLK:
- Inspect the bubbler stream height regularly and adjust using the front panel screw if flow is too high or low.
- Clean the Granite Gray surfaces with mild soap and water; avoid abrasive cleaners to protect the finish.
- Check the bottle filler sensor periodically to ensure hands‑free activation is functioning properly.
- Examine the drain trap and tubing for clogs or leaks, tightening connections as needed.
- Test electrical and cooling performance periodically to ensure the compressor and fan are operating efficiently.
FAQ
Q: What Applications Is the LZSG8WSLK Designed For?
A: The LZSG8WSLK is ideal for schools, offices, healthcare facilities, and public spaces requiring ADA‑compliant hydration with bottle filling.
Q: What Water Pressure Is Required for the LZSG8WSLK?
A: The LZSG8WSLK operates on 20–105 psi supply line pressure for proper flow.
Q: Is the LZSG8WSLK ADA Compliant?
A: Yes. The LZSG8WSLK meets ADA and ICC A117.1 accessibility standards when installed according to guidelines.
Q: What Warranty Coverage Is Provided With the LZSG8WSLK?
A: The refrigeration system carries a 5‑year limited warranty. Electrical and water system components are covered for 12 months.
Q: Can Accessories Be Added to the LZSG8WSLK?
A: Yes. Compatible accessories include the LKAPREZL cane apron and the MLP100 in‑wall carrier for secure installation.
Q: How Does the LZSG8WSLK Differ From the LZSG8WSSK?
A: The LZSG8WSLK is finished in Granite Gray and includes the 51300C filter, while the LZSG8WSSK offers a Stainless Steel finish option.
Q: What Are the Dimensions of the LZSG8WSLK?
A: The LZSG8WSLK measures 18‑3/8" L × 19" W × 39‑1/16" H and weighs approximately 85 lbs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LZSG8WSLK Single Green Bottle Filling Station provides filtered water with an eco‑friendly design. It combines a cooler and bottle filler in one unit, offering convenient hydration while reducing plastic waste.
Key Installation Requirements:
- Wall‑mounted installation with hanger bracket support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz with GFCI outlet required
- Water supply line: 3/8" O.D. copper tube with shut‑off valve (not included)
- Drain connection: 1‑1/4" O.D. trap (not included)
- Maintain 6" clearance from cabinet louvers to wall for ventilation
- Allow proper clearance for filter cartridge changes
Important Notes Before Installing:
- Do not connect to hot water line.
- Professional installation by a licensed plumber/electrician is recommended.
- Stream height is factory set for 35 PSI; adjust if supply pressure varies.
- Certified to meet ADA requirements when installed at proper height.
- Always refer to the official Elkay LZSG8WSLK Spec Sheet for detailed specifications and compliance information.
Basic Installation Overview:
- Remove hanger bracket from cooler and mount securely to wall using all six bolt holes.
- Hang cooler on bracket, ensuring proper engagement with slots on the back.
- Connect water inlet line to shut‑off valve and 3/8" tubing.
- Install 1‑1/4" trap to drain line and tighten securely.
- Plug unit into grounded GFCI electrical outlet.
- Adjust stream height screw if needed to match supply pressure.
- Install filter cartridge, flush system, and check for leaks.
- Reinstall front panel and confirm proper operation.
For complete step‑by‑step instructions, download the official Elkay LZSG8WSLK Installation & Maintenance Guide
