Elkay LZSDWSLK | Wall-mount Bottle Filling Station | Filtered, Non-refrigerated, EZ-style fountain, Granite Gray

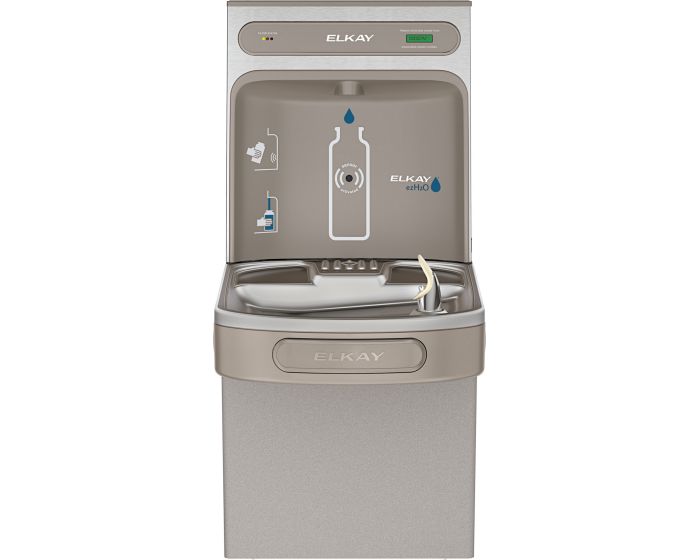

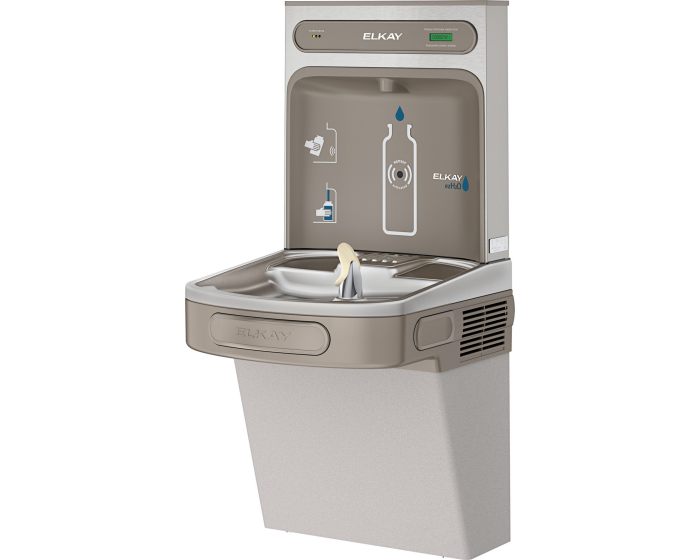

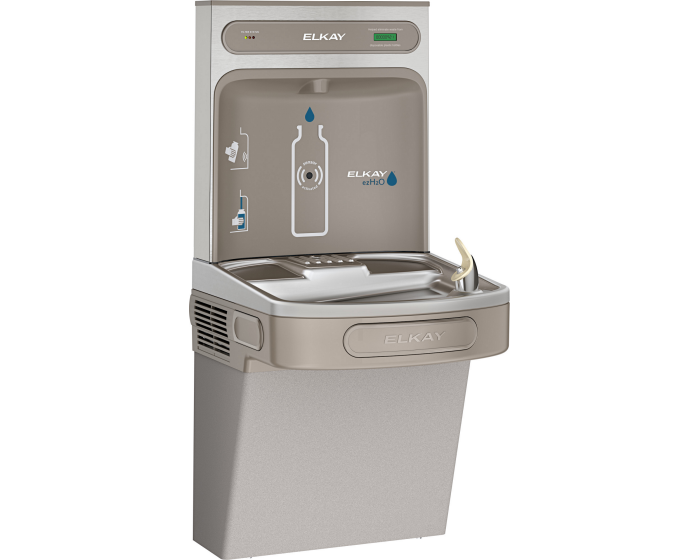

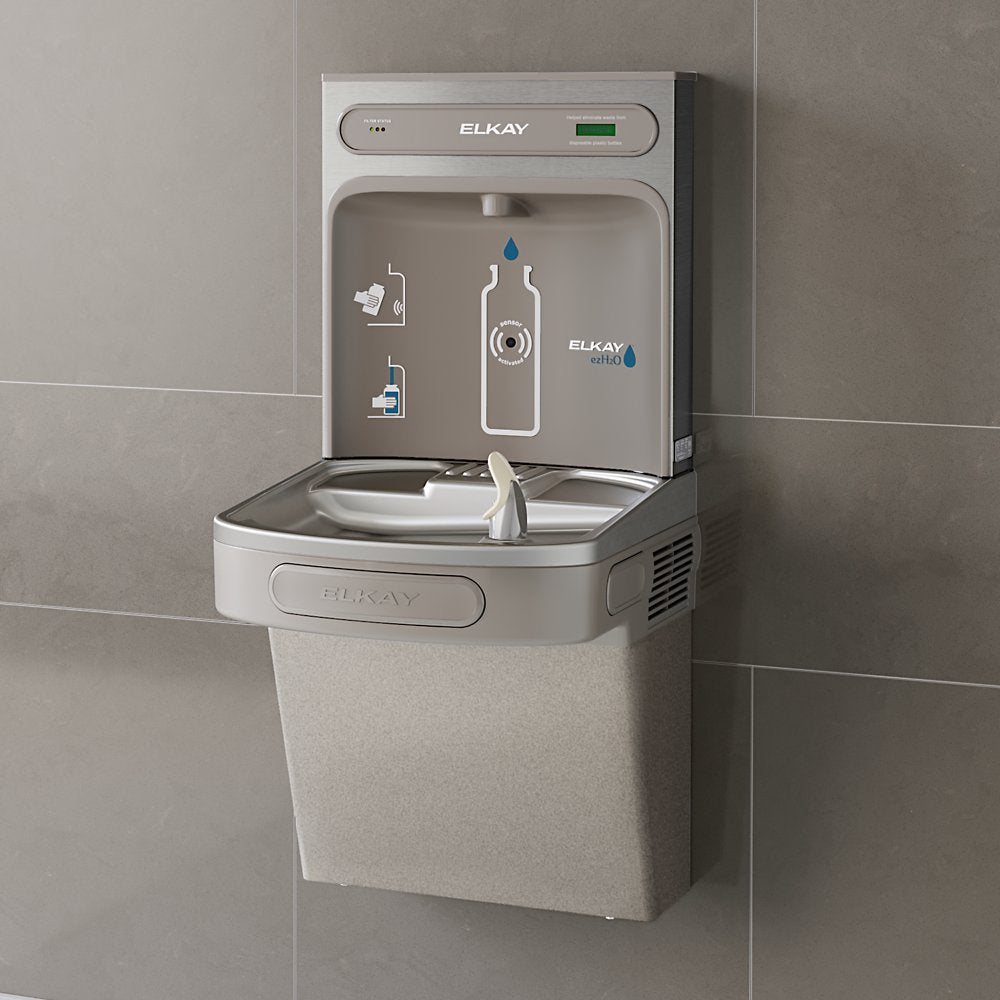

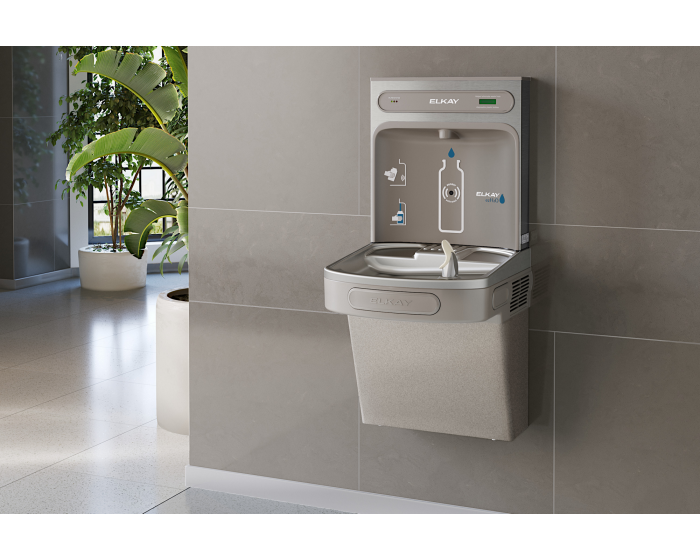

The Elkay LZSDWSLK is an ezH2O® bottle filling station with a single ADA cooler, filtered and non‑refrigerated, finished in Light Gray Granite. This unit combines touchless convenience, ADA accessibility, and sustainable hydration for schools, offices, and public facilities.

Key Specifications:

Features & Benefits:

• Hands‑Free Operation: Sensor‑activated bottle filler and electronic pushbar bubbler
• Filtered Hydration: Built‑in WaterSentry® filter with LED status indicator
• ADA Accessibility: Single cooler design ensures inclusive access
• Sustainability: Green Ticker™ displays bottles saved from waste
• Laminar Flow & Real Drain: Provides splash‑free filling and eliminates standing water

What's Included:

• LZSDWSLK Bottle Filling Station & ADA Cooler
• WaterSentry® Plus 51300C Filter
• Flexi‑Guard® Safety Bubbler
• Installation hardware
• Owner’s manual and warranty guide

Comparison With Other Single‑Level Bottle Filling Station Models:

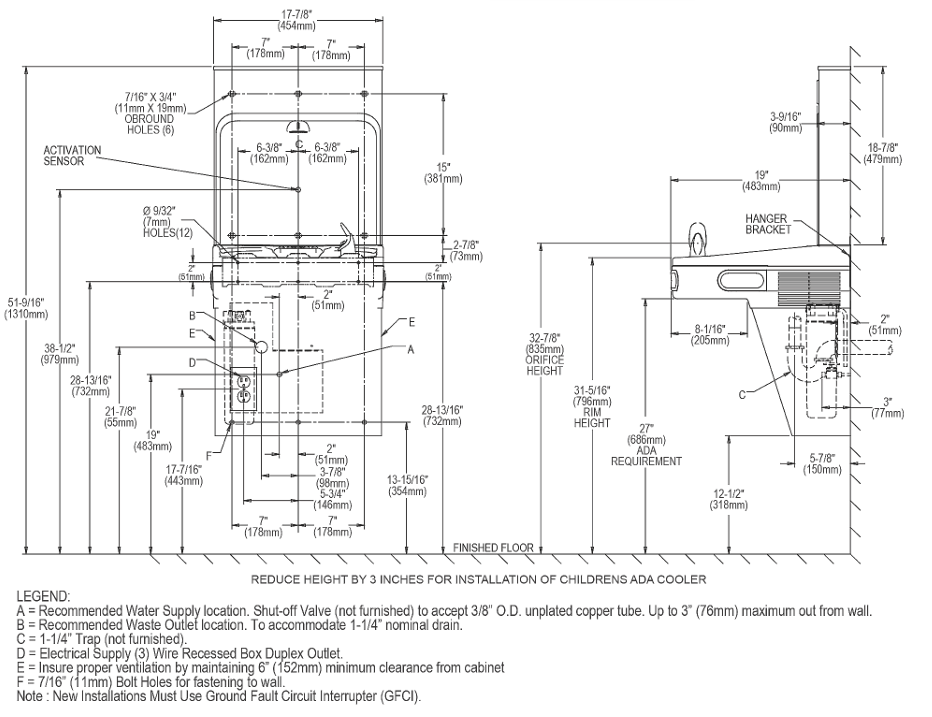

How to Install the LZSDWSLK:

1. Prepare the Wall: Ensure proper support for the hanger bracket and mark mounting holes according to the installation guide.
2. Mount the Hanger Bracket: Secure the bracket to the wall using all six 7/16" bolt holes for stability.
3. Hang the Cooler: Engage the cooler slots onto the hanger bracket and confirm proper alignment.
4. Connect Water and Drain: Attach the supply line to the inlet and install the trap on the waste line, checking for leaks.
5. Install Bottle Filler and Power: Mount the bottle filler, connect the filter, and plug in the unit to activate sensor and LED functions.

How to Maintain the LZSDWSLK:

1. Replace the Filter: Change the WaterSentry® filter every 3,000 gallons or 12 months, resetting the LED monitor after replacement.
2. Clean the Surfaces: Use mild soap and water or glass cleaner with a soft cloth; avoid abrasive or petroleum‑based cleaners.
3. Inspect the Bubbler: Check the Flexi‑Guard® bubbler for wear, and replace if damaged to maintain hygiene and safety.
4. Check Drain and Connections: Ensure the real drain system is clear and inspect water line fittings for leaks.
5. Monitor Performance: Verify sensor activation, Green Ticker™ display, and LED filter status regularly to ensure proper operation.

FAQ

Q: Does the LZSDWSLK Include Filtration?
A: Yes. It includes the 51300C WaterSentry® Filter, rated for 3,000 gallons or 1 year.

Q: How Do I Replace the Filter?
A: Simply remove the used 51300C filter and install a new one by twisting it into the filter head until secure. The LED filter monitor will reset automatically once the new filter is installed.

Q: What Warranty Is Included?
A: Elkay provides a 12‑month warranty on electrical components and the water system.

Q: Can This Unit Be Installed Outdoors?
A: No. The LZSDWSLK is rated for indoor use only.

Q: What Accessories Are Available?
A: Optional accessories include the LKAPREZL Cane Apron for ADA compliance, the SSBFUP Universal Back Panel Kit, the 98551C Filter Mounting Cover, and the MLP100 In‑Wall Carrier for secure installation support.

Q: Can I Replace the Bubbler With a Vandal‑Resistant Option?
A: Yes. The bubbler can be upgraded using the 97446C Vandal‑Resistant Bubbler Kit for added durability in high‑traffic environments.

Q: Is the LZSDWSLK Part of a Larger Collection?
A: Yes. It belongs to the ezH2O® Original Collection, which includes multiple models and finishes designed for sustainable hydration solutions.

NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
