Elkay LZS8WSSP-PF | Enhanced ezH2O PFOA/PFOS Reduction Bottle Filling Station, Filtered, Refrigerated
Elkay LZS8WSSP-PF | Enhanced ezH2O PFOA/PFOS Reduction Bottle Filling Station, Filtered, Refrigerated is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.
Estimated Shipping Times:
Important Note on Delivery Times
All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.
For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.
Same Day Shipping
All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.
Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.
Outdoor Tubular Drinking Fountains
Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.
Ice Machines
In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.
Other
Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.
Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.
Special Case Shipping Rates
Please note that shipping rates are subject to change at any time. We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order. Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!
Key Terms & Conditions
Exceptions may apply to islands and other remote territories.
All orders shipped by the carrier of our choice.
Elkay LZS8WSSP-PF | Enhanced ezH2O PFOA/PFOS Reduction Bottle Filli...

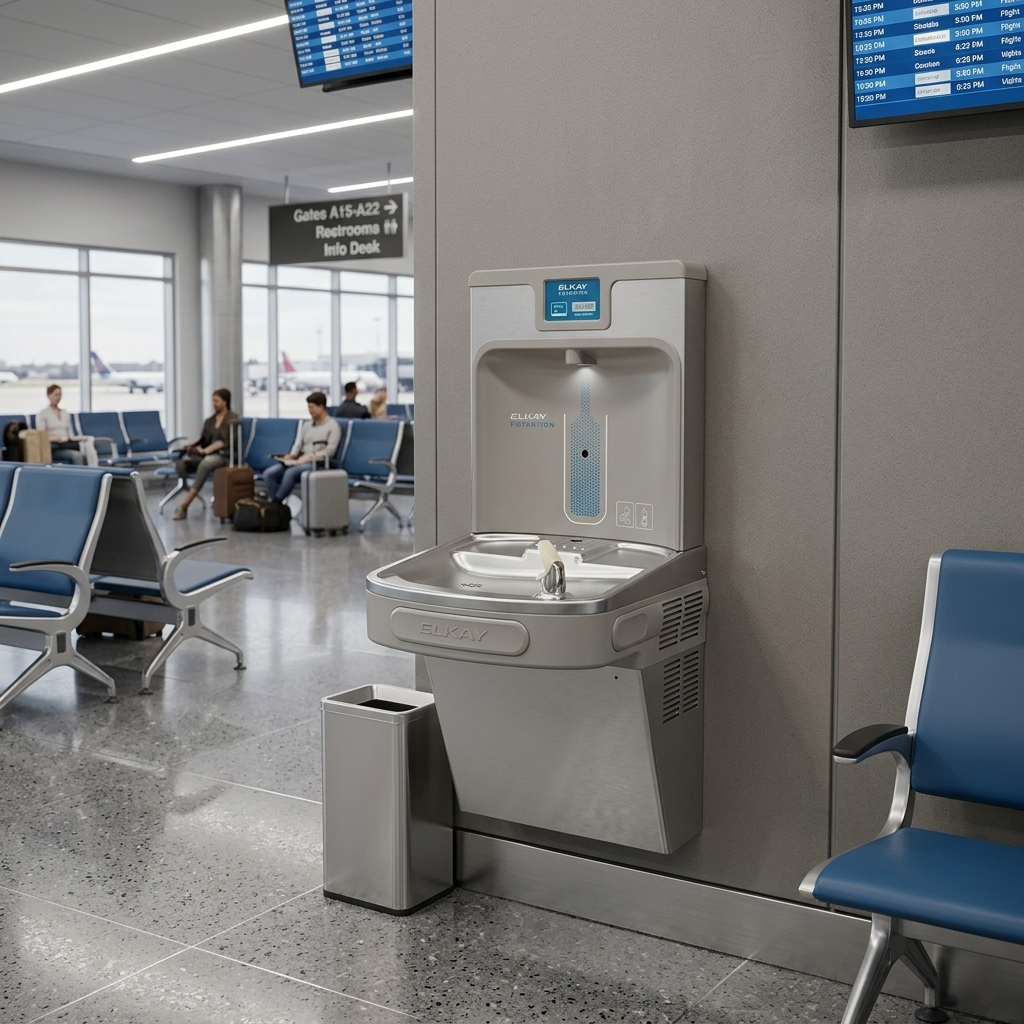

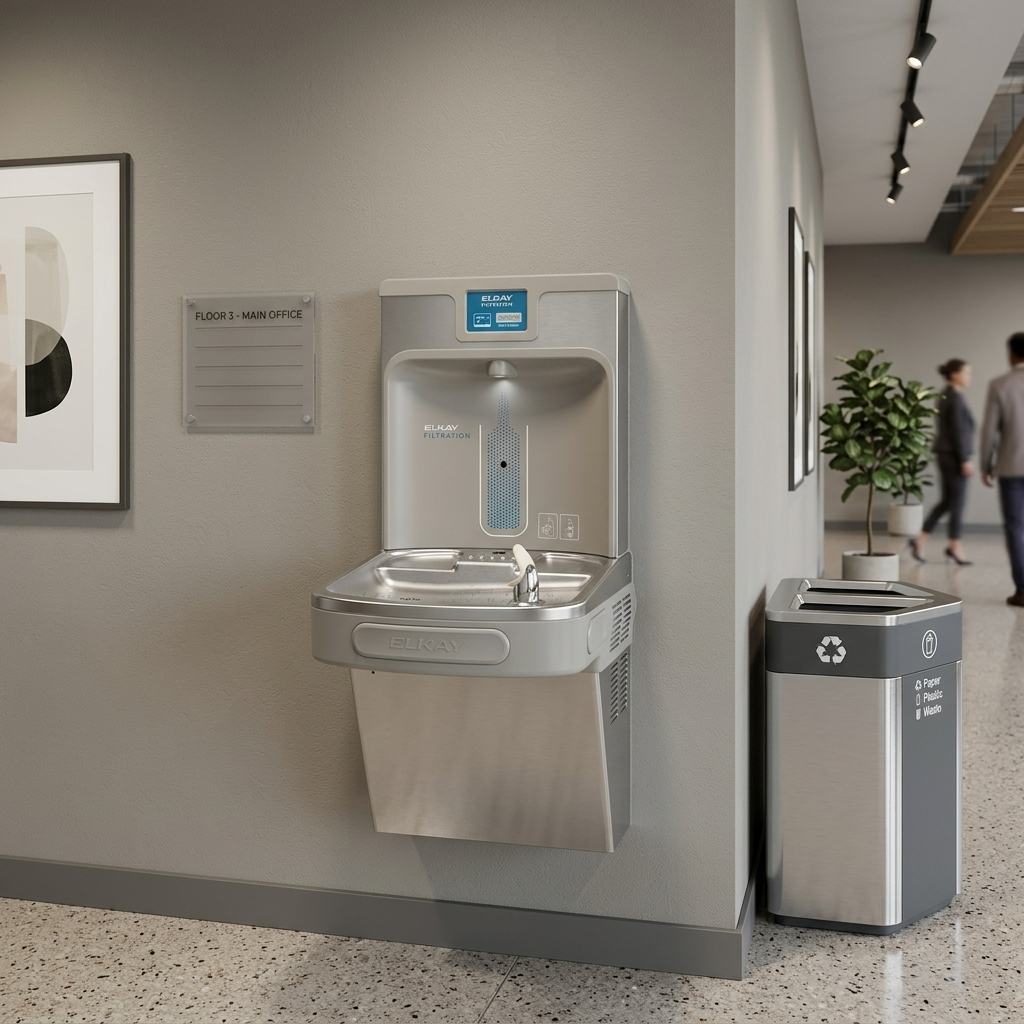

The Elkay LZS8WSSP‑PF is an enhanced ezH2O® bottle filling station with a single ADA cooler, designed for advanced filtration and refrigerated hydration. This stainless steel unit features PFOA/PFOS reduction, quick filter change access, and ADA compliance for reliable use in schools, healthcare facilities, and public spaces.
Key Specifications:
| Design | Single ADA cooler with integral bottle filling station |
| Finish | Stainless Steel. Also available in Arctic White and Midnight Black |

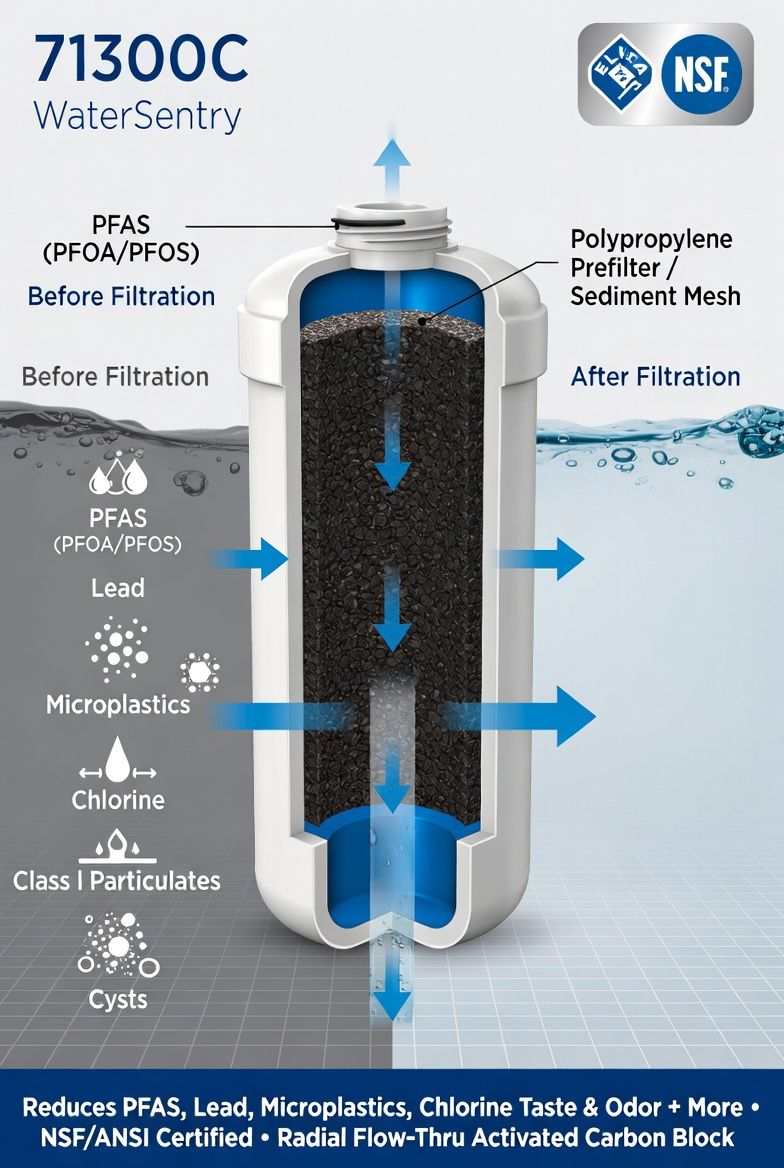

| Filtration | Includes 71300c WaterSentry® Plus PFAS Reduction Filter, NSF/ANSI 42, 53, 372, and 401 certified. 2,250‑gallon capacity |
| Refrigeration | 8.0 GPH chilled water capacity, 115V/60Hz, 370W |
| Stations Served | 1 (single cooler + bottle filler) |
Features & Benefits:
- PFAS Reduction: Certified to reduce PFOA/PFOS, lead, microplastics, and chlorine taste/odor
- Quick Filter Change: Drop‑down wrapper design allows replacement in under a minute
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Energy Savings Mode: Reduces power consumption during non‑use periods
- Hands‑Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation
What's Included:
- LZS8WSSP‑PF Bottle Filling Station & ADA Cooler
- WaterSentry® Plus PFAS Reduction Filter
- Installation hardware
- Owner’s manual and warranty guide
Comparison With Other Bottle Filling Station Models:
| LZS8WSSP‑PF | LZS8WSSP | LVRCTL8WSPRO‑FLP4 | |
|---|---|---|---|
| Finish | Stainless Steel | Stainless Steel | Stainless Steel, vandal‑resistant design |
| Filtration | 71300c WaterSentry® Plus PFAS Reduction Filter, 2,250 gal | 51600c WaterSentry® Plus High‑Capacity Lead Reduction Filter, 6,000 gal | FLP4 Pro Filtration™ Total PFAS + Lead Filter, 4,000 gal |
| Features | Drop‑down wrapper for quick filter change; PFAS reduction | High‑capacity filter for extended life; LED lighting | Cloud‑connected monitoring; automatic filter flush/reset; LCD display |
FAQ
Q: How Often Should the Filter Be Replaced?
A: Replace every 2,250 gallons or 12 months. Compatible replacements include 51600C, 51300C, and 71300C.
Q: What Does a PFAS (PFOA/PFOS) Reduction Filter Mean?
A: PFAS (per‑ and polyfluoroalkyl substances) are man‑made chemicals often found in water supplies, including PFOA and PFOS. A PFAS reduction filter is certified to remove these contaminants along with lead, microplastics, cysts, and chlorine taste and odor, helping ensure safer and cleaner drinking water.
Q: Is the LZS8WSSP‑PF ADA Compliant?
A: Yes. It meets ADA & ICC A117.1 accessibility requirements when installed properly.
Q: What Warranty Is Included?
A: Elkay provides a 5‑year limited warranty on the refrigeration system and 1‑year coverage on electrical and water components.
Q: What Accessories Are Available?
A: Options include the LKAPREZL Cane Apron and the MLP100 In‑Wall Carrier for secure mounting.
Q: What Makes This Model Part of the Enhanced Collection?
A: It features PFAS reduction, quick filter change wrapper, LED lighting, and energy‑saving technology designed for high‑traffic environments.
Q: Do You Offer This Model in Other Finishes?
A: Yes. Stainless Steel, Arctic White, and Midnight Black finishes are available.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

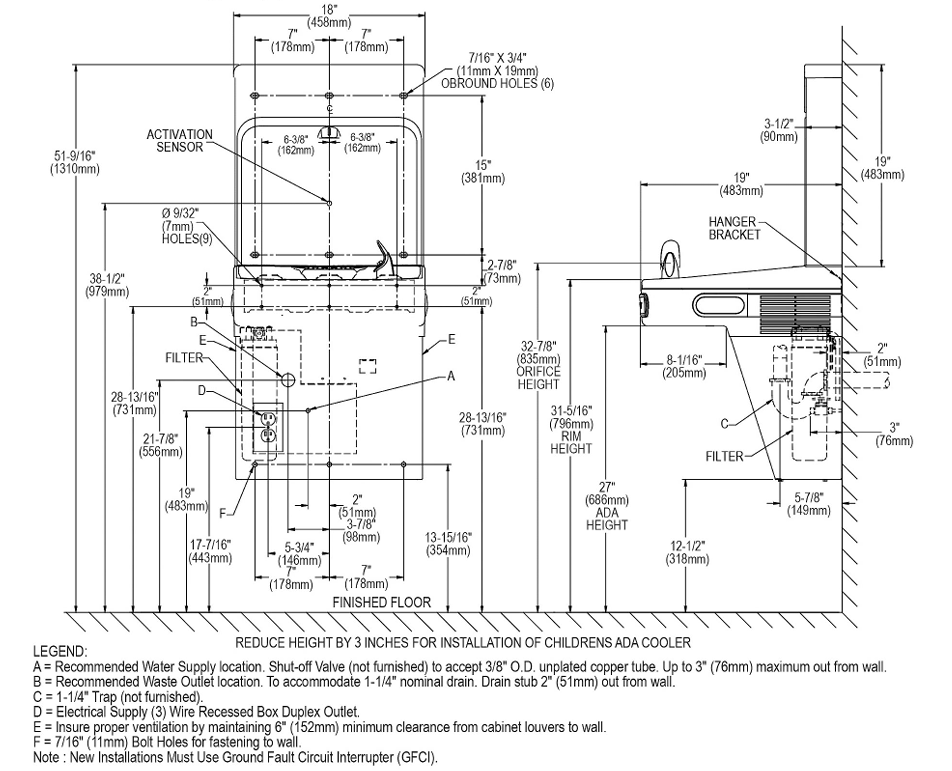

- Ensure the wall is structurally sound to support the Elkay Enhanced Single Level ENLZS8WS; install a fixture support carrier if required.
- Maintain proper clearances: 6" minimum from cabinet louvers to wall for ventilation; follow ADA height requirements (reduce by 3" for children’s cooler).
- Remove hanger bracket from back of cooler; mount securely to wall using all six 7/16" obround holes. Maintain 5‑7/8" dimension from wall to trap centerline.
- Hang cooler on bracket, ensuring slots engage properly; secure cooler frame to wall with two screws and washers (not supplied).
- Remove wrapper by loosening security screws (T25); swing wrapper down and out of pivoting bracket for service access. Re‑attach wrapper by aligning bushings and tightening screws angled correctly.
- Connect supply water to filter inlet tube; install trap to waste outlet (1‑1/4" O.D. drain stub, 2" out from wall).
- Install bottle filler: remove top cover with 5/32" Allen wrench, mount wall plate above basin, mark and drill six mounting holes, then secure plate with appropriate fasteners.
- Install gasket and support bracket under bottle filler tower; route 3/8" tubing through gasket to bulkhead fitting in basin, and connect wiring harness to cooler.
- Place bottle filler on hooks of mounting plate; ensure gasket boss fits basin hole; reinstall top cover with screws.
- Install WaterSentry® filter cartridge (3000, 6000, or PFAS filter depending on model) by inserting into filter head and rotating clockwise; label should face forward.
- Turn on water supply and inspect for leaks; correct before restoring power.
- Plug cooler and bottle filler into grounded outlet; verify green LED filter status and LCD bottle counter display.
- Test dispensing by placing bottle or hand in front of sensor; purge air until flow is steady. Flush at least two gallons to clear carbon particles from filter.
- For detailed steps, refer to the Elkay Enhanced ENLZS8WS installation manual or contact a licensed plumber/electrician.
- Inspect water and drain connections regularly; reseal or tighten fittings as needed.
- Replace WaterSentry® filter cartridge when LED indicator shows red or after rated capacity; reset filter monitor via program button.
- Clean stainless steel surfaces with mild detergent and soft cloth; avoid abrasive cleaners or chloride‑based chemicals.
- Clean plastic components with mild detergent and soft cloth; antimicrobial properties will not be harmed.
- Check bubbler stream height; adjust regulator screw to maintain approximately 1‑1/2" above guard.
- Factory temperature control is set at 50°F ± 5°F; adjust cold control if needed for altitude or local conditions.
- Disconnect power and water supply before servicing internal components to avoid hazards.
- For service or repairs, consult the manual or a certified Elkay service representative.
