Elkay LVRCTL8WSPRO-FLP4 | Pro Filtration Bi-Level Bottle Filler &am...

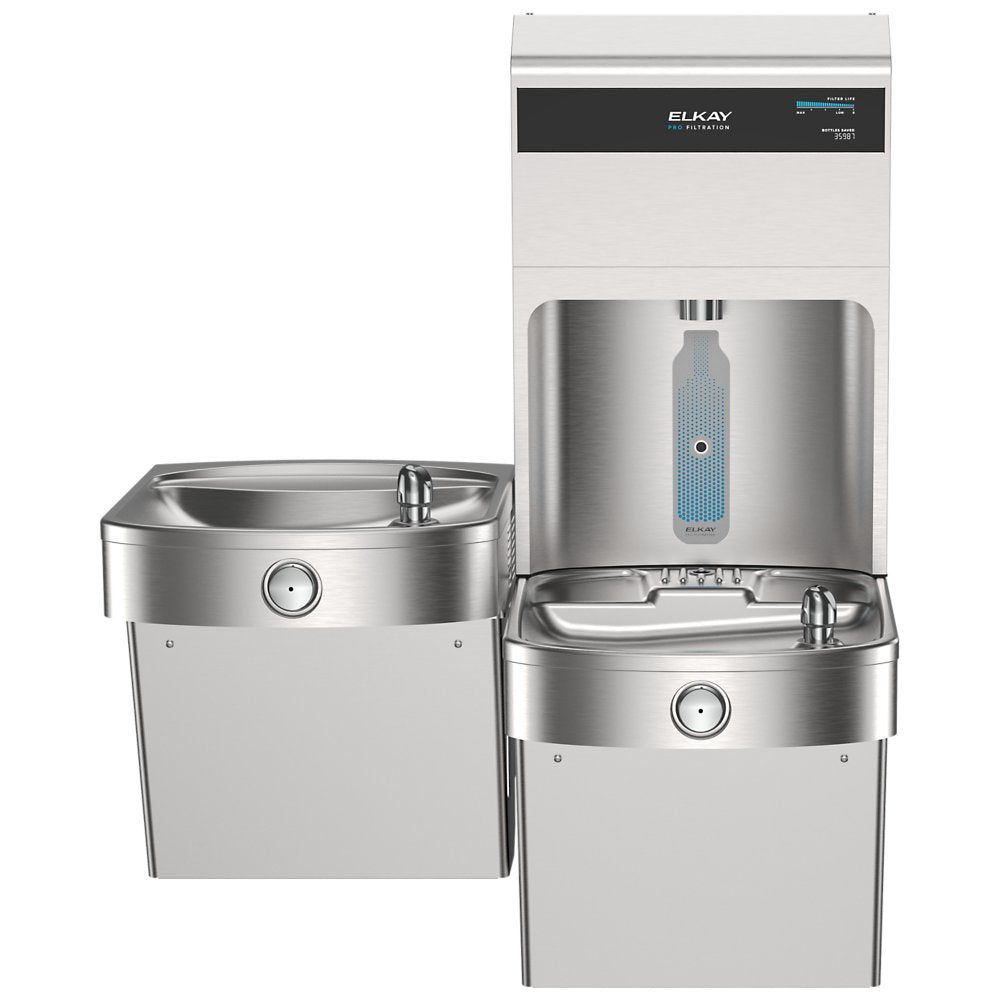

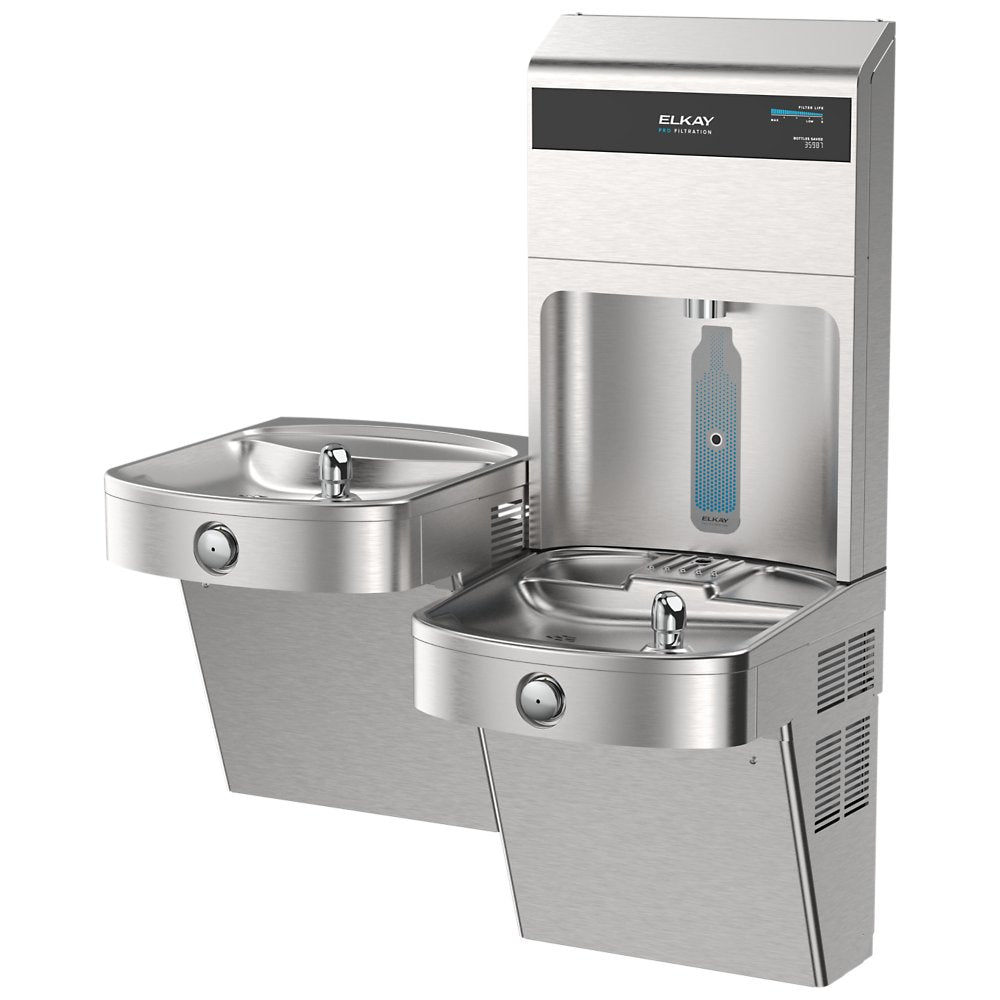

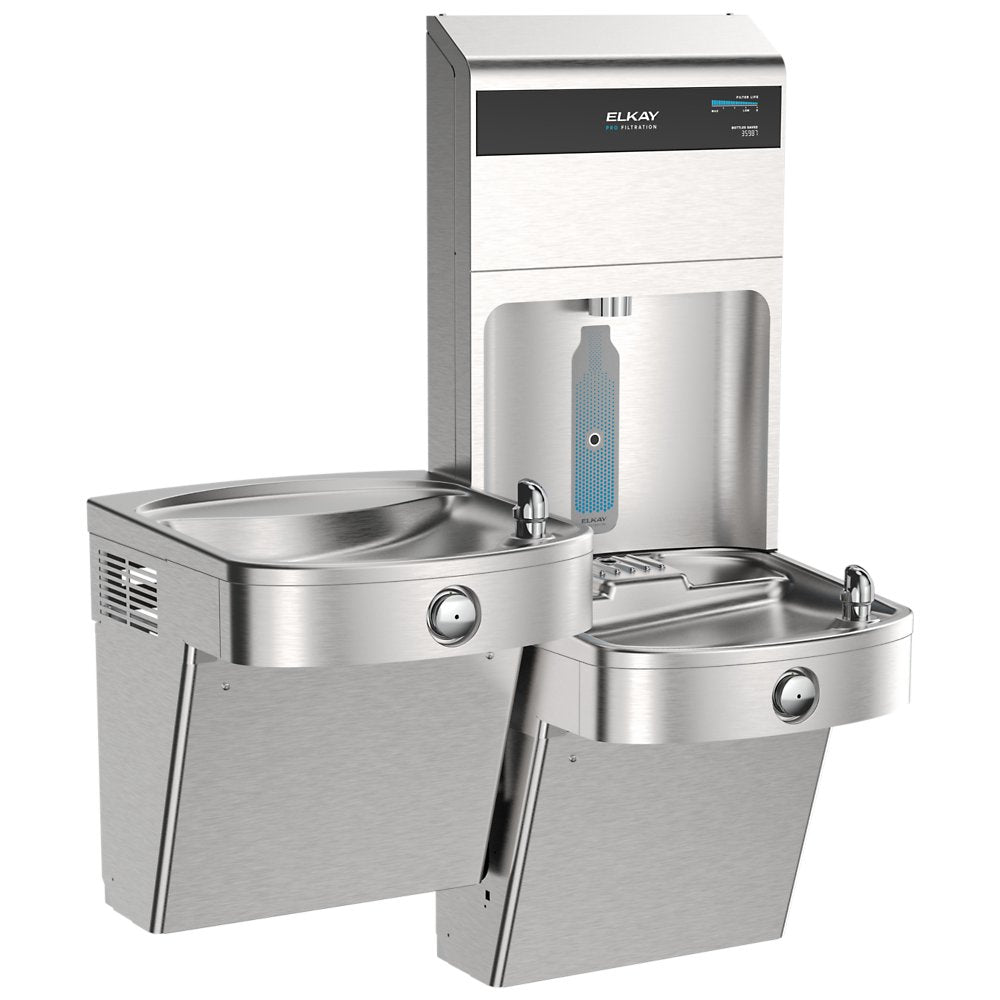

The Elkay LVRCTL8WSPRO-FLP4 is a vandal-resistant, cloud-connected bottle filling station and bi-level water cooler with Pro Filtration technology.
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine Taste & Odor
- Filter Capacity: 4,000 Gal.
- Refrigeration: 8.0 GPH Water Chiller Included
- Power: 115V/60Hz
Other Related Variants:
- LVRCTL8WSPRO: Standard model with Ultra-Capacity 10,000-gallon filter
- LVRCTL8WSPRO-2FL10: Dual 10,000-gallon filters for extended capacity
- LVRCTL8WSPRO-2FLP4: Dual PFAS + Lead filters for enhanced PFAS reduction
- LVRCTL8WSPRO-FSR5: Two-stage filtration with sediment prefilter
-
LVRCTL8WSPRO-UV: UV protection with filtration for additional disinfection
Features & Benefits:
- Advanced Filtration Protection: The LVRCTL8WSPRO-FLP4 includes an NSF/ANSI 42, 53 & 401 certified filter that reduces Total PFAS, lead, microplastics and more for safer drinking water in high-traffic environments.

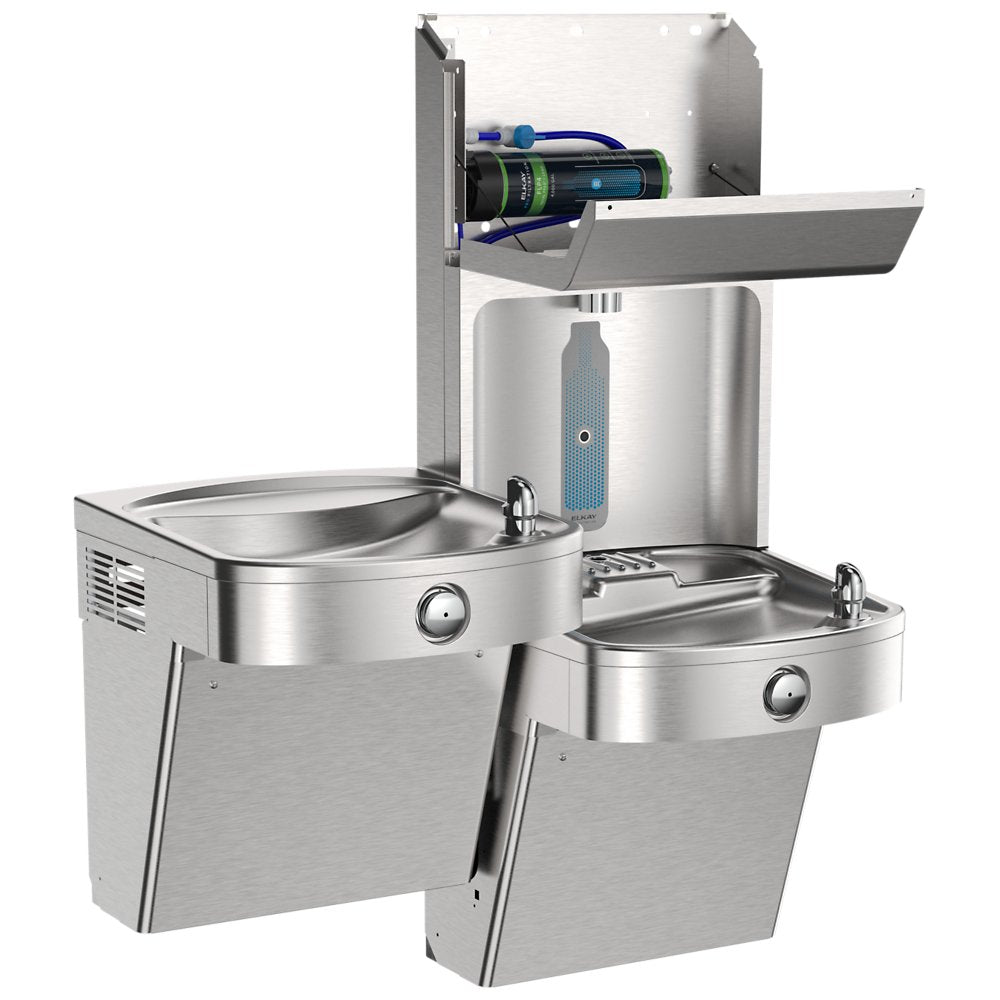

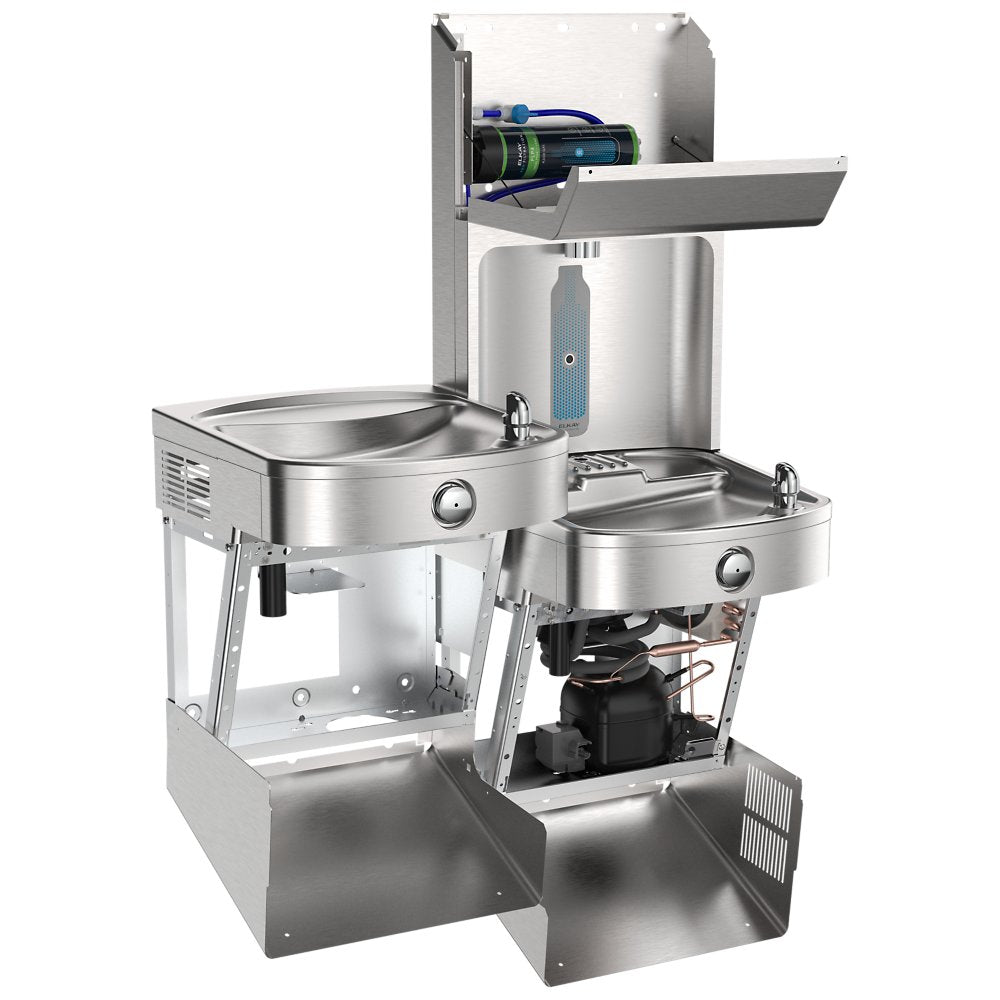

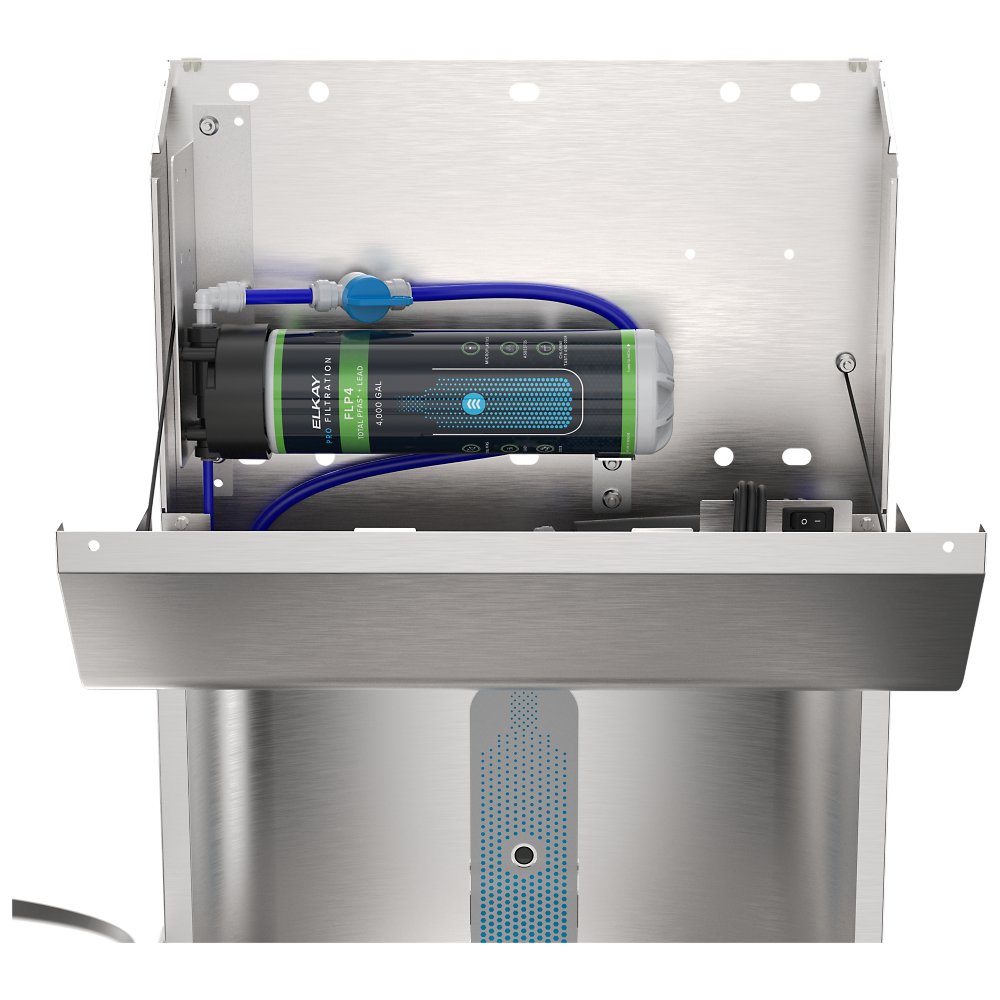

- Simplified Maintenance: Top-mount quick filter change system houses both stage 1 sediment prefilter and contaminant filter for faster, more efficient replacements with automatic filter recognition and flushing capabilities.
- Cloud-Connected Monitoring: Track filter status, monitor performance, anticipate maintenance needs and remotely flush the system from anywhere using plumbSMART Gateway connectivity for streamlined facility management.
- Environmental Impact: Green Ticker™ display shows the number of 20-ounce plastic bottles saved from waste, promoting sustainability while providing touchless, sensor-activated bottle filling at 1.0 GPM.
FAQ
Q: What contaminants does the included filter remove?
A: The included FLP4 filter is tested and certified to NSF/ANSI 42, 53 and 401 standards to reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, chlorine taste and odor, and other contaminants over its 4,000-gallon capacity.
Q: How does the cloud connectivity feature work?
A: The LVRCTL8WSPRO-FLP4 requires a plumbSMART Gateway (sold separately) and account to enable cloud connection. Once connected, facility managers can remotely monitor filter life, track performance data, receive maintenance alerts, and flush the system from any location.
Q: What makes this unit vandal-resistant?
A: The LVRCTL8WSPRO-FLP4 features a stainless steel alcove design, tempered glass display cover for protection, and a mechanical front bubbler button backup that provides operation even if electronic components are compromised, making it ideal for high-traffic public spaces.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
