Elkay LBWDCM0SSC-FM | Liv Built-in Filtered Mechanical Vandal Resis...
The Elkay LBWDCM0SSC-FM Liv Built-in Filtered Vandal-Resistant Mechanical Bottle Filling Station provides ambient filtered hydration in a vandal-resistant stainless steel design. Featuring mechanical activation, laminar flow, and a filter monitor, it is ideal for both indoor and outdoor installations where durability and reliability are essential.
Key Specifications:
| Design | Built-in filtered bottle filler with vandal-resistant construction and filter monitor |
| Finish | Stainless Steel (S) |
| Filtration | Includes standard 51300C WaterSentry® Replacement Filter 3,000-gallon filter certified to NSF/ANSI 42, 53, 372, and 401 for reduction of lead, microplastics, chlorine taste/odor, cysts, and particulates. |
| Refrigeration | Ambient (non-refrigerated) |
| Stations Served | Single bottle filling station |
Features & Benefits:
- Vandal Resistant: Heavy-duty stainless steel construction for high-traffic environments.
- Filtered Hydration: Certified filter reduces lead, microplastics, chlorine, and cysts.
- Mechanical Activation: Push-button operation ensures reliable dispensing without electronics.
- Filter Monitor: Alerts when filter replacement is required.
- Indoor/Outdoor Use: Designed for versatile installation with proper winterization in extreme climates.
What's Included:
- Elkay LBWDCM0SSC-FM Liv Built-in Filtered VR Mechanical Bottle Filling Station
- Stainless steel filter box
- 3,000-gallon WaterSentry® filter
- Installation manual
Comparison Table
| Feature | LBWDCM0SSC-FM Liv Built-in Filtered VR | LBWDC00BKC Liv Pro |
|---|---|---|
| Design | Built-in filtered bottle filler with vandal-resistant construction and filter monitor | Built-in filtered water dispenser with Green Ticker™ |
| Finish | Stainless Steel | Midnight Black |
| Filtration | Standard 3,000-gallon WaterSentry® filter, NSF/ANSI 42, 53, 372, 401 certified | Standard 3,000-gallon WaterSentry® filter, NSF/ANSI 42, 53, 372, 401 certified |
| Activation | Mechanical push-button activation | Electronic activation with Green Ticker™ |
| Best For | Indoor/outdoor installations requiring vandal resistance | Indoor installations needing sleek design and electronic monitoring |
FAQ
Q: What Is The Elkay LBWDCM0SSC-FM Liv Built-in Filtered VR Mechanical Bottle Filling Station Used For?
A: It provides ambient filtered hydration in vandal-resistant environments, suitable for schools, parks, and public facilities.
Q: What Filter Does The Elkay LBWDCM0SSC-FM Use?
A: It includes a 3,000-gallon WaterSentry® filter and is compatible with the 51300C Replacement Filter.
Q: Is The Elkay LBWDCM0SSC-FM Refrigerated?
A: No. It is an ambient (non-refrigerated) bottle filling station.
Q: Can The Elkay LBWDCM0SSC-FM Be Installed Outdoors?
A: Yes. It is designed for indoor and outdoor use, but must be properly winterized and protected from extreme climates.
Q: What Accessories Are Available For The Elkay LBWDCM0SSC-FM?
A: Optional accessories include the 51300C WaterSentry® Filter and Access Panel Assembly 2000002577.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LBWDCM0SSC‑FM Liv Built‑In Filtered Bottle Filler is a sleek, built‑in water dispenser designed for modern residential and commercial spaces. Featuring filtered water delivery and touchless activation, it provides a convenient and hygienic hydration solution with a flush‑mount design.

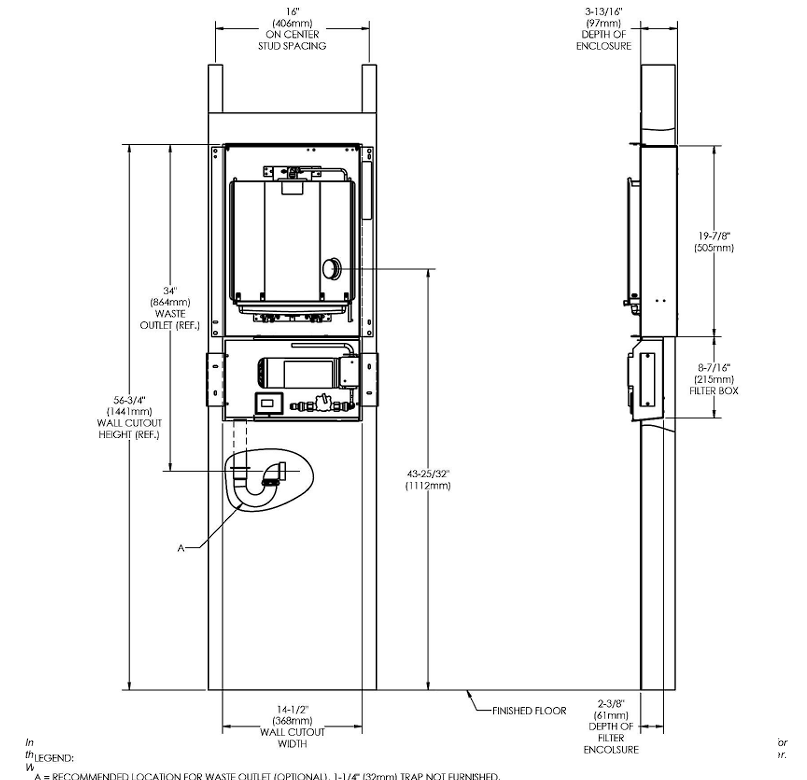

Key Installation Requirements:
- Flush‑mount installation into wall cavity
- Cold water line connection (35–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for condensate
- Clearance for filter replacement and servicing
- Follow ADA guidelines for installation height
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to resist vibration
Basic Installation Overview:
- Shut off water supply and depressurize system
- Prepare wall cavity and framing for flush‑mount installation
- Mount bottle filler securely into cavity using provided hardware
- Connect cold water supply line to inlet; flush line thoroughly
- Install filter cartridge into housing and lock into place
- Connect drain line to building drain system
- Wire electrical supply to grounded outlet; verify system powers on
- Test dispenser activation and water flow
- Install cover plates and finish trim
For complete specifications and installation guidelines, download the official LBWDCM0SSC‑FM Spec Sheet and the Installation Manual.
